Arduino LCD displays are among the most popular components for adding visual output to Arduino projects. However, many users encounter issues where the LCD screen does not display any text or shows unexpected behavior. This comprehensive guide explores common reasons why your Arduino LCD display might not be working, how to troubleshoot these problems, and practical solutions to get your display up and running smoothly.
Before diving into troubleshooting, it is important to understand the basics of Arduino LCD displays. The most common type is the 16x2 LCD, which can display 16 characters per line on two lines. These displays often come with either a parallel interface (using multiple data pins) or an I2C interface (using only two data pins plus power and ground), which simplifies wiring.
The parallel interface LCDs typically require more pins and wiring but offer straightforward control, while I2C LCDs reduce the number of pins needed by using a communication protocol that sends data serially. Knowing which type of LCD you have is crucial for proper wiring and coding.

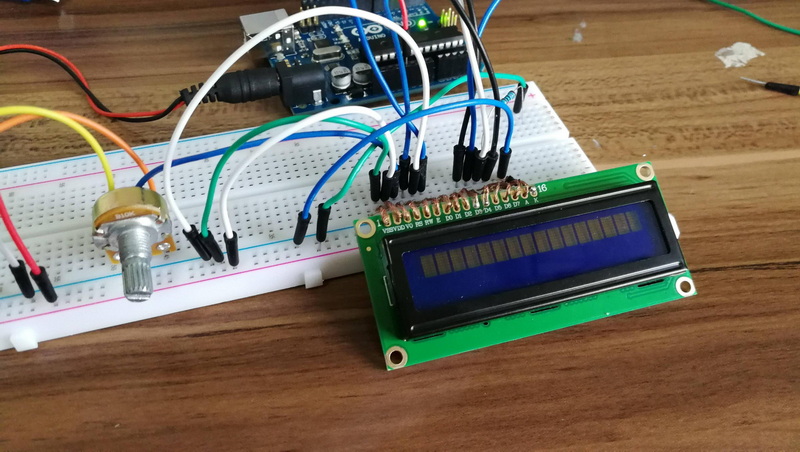

One of the most frequent causes of a non-working LCD display is incorrect wiring. This includes:
- Incorrect power and ground connections: The LCD's VCC pin must be connected to 5V on the Arduino, and GND to ground.
- Miswiring data and control pins: For parallel LCDs, pins like RS (Register Select), Enable, and data pins (D4-D7) must be connected correctly to Arduino digital pins. For I2C LCDs, SDA and SCL lines must connect to the correct Arduino pins (usually A4 and A5 on an Uno).
- Loose or poor connections: Jumper wires or breadboard connections may be loose or faulty, causing intermittent or no display.

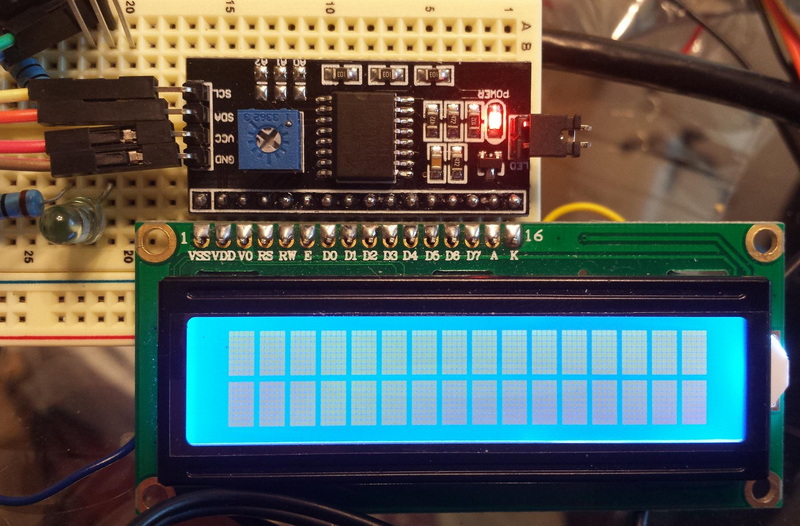

LCDs have a contrast pin (Vo) that controls the visibility of characters. If the contrast is not adjusted correctly, the screen may appear blank or show faint characters. This is usually adjusted via a potentiometer connected to the contrast pin. Without proper contrast, the characters might be invisible even though the LCD is powered and receiving data.
The Arduino code must correctly initialize the LCD with the right library and parameters. Common mistakes include:
- Using the wrong LCD address for I2C modules.
- Forgetting to initialize the LCD with `lcd.begin(columns, rows)`.
- Not turning on the backlight if required.
- Using incorrect pin numbers in the LiquidCrystal constructor for parallel LCDs.
- Failing to include the correct library or calling initialization functions in the wrong order.
If the Arduino or LCD is not receiving sufficient power, the display may fail to turn on or show characters. This can happen if the power source is unstable or insufficient, such as a weak USB power supply or a battery running low. Voltage drops can cause the LCD to behave erratically or remain blank.
Sometimes the LCD module itself may be defective due to manufacturing faults, damage (e.g., broken glass), or wear (e.g., backlight LEDs reaching end of life). Testing with another LCD can help isolate this issue. Additionally, components like the potentiometer or wiring cables may be faulty.
- Double-check all wiring against a reliable schematic for your LCD type (I2C or parallel).
- Ensure VCC and GND are connected correctly.
- For I2C, confirm SDA and SCL are connected to the correct Arduino pins.
- Check potentiometer wiring for contrast adjustment.
- Secure all jumper wires and breadboard connections to avoid loose contacts.
- Rotate the potentiometer connected to the contrast pin slowly while the display is powered on.
- Look for the appearance of blocks or faint characters on the screen.
- If no change occurs, verify the potentiometer wiring or try a different potentiometer.
- Use example sketches like "Hello World" from the Arduino IDE's LiquidCrystal library.
- For I2C LCDs, run an I2C scanner sketch to confirm the device address.
- Make sure to include the correct library (LiquidCrystal or LiquidCrystal_I2C) and initialize the LCD properly.
- Upload the sketch and observe the LCD for any output.
- Confirm the Arduino is powered via USB or a stable external source.
- Measure voltage at the LCD's power pins to ensure proper supply.
- If using batteries, check their charge level.
- Avoid powering the LCD from unstable or low-current sources.
- Look for physical damage or broken glass.
- Test the LCD with another Arduino or setup if available.
- If the backlight does not turn on, check the backlight pins or LED driver.
- Consider replacing the LCD if it is suspected to be faulty.
LCD Pin | Arduino Pin |
---|---|
GND | GND |
VCC | 5V |
SDA | A4 |
SCL | A5 |
LCD Pin | Arduino Pin |
---|---|
1 (GND) | GND |
2 (VCC) | 5V |
3 (Vo) | Potentiometer middle pin |
4 (RS) | Digital Pin 12 |
5 (RW) | GND |
6 (EN) | Digital Pin 11 |
11-14 (D4-D7) | Digital Pins 5, 4, 3, 2 |
15 (Backlight +) | 5V (via resistor if needed) |
16 (Backlight -) | GND |
- Use a potentiometer for contrast adjustment: This allows fine-tuning the display visibility in different lighting conditions.
- Secure connections: Use soldered headers or reliable jumper wires to avoid loose contacts.
- Use the correct library: For I2C LCDs, the LiquidCrystal_I2C library is essential; for parallel LCDs, use LiquidCrystal.
- Check device addresses: I2C devices may have different addresses depending on the manufacturer. Running an I2C scanner helps identify the correct address.
- Power considerations: Ensure your power supply can provide stable 5V at sufficient current, especially if powering additional components.
- Test incrementally: Start with a simple "Hello World" sketch before adding complexity.
- Use a multimeter: Check continuity on wiring and verify voltage levels at LCD pins.
- Use a logic analyzer or oscilloscope: For advanced users, these tools can confirm data signals on the I2C bus or parallel data pins.
- Check for library conflicts: Sometimes other libraries or code may interfere with LCD operation. Test the LCD code in a clean sketch.
- Try different Arduino boards: If possible, test the LCD with another Arduino to rule out board issues.
- Inspect the solder joints: On the LCD module or I2C backpack, cold or broken solder joints can cause failures.
An Arduino LCD display not working is a common but solvable problem. The key is to systematically check wiring, contrast settings, code correctness, and power supply. Using the right libraries and ensuring proper initialization are essential. If hardware faults are suspected, testing with alternative components can help isolate the issue. With careful troubleshooting, your Arduino LCD can reliably display information and enhance your projects.
This usually indicates incorrect contrast settings or wiring issues. Adjust the potentiometer connected to the contrast pin. Also, verify all wiring and code initialization.
Run an I2C scanner sketch on your Arduino. It will display the address of all connected I2C devices. Use this address in your code.
This often results from incorrect wiring of data pins or using the wrong library or pin assignments in code. Double-check wiring and ensure you use the correct LiquidCrystal library and constructor parameters.
No. Different LCDs may require different initialization parameters or libraries. For example, I2C LCDs need the LiquidCrystal_I2C library, while parallel LCDs use LiquidCrystal.
Try testing with another LCD module or Arduino board. If the problem persists, the LCD might be faulty. Also, check your power supply and connections carefully.
This can be caused by loose wiring, electrical noise, or incorrect timing in the code. Secure all connections and add delays if necessary.
Some LCD modules have a fixed internal contrast, but most require a potentiometer to adjust contrast properly. Without it, the display may remain blank or unreadable.
