In the fast-evolving world of digital displays, understanding the myriad of screen technologies is essential for professionals and enthusiasts alike. Among the various resolutions and formats, the WVGA LCD display stands out as a practical and versatile solution for a wide range of applications. But what exactly is a WVGA LCD display? How does it work, where is it used, and why does it remain relevant in today's tech landscape?
WVGA stands for Wide Video Graphics Array, a display resolution standard commonly set at 800 x 480 pixels. The “wide” aspect refers to its 16:9 or 15:9 aspect ratio, which is broader than the original VGA standard. LCD, or Liquid Crystal Display, is a flat-panel technology that uses liquid crystals and a backlight to produce images.

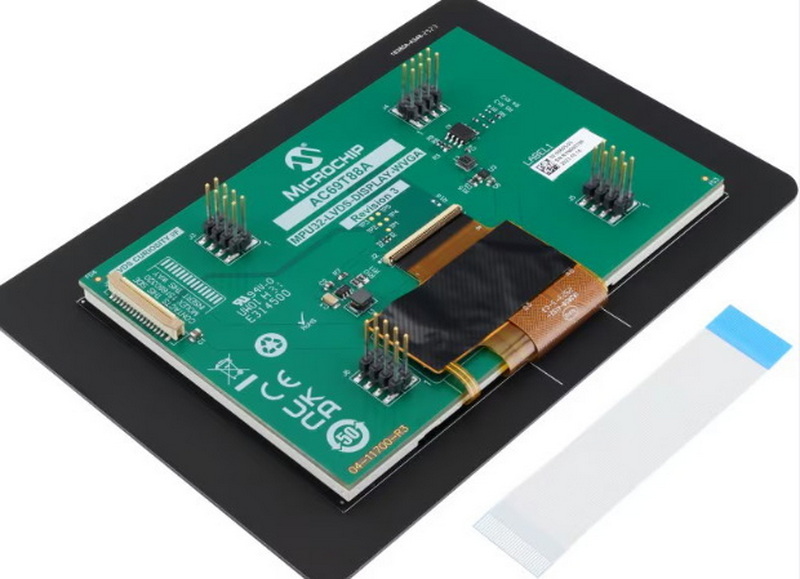

A WVGA LCD display, therefore, is a screen that combines the WVGA resolution with LCD technology, offering a wide-format, moderate-resolution display suitable for various multimedia, industrial, and embedded applications.
- Resolution: 800 x 480 pixels (WVGA standard); some variants like FWVGA use 854 x 480 pixels for a true 16:9 aspect ratio.
- Aspect Ratio: Typically 16:9, providing a widescreen viewing experience ideal for video playback and modern user interfaces.
- Color Depth: Ranges from 262K colors (6-bit) to 16.7 million colors (8-bit), depending on the controller and panel type.
- Pixel Pitch: Varies by screen size; for example, a 4.3-inch WVGA LCD may have a pitch of 0.116 mm.
- Brightness: Can range from 200 cd/m² to over 2500 cd/m², with high-brightness options for outdoor use.
- Contrast Ratio: Typically between 120:1 to 1000:1, depending on the panel and backlight technology.
- LED Backlight: Most modern WVGA LCDs use LED backlighting for improved brightness, color vibrancy, and energy efficiency.
- Common Interfaces: RGB (parallel or TTL), LVDS (Low Voltage Differential Signaling), and sometimes HDMI or MIPI for advanced modules.
- Touch Options: Resistive and capacitive touch panels are both available, supporting single or multi-touch functionality.
LCDs operate by manipulating liquid crystals sandwiched between two polarizing filters and glass substrates. When voltage is applied, the crystals align to allow varying amounts of light to pass through, creating images. The WVGA resolution determines how many pixels are used to render these images, directly impacting clarity and detail.
LED backlights provide the necessary illumination, while color filters and active matrix (TFT) technology enable vibrant, full-color images. The display controller manages the flow of data to each pixel, synchronizing with the device's graphics processor.
Many WVGA LCDs incorporate touch technology:
- Resistive Touch: Uses pressure-sensitive layers, works with gloves/styluses, and is durable for industrial settings.
- Capacitive Touch: Detects electrical conductivity, supports multi-touch gestures, and offers higher clarity and responsiveness.
TFT LCDs use an active matrix of thin-film transistors to control each pixel, resulting in faster response times, better color accuracy, and wider viewing angles compared to passive matrix displays.
IPS panels are a subtype of TFT LCDs, offering even wider viewing angles and improved color consistency, making them ideal for medical, industrial, and multimedia applications.
LED backlighting enhances brightness and energy efficiency, extending the usability of WVGA displays in outdoor or high-ambient-light environments.
- Wide Aspect Ratio: Perfect for video, modern GUIs, and side-by-side data display.
- Moderate Resolution: Balances clarity with low power consumption and cost, making it ideal for embedded and portable devices.
- Touchscreen Support: Available with both resistive and capacitive options, adaptable to various use cases.
- Customization: Can be tailored for brightness, touch sensitivity, interface type, and mechanical integration.
- Wide Operating Temperature: Many models function reliably from -30°C to +85°C, suitable for industrial and automotive environments.
- Durability: Industrial-grade options offer water and dust resistance (e.g., IP65 rating).
- Smartphones and Tablets: Entry-level and budget models often use WVGA screens for basic multimedia and app usage.
- Portable Media Players and GPS Devices: WVGA offers enough clarity for maps and video playback without excessive battery drain.
- Infotainment and Navigation: Many car head units and dashboard displays use WVGA LCDs for navigation, media, and control interfaces.
- Rear Seat Entertainment: WVGA screens provide cost-effective, clear visuals for passengers.
- Control Panels: Used in manufacturing automation, public transport, and kiosks for reliable, clear interfaces.
- Medical Monitors: Portable diagnostic and patient monitoring devices utilize WVGA for essential data display and touch interaction.
- POS Terminals and Kiosks: WVGA LCDs are common in point-of-sale systems and self-service kiosks, balancing cost and performance.
- Digital Signage: Suitable for compact, interactive signage in retail environments.

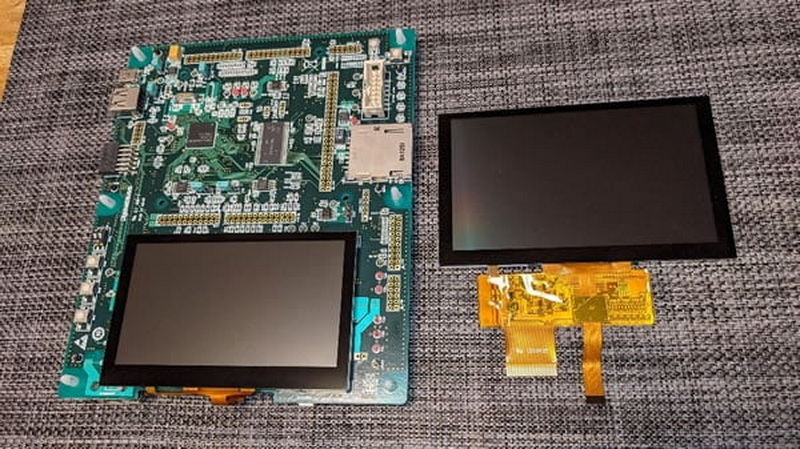

- Development Boards: Frequently used in microcontroller and single-board computer projects (e.g., Arduino, Raspberry Pi).

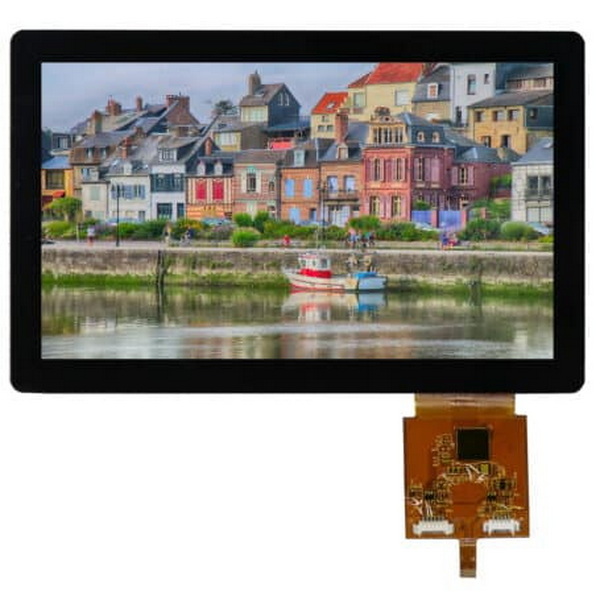

Resolution | Pixels (W x H) | Aspect Ratio | Typical Use Cases | Clarity | Power Consumption | Cost |
---|---|---|---|---|---|---|
QVGA | 320 x 240 | 4:3 | Old mobile, simple UI | Low | Very Low | Lowest |
VGA | 640 x 480 | 4:3 | Early PCs, legacy devices | Moderate | Low | Low |
WVGA | 800 x 480 | 16:9 | Automotive, industrial | Moderate+ | Moderate | Moderate |
FWVGA | 854 x 480 | 16:9 | Media players, phones | Moderate+ | Moderate | Moderate |
WXGA | 1280 x 800 | 16:10 | Laptops, tablets | High | Higher | Higher |
Full HD | 1920 x 1080 | 16:9 | TVs, monitors | Very High | Highest | Highest |
Modern WVGA LCD modules can be customized for specific applications:
- Touch Panel Type: Choose between resistive, capacitive, or no touch.
- Brightness and Contrast: Tailor for indoor or outdoor visibility.
- Interface: Select from RGB, LVDS, HDMI, or MIPI, depending on system requirements.
- Mechanical Design: Custom cover lens, mounting frames, and ruggedization for harsh environments.
- Optical Enhancements: Anti-glare, anti-fingerprint, and anti-bacterial coatings are available for specialized use cases.
- Resolution Ceiling: WVGA's 800 x 480 pixel count may not suffice for high-detail applications like advanced graphics or dense data visualization.
- Market Shift: As consumer demand for higher resolutions increases, WVGA is gradually being replaced in premium devices by HD and Full HD panels.
- Viewing Angle and Color: Lower-end TN-type WVGA LCDs may have limited viewing angles and color reproduction compared to IPS or OLED alternatives.
Despite the push towards higher resolutions, WVGA LCDs continue to evolve:
- Enhanced Touch Integration: On-cell and in-cell touch technologies reduce thickness and improve responsiveness.
- Improved Backlighting: Advanced LED arrays boost brightness and energy efficiency.
- Ruggedization: More models are being designed for extreme environments, with better sealing and durability.
- Smart Integration: WVGA displays are increasingly paired with smart controllers and IoT connectivity for modern industrial and automotive systems.
In the industrial sector, WVGA LCD displays are frequently deployed in human-machine interfaces (HMIs), control panels, and monitoring systems. Their moderate resolution is more than sufficient for displaying process data, alarms, and control options, while their rugged construction ensures reliability in environments with vibration, dust, or temperature extremes. Touchscreen integration allows operators to interact quickly and intuitively with complex machinery, reducing training time and minimizing errors.
Outdoor kiosks, parking meters, and ticketing machines benefit from the high-brightness and wide-temperature-range capabilities of industrial-grade WVGA LCDs. Sunlight-readable models with anti-glare coatings ensure visibility even in direct sunlight, while water- and dust-resistant enclosures protect the display from weather and vandalism.
Medical devices such as portable ultrasound machines, patient monitors, and diagnostic analyzers rely on WVGA LCDs for their balance of clarity, power efficiency, and compact size. The ability to integrate capacitive or resistive touchscreens allows for sterile, glove-friendly operation, which is essential in clinical environments. The moderate resolution is ideal for displaying vital signs, waveforms, and menu navigation without overwhelming the user with unnecessary detail.
In the automotive industry, WVGA LCDs have become a standard for dashboard displays, infotainment systems, and rear-seat entertainment units. Their wide aspect ratio matches the design language of modern vehicles, enabling split-screen views for navigation, media, and vehicle status information. The combination of touch functionality and responsive graphics enhances the user experience for both drivers and passengers.
For educational kits, development boards, and DIY electronics, WVGA LCD modules are a popular choice due to their affordability and ease of integration. Students and hobbyists can use these displays to create interactive projects, such as custom handheld devices, portable gaming consoles, and smart home controllers. The availability of open-source libraries and resources further simplifies development, making WVGA LCDs accessible to a wide audience.
When selecting a WVGA LCD for a new product or project, several factors should be considered:
- Display Size: WVGA LCDs are available in sizes ranging from 3.5 inches to 10.1 inches or larger. The optimal size depends on the intended application and available space.
- Interface Compatibility: Ensure the chosen display supports the communication protocol of your mainboard or microcontroller, such as RGB, LVDS, or HDMI.
- Power Requirements: Consider the voltage and current needs, as well as the efficiency of the backlight, to optimize battery life in portable devices.
- Environmental Resistance: For outdoor or industrial use, select models with high IP ratings, wide temperature ranges, and enhanced durability features.
- Touchscreen Type: Decide between resistive (for gloves and styluses) or capacitive (for multi-touch and high clarity) based on user interaction needs.
- Mounting and Mechanical Integration: Evaluate the display's frame, bezel, and mounting options to ensure secure installation and ease of maintenance.
The moderate resolution and wide aspect ratio of WVGA LCDs influence user interface (UI) design. Developers should optimize layouts for clarity, ensuring that text, icons, and interactive elements are easily readable and accessible. For touch-enabled displays, button sizes and spacing should accommodate finger or stylus input, minimizing accidental touches.
Color schemes should be chosen to maximize contrast and visibility, particularly for outdoor or high-ambient-light environments. Responsive design principles help ensure that the interface remains intuitive across different device orientations and usage scenarios.
WVGA LCDs are generally more energy-efficient than higher-resolution panels, making them suitable for battery-powered devices and applications where power consumption is a concern. LED backlighting further reduces energy usage and extends display lifespan. For solar-powered or remote installations, the lower power draw of WVGA LCDs can be a significant advantage.
Manufacturers are increasingly focusing on eco-friendly materials and processes, aiming to reduce the environmental impact of display production and disposal. Recyclable components, lead-free solder, and energy-efficient manufacturing practices are becoming standard in the industry.
The longevity of a WVGA LCD display depends on several factors, including the quality of the backlight, the robustness of the touch layer, and the environmental conditions in which it operates. Industrial and automotive-grade displays are designed for extended lifespans, often exceeding 50,000 hours of continuous operation. Regular cleaning, proper ventilation, and protection from extreme conditions can further extend the usable life of the display.
WVGA LCD displays represent a balanced, cost-effective, and versatile solution for a wide range of electronic devices. Their moderate resolution, wide aspect ratio, and adaptability make them suitable for automotive, industrial, medical, and consumer applications. While higher resolutions are gaining ground in premium markets, WVGA remains a practical choice where power consumption, durability, and affordability are key.
As technology advances, WVGA LCDs are also evolving—incorporating better touch integration, brighter backlights, and enhanced ruggedness. For many embedded, industrial, and automotive applications, WVGA LCD displays continue to offer the ideal mix of performance, reliability, and value.
WVGA stands for Wide Video Graphics Array, a display resolution standard typically set at 800 x 480 pixels, offering a wide aspect ratio suitable for modern user interfaces and video playback.
WVGA LCDs provide a good balance between display clarity, power consumption, and cost. They support touchscreen integration, wide aspect ratios, and are available in ruggedized versions for industrial and automotive use.
They are widely used in automotive infotainment systems, industrial control panels, medical monitors, retail kiosks, and entry-level consumer electronics like smartphones and tablets.
Resistive touchscreens respond to pressure and can be operated with gloves or styluses, making them suitable for harsh environments. Capacitive touchscreens detect electrical conductivity, support multi-touch, and offer higher sensitivity and clarity.
Yes, manufacturers offer customization options for touch panel type, brightness, interface, mechanical design, and optical enhancements to meet the requirements of different industries and environments.
