The contrast ratio of an LCD display is one of the most crucial specifications determining image clarity, color vibrancy, and overall viewing experience. Whether you are a display engineer, a tech enthusiast, or simply a consumer choosing a new monitor or TV, understanding what the LCD display contrast ratio means—and how it impacts your daily interactions with screens—is essential. This comprehensive guide explores every facet of LCD contrast ratio, including its definition, measurement methods, influencing factors, optimization techniques, and practical implications across different applications.

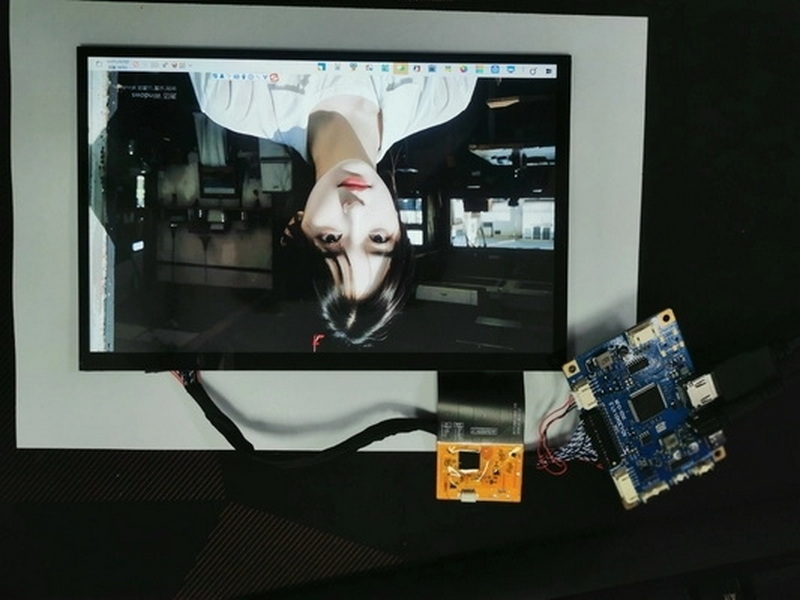

The LCD display contrast ratio is defined as the ratio between the luminance (brightness) of the brightest white and the darkest black a display can produce. It is typically expressed as a ratio, such as 1000:1, meaning the brightest white is 1000 times brighter than the darkest black.
A higher contrast ratio indicates a greater ability to display deep blacks and brilliant whites simultaneously, resulting in images that appear more vivid, detailed, and lifelike. Conversely, a low contrast ratio can make images look flat, washed out, or difficult to distinguish, especially in darker scenes.
The basic formula for contrast ratio is:
For example, if an LCD display has a maximum white luminance of 500 cd/m² and a minimum black luminance of 0.5 cd/m², the contrast ratio is:
There are several methods for measuring contrast ratio, each with its own advantages and limitations:
- ANSI Method: Uses a checkerboard pattern of black and white squares to measure simultaneous contrast. This method is widely accepted for monitors and provides a realistic assessment of display performance in typical usage.
- Full On/Full Off (Dynamic) Method: Measures the brightness of an all-white screen and an all-black screen separately. This method can yield higher (sometimes inflated) contrast ratios, especially when dynamic backlight adjustments are used.
- Real-World Conditions: Actual perceived contrast can be affected by ambient lighting, viewing angle, and screen reflections, making real-world contrast often lower than laboratory measurements.
- Definition: The ratio of the brightest white to the darkest black that the display can produce simultaneously at any instant.
- Significance: Represents the inherent hardware capability of the display and is the most reliable indicator of real-world performance.
- Definition: The ratio between the brightest white and darkest black the display can produce over time, often by dynamically adjusting the backlight or image processing algorithms.
- Significance: Can achieve much higher numbers but may not accurately reflect actual image quality, as it relies on software tricks rather than hardware capability.
LCD displays typically have the following contrast ratio ranges:
| Display Type | Typical Static Contrast Ratio | Dynamic Contrast Ratio (Advertised) |
|---|---|---|
| TN LCD | 400:1 – 1000:1 | Up to 10,000:1 or more |
| IPS LCD | 800:1 – 1500:1 | Up to 50,000:1 or more |
| VA LCD | 2000:1 – 4000:1 | Up to 100,000:1 or more |
Mainstream LCDs usually offer static contrast ratios between 400:1 and 1000:1, while high-end models may reach up to 3000:1 or more. However, dynamic contrast ratios advertised by manufacturers can be much higher due to backlight dimming and algorithmic enhancements.
A high contrast ratio is fundamental for several reasons:
- Sharper Images: Deep blacks and bright whites enhance clarity, making every detail stand out.
- Vivid Colors: Higher contrast allows for richer color reproduction and more natural gradients.
- Better Visibility: Essential for readability in both bright and dim environments.
- Immersive Experience: Critical for movies, gaming, and graphic design, where subtle details and realism matter.
- Reduced Eye Strain: Proper contrast can make viewing more comfortable, especially over extended periods.
Several factors influence the contrast ratio of an LCD display:
- Backlight Quality: Since LCDs rely on a backlight, the inability to fully block light in dark areas limits black levels and thus the contrast ratio.
- Panel Technology: Different LCD types (TN, IPS, VA) have varying abilities to control light leakage and thus different contrast capabilities.
- Polarizer Efficiency: High-quality polarizers can significantly improve contrast, especially in negative displays.
- Driving Voltage: Optimizing the voltage applied to the LCD can enhance contrast by maximizing the difference between on and off states.
- Viewing Angle: Contrast can degrade when viewed off-axis, particularly in TN panels.
- Ambient Lighting: Reflections and ambient light can reduce perceived contrast, making images appear washed out.
- Display Mode: Switching between positive and negative display modes, or using advanced LCD modes like FSTN or IPS, can affect contrast.
- Optimize Driving Voltage: Adjusting the voltage for the specific LCD and viewing angle can maximize contrast.
- Use Better Polarizers: High-efficiency polarizers improve both reflective and transmissive contrast.
- Panel Selection: Choose panel types (e.g., VA or IPS) with inherently higher contrast for your application.
- Black Masking: Adding black masks can block light leakage, improving perceived contrast, especially in negative displays.
- Increase Pixel Size: Larger segments or pixels and smaller gaps between them can improve contrast.
- Upgrade Liquid Crystal Material: Advanced liquid crystal formulations offer steeper transitions between on and off states, enhancing contrast.
- Premium Orientation Layers: High-quality alignment layers ensure uniform molecular orientation, leading to better contrast.
- Dynamic Backlight Control: Algorithms can dim the backlight in dark scenes and boost it in bright scenes, increasing dynamic contrast.

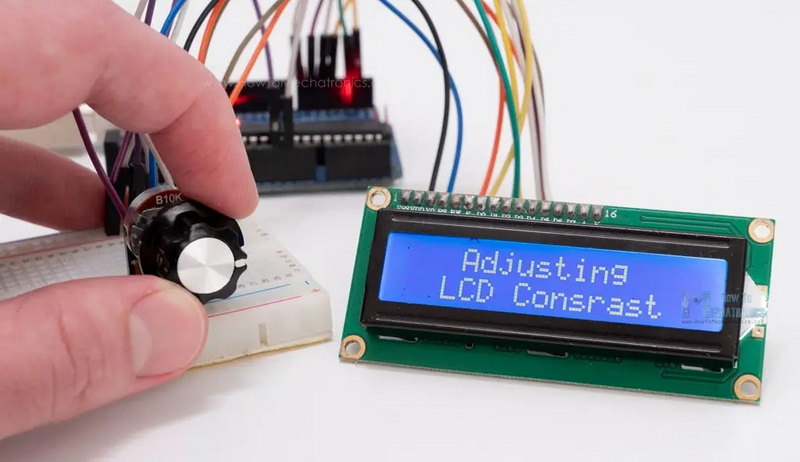

- Contrast Adjustment Menus: Allowing users to fine-tune contrast via on-screen menus can help achieve optimal settings for different environments.
| Technology | Typical Static Contrast | Black Level | Color Performance | Cost | Burn-in Risk |
|---|---|---|---|---|---|
| LCD (TN/IPS/VA) | 400:1 – 4000:1 | Moderate | Good (IPS best) | Low to Medium | None |
| OLED | Infinite (theoretically) | True black | Excellent | High | Yes |
| QLED | 3000:1 – 7000:1 | Good | Very Good | High | None |
| LED (Direct) | 3000:1 – 10000:1 | Excellent | Excellent | High | None |
- LCDs are affordable and widely used but limited by backlight technology.
- OLEDs provide perfect blacks and infinite contrast but are expensive and can suffer from burn-in.
- QLEDs and LEDs offer high brightness and good contrast, making them suitable for bright environments.
- Office and Productivity: A contrast ratio of 1000:1 is generally sufficient for reading, browsing, and standard office tasks.
- Medical and Industrial: Higher contrast ratios (600:1 to 1000:1 or more) are needed for precise grayscale and detail visibility.
- Home Entertainment: For movies and gaming, higher contrast (3000:1 or above) delivers a more immersive experience.
- Outdoor/Public Displays: High contrast is essential for readability in bright sunlight, with 3000:1 or higher recommended.
The color depth, or the number of bits used to represent each pixel, can influence the perceived contrast of an LCD. Displays with higher bit depth (such as 10-bit panels) can show smoother gradients between shades, reducing visible banding and making transitions between dark and light areas appear more natural. This enhances perceived contrast, especially in scenes with subtle shading.
Some advanced LCDs use local dimming, where the backlight is divided into multiple zones that can be dimmed or brightened independently. This technology allows for deeper blacks in specific areas of the screen, boosting the effective contrast ratio. However, the number of zones and the quality of the dimming algorithm greatly impact the effectiveness of this feature.
Anti-glare and anti-reflective coatings can reduce the impact of ambient light, helping to maintain higher perceived contrast in bright environments. Glossy screens may offer higher contrast in controlled lighting but can suffer from reflections, while matte screens reduce glare but may slightly lower perceived contrast.
Over time, the backlight and polarizers in an LCD can degrade, leading to reduced contrast. High-quality materials and careful usage can extend the life of a display and help maintain its contrast performance for longer periods.
For professional applications such as photography, video editing, and medical imaging, precise calibration of contrast and brightness is essential. Calibration tools and software can help ensure that the display is showing accurate blacks, whites, and color gradients, which is critical for tasks that require color accuracy and detail recognition.
The LCD display contrast ratio is a key determinant of display quality, affecting everything from image clarity and color vibrancy to user comfort and application suitability. Understanding the difference between static and dynamic contrast, the factors that influence contrast, and the methods to optimize it can help you make informed decisions—whether you are selecting a new display, designing electronic products, or simply optimizing your viewing experience.
While higher contrast ratios generally lead to better image quality, the ideal value depends on your specific needs, environment, and budget. Always consider real-world conditions, not just manufacturer specifications, when evaluating displays. By considering factors such as panel technology, measurement methods, ambient conditions, and calibration, you can ensure that your LCD display delivers the best possible visual experience for your application.
A good static contrast ratio for general use is around 1000:1. For more demanding applications like gaming, medical imaging, or outdoor displays, higher ratios (3000:1 or more) are preferable for enhanced detail and visibility.
A higher contrast ratio allows for deeper blacks, brighter whites, and richer colors, resulting in sharper, more detailed, and more vibrant images. Low contrast ratios can make images appear flat, washed out, or hard to read.
Static contrast ratio measures the difference between the brightest and darkest colors the display can produce simultaneously. Dynamic contrast ratio measures this difference over time, often using backlight adjustments or image processing, and can be much higher but less indicative of real-world performance.
Yes, the contrast ratio can be optimized through hardware (adjusting voltage, using better polarizers, or selecting advanced panel types) and software (dynamic backlight control, on-screen menu adjustments).
OLED displays can turn individual pixels completely off, achieving true black and theoretically infinite contrast. LCDs rely on a backlight, which always emits some light, limiting their ability to produce deep blacks and thus their maximum contrast ratio.
