In the world of modern display technology, TFT and IPS LCD displays are two prominent types that power a vast array of devices from smartphones to monitors and televisions. Understanding these technologies is crucial for consumers, designers, and engineers alike to make informed decisions about the best display for their needs. This article delves deeply into what TFT and IPS LCD displays are, their working principles, advantages, disadvantages, applications, and how they compare with each other.
TFT stands for Thin-Film Transistor, and TFT LCD refers to Thin-Film Transistor Liquid Crystal Display. It is a type of active matrix LCD that uses thin-film transistor technology to control each pixel individually, significantly improving image quality, response time, and color accuracy compared to passive matrix LCDs.
Each pixel in a TFT LCD has its own transistor and capacitor, enabling precise control of the liquid crystal's alignment and the amount of light passing through it. This results in sharper images, higher contrast, and faster refresh rates.
The TFT LCD structure consists of multiple layers:
- Backlight: Usually composed of white LEDs that illuminate the display from behind.
- Polarizing filters: Positioned on both sides of the liquid crystal layer to control light polarization.
- Liquid Crystal Layer: Contains molecules that twist and align in response to electrical signals.
- Thin-Film Transistors: Control the voltage applied to each pixel.
- Color Filters: Red, green, and blue filters that produce the full spectrum of colors.
This layered structure allows TFT LCDs to deliver vibrant images with good brightness and contrast.
The concept of TFT technology was developed in the 1960s and 1970s, with key contributions from researchers at RCA and Westinghouse Laboratories. The first active matrix LCD using TFTs was demonstrated in the early 1970s, and since then, TFT LCDs have become the dominant display technology for high-resolution screens.
- High image quality: Sharp and clear images with good contrast.
- Fast response times: Suitable for video and gaming applications.
- Wide range of applications: Used in smartphones, TVs, monitors, automotive displays, and more.
- Cost-effective: Mature manufacturing processes make TFT LCDs affordable.
- Durability: TFT LCDs tend to have a longer lifespan compared to some newer display technologies, making them reliable for prolonged use.
- Limited viewing angles: Colors and contrast can shift when viewed from the side.
- Power consumption: Higher than some newer technologies like OLED.
- Sunlight readability: Can be challenging without additional treatments or higher brightness backlights.
- Color accuracy: While good, it is generally inferior to IPS panels, especially at wider viewing angles.

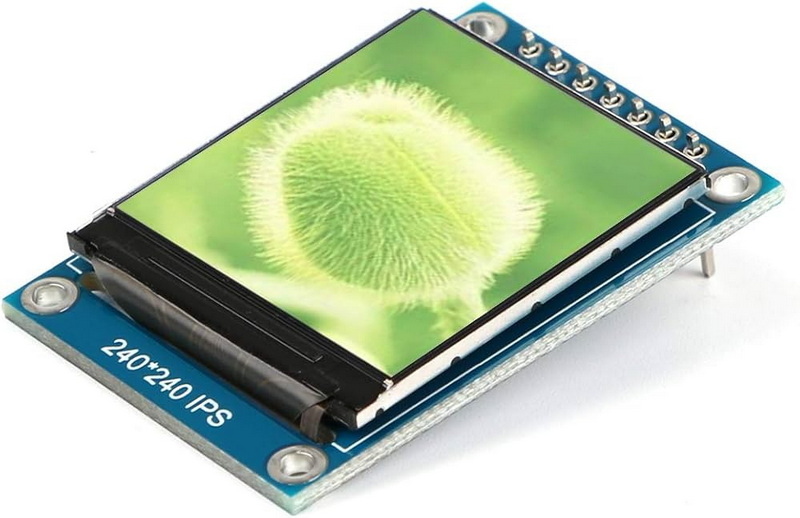

IPS stands for In-Plane Switching, a specific type of LCD panel technology that is actually a subtype of TFT LCD. IPS technology improves upon traditional TFT LCDs by changing the alignment and movement of liquid crystal molecules.
In IPS panels, liquid crystals are aligned parallel to the display plane and rotate horizontally when voltage is applied. This horizontal switching allows for:
- Wider viewing angles: Up to nearly 180 degrees with minimal color and contrast distortion.
- Better color accuracy and consistency: Colors remain vivid and true regardless of viewing angle.
- Improved brightness uniformity: More even light distribution across the screen.
- Reduced color shifting: Colors do not wash out or invert when viewed from sharp angles.
While all IPS displays are TFT LCDs, not all TFT LCDs are IPS. The key difference lies in the liquid crystal alignment and switching method. Traditional TFT LCDs (often TN, or Twisted Nematic panels) have liquid crystals that twist vertically, which limits viewing angles and color accuracy.
IPS technology addresses these limitations by enabling liquid crystals to switch in-plane, enhancing the visual experience significantly.
- Wide viewing angles: Ideal for collaborative work and multi-monitor setups.
- Superior color reproduction: Preferred for graphic design, photography, and video editing.
- Reduced image distortion: Maintains clarity and color fidelity even at extreme angles.
- Energy efficiency: IPS panels can be thinner and more power-saving due to optimized liquid crystal alignment.
- Better grayscale performance: IPS displays often show smoother gradients and less color banding.
- Improved contrast ratios: While not as high as OLED, IPS panels typically offer better contrast than standard TN panels.
- Slower response times: Slightly slower than some TFT variants, which can affect fast-motion video or gaming.
- Higher cost: More complex manufacturing leads to higher prices.
- Power consumption: Slightly higher than standard TFT LCDs under some conditions.
- Potential for backlight bleed: IPS panels sometimes exhibit uneven backlighting, especially around edges.
| Feature | TFT LCD (Standard) | IPS LCD (Subtype of TFT) |
|---|---|---|
| Liquid Crystal Alignment | Vertical twisting (TN panels) | Horizontal in-plane switching |
| Viewing Angles | Narrow, color shift at angles | Wide, up to 180 degrees, minimal distortion |
| Color Accuracy | Good, but less consistent | Superior, vivid, and accurate |
| Response Time | Faster, better for gaming | Slightly slower, but improving |
| Power Consumption | Moderate | Slightly higher due to backlight and alignment |
| Cost | Generally lower | Higher due to advanced technology |
| Applications | Budget devices, fast-response needs | Professional monitors, smartphones, TVs |
| Durability | Good | Good, but may have issues like backlight bleed |
| Contrast Ratio | Moderate | Better than TN, but less than OLED |
TFT LCDs are widely used in:
- Smartphones and tablets, especially in budget to mid-range models.
- Televisions, particularly in mid-range and some high-end models.
- Computer monitors for general office and home use.
- Portable gaming consoles where fast response times are important.
- Automotive dashboards and infotainment systems, where durability and cost are key.
- Digital cameras and camcorders, providing clear image previews.
- Wearable devices like smartwatches, balancing size and power.
- Industrial and medical equipment displays, where reliability is critical.
- Home appliances such as microwaves, washing machines, and refrigerators with digital interfaces.
Their balance of cost, image quality, and response time makes them versatile for many consumer and industrial uses.
IPS LCDs are preferred where color accuracy and viewing angles are critical:
- Professional graphic design and photo editing monitors, where color fidelity is paramount.
- Medical imaging systems requiring precise and consistent visuals.
- High-end smartphones and tablets aiming for superior display quality.
- Gaming monitors where color fidelity and viewing angles matter.
- Multi-monitor setups for trading floors, security surveillance, and air traffic control.
- Consumer electronics requiring wide-angle viewing and vivid colors, such as premium laptops and TVs.
- Virtual reality (VR) and augmented reality (AR) devices, where consistent color and clarity from various angles are essential.
TFT LCDs operate by controlling each pixel's liquid crystal alignment through individual thin-film transistors. When a voltage is applied, the liquid crystal molecules twist to either block or allow light from the backlight to pass through. The color filters then mix red, green, and blue light to produce the desired color for each pixel. This precise control enables high-resolution images and smooth video playback.
IPS technology modifies this by aligning liquid crystals parallel to the display surface. When voltage is applied, the crystals rotate horizontally within the plane, which prevents the color and contrast shifts common in traditional TFT LCDs when viewed from angles. This horizontal rotation ensures that light modulation is consistent across a wide range of viewing positions, resulting in superior color accuracy and viewing experience.
Both TFT and IPS LCD technologies continue to evolve. Manufacturers are developing faster switching liquid crystals for IPS panels to reduce response times, making them more competitive for gaming and video applications. Additionally, improvements in backlight technology, such as mini-LED and quantum dot enhancements, are boosting brightness, contrast, and color gamut for both TFT and IPS displays.
Moreover, flexible and curved displays are becoming more common, with IPS technology often favored due to its superior viewing angles and color consistency on non-flat surfaces.
While TFT and IPS LCDs consume more power than OLEDs in some scenarios, advances in LED backlighting and power management have reduced their energy footprint. IPS panels, due to their liquid crystal alignment, sometimes require stronger backlighting, but manufacturers optimize these systems to balance brightness and power consumption.
Recycling and disposal of LCD panels are important environmental concerns. The presence of mercury in older CCFL backlights has been replaced by LED backlights, which are more environmentally friendly. Responsible recycling programs are essential to minimize electronic waste impact.
TFT and IPS LCD displays are foundational technologies in modern digital screens. TFT LCDs provide a cost-effective, fast-response solution suitable for a wide range of devices, while IPS LCDs enhance this technology by offering superior color accuracy and wide viewing angles, making them ideal for professional and high-end consumer applications.
Understanding the differences between these technologies helps users choose the right display based on their needs—whether it is gaming, professional design, general use, or industrial applications. As display technology continues to evolve, both TFT and IPS LCDs remain relevant, balancing performance, cost, and visual quality.
TFT is a general technology for controlling pixels using thin-film transistors, while IPS is a specific type of TFT LCD that uses in-plane switching of liquid crystals to improve viewing angles and color accuracy.
Yes, IPS is a subtype of TFT LCD technology, meaning all IPS displays use thin-film transistors but with enhanced liquid crystal alignment.
Standard TFT LCDs often have faster response times, making them slightly better for fast-paced gaming, but IPS displays are catching up and offer better color and viewing angles.
Generally, IPS displays may consume slightly more power due to their backlight and liquid crystal alignment but advances in technology are minimizing this difference.
Some TFT LCDs are designed with brighter backlights or transflective technology to improve sunlight readability, but generally, they are less readable in direct sunlight compared to OLED displays.
