Introduction

An LED backlit LCD display is a type of liquid crystal display (LCD) that utilizes light-emitting diodes (LEDs) as its backlighting source instead of the traditional cold cathode fluorescent lamps (CCFLs). This technology has revolutionized the display industry, providing better energy efficiency, improved color accuracy, and a thinner profile for devices like televisions, computer monitors, and smartphones.

Overview of LCD Technology

Liquid crystal displays (LCDs) work by manipulating light to create images. The core of an LCD is made up of liquid crystals that can change their orientation when subjected to an electric current. However, LCDs do not emit light on their own; they require a backlight to illuminate the image. Traditionally, this backlight was provided by CCFLs, which have since been largely replaced by LEDs due to their numerous advantages.

How LED Backlit LCDs Work

LED backlit LCDs operate similarly to standard LCDs but with a crucial difference in their backlighting technology. Here's how they function:

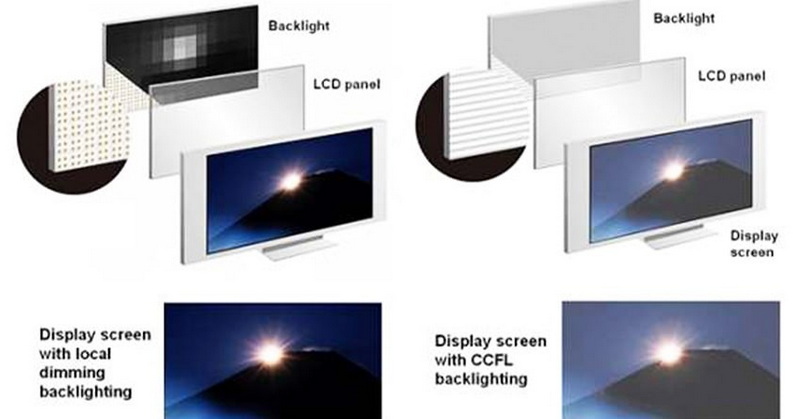

- Backlighting: In LED backlit displays, LEDs are used to illuminate the liquid crystals. There are two primary configurations for LED placement:

- Edge-Lit LEDs: LEDs are placed around the perimeter of the screen. A light guide plate helps distribute the light evenly across the display.

- Direct-Lit (or Full Array): LEDs are placed directly behind the LCD panel in a grid pattern. This configuration allows for better control over brightness and contrast through local dimming.

Advantages of LED Backlit LCD Displays

LED backlit LCD displays offer several significant benefits over their CCFL counterparts:

- Energy Efficiency: LED technology consumes significantly less power than CCFLs—typically about 20% to 30% less. This efficiency translates into lower electricity bills and a reduced carbon footprint.

- Thinner Design: The compact size of LEDs allows for thinner screens compared to older technologies. This is particularly advantageous for modern televisions and mobile devices.

- Longer Lifespan: LEDs have a much longer operational life, often exceeding 50,000 hours compared to CCFLs, which may last around 30,000 hours.

- Better Color Accuracy: LED backlighting can produce a wider color gamut and more vibrant colors. This is particularly noticeable in high-definition content.

- Reduced Heat Emission: LEDs generate less heat than CCFLs, making them safer and more comfortable to use in enclosed spaces.

Types of LED Backlit LCD Displays

There are two main types of LED backlit displays:

1. Edge-Lit Displays:

- Thinner and lighter.

- Uses fewer LEDs.

- May struggle with uniform brightness and contrast.

2. Direct-Lit Displays:

- Typically thicker but offers superior brightness uniformity.

- Supports local dimming for enhanced contrast ratios.

- Provides better overall picture quality.

Applications of LED Backlit LCD Displays

LED backlit LCD technology is widely used across various devices:

- Televisions: Most modern TVs utilize LED backlighting for improved picture quality and energy efficiency.

- Computer Monitors: Many monitors now feature LED backlighting for better color reproduction and reduced eye strain during long usage periods.

- Smartphones and Tablets: The lightweight and thin profile of LED backlit displays make them ideal for portable devices.

Innovations in LCD Technology

The evolution of LCD technology continues with innovations such as mini-LED and micro-LED technologies. These advancements aim to enhance brightness, contrast ratios, and overall picture quality:

- Mini-LED Technology: This approach uses thousands of tiny LEDs to illuminate the display, providing better control over brightness and contrast. Mini-LED displays offer deeper blacks, brighter whites, and improved picture quality while reducing the risk of burn-in associated with OLED screens.

- Micro-LED Technology: Micro-LEDs consist of individual tiny LEDs that can emit their own light, similar to OLEDs but without some drawbacks like burn-in. They promise higher brightness levels and better energy efficiency compared to traditional LCDs.

Quantum Dot Technology

Another significant advancement in display technology is quantum dot technology. By incorporating quantum dots into the display panels, manufacturers can achieve brighter colors and higher contrast ratios. This technology enhances the color gamut, making images more lifelike and immersive without the high cost associated with OLED displays.

Future Trends in Display Technology

As display technology continues to evolve, several trends are shaping its future:

1. Sustainability Focus: With growing concerns about environmental impact, manufacturers are prioritizing energy-efficient designs that consume less power without compromising performance.

2. Smart Displays Integration: As smart displays become more prevalent, integrating advanced backlighting solutions that adapt to various lighting conditions will be crucial for their development.

3. Enhanced Local Dimming Techniques: Innovations in local dimming techniques will allow for more precise control over lighting zones within displays, improving contrast ratios and overall visual performance.

4. Increased Use of AI in Display Calibration: Artificial intelligence may play a role in optimizing display settings based on user preferences and environmental conditions, enhancing the viewing experience further.

5. Wider Adoption of Mini-LED and Micro-LED Technologies: As production costs decrease and manufacturing processes improve, mini-LED and micro-LED technologies are expected to become mainstream options for consumers seeking high-quality displays.

Conclusion

In summary, LED backlit LCD displays represent a significant advancement in display technology. They combine the benefits of liquid crystal displays with modern LED lighting to provide users with brighter, more energy-efficient screens that enhance viewing experiences across various applications. Innovations such as mini-LED and quantum dot technologies promise even greater improvements in picture quality while maintaining energy efficiency. As we look ahead, it is clear that display technology will continue to evolve rapidly, offering exciting developments that will shape our visual experiences for years to come.

FAQ

1. What is the difference between an LED display and an LED-backlit LCD display?

An LED display refers to screens that use individual LEDs as pixels to create images, while an LED-backlit LCD uses LEDs solely as a backlight for liquid crystals that form images.

2. Are LED-backlit LCDs better than traditional LCDs?

Yes, LED-backlit LCDs offer improved energy efficiency, better color accuracy, thinner designs, and longer lifespans compared to traditional CCFL-backlit LCDs.

3. Can LED-backlit LCD displays achieve true blacks?

No, unlike OLED displays that can turn off individual pixels for true blacks, LED-backlit LCDs cannot completely block light from the backlight, which can result in some light bleed-through in dark scenes.

4. How do edge-lit and direct-lit displays differ?

Edge-lit displays have LEDs around the edges with light guides to distribute light evenly, while direct-lit displays have LEDs placed behind the screen for more uniform brightness and better contrast control through local dimming.

5. What are some common applications for LED-backlit LCD technology?

Common applications include televisions, computer monitors, smartphones, tablets, and other portable electronic devices where energy efficiency and image quality are important.
