Liquid Crystal Display (LCD) technology has been a cornerstone of modern screens, from smartphones and tablets to computer monitors and TVs. Among the various types of LCD panels, IPS (In-Plane Switching) displays stand out for their superior color accuracy, wide viewing angles, and overall image quality. This article provides an in-depth exploration of what LCD IPS displays are, how they work, their advantages and disadvantages, comparisons with other display technologies, and practical applications.
An LCD (Liquid Crystal Display) is a flat-panel display technology that uses liquid crystals sandwiched between two glass layers. These crystals manipulate light to create images, relying on a backlight to illuminate the screen.
IPS, or In-Plane Switching, is a specific type of LCD panel technology. Unlike traditional LCDs where liquid crystals twist vertically, IPS panels align liquid crystals parallel to the glass substrates. When voltage is applied, these crystals rotate horizontally within the plane of the screen, allowing light to pass through uniformly and producing clearer images with consistent colors.
In an IPS display, liquid crystals are arranged parallel to the glass substrates. When an electric field is applied, the crystals twist horizontally, enabling light to pass through evenly. This parallel alignment reduces light scattering and color shifting, resulting in more accurate color reproduction and wider viewing angles compared to other LCD types.
One of the most significant advantages of IPS displays is their wide viewing angles, typically up to 178 degrees horizontally and vertically. This means the image quality, color, and contrast remain consistent even when viewed from extreme angles, making IPS ideal for collaborative work environments and multimedia consumption.
IPS panels can display 8-bit color depth, showing 256 shades of each primary color without dithering. This results in vibrant, natural, and precise color reproduction, which is crucial for professional tasks such as photo editing, graphic design, and video production. IPS displays often cover a large portion of color gamuts like sRGB and AdobeRGB.
Thanks to the horizontal alignment of liquid crystals, IPS panels provide consistent brightness and contrast across the screen. They minimize issues like color distortion and gray scale inversion that are common in other LCD types like TN (Twisted Nematic).
IPS displays, combined with powerful LED backlighting, offer better visibility under direct sunlight compared to TN or VA panels. This makes them suitable for outdoor or brightly lit environments.
While not as fast as TN panels, modern IPS displays have improved response times that are stable and consistent, suitable for most gaming and multimedia applications.
Many IPS displays support wide color gamuts beyond sRGB, such as AdobeRGB and DCI-P3, which are essential for accurate color work in photography and cinema. This capability allows users to see colors as close to real life as possible.
IPS panels maintain uniform brightness and contrast levels across the entire screen, avoiding the "color shift" or "washed-out" effects seen in other panel types when viewed off-angle.

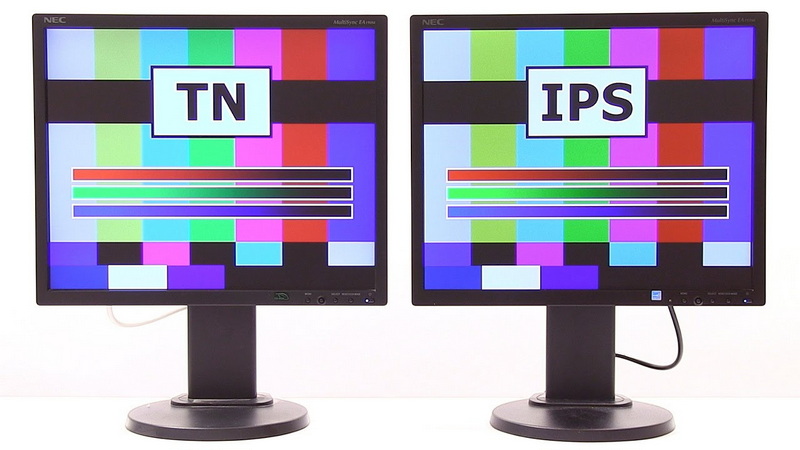

Feature | IPS (In-Plane Switching) | TN (Twisted Nematic) | VA (Vertical Alignment) |
---|---|---|---|
Viewing Angles | Up to 178°, best among LCD types | Narrow, color shifts at angles | Wide, but less than IPS |
Color Accuracy | Excellent, 8-bit color depth | Poorer, often 6-bit with dithering | Good, better contrast but less color accuracy |
Contrast Ratio | Good, but lower than VA | Lowest contrast | Highest contrast |
Response Time | Moderate, improved over time | Fastest, best for gaming | Slowest |
Price | Higher cost due to advanced tech | Cheapest | Mid-range |
Best Use | Professional graphics, general use | Competitive gaming | General use, media consumption |
IPS panels provide the best balance of color accuracy and viewing angles, making them preferred for professional and multimedia use, whereas TN panels excel in fast response times for gaming, and VA panels offer better contrast for darker images.
- Professional Monitors: Graphic design, photography, and video editing require accurate color reproduction and wide viewing angles, making IPS the top choice.
- Smartphones and Tablets: Many high-end mobile devices use IPS panels for vibrant displays.
- Televisions: IPS technology is used in TVs to provide consistent image quality across wide viewing angles.
- Gaming Monitors: Some IPS monitors now offer high refresh rates and low input lag suitable for gaming.
- Industrial and Medical Displays: Where precise color and image clarity are essential.
- Wide viewing angles with minimal color shift.
- High color accuracy and wide color gamut.
- Consistent brightness and contrast.
- Suitable for professional and multimedia use.
- Good visibility in various lighting conditions.
- Reduced color distortion compared to other LCD types.
- Improved durability and longevity compared to older LCD technologies.
- Higher power consumption compared to TN panels.
- More expensive to manufacture and purchase.
- Contrast ratio is generally lower than VA panels.
- Some IPS panels may exhibit IPS glow, a slight glowing effect near screen edges in dark scenes.
- Response times, although improved, may still lag behind TN panels in ultra-fast gaming scenarios.
- IPS Glow: A faint glow near the corners of the screen, more visible in dark scenes. This phenomenon is due to the way light passes through the panel and can be minimized by adjusting ambient lighting, reducing screen brightness, or changing the viewing angle.
- Backlight Bleed: Light leakage from the edges causing uneven brightness, often noticeable in dark environments. Proper calibration and quality control can reduce this issue.
- Dead Pixels: Pixels that do not display correctly; sometimes fixable with pixel-fixing software or gentle pressure techniques.
- Temporary Image Retention: Unlike permanent OLED burn-in, IPS displays may show temporary ghost images that usually disappear after the screen content changes.
- Color Banding: In some lower-quality IPS panels, subtle gradients may show visible bands of color instead of smooth transitions. Higher-quality IPS displays usually mitigate this.
LCD IPS displays represent a significant advancement in screen technology, offering wide viewing angles, superior color accuracy, and consistent image quality. These features make IPS panels the preferred choice for professionals in graphic design, photography, and video editing, as well as for general multimedia consumption. While they come at a higher cost and slightly increased power consumption compared to other LCD types, the benefits in visual performance are substantial. Understanding the workings, advantages, and limitations of IPS technology can help consumers and professionals make informed decisions when selecting displays for their needs.
IPS technology continues to evolve, with improvements in response times, color reproduction, and energy efficiency, ensuring it remains a dominant display choice in a variety of devices. Whether for work, entertainment, or gaming, IPS displays provide a balanced and high-quality visual experience.

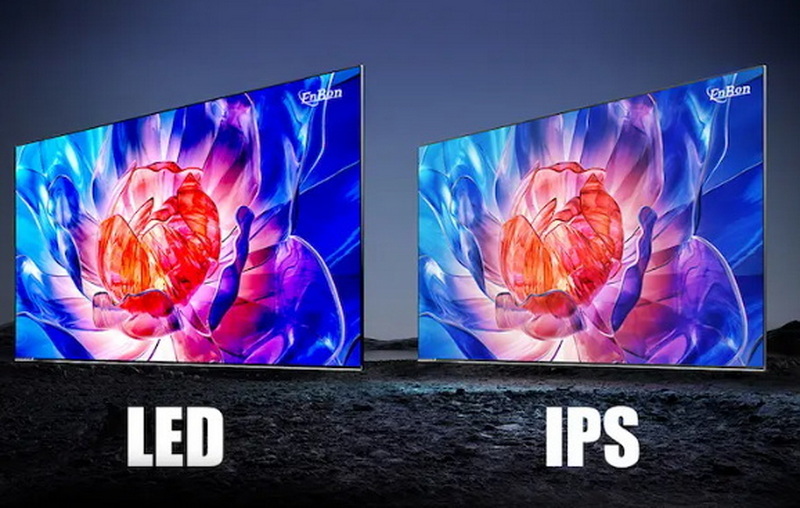

IPS refers to the panel technology inside an LCD, while LED refers to the type of backlighting used. An IPS monitor can use LED backlighting, combining both technologies for better display quality, energy efficiency, and thinner designs.
IPS technology requires more precise manufacturing and advanced liquid crystal alignment, resulting in higher production costs. The superior color accuracy, wider viewing angles, and overall better image quality justify the higher price, especially for professional use.
Yes, IPS monitors reduce color shifts and provide consistent images from various angles, which can reduce eye strain during prolonged use. However, eye comfort also depends on factors like screen brightness, flicker, blue light emission, and ambient lighting conditions.
Yes, many modern IPS monitors have improved refresh rates (up to 240Hz) and response times (as low as 1ms), making them suitable for gaming while offering better color and viewing angles than TN panels. However, competitive gamers who prioritize speed may still prefer TN panels.
IPS LCDs use backlighting and liquid crystals, offering excellent color accuracy and wide viewing angles but generally lower contrast and black levels than OLEDs. OLED displays can turn off individual pixels for true blacks and higher contrast, but they tend to be more expensive and can suffer from burn-in over time.
IPS glow is a natural characteristic of IPS panels, appearing as a faint glow near the edges in dark scenes. It is not a defect but a trade-off for the wide viewing angles and color accuracy IPS provides. Proper environment lighting and screen positioning can minimize its visibility.
IPS panels typically consume more power than TN panels due to their backlighting and liquid crystal arrangement. However, advances in LED backlighting and power management have reduced this difference, making IPS displays common in smartphones and tablets without severely impacting battery life.
Yes, there are several variants of IPS technology, such as AH-IPS (Advanced High-Performance IPS), PLS (Plane-to-Line Switching), and e-IPS (Enhanced IPS), each offering improvements in brightness, color accuracy, or manufacturing cost.
