Liquid Crystal Displays (LCDs) have become ubiquitous in modern electronic devices, from laptops and televisions to industrial monitors and energy inverters. A critical yet often overlooked component in many LCD systems is the LCD display inverter. This article explores what an LCD display inverter is, how it works, its importance, types, common issues, and the latest advancements in inverter LCD technology. We will provide detailed explanations to enhance understanding and deliver a thorough overview of this essential technology.
An LCD display inverter is an electronic circuit or device that converts low-voltage direct current (DC) into the high-voltage alternating current (AC) required to power the backlight of an LCD panel. Traditional LCD screens, especially those using Cold Cathode Fluorescent Lamps (CCFL) as backlights, require a high-voltage AC supply to illuminate the screen. The inverter performs this voltage step-up and AC conversion, enabling the backlight to function properly and make the display visible to the human eye.
Unlike LED-backlit LCDs, which operate on low-voltage DC and do not require an inverter, CCFL-backlit LCDs depend heavily on the inverter for their operation. The inverter is usually a small circuit board located near the LCD panel or integrated within the display assembly, making it a key component in the display system.
The inverter takes the DC voltage from the device's power supply (usually 12V or 24V DC) and converts it into a high-frequency AC voltage, often exceeding 600 volts. This high-voltage AC is necessary to excite the CCFL backlight tubes inside the LCD panel.
The inverter circuit typically includes several key components:
- A power supply input (VIN)
- Ground (GND)
- Enable signal (ENA) to turn the inverter on or off
- Dimming control (ADJ) to adjust backlight brightness
The inverter generates a high-frequency oscillator signal that drives a transformer, stepping up the voltage to the required level for the CCFL tubes. The high frequency, often tens of kilohertz, prevents flickering and reduces electromagnetic interference, which can otherwise degrade image quality or cause user discomfort.
By controlling the frequency and voltage output, the inverter can also adjust the brightness of the backlight, allowing for dimming capabilities that conserve energy and improve user comfort.
1. Backlight Illumination: Without the inverter, the CCFL backlight would not receive the high-voltage AC power it needs, resulting in a dark or completely black screen even if the LCD panel itself is functioning correctly.
2. Energy Efficiency: Modern inverter designs optimize power consumption by controlling the brightness of the backlight through dimming functions, helping conserve battery life in portable devices such as laptops and tablets.
3. Display Quality: Proper inverter operation ensures consistent brightness and prevents flickering, which can cause eye strain and degrade the viewing experience, especially during extended use.
4. Device Longevity: A well-functioning inverter reduces stress on the backlight lamps, extending their lifespan and reducing maintenance costs, which is particularly important in industrial and commercial displays.
5. Safety: The inverter safely manages the high voltages required for CCFL backlighting, ensuring that the device operates within safe electrical parameters.

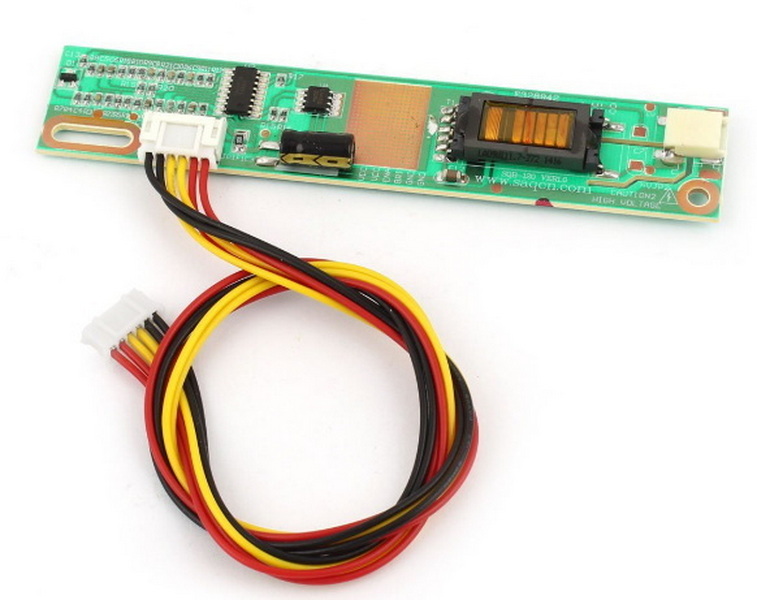

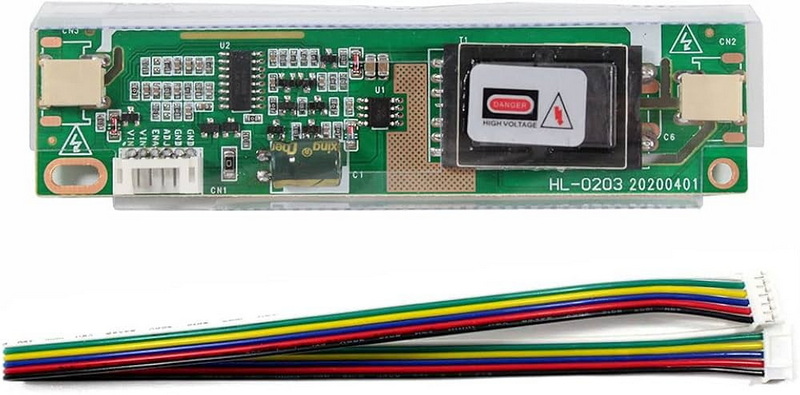

Standalone inverters are separate circuit boards connected to the LCD panel and power source. They are common in older laptops and monitors with CCFL backlights. These inverters usually have four main pins: power input, ground, enable, and dimming control. Their modular nature makes them easier to replace or repair.
In modern designs, the inverter circuit may be integrated into the LCD panel assembly or the device's mainboard to save space and reduce manufacturing costs. However, this integration can make repairs more complex and expensive because the inverter is not a separate replaceable component.
These inverters use high-frequency switching techniques to generate the AC voltage, improving efficiency and reducing electromagnetic noise. High-frequency inverters are standard in contemporary LCD systems and are essential for preventing flicker and ensuring stable backlight performance.
- Dim or No Backlight: The screen appears very dark or completely black, but images may still be faintly visible under strong external light, indicating the LCD panel is functioning but the backlight is not.
- Flickering Screen: The backlight flickers or oscillates in brightness, which can be distracting and uncomfortable for the user.
- Screen Brightness Changes Suddenly: The backlight brightness varies without user input, often due to unstable inverter output.
- No Power to Backlight: The inverter outputs no voltage to the CCFL tubes, resulting in no illumination.
- Visible Damage on Inverter Board: Burnt components, bulging capacitors, or other physical damage on the inverter circuit can indicate failure.
Replacing an inverter typically involves the following steps:
1. Power off and unplug the device to ensure safety.
2. Remove the LCD bezel carefully to access the inverter board.
3. Disconnect cables from the inverter, noting their positions for reassembly.
4. Remove screws or adhesive holding the inverter in place.
5. Install a new inverter and reconnect cables securely.
6. Reassemble the device and test the backlight functionality.
Repairing an inverter may involve diagnosing and replacing faulty components such as capacitors, fuses, or MOSFETs. This requires some electronics repair skills and appropriate tools. For many users, replacement is the safer and more practical option.
Modern inverter LCDs have benefited from several technological advancements:
- Energy-saving features that dynamically adjust backlight brightness based on ambient light or user settings, significantly reducing power consumption.
- Compact and integrated inverter circuits that reduce device size and weight, enabling slimmer and lighter displays.
- Enhanced dimming controls for better user customization and improved visual comfort.
- Improved durability through the use of higher-quality components and better circuit design, extending the lifespan of both the inverter and the backlight.
- Wide viewing angles and high contrast achieved by combining inverter technology with advanced LCD panel types like IPS (In-Plane Switching) and S-IPS (Super IPS), enhancing image quality.
- Laptops and Notebooks: Many older models rely on CCFL backlights powered by inverters, making inverter technology essential for their display operation.
- Industrial Monitors: These require high brightness and durability, often using inverter-powered CCFL backlights for reliable performance in harsh environments.

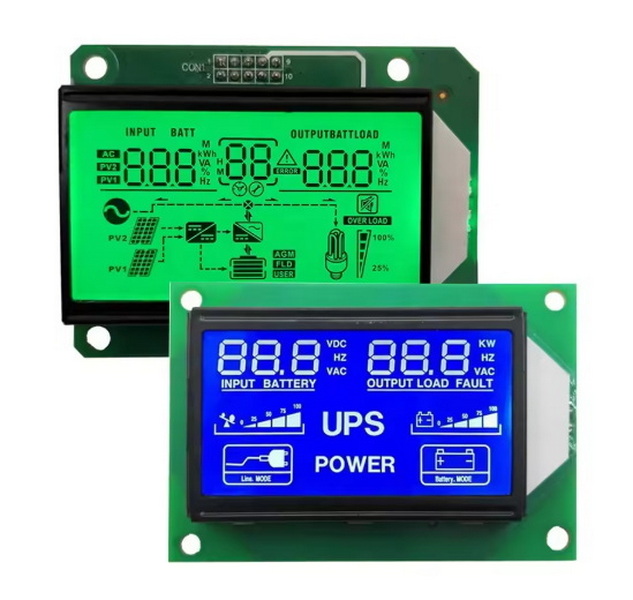

- Power Inverters with LCD Panels: Devices such as solar power inverters include LCD screens to display real-time system data like voltage, load, and battery status. These displays may incorporate inverter circuits to power their backlights.
- Televisions and Large Displays: Older CCFL-backlit televisions and monitors use inverters to power their backlights, though newer models have largely transitioned to LED backlighting.
- Medical Equipment and Instrumentation: Many medical devices use inverter-powered LCDs for clear, reliable displays in critical applications.
To prolong the life of an LCD inverter and backlight system:
- Avoid exposing the device to excessive heat or moisture, which can damage inverter components.
- Use proper power supplies and avoid voltage spikes that can stress the inverter circuit.
- Adjust brightness settings to moderate levels to reduce inverter and backlight stress.
- Regularly clean vents and ensure adequate cooling to prevent overheating.
- Seek professional repair if any symptoms of inverter failure appear to avoid further damage.
An LCD display inverter is a vital component in devices using CCFL backlit LCD screens. It converts low-voltage DC into high-voltage AC to power the backlight, enabling the display to be visible. The inverter ensures consistent brightness, energy efficiency, and longevity of the backlight system. While LED-backlit LCDs have largely replaced CCFL technology and do not require inverters, many devices still rely on inverter circuits. Understanding the role, operation, and maintenance of LCD inverters is essential for troubleshooting and repairing LCD displays effectively. Advances in inverter technology continue to improve display quality, energy consumption, and device form factors, making inverter LCD displays a cornerstone of visual technology.
The primary function of an LCD display inverter is to convert low-voltage DC power into high-voltage AC power to illuminate the CCFL backlight in an LCD screen, making the display visible.
No, LED-backlit LCDs operate on low-voltage DC and do not require an inverter. Only CCFL-backlit LCDs need an inverter to power their backlights.
Common signs include a dim or completely dark screen, flickering backlight, sudden brightness changes, and visible damage on the inverter board.
Yes, if you have electronics repair skills, you can diagnose and repair common inverter issues such as faulty capacitors or MOSFETs. However, replacement is often easier and safer for most users.
Inverter technology allows precise control of backlight brightness, reduces power consumption, prevents flicker, and extends backlight lifespan, resulting in better image quality and energy efficiency.
