Liquid Crystal Display (LCD) technology has become a staple in the mobile phone industry, serving as the primary means of visual interaction for users. This article will explore the intricacies of LCD displays, how they work, their advantages and disadvantages, and their significance in modern smartphones.
LCD stands for Liquid Crystal Display. This technology utilizes the light-modulating properties of liquid crystals combined with polarizers to produce images. Unlike older display technologies like Cathode Ray Tube (CRT), LCDs are thinner, lighter, and consume less power, making them ideal for portable devices like smartphones.

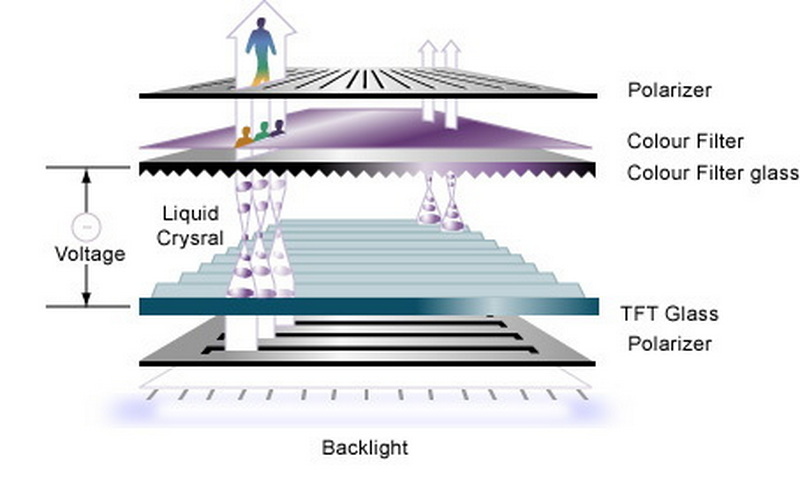

An LCD screen consists of several layers that work together to create images:
- Backlight: This layer provides illumination for the display. Most modern LCDs use LED (Light Emitting Diode) backlighting for enhanced brightness and energy efficiency.
- Liquid Crystal Layer: The core of the display where liquid crystals are sandwiched between two polarizing filters. When an electric current is applied, these crystals align to either allow or block light from passing through.
- Color Filters: These filters add color to the images created by the liquid crystal layer. Each pixel is made up of sub-pixels (red, green, and blue) that combine to create a full spectrum of colors.
- Glass Substrate: The entire assembly is protected by glass panels that also help in displaying the image clearly.
When an electric current passes through the liquid crystal layer, it causes the crystals to align in a way that either allows light to pass through or blocks it. This manipulation of light creates the images seen on the screen. The backlight illuminates these images, allowing users to view content clearly even in bright environments.
There are several types of LCD displays commonly used in smartphones:
- TFT (Thin Film Transistor): This is the most basic type of LCD technology, providing decent image quality but with limited viewing angles and color reproduction.
- IPS (In-Plane Switching): IPS displays offer better color accuracy and wider viewing angles compared to TFT displays. They are commonly found in mid-range to high-end smartphones.
- SLCD (Super LCD): A variant that reduces the gap between the touch sensor and the display for improved visibility and response time.
- VA (Vertical Alignment): VA panels provide better contrast ratios than IPS but often have slower response times. They are less common in mobile devices but can be found in some high-end models.
1. Energy Efficiency: LCDs consume less power compared to older technologies like CRTs, resulting in longer battery life for smartphones.
2. No Burn-In Issues: Unlike OLED screens, LCDs do not suffer from burn-in, making them more reliable for displaying static images over extended periods.
3. Good Visibility in Bright Light: The backlighting allows for better visibility even in bright outdoor conditions.
4. Thin and Lightweight Design: The compact nature of LCD technology allows manufacturers to create sleek and portable devices.
5. Cost-Effectiveness: Many budget-friendly smartphones utilize LCD technology due to its affordability while still providing satisfactory performance.
6. Color Consistency: LCDs can maintain consistent color reproduction across different lighting conditions, making them suitable for various applications.
7. Long Lifespan: Generally, LCD screens have a longer lifespan compared to other display technologies when properly maintained.
1. Limited Contrast Ratios: While they provide decent color reproduction, they cannot achieve true blacks like OLED displays since they rely on a backlight.
2. Viewing Angles: Although IPS technology has improved viewing angles significantly, traditional TFT displays can suffer from color distortion when viewed from sharp angles.
3. Response Time: The response time of LCDs can be slower than that of OLEDs, potentially leading to motion blur in fast-moving images.
4. Thickness: While generally thinner than CRTs, some high-end OLED displays can be even thinner than most LCD screens.
5. Color Gamut Limitations: Although advancements have been made, some LCDs still struggle with reproducing a wider color gamut compared to OLED displays.
LCD technology has evolved significantly over the years, with improvements in color accuracy, brightness, and energy efficiency. Innovations such as Quantum Dot and Mini LED backlighting have allowed LCDs to compete more effectively with OLEDs regarding color accuracy and contrast ratios.
- Quantum Dot Technology: This involves using tiny semiconductor particles that emit specific colors when illuminated by a light source. Quantum dots enhance color accuracy and brightness levels significantly compared to traditional LCDs.
- Mini LED Backlighting: This technology uses smaller LEDs for backlighting instead of larger ones, allowing for more precise control over local dimming zones and improving contrast ratios dramatically.
These advancements indicate that while OLED may be gaining popularity due to its superior performance in certain areas, LCD technology continues to innovate and offer competitive alternatives for consumers.
LCD displays remain relevant in smartphones due to their versatility and continuous improvement. They are widely used across various devices beyond smartphones, including tablets, laptops, and televisions. As technology advances, we can expect further enhancements in LCD displays that will improve user experience even more.
To understand the position of LCD technology within the broader context of display technologies, it's essential to compare it with its primary competitors:
| Feature | LCD | OLED |
|---|---|---|
| Black Levels | Good (not true black) | Excellent (true black) |
| Color Accuracy | Good | Excellent |
| Viewing Angles | Moderate (better with IPS) | Excellent |
| Response Time | Moderate | Fast |
| Power Consumption | Lower when displaying bright images | Lower when displaying dark images |
| Lifespan | Long | Moderate |
| Cost | Generally lower | Generally higher |
This table illustrates how both technologies have their strengths and weaknesses depending on user needs and preferences.
As we look toward the future of mobile displays, several trends are emerging:
- Flexible Displays: Manufacturers are exploring flexible display technologies that allow screens to bend or fold without compromising quality. This could lead to innovative smartphone designs that enhance portability without sacrificing screen size or functionality.
- Higher Refresh Rates: Increasingly common in gaming smartphones, higher refresh rates provide smoother motion rendering which is particularly beneficial for gaming or video playback experiences.
- Enhanced Touch Sensitivity: Future advancements may also focus on improving touch sensitivity and responsiveness on mobile devices through enhanced capacitive touch technologies integrated into display panels.
- Sustainability Efforts: As environmental concerns grow, manufacturers are likely to focus on producing more sustainable display technologies that reduce waste and energy consumption during production and usage phases.
In conclusion, LCD displays play a crucial role in modern smartphones by providing users with a reliable means of visual interaction. With their energy efficiency, good visibility under bright conditions, and cost-effectiveness, they remain a popular choice among manufacturers and consumers alike. As advancements continue in display technology—especially with innovations like Quantum Dot and Mini LED—LCDs will likely maintain their relevance while competing effectively against newer technologies like OLED.
The ongoing evolution of this technology suggests that we can expect even more enhancements that will further enrich user experiences across all types of devices in the coming years.
IPS (In-Plane Switching) displays offer better color accuracy and wider viewing angles compared to TFT (Thin Film Transistor) displays which tend to have poorer color reproduction and limited viewing angles.
OLED displays provide deeper blacks and higher contrast ratios because each pixel emits its own light. However, they can be more expensive than LCDs and may suffer from burn-in issues over time.
You can usually find this information in your phone's specifications online or by checking the manufacturer's website.
Yes! One of the advantages of LCD screens is their ability to maintain good visibility even under bright sunlight due to their backlighting system.
Typically, an LCD screen can last anywhere from 30,000 to 60,000 hours depending on usage patterns and environmental conditions. Regular maintenance can help extend their lifespan.
