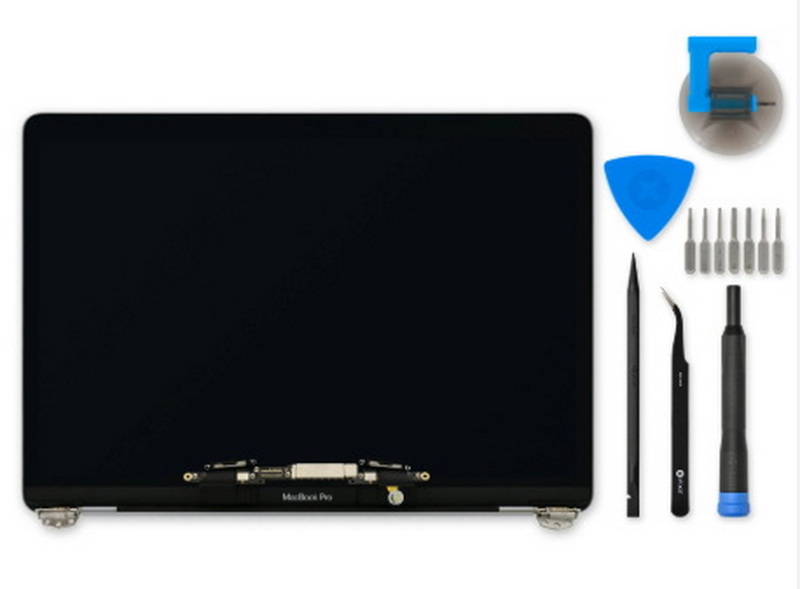

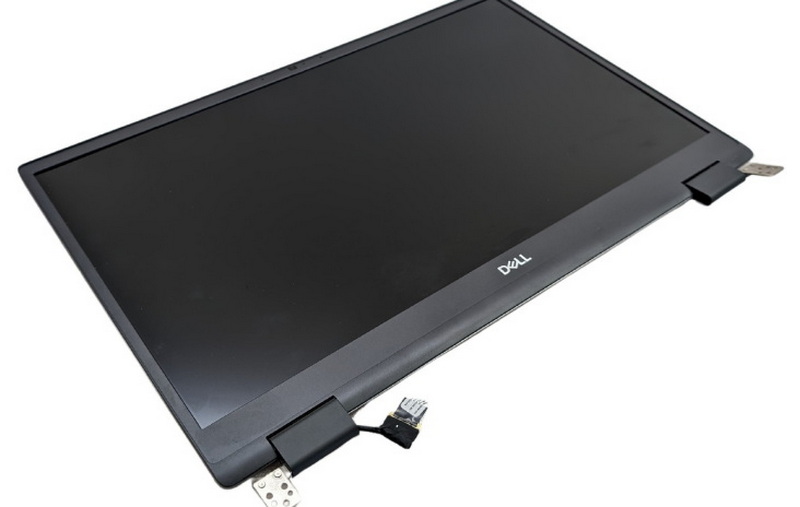

An LCD display assembly is a complete module that integrates the core components of a liquid crystal display system into a functional unit capable of showing images and, often, responding to touch input. It is widely used in devices such as smartphones, tablets, monitors, televisions, and industrial instruments.
Liquid Crystal Display (LCD) technology relies on the unique properties of liquid crystals, which can modulate light when subjected to an electric field. An LCD panel typically consists of two glass substrates with a layer of liquid crystal material sandwiched between them. Each pixel in the display is controlled by thin-film transistors (TFTs) that regulate the orientation of the liquid crystal molecules, thereby controlling the light passing through polarizing filters to create images.
The light source behind the LCD panel, known as the backlight, is essential since liquid crystals do not emit light themselves. The backlight can be a cold cathode fluorescent lamp (CCFL) or more commonly today, an array of white LEDs. The combination of the backlight, liquid crystal layer, color filters, and electrodes forms the basis of the LCD panel.

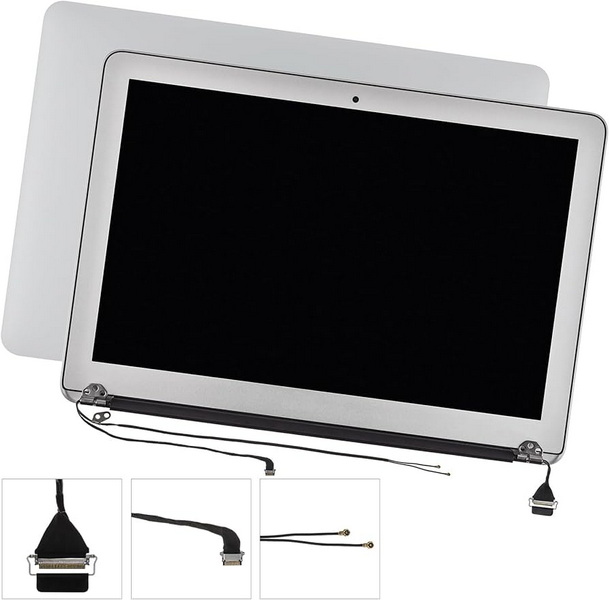

An LCD display assembly goes beyond just the LCD panel. It includes several integrated components that work together to provide a fully operational display:
- LCD Panel: The core display element consisting of the liquid crystal layer sandwiched between two glass substrates with electrodes and polarizers.
- Thin-Film Transistor (TFT) Layer: Controls individual pixels by switching them on or off.
- Backlight Unit: Provides uniform illumination from behind the panel, enabling image visibility.
- Color Filters: Divide pixels into red, green, and blue subpixels to produce full-color images.
- Driver ICs (Integrated Circuits): Electronic chips that control the signals to the TFTs and manage image rendering.
- Flexible Printed Circuit (FPC): Connects the display to the main circuit board.
- Touchscreen Layer (optional): A capacitive or resistive layer bonded to the display for touch input.
- Polarizers: Filters placed on the outer surfaces to control light polarization.
- Structural Frame and Adhesives: Hold the assembly together and protect internal components.
The assembly of an LCD display is a precise and multi-step process that combines delicate components into a robust module:
1. Preparation of Glass Substrates: The two glass plates are cleaned thoroughly. One or both are coated with transparent conductive materials such as indium tin oxide (ITO).
2. Patterning Electrodes: Photolithography is used to etch electrode patterns on the glass, forming the TFT backplane that controls pixels.
3. Spacer Application: Tiny spherical spacers are applied to maintain a uniform gap between the glass plates, critical for liquid crystal performance.
4. Sealing and Filling: The two glass plates are aligned and sealed with a frame glue, leaving a small gap for filling. The liquid crystal material is injected into this gap under vacuum conditions to avoid air bubbles.
5. Polarizer Attachment: Polarizing filters are carefully aligned and bonded to the outer surfaces of the glass substrates, typically oriented at 90 degrees to each other.
6. Backlight Assembly: The backlight unit, including diffuser films and brightness enhancement films, is assembled behind the LCD panel.
7. Mounting Driver ICs and Connecting Circuits: Driver ICs are mounted on the edges of the panel, and connections are made via soldering or anisotropic conductive films to the FPC.
8. Touchscreen Integration (if applicable): The touch sensor layer is bonded to the LCD panel, completing the display assembly.
9. Final Testing and Quality Control: The assembled module undergoes rigorous testing for image quality, uniformity, and functionality before packaging.
- Diagram of LCD Pixel Structure: Shows the liquid crystal layer between two polarizers with electrodes controlling light passage.
- Step-by-Step Assembly Images: Illustrate cleaning, spacer placement, sealing, liquid crystal injection, and polarizer attachment.
- Backlight Layer Structure: Depicts diffuser films and LED arrays behind the LCD panel.
- Video Tutorials: Demonstrate the assembly process including mounting driver ICs, connecting the FPC, and integrating the touchscreen layer.
- Exploded View of LCD Module: Visualizes how the LCD panel, backlight, driver board, and touchscreen fit together.
- Slim and Lightweight: LCD assemblies are thin and light compared to older display technologies.
- Energy Efficient: Especially with LED backlights, they consume less power.
- High Resolution and Brightness: Capable of displaying sharp images with vibrant colors.
- Versatility: Used in a wide range of devices from small handheld gadgets to large TVs.
- Touchscreen Integration: Easily combined with touch sensors for interactive displays.
- Fragility: Glass substrates are delicate and require careful handling.
- Complex Manufacturing: Requires cleanroom environments and precision equipment.
- Viewing Angles and Contrast: Some LCDs have limited viewing angles and contrast ratios compared to OLEDs.
- Backlight Bleeding: Uneven backlighting can cause light leakage around edges.
The LCD display assembly is a sophisticated integration of various components including the liquid crystal panel, backlight, driver electronics, and often a touchscreen layer, all working in harmony to produce clear, vibrant images. The manufacturing process involves precise steps such as substrate preparation, electrode patterning, liquid crystal injection, and final module assembly. This technology remains a cornerstone in modern display devices due to its efficiency, cost-effectiveness, and adaptability.
An LCD panel is the core component consisting of the liquid crystal layer and glass substrates, while an LCD display assembly includes the panel plus backlight, driver circuits, connectors, and sometimes a touchscreen, making it a complete functional display unit.
The panel is placed in a vacuum chamber to remove air, and then the liquid crystal is filled into the gap between the glass substrates by atmospheric pressure through a small opening, which is later sealed.
Driver ICs control the voltage applied to each pixel's thin-film transistor, regulating the orientation of liquid crystals and thus controlling the image displayed.
Some components like the backlight or driver board can be replaced, but the LCD panel itself is fragile and difficult to repair, often requiring full replacement.
The backlight provides illumination; its uniformity and brightness directly impact image clarity, contrast, and color accuracy. LED backlights allow for thinner designs and better energy efficiency compared to older CCFL types.
