Liquid Crystal Displays (LCDs) are widely used electronic display modules that are particularly popular in various applications, including Arduino projects. They are known for their ability to display text and simple graphics in a compact form factor. The most common type of LCD used with Arduino is the 16x2 LCD, which can display 16 characters per line on two lines.
LCDs operate by manipulating light through liquid crystals. When an electric current passes through the liquid crystals, they change their orientation, allowing light to pass through or be blocked. This property is what enables the display of characters and images.
The typical LCD used in Arduino projects consists of a grid of pixels arranged in rectangular areas, each capable of displaying a character. For example, a 16x2 LCD has 32 such areas (16 characters across two rows).
There are several types of LCD displays available in the market, each with its unique features and applications. The most common types include:
- Character LCDs: These are the simplest type of LCDs and are primarily used for displaying text. The 16x2 and 20x4 models are popular choices for Arduino projects.
- Graphic LCDs: These displays can show images and more complex graphics. They typically have a higher resolution than character displays and can be used for more advanced applications.
- TFT LCDs: Thin-Film Transistor (TFT) displays offer full-color graphics with high resolution. They are ideal for projects requiring detailed visual output but may require more complex programming.
- OLED Displays: Organic Light Emitting Diode (OLED) displays are similar to LCDs but offer better contrast and color depth. They do not require a backlight, which makes them more power-efficient.
To get started with using an LCD display with an Arduino, you will need the following components:
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Module
- Potentiometer (for contrast adjustment)
- Breadboard
- Jumper Wires

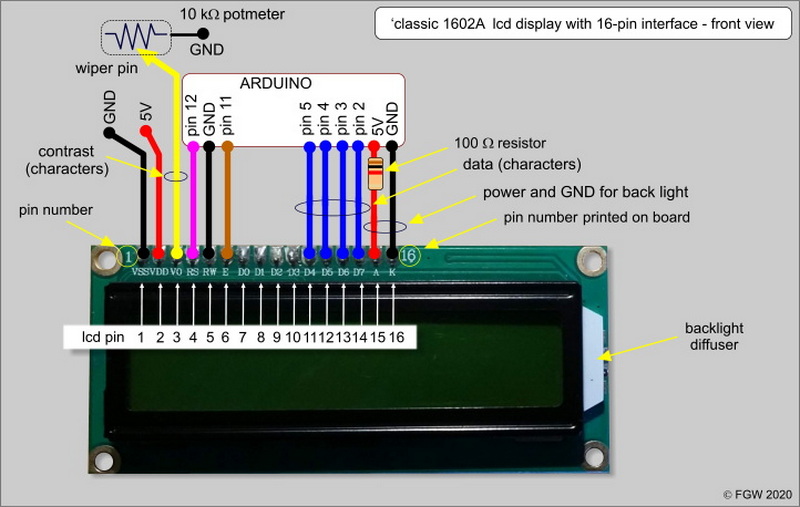

Understanding how to connect an LCD to an Arduino is crucial for successful project implementation. The connections involve linking the power supply pins (VSS and VCC) to ground and power, respectively. The Vo pin adjusts the contrast using a potentiometer, while the RS, RW, E, and data pins (D4-D7) facilitate communication between the Arduino and the LCD.
To control the LCD, you will use the `LiquidCrystal` library that comes with the Arduino IDE. This library simplifies the process of sending commands and data to the LCD.
In your code, you will initialize the library, create an object to represent your LCD, set up its dimensions, and then send commands to display text or characters.
1. Library Inclusion: The first step involves including necessary libraries that provide functions to control the LCD.
2. Object Creation: An object representing your specific setup is created using defined pins.
3. Setup Function: This function initializes your display settings and prepares it for output.
4. Loop Function: This function runs continuously; however, it may remain empty if no dynamic updates are needed.
LCDs can operate in two modes: 4-bit mode and 8-bit mode. The choice of mode affects how many pins are used for data transmission.
- 4-bit Mode: Uses only four data pins (D4-D7), which saves GPIO pins.
- 8-bit Mode: Utilizes all eight data pins (D0-D7) for faster communication but requires more connections.
For most applications involving text display, 4-bit mode is sufficient and commonly used.
You can create custom characters on your LCD by defining a byte array that represents each character's pixel layout. Custom characters allow you to enhance your display's functionality by adding symbols or icons relevant to your project needs.
I2C (Inter-Integrated Circuit) is another method to connect an LCD to an Arduino using only two wires (SDA and SCL), along with power and ground connections. This is especially useful for projects where GPIO pin availability is limited.
- Reduces wiring complexity by using fewer pins.
- Allows multiple devices on the same bus without interfering with each other.
- Simplifies communication protocols through built-in functions in libraries like `Wire`.
One of the exciting features of using an LCD with Arduino is displaying dynamic data such as sensor readings or user inputs. By updating the displayed information in real-time based on sensor feedback or user interactions, you can create interactive projects that respond to environmental changes or user commands.
For example, if you're building a weather station project, you could use sensors to measure temperature and humidity levels and display these readings on your LCD screen continuously.
Many modern LCDs come equipped with backlighting features that enhance visibility in low-light conditions. You can control this backlight programmatically by connecting it to a digital pin on your Arduino board. This feature allows you to turn on or off the backlight based on specific conditions or user input.
LCD displays have numerous practical applications across various fields:
- Home Automation Systems: Displaying system status, temperature readings, or user settings.
- Robotics Projects: Providing feedback on sensor readings or operational status.
- Educational Tools: Teaching programming concepts by visualizing outputs.
- Wearable Technology: Showing information such as time or notifications on smartwatches.
- Industrial Equipment Monitoring: Displaying operational parameters in real-time.
Using an LCD display with Arduino opens up numerous possibilities for creating interactive projects that require visual output. Whether you are displaying simple text or creating custom characters, understanding how to connect and program these displays is essential for any electronics enthusiast.
By leveraging libraries like `LiquidCrystal` and `LiquidCrystal_I2C`, you can easily integrate these displays into your projects without needing extensive programming knowledge. The versatility provided by different types of displays allows you to choose one that best fits your project's requirements.
As technology continues to evolve, integrating more sophisticated displays into projects will become increasingly accessible. Understanding how to work with these components will empower creators to develop innovative solutions across various domains.
You can use various types of LCD displays with Arduino, including character displays like the 16x2 and graphical displays like TFT or OLED screens.
The contrast can be adjusted using a potentiometer connected to the Vo pin of the LCD.
Yes, you can connect multiple LCDs to one Arduino by ensuring each one has its unique address when using I2C or managing pin assignments correctly when using parallel connections.
If your LCD shows only blocks or no text at all, check your wiring connections and ensure that you have initialized it correctly in your code.
You can create custom characters by defining a byte array that represents each character's pixel layout using `lcd.createChar()` function.
