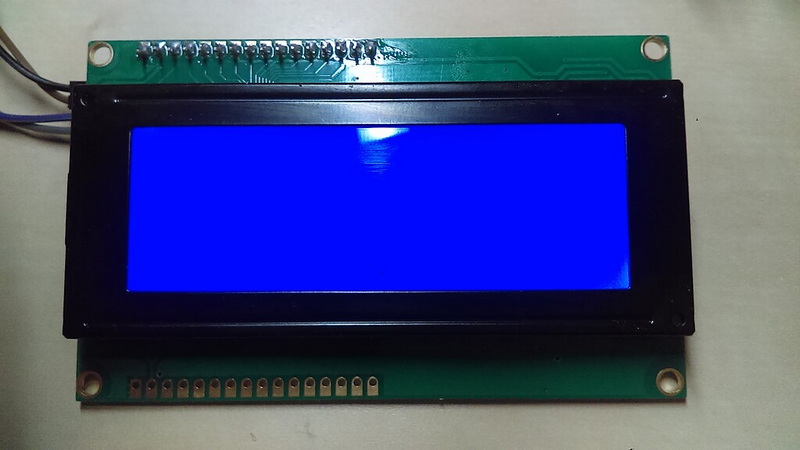

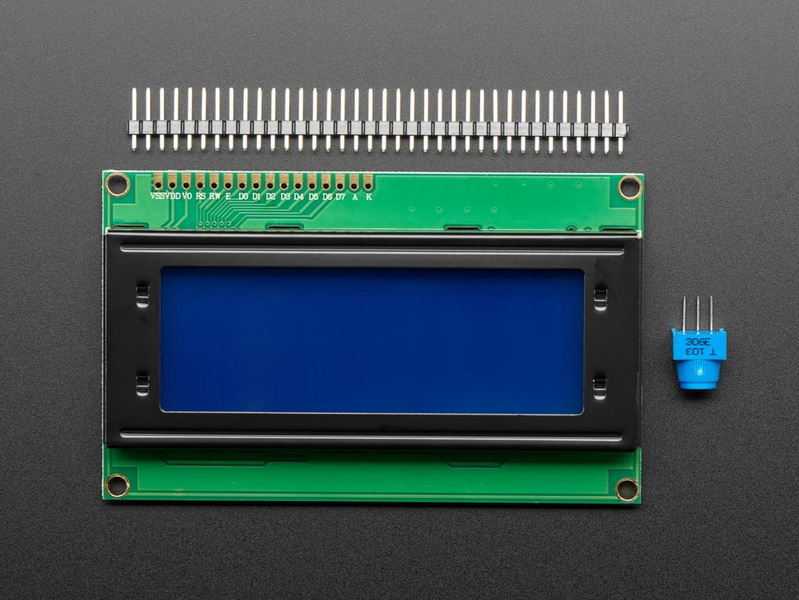

A 20x4 LCD display is a type of alphanumeric liquid crystal display module that shows 20 characters per line across 4 lines, allowing a total of 80 characters to be displayed simultaneously. It is widely used in embedded systems, microcontroller projects, and various electronic devices for presenting textual information in a compact and readable format.
- Display Format: 20 characters wide and 4 lines tall, totaling 80 characters.
- Character Matrix: Typically 5x8 dots per character, forming clear alphanumeric symbols.
- Display Type: Usually monochrome STN (Super Twisted Nematic) or FSTN (Film compensated STN) LCD technology.
- Backlight: Often equipped with LED backlighting in colors such as yellow-green, white, blue, or amber to enhance visibility in different lighting conditions.
- Controller IC: Commonly uses HD44780 or compatible controllers like ST7066U or PIC16F690, which manage the display operations and communication with microcontrollers.
- Operating Voltage: Typically 5V DC.
- Dimensions: Around 98mm x 60mm x 13-14mm, with a viewing area approximately 76mm x 25mm.
The display operates in a 1/16 duty cycle mode with 1/5 bias, providing stable and clear characters. Some models use transflective LCD technology, which allows visibility both in ambient light and with backlight on, making them suitable for indoor and outdoor applications.
| Specification | Details |
|---|---|
| Characters | 20 characters per line x 4 lines |
| Character Size | Approximately 2.95mm (width) x 4.75mm (height) |
| Dot Matrix | 5 x 8 dots per character |
| Display Controller | HD44780 or compatible (e.g., ST7066U) |
| Interface | Parallel (4-bit or 8-bit) or Serial (I2C, SPI, RS232) |
| Backlight | LED backlight (colors vary by model) |
| Supply Voltage | 5V DC |
| Operating Temperature | -20°C to 70°C (varies by model) |
| Dimensions (WxHxD) | ~98mm x 60mm x 13-14mm |
| Viewing Area | ~76mm x 25mm |
The LCD consists of a grid of liquid crystal cells that modulate light to form characters. Each character is formed by activating specific pixels in a 5x8 dot matrix. The controller IC receives commands and data from a microcontroller or processor and manages the pixel activation accordingly.
Backlighting is provided by LEDs behind the LCD panel, improving readability in low-light environments. The contrast can be adjusted via a potentiometer connected to the LCD's contrast pin.

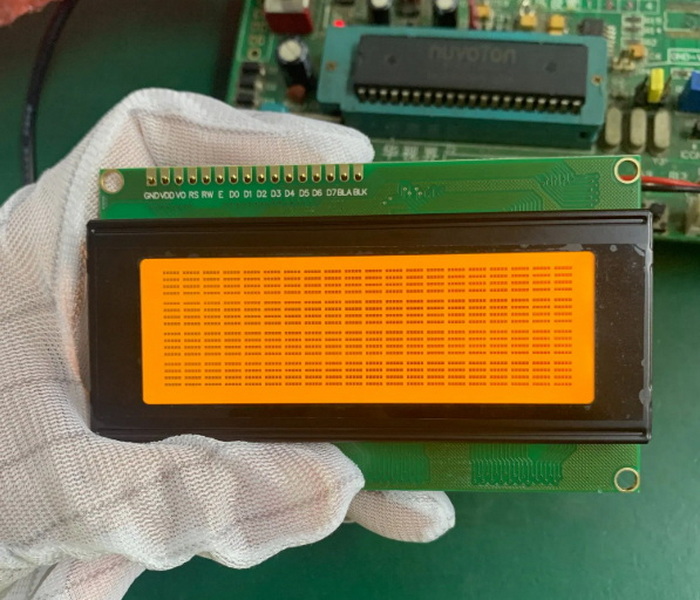

The most traditional method uses 16 pins, including:
- Power supply pins (VSS, VDD)
- Contrast adjustment pin (VO)
- Control pins (RS, RW, Enable)
- Data pins (D0-D7)
- Backlight power pins (A and K)
The data pins can be used in 8-bit or 4-bit mode to send data and commands.
Some 20x4 LCD modules come with built-in serial interface adapters, reducing the number of pins needed for connection, which is advantageous for microcontrollers with limited I/O pins. I2C is especially popular, using only two data lines (SDA and SCL) plus power and ground.
- Embedded systems and microcontroller projects
- Industrial control panels
- Home appliances
- Measurement instruments
- DIY electronics and educational kits
- Robotics displays
- Compact size with sufficient display area for detailed information
- Low power consumption compared to other display types
- Easy to interface with popular microcontrollers like Arduino, Raspberry Pi, etc.
- Supports custom characters for enhanced user interfaces
- Wide operating temperature range for industrial use
- Use libraries such as LiquidCrystal for Arduino to simplify control.
- Initialize the display with the correct dimensions (20 columns, 4 rows).
- Adjust contrast potentiometer for optimal visibility.
- For I2C modules, verify the correct I2C address (commonly 0x27 or 0x3F).
- Manage cursor position carefully to avoid overwriting characters.
- Use built-in functions to create custom characters if needed.
- Handle backlight control via dedicated pins or software PWM for brightness adjustment.
- Display shows only blocks: Check wiring, contrast, and initialization code.
- Characters corrupted or flickering: Ensure stable power supply and proper code timing.
- Backlight not working: Verify LED power pins and resistor values.
- I2C address not found: Run an I2C scanner and confirm wiring.
- Dim or uneven backlight: Check LED connections and resistor values.
The 20x4 LCD display is not only a practical component but also a versatile one that can be adapted for various innovative uses. For instance, it can be integrated into smart home devices to display real-time data such as temperature, humidity, or system status. In educational settings, it serves as an excellent tool for teaching programming and electronics concepts due to its straightforward interface and clear output.
Moreover, the ability to create custom characters allows developers to design unique symbols or icons, enhancing user interaction and making the display more intuitive. This feature is particularly useful in specialized applications like medical devices or industrial equipment where specific symbols are needed.
The durability and reliability of these displays make them suitable for harsh environments. Their wide operating temperature range and low power consumption contribute to their popularity in portable and battery-powered devices.
Additionally, 20x4 LCDs are often employed in projects requiring multi-line data display, such as menus, sensor readouts, and status indicators. Their format allows users to view more information at once compared to smaller displays, reducing the need for scrolling or page switching. This can improve user experience in devices like vending machines, instrumentation panels, and communication equipment.
From a design perspective, the modular nature of these LCDs means they can be easily replaced or upgraded without redesigning the entire system. This flexibility is valuable in both prototyping and production environments.
The 20x4 LCD display is a versatile, reliable, and widely used component for displaying textual information in embedded and DIY electronics projects. Its 80-character capacity, combined with ease of interfacing via parallel or serial protocols, makes it ideal for applications requiring clear and organized data presentation. With proper wiring, programming, and handling, it delivers excellent readability and performance across a broad range of environments.
The most common default I2C addresses are 0x27 and 0x3F, but it is recommended to run an I2C scanner to confirm the address of your specific module.
You can connect it via parallel interface using 6-11 digital pins or via I2C with only two data pins (SDA and SCL), plus power and ground. Use libraries like LiquidCrystal or LiquidCrystal_I2C for easy programming.
Use a potentiometer connected to the Vo pin (contrast pin) of the LCD. Adjusting the potentiometer changes the voltage at Vo, which controls the contrast.
Yes, the HD44780 controller supports up to 8 custom characters that can be programmed by writing to the CGRAM memory.
This usually indicates incorrect wiring, improper initialization in code, or contrast set too high/low. Double-check connections, code, and adjust contrast.
