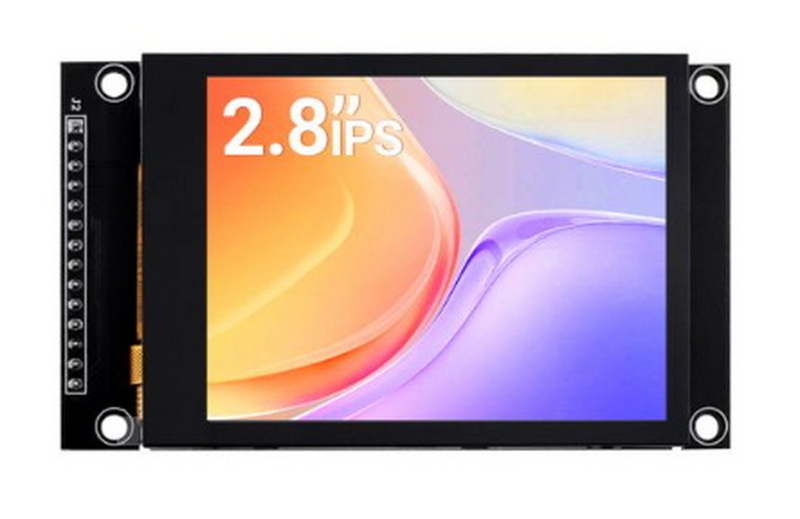

An IPS LCD capacitive display is an advanced screen technology that merges two essential components: IPS (In-Plane Switching) LCD technology for the display panel and capacitive touch technology for user interaction. This combination delivers high-quality visuals characterized by vibrant colors, wide viewing angles, and highly responsive touch input. As a result, IPS LCD capacitive displays have become a popular choice in various devices such as smartphones, tablets, monitors, industrial equipment, and many other applications.
IPS stands for In-Plane Switching, a type of LCD (Liquid Crystal Display) panel technology developed to enhance the visual quality of screens. Unlike traditional LCDs like TN (Twisted Nematic) panels, IPS panels align liquid crystals horizontally and parallel to the glass substrate. When voltage is applied, these crystals rotate within the same plane, allowing light to pass through consistently regardless of the viewing angle.
- Wide Viewing Angles: IPS displays maintain consistent color and brightness even when viewed from extreme side angles. This contrasts with TN panels, which tend to suffer from color shifting and contrast loss when viewed off-center. The wide viewing angles make IPS ideal for group viewing and professional applications where color accuracy is critical.
- Superior Color Accuracy: IPS panels reproduce a wider color gamut with more precise and vibrant colors. This is essential for fields like graphic design, photography, and multimedia consumption where color fidelity matters.
- Improved Contrast and Brightness: IPS LCDs offer better contrast ratios and brighter images with deeper blacks compared to older LCD technologies, enhancing overall image quality.
- Reduced Motion Blur: Modern IPS panels have faster response times than earlier LCDs, which helps reduce ghosting and motion blur during gaming and video playback.
- Stable Image Quality: The horizontal alignment of liquid crystals minimizes distortion caused by touch or pressure, ensuring a clear and stable image even under physical interaction.
- Operating Temperature Range: IPS displays can operate reliably over a wide temperature range, making them suitable for industrial and automotive environments.
While IPS LCDs offer many advantages, they generally consume more power than TN panels and may have slightly longer response times. However, ongoing technological improvements continue to narrow these gaps.

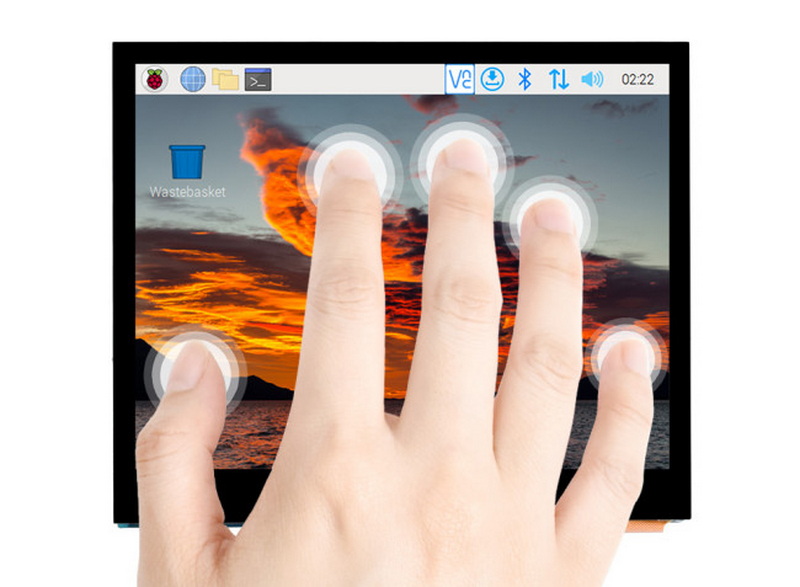

Capacitive touchscreens detect user input based on the electrical properties of the human body. The screen includes a transparent conductive layer, often made of indium tin oxide (ITO), which creates an electrostatic field on the surface. When a finger or conductive stylus touches the screen, it disturbs this field, causing a measurable change in capacitance that the device registers as touch input.
- High Sensitivity and Responsiveness: Capacitive screens can detect even very light touches quickly and accurately, providing a smooth and natural user experience.
- Multi-Touch Support: They can recognize multiple simultaneous touch points, enabling complex gestures like pinch-to-zoom, rotate, and swipe.
- Durability: The glass surface is scratch-resistant and robust, suitable for heavy daily use.
- Clear Visibility: Unlike resistive touchscreens, capacitive screens do not require a thick overlay, preserving screen clarity and brightness.
There are two main types of capacitive touch sensing:
- Mutual Capacitance: Uses a grid of electrodes arranged in rows and columns to detect touch location precisely by measuring changes at their intersections.
- Self-Capacitance: Measures changes in capacitance on a continuous conductive surface to detect touch position and size.

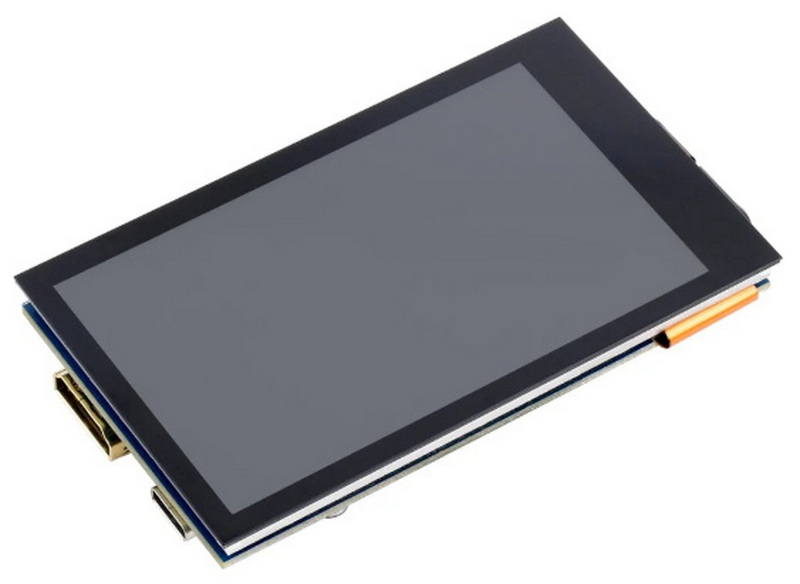

An IPS LCD capacitive display integrates the visual advantages of IPS panels with the interactive benefits of capacitive touchscreens. This synergy results in devices that offer:
- Exceptional Visual Quality: Vibrant, accurate colors and wide viewing angles ensure images look great from any perspective.
- Intuitive User Interaction: Responsive touch input with multi-touch capabilities enhances usability and supports modern gesture-based controls.
- Durability and Reliability: The robust glass surface combined with stable IPS panel technology provides long-lasting performance in both consumer and industrial environments.
- Wide Application Range: From smartphones and tablets to industrial control panels, automotive infotainment systems, medical devices, and interactive kiosks, these displays meet diverse needs.
- Consumer Electronics: High-end smartphones, tablets, laptops, and monitors widely adopt IPS LCD capacitive screens for their superior image quality and touch responsiveness.
- Industrial and Medical Devices: Control panels, human-machine interfaces (HMI), patient monitors, and diagnostic equipment benefit from the durability, wide viewing angles, and color accuracy of IPS displays combined with capacitive touch input.
- Automotive Displays: Infotainment systems and instrument clusters use these screens for clear visibility under varying lighting and temperature conditions.
- Interactive Kiosks and POS Systems: The durability and multi-touch capabilities make them ideal for public-facing terminals requiring fast and accurate input.
Compared to other display technologies, IPS LCD capacitive displays stand out in several ways:
| Feature | IPS LCD Capacitive Display | TN LCD Display | Resistive Touchscreen | OLED Display |
|---|---|---|---|---|
| Viewing Angles | Wide, up to 178° | Narrower, color shifts at angles | N/A (touch technology) | Wide, excellent |
| Color Accuracy | High, vivid and precise | Lower color accuracy | N/A | Very high, deep blacks |
| Touch Responsiveness | High, multi-touch supported | N/A | Lower sensitivity, single touch | High, multi-touch supported |
| Durability | Robust glass surface | Glass surface but less color stable | Flexible plastic layer, prone to wear | Fragile organic layers |
| Power Consumption | Moderate to high | Lower | Lower | Generally lower than LCD |
| Cost | Moderate to high | Lower | Low | Higher |
This table highlights why IPS LCD capacitive displays are often the preferred choice in devices requiring both excellent visual performance and responsive touch input.
Technological advancements continue to enhance IPS LCD capacitive displays, pushing their capabilities further:
- Mini-LED Backlighting: This technology improves brightness and contrast ratios by using thousands of tiny LEDs as backlight sources, enabling better local dimming and deeper blacks.
- Quantum Dot Technology: Quantum dots enhance color gamut and accuracy, producing more vivid and lifelike visuals.
- Haptic Feedback Integration: Adding tactile sensations to touch interactions enriches the user experience by providing physical feedback on touch gestures.
- Optical Bonding: This process bonds the touch panel directly to the display, reducing reflections, increasing durability, and improving sunlight readability.
- Palm Rejection Technology: This feature prevents unintended touches from the palm or other parts of the hand, improving accuracy during stylus or finger use.
- Flexible and Curved Displays: Advances in flexible IPS LCD panels combined with capacitive touch enable new form factors such as foldable or curved devices.
When selecting an IPS LCD capacitive display for a particular application, consider the following factors:
- Screen Size and Resolution: Larger screens with higher resolution provide more detail but may consume more power.
- Brightness and Contrast: Important for visibility in different lighting conditions, especially outdoor or automotive use.
- Touch Sensitivity and Multi-Touch Capability: Ensure the touchscreen supports the required number of touch points and responsiveness.
- Durability and Environmental Resistance: For industrial or outdoor use, displays should withstand temperature extremes, moisture, and physical wear.
- Power Consumption: Critical for battery-powered devices to maximize usage time.
- Cost and Availability: Balance performance needs with budget constraints.
IPS LCD capacitive displays represent a powerful combination of advanced visual and touch technologies. The IPS panel provides vibrant colors, wide viewing angles, and stable image quality, while the capacitive touchscreen offers responsive, multi-touch input with durability and clarity. Together, they form the backbone of modern interactive devices across consumer electronics, industrial applications, automotive systems, and more. As innovations like Mini-LED backlighting, quantum dots, and haptic feedback continue to evolve, IPS LCD capacitive displays will maintain their position as a leading technology for delivering immersive visual experiences and intuitive user interactions.
IPS stands for In-Plane Switching, a type of LCD panel technology where liquid crystals are aligned horizontally to improve color accuracy and viewing angles.
It detects touch by sensing changes in the electrostatic field on the screen surface caused by the conductive properties of the human finger or stylus.
IPS LCDs offer wider viewing angles, better color reproduction, improved contrast, and more stable images without color shifting at different angles.
Yes, capacitive touchscreens support multi-touch, allowing gestures like pinch-to-zoom, rotate, and swipe for enhanced user interaction.
They are used in smartphones, tablets, laptops, industrial control panels, automotive infotainment systems, medical devices, and interactive kiosks.
