Liquid Crystal Display (LCD) technology has transformed how we view content across various devices, from televisions to smartphones. Understanding the components and functioning of LCDs can enhance our appreciation of this ubiquitous technology. This article delves into the intricate structure of LCD displays, their working principles, and their various applications.
LCDs are flat-panel displays that utilize liquid crystals to modulate light. They are prevalent in numerous electronic devices due to their lightweight design, low power consumption, and ability to produce sharp images. Unlike older technologies such as Cathode Ray Tube (CRT) displays, which use electron beams to illuminate phosphors on a glass screen, LCDs rely on a backlight to illuminate pixels arranged in a grid.
The development of LCD technology began in the 1960s, but it wasn't until the late 1990s that it became widely adopted for consumer electronics. Today, LCDs are found in a variety of devices, including televisions, computer monitors, smartphones, and even digital watches.

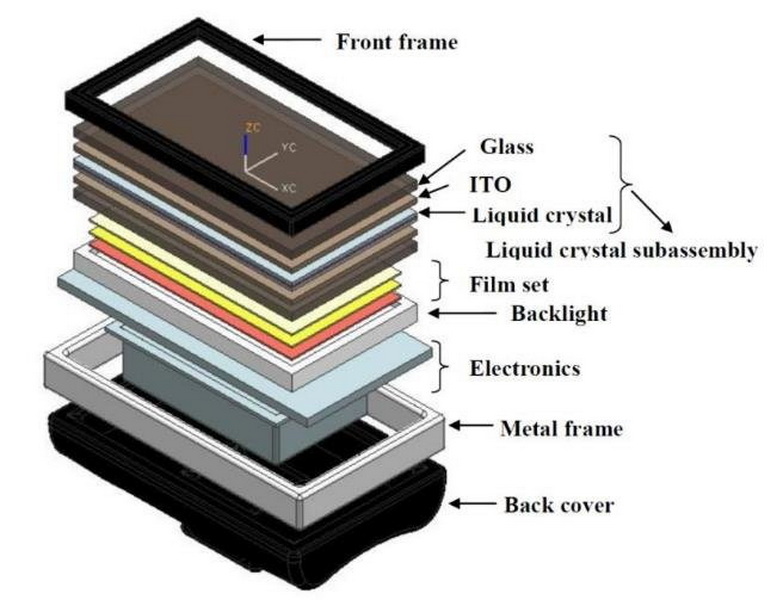

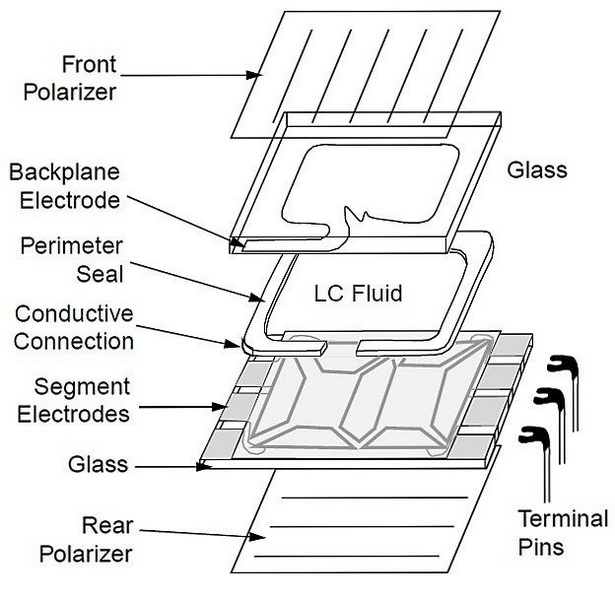

An LCD consists of several critical components working together to produce images:
- Backlight: The light source that illuminates the display. Common types include Cold Cathode Fluorescent Lamps (CCFL) and Light Emitting Diodes (LED). The backlight is crucial as it provides the necessary illumination for the liquid crystals to manipulate.
- Liquid Crystal Layer: This layer contains liquid crystals that change orientation when an electric current is applied, allowing or blocking light. The unique properties of liquid crystals enable them to control light effectively.
- Polarizing Filters: Two polarizers are placed at right angles to each other. The first polarizer allows light through, while the second polarizer controls the light's passage based on the liquid crystal orientation. These filters are essential for creating contrast in the images displayed.
- Color Filters: Each pixel is divided into three sub-pixels (red, green, and blue) that combine to create a full spectrum of colors. This RGB configuration allows for millions of color combinations.
- Electrodes: Transparent conductive materials, often made from indium tin oxide (ITO), are used to apply voltage to the liquid crystals. These electrodes play a vital role in controlling the orientation of the liquid crystals.

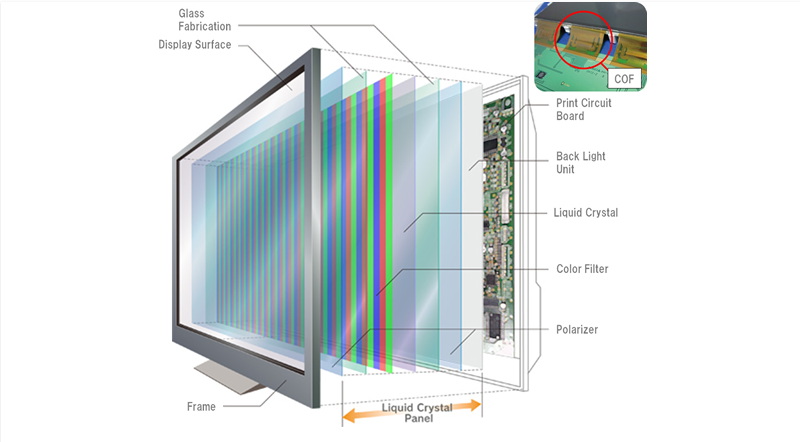

The operation of an LCD can be broken down into several steps:
1. Backlighting: The backlight emits white light that passes through the first polarizing filter.
2. Polarization: The first polarizer only allows light waves aligned in a specific direction to pass through.
3. Liquid Crystal Manipulation: When voltage is applied to the liquid crystals, they twist and change the polarization of the light passing through them. This twisting action is what allows for varying levels of brightness and darkness in each pixel.
4. Final Polarization: The second polarizer determines how much light can pass through based on the orientation of the liquid crystals. If aligned correctly, light passes through; if not, it is blocked.
5. Color Production: Each pixel's sub-pixels (RGB) adjust their brightness levels based on the signals received from the display controller, producing various colors.
Different types of LCD technologies exist, each with unique characteristics:
- Twisted Nematic (TN): The most common type known for its fast response times but limited viewing angles and color reproduction. TN panels are often used in budget monitors and gaming displays due to their rapid refresh rates.
- In-Plane Switching (IPS): Offers better color accuracy and wider viewing angles compared to TN panels but generally has slower response times. IPS technology is favored in professional-grade monitors where color fidelity is crucial.
- Vertical Alignment (VA): Provides better contrast ratios and deeper blacks but may have slower response times compared to TN and IPS technologies. VA panels are often used in televisions where deep blacks enhance movie-watching experiences.
- Advanced Fringe Field Switching (AFFS): A variation of IPS technology that improves color reproduction and viewing angles even further while maintaining fast response times.
- Thin and Lightweight: LCDs are significantly thinner than CRTs, making them ideal for portable devices such as laptops and tablets.
- Energy Efficient: They consume less power than older display technologies, contributing to longer battery life in portable devices.
- Sharp Images: Capable of producing high-resolution images with vibrant colors due to their precise control over individual pixels.
- Low Heat Emission: Unlike CRTs that generate significant heat during operation, LCDs remain cool which enhances their longevity.
- Limited Viewing Angles: Some types like TN have restricted viewing angles where color distortion occurs when viewed from off-angles.
- Response Time Issues: Fast-moving images can sometimes appear blurry due to slower response times in certain technologies, particularly in gaming contexts where motion blur can be distracting.
- Color Shift: Depending on the angle from which you view an LCD screen, colors may appear different due to how liquid crystals manipulate light.
LCDs are utilized in various applications:
- Consumer Electronics: TVs, monitors, laptops, tablets, and smartphones benefit from their lightweight design and energy efficiency.
- Industrial Applications: Control panels and instrumentation displays often use LCD technology due to its durability and clarity under various lighting conditions.
- Medical Devices: Monitors for imaging equipment such as ultrasound machines or patient monitoring systems utilize high-resolution LCDs for accurate readings.
- Automotive Displays: Many modern vehicles use LCD screens for dashboards and infotainment systems due to their versatility and ease of integration with digital interfaces.
The future of LCD technology looks promising with advancements aimed at improving performance:
- Quantum Dot Technology: Enhances color accuracy and brightness by using quantum dots in conjunction with traditional LCD technology. This innovation allows for more vivid colors and improved energy efficiency compared to standard LED backlighting methods.
- Flexible Displays: Research into flexible LCDs could lead to new applications in wearables and curved screens that adapt better to user needs while maintaining high image quality.
- Higher Refresh Rates: As gaming becomes more competitive, manufacturers are focusing on increasing refresh rates beyond 144Hz for smoother gameplay experiences without motion blur.
- Improved Energy Efficiency: Ongoing research aims at reducing power consumption even further by developing new materials and backlighting techniques that require less energy while maintaining brightness levels.
Proper maintenance can significantly extend the lifespan of an LCD display:
- Cleaning: Use a soft microfiber cloth dampened with water or a specialized screen cleaner; avoid harsh chemicals that could damage the screen's coating.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration over time; position your display away from bright windows or use curtains when necessary.
- Temperature Control: Keep your device within recommended temperature ranges; extreme heat or cold can affect performance and longevity.
In summary, LCD displays are complex systems composed of multiple layers that work together to create vibrant images. Understanding their components—such as backlights, liquid crystals, polarizers, and color filters—provides insight into how these displays function. As technology continues to evolve with innovations like quantum dots and flexible displays on the horizon, we can expect further enhancements in display quality and efficiency across various applications.
An LCD display is a flat-panel screen that uses liquid crystals to modulate light for image creation.
Color is produced by combining red, green, and blue sub-pixels within each pixel; varying their intensity creates different colors.
LCDs are thinner, lighter, more energy-efficient, and capable of producing sharper images compared to CRTs.
Common types include Cold Cathode Fluorescent Lamps (CCFL) and Light Emitting Diodes (LED).
Certain technologies like Twisted Nematic (TN) have limited viewing angles due to how they manipulate light compared to other technologies like In-Plane Switching (IPS).
