An I2C LCD display is a type of liquid crystal display (LCD) that utilizes the Inter-Integrated Circuit (I2C) communication protocol to interface with microcontrollers, such as Arduino or Raspberry Pi. This technology simplifies the connection between the display and the microcontroller by requiring only two data lines (SDA for data and SCL for clock), which significantly reduces wiring complexity compared to traditional parallel LCDs.
I2C is a serial communication protocol that allows multiple devices to communicate with each other using just two wires. This protocol is particularly useful in applications where space is limited, as it minimizes the number of connections required.
- SDA (Serial Data Line): This line carries the data being transmitted.
- SCL (Serial Clock Line): This line provides the clock signal to synchronize data transmission.
The simplicity of I2C makes it an ideal choice for connecting various components in embedded systems, including sensors, displays, and other peripherals.
An I2C LCD typically consists of:
- LCD Module: The actual display component, often based on the HD44780 controller, which can show characters in a grid format (e.g., 16x2 or 20x4).
- I2C Backpack: A small circuit board that attaches to the back of the LCD. It contains a PCF8574 or similar I2C chip that converts the serial data from the microcontroller into parallel data for the LCD.
Using an I2C LCD display offers several benefits:
- Reduced Wiring: Only requires four connections (GND, VCC, SDA, SCL) compared to traditional LCDs that may require up to 10 pins.
- Multiple Device Support: Allows multiple I2C devices to be connected on the same bus without additional wiring.
- Simplified Coding: Libraries such as `LiquidCrystal_I2C` make programming straightforward, allowing users to focus on functionality rather than communication details.
- Built-in Contrast Adjustment: Many I2C LCD modules come with a potentiometer for easy contrast adjustment.
I2C LCD displays are widely used in various applications, including:
- Home Automation Systems: Displaying sensor readings or system status.
- Weather Stations: Showing temperature, humidity, and other environmental data.
- Robotics Projects: Providing real-time feedback and status updates.
- Educational Tools: Teaching programming and electronics concepts.

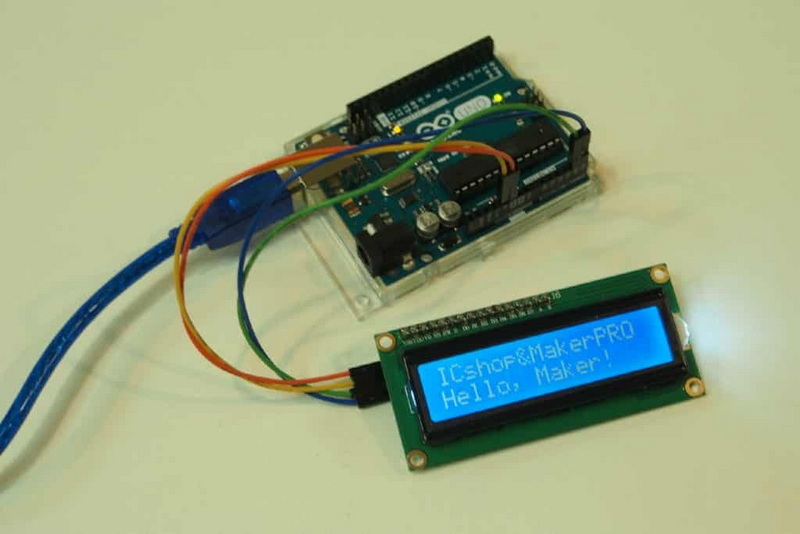

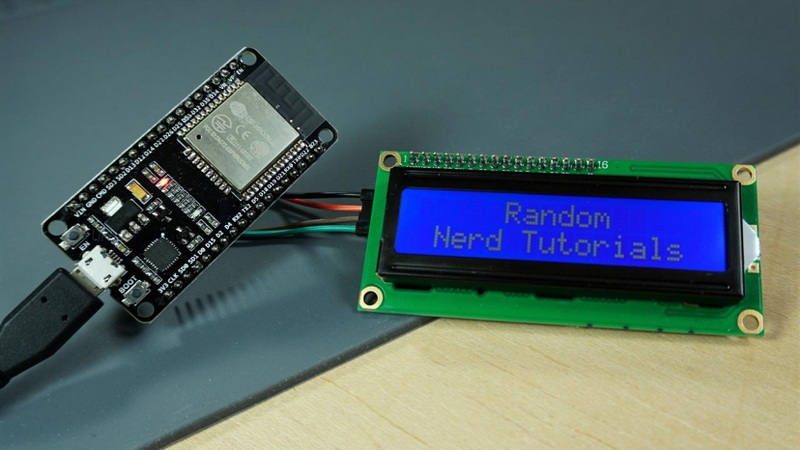

To connect an I2C LCD display to an Arduino, follow these steps:
- Arduino board (e.g., Arduino Uno)
- I2C LCD display module
- Jumper wires
The typical wiring configuration is as follows:
| I2C LCD Pin | Arduino Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| SDA | A4 |
| SCL | A5 |
One of the exciting features of using an I2C LCD is the ability to create custom characters. Each character can be defined within a 5x8 pixel matrix. You can design unique symbols or icons that suit your project needs.
To create custom characters, you need to define them in your code as byte arrays.
When working with I2C LCD displays, you may encounter some common issues:
If your display lights up but does not show any text:
- Check your wiring connections.
- Ensure that you have set the correct I2C address in your code (common addresses are `0x27` or `0x3F`).
- Adjust the contrast potentiometer on the I2C backpack.
If characters appear garbled or incorrect:
- Verify that you are using compatible libraries.
- Ensure proper initialization of the display in your code.
While I2C displays are convenient due to their reduced pin count and simplified wiring, they do have limitations regarding speed and data transfer rates when compared to other interfaces like SPI.
I2C typically operates at standard speeds of 100 kHz or high-speed modes up to 400 kHz. In contrast, SPI can achieve much higher speeds (often exceeding several MHz). This difference becomes crucial when dealing with high-resolution displays or applications requiring rapid updates.
For applications where large amounts of data need to be transferred quickly (such as graphics displays), SPI might be more suitable than I2C due to its higher throughput capabilities.
I2C's low power usage is also a significant advantage for battery-powered devices. The protocol's design allows for lower energy consumption while maintaining effective communication between devices.
I2C LCD displays provide an efficient and user-friendly way to interface visual output into electronic projects. Their simplicity in wiring and ease of programming make them a popular choice among hobbyists and professionals alike. Whether you're building a home automation system or a simple educational project, integrating an I2C LCD can significantly enhance user interaction and data presentation.
Most commonly used sizes are 16x2 (16 characters per line and 2 lines) or 20x4 (20 characters per line and 4 lines).
Yes, multiple devices can be connected on the same I2C bus as long as they have unique addresses.
You can use an I2C scanner sketch available online that detects all connected devices and their addresses.
The `LiquidCrystal_I2C` library is commonly used for interfacing with I2C LCD displays in Arduino projects.
Yes, you can create custom characters using functions provided by libraries like `LiquidCrystal_I2C`.
