In our increasingly digital world, touch panels have become an integral part of our daily lives. From smartphones and tablets to interactive kiosks and industrial control systems, touch panels are everywhere. But what exactly is a touch panel, and how does this fascinating technology work? Let's dive deep into the world of touch panels and explore their inner workings, types, and applications.
A touch panel, also known as a touchscreen, is a display device that allows users to interact directly with what is displayed on the screen using their fingers, a stylus, or other objects. It combines both input and output functions, serving as a visual display and an input device simultaneously[1][2].
A typical touch panel consists of three main components:
1. Touch Sensor: This is the layer that detects touch input.
2. Controller: It processes the signals from the touch sensor.
3. Software Driver: This interprets the touch events and communicates with the operating system.
The functioning of a touch panel depends on the technology it uses. Let's explore the most common types of touch panel technologies and how they work.
Resistive touch panels are composed of several thin layers, with two key electrically resistive layers facing each other with a thin gap between them[1].
How it works:
1. When pressure is applied to the screen, the two layers make contact.
2. This contact causes a change in the electrical current.
3. The panel then behaves as a pair of voltage dividers, one axis at a time.
4. By rapidly switching between each layer, the exact point of contact can be detected.
Advantages:
- Works with any object, not just a finger
- Resistant to water and dust
- Cost-effective
Disadvantages:
- Less sensitive, requires more pressure
- Lower clarity due to multiple layers

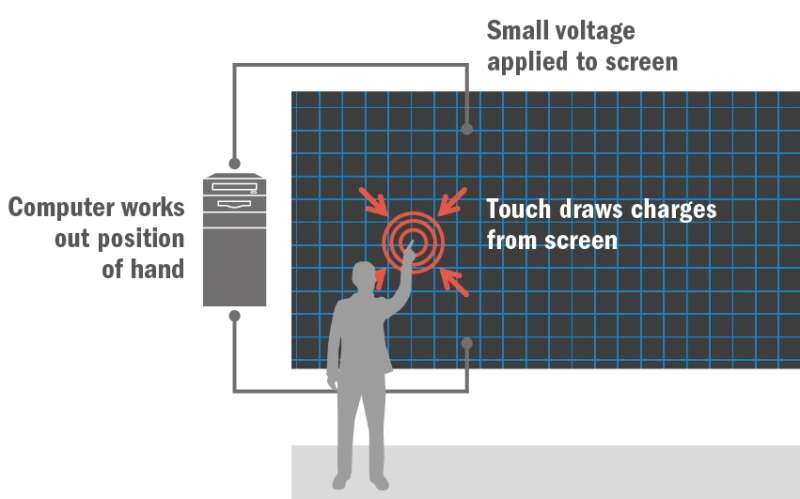

Capacitive touch panels are more common in modern devices like smartphones and tablets. They work based on the human body's electrical properties[2].
How it works:
1. The screen is coated with a material that stores electrical charges.
2. When a finger touches the screen, it draws a tiny amount of charge to the point of contact.
3. Circuits located at each corner of the panel measure the charge and send the information to the controller for processing.
Advantages:
- Highly sensitive and accurate
- Supports multi-touch gestures
- Better clarity and brightness
Disadvantages:
- Only works with conductive objects (like a finger)
- More expensive than resistive technology
SAW technology uses ultrasonic waves that pass over the touchscreen panel[7].
How it works:
1. Transducers create a grid of invisible ultrasonic waves on the surface of the screen.
2. When a finger touches the screen, it absorbs some of the waves.
3. The change in the ultrasonic waves is detected and the touch point is calculated.
Advantages:
- High clarity and durability
- Works with finger, gloved hand, or soft stylus
Disadvantages:
- Can be affected by contaminants on the surface
- More expensive than other technologies
Infrared touch panels use a grid of infrared light beams across the screen surface[8].
How it works:
1. LEDs and light sensors create a grid of infrared light across the screen.
2. When an object interrupts the light beams, the sensors detect the absence of light.
3. The controller calculates the touch point based on which beams are broken.
Advantages:
- Works with any object
- Highly durable
- Suitable for large displays
Disadvantages:
- Can be affected by strong ambient light
- Less precise than other technologies
Touch panels have found their way into numerous applications across various industries:
1. Consumer Electronics: Smartphones, tablets, laptops, and smartwatches.
2. Automotive: In-car entertainment systems and navigation displays.
3. Retail: Point-of-sale systems and self-service kiosks.
4. Healthcare: Medical equipment interfaces and patient information systems.
5. Education: Interactive whiteboards and e-learning devices.
6. Industrial: Control panels for machinery and equipment.
As technology continues to evolve, we can expect to see advancements in touch panel technology:
1. Haptic Feedback: Providing tactile sensations to enhance the touch experience.
2. Flexible and Foldable Displays: Incorporating touch technology into bendable screens.
3. 3D Touch: Detecting not just the position but also the pressure of touch.
4. Touchless Gestures: Combining touch panels with gesture recognition for a more intuitive interface.
Touch panels have revolutionized the way we interact with digital devices, making technology more intuitive and accessible. From resistive to capacitive, SAW to infrared, each type of touch panel technology has its unique strengths and applications. As we continue to push the boundaries of human-computer interaction, touch panels will undoubtedly play a crucial role in shaping our digital future.
The terms "touch panel" and "touchscreen" are often used interchangeably. However, technically speaking, a touch panel refers to the touch-sensitive component that detects touch input, while a touchscreen is the complete assembly that includes both the touch panel and the display screen.
It depends on the type of touch panel technology. Resistive touch panels can work with gloves as they respond to pressure. However, capacitive touch panels, which are common in smartphones, typically don't work with regular gloves as they rely on the electrical properties of skin. Some gloves are designed with conductive materials in the fingertips to work with capacitive screens.
The durability of touch panels varies depending on the technology and manufacturing quality. Generally, resistive touch panels are more susceptible to damage from sharp objects but are resistant to liquids. Capacitive touch panels are typically more durable against everyday use but can be damaged by excessive force. Many modern touch panels are designed to withstand millions of touches in their lifetime.
Yes, touch panels can be designed for outdoor use. However, they need to be specially engineered to withstand environmental factors such as direct sunlight, extreme temperatures, and moisture. Infrared and certain types of capacitive touch panels are often used in outdoor applications due to their durability and ability to function in various weather conditions.
Multi-touch panels, most commonly found in capacitive touchscreens, use a grid of sensors to detect multiple points of contact simultaneously. The controller processes these multiple inputs, allowing for gestures like pinch-to-zoom or two-finger rotation. This technology enables more complex and intuitive interactions with devices, enhancing user experience in applications ranging from smartphones to large interactive displays.
