Liquid Crystal Displays (LCDs) are everywhere—from televisions and computer monitors to industrial equipment and medical devices. But behind every vibrant image and crisp text you see on an LCD, there's a crucial component working in the background: the display board, often called the LCD controller board or driver board. This article will explore in depth what a display board for an LCD is, how it works, its key components, types, applications, and much more. Throughout, you'll find illustrative diagrams and explanations to clarify complex concepts.
LCDs have revolutionized how we interact with information. Unlike older cathode-ray tube (CRT) displays, LCDs are thin, energy-efficient, and capable of delivering high-resolution images. At the heart of every LCD system is a sophisticated electronic system that translates digital signals into visible images.
LCD technology relies on the manipulation of light passing through liquid crystals. These crystals do not emit light themselves; instead, they modulate light from a backlight source. The result is a display that is both bright and power-efficient, suitable for a wide range of applications from mobile devices to large-format televisions.

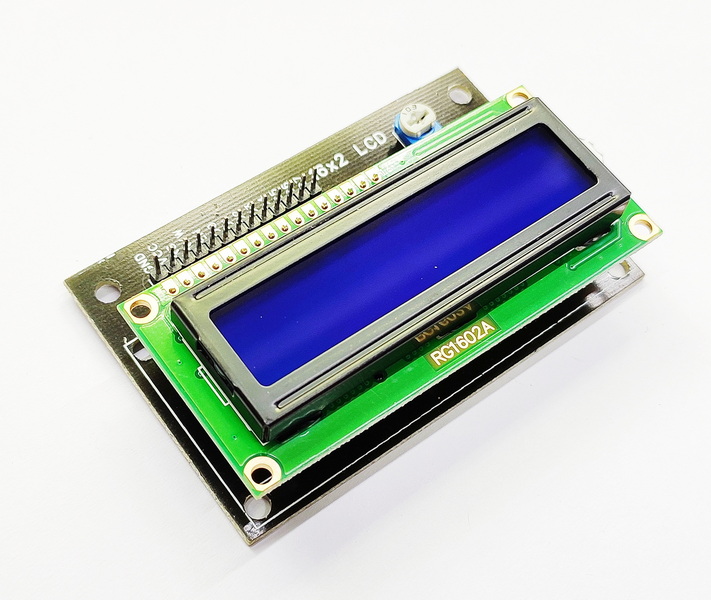

A display board for an LCD—also known as an LCD controller board, driver board, or adapter board—is an electronic circuit board that acts as the intermediary between the host device (such as a computer, media player, or embedded system) and the LCD panel itself. Its main function is to convert the output signals from the host device into a format that the LCD panel can understand and display, ensuring smooth and accurate image rendering.
The display board serves as a “translator” and “bridge,” ensuring compatibility between various devices and the LCD screen. Without it, the LCD panel would not be able to interpret the data sent from the host system, resulting in a blank or malfunctioning display.

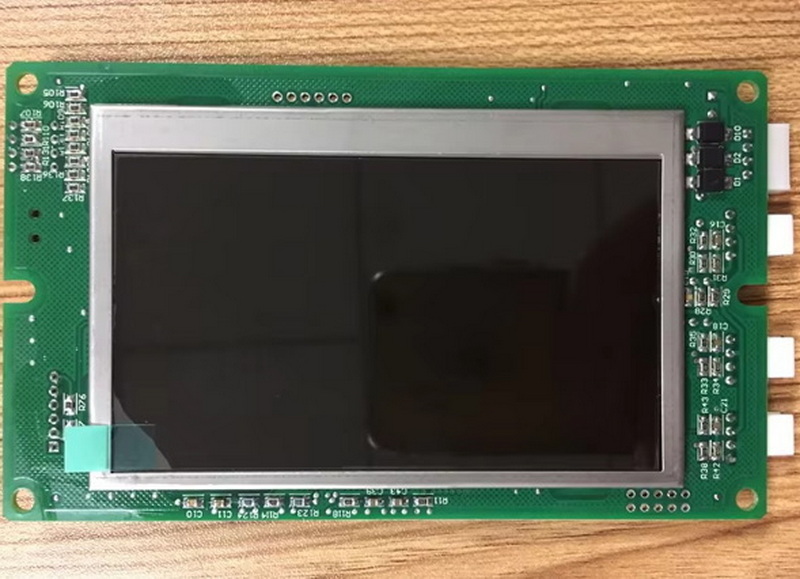

A typical LCD display board is a complex assembly of electronic components, each serving a specific function. Here are the main parts:
- Input Interfaces: Accepts signals from external devices (HDMI, VGA, DVI, DisplayPort, USB-C, etc.).
- Signal Processor/Controller IC: The brain of the board, converting incoming signals into the format required by the LCD panel.
- Output Interfaces: Sends processed signals to the LCD panel (LVDS, eDP, MIPI, RGB, TTL, etc.).
- Power Supply Module: Converts and regulates voltage levels for the LCD and its backlight.
- Backlight Inverter/Controller: Supplies and regulates power to the LCD's backlight.
- On-Screen Display (OSD) Controller: Manages user settings like brightness, contrast, and input selection.
- Microcontroller Unit (MCU): Handles logic, user input, and sometimes advanced features like touch control.
- Memory (ROM/RAM): Stores firmware, configuration data, and sometimes frame buffers.
Each of these components plays a vital role in ensuring the LCD panel receives the correct signals, power, and control inputs to function optimally.
The operation of an LCD display board can be broken down into several key stages:
The board receives video signals from the host device through its input interfaces. These signals can be digital (HDMI, DVI, DisplayPort) or analog (VGA).
The controller IC decodes the incoming signal and processes it. This may involve:
- Scaling the image to fit the panel's native resolution
- Adjusting color, brightness, and contrast
- Converting the signal to the appropriate voltage and timing
The processed signal is sent to the LCD panel via the appropriate output interface. The controller ensures that the timing, voltage, and format match the panel's requirements.
The board controls the backlight, adjusting brightness as needed. It also manages power delivery to ensure stable operation.
Some boards provide real-time monitoring, adjusting settings automatically for optimal display quality. The OSD controller allows users to change settings via buttons or remote control.
This multi-stage process ensures that whatever device is connected to the LCD, the display board can interpret and present the data in a visually clear and accurate manner.
LCD display boards come in various types, each tailored for specific applications and interfaces.
Type | Input Signal(s) | Output Signal(s) | Typical Use Case |
---|---|---|---|
HDMI to LVDS Controller | HDMI | LVDS | TV, monitors, laptops |
VGA to TTL Controller | VGA | TTL | Legacy systems, industrial |
DVI to eDP Controller | DVI | eDP | High-end monitors, laptops |
Multi-interface Controller | HDMI, VGA, DP, USB-C | LVDS, eDP, MIPI | Universal displays, signage |
Touch Controller Board | Various | LVDS/eDP + Touch | Interactive kiosks, tablets |
Each type is designed to meet specific needs, whether it's supporting legacy hardware, enabling high-resolution graphics, or integrating touch functionality.
Modern LCD display boards are packed with features that enhance performance, flexibility, and usability:
- Signal Conversion: Converts analog/digital signals into panel-compatible formats.
- Image Processing: Includes scaling, color correction, and de-interlacing.
- Backlight Control: Adjusts brightness for optimal visibility and power savings.
- OSD (On-Screen Display): Allows users to adjust settings via menus.
- Power Management: Ensures safe and efficient power delivery.
- Interface Adaptation: Supports a wide range of input and output interfaces.
- Touchscreen Support: Some boards integrate touch controller functionality.
- Firmware Updates: Many boards allow firmware upgrades for new features or bug fixes.
- Audio Handling: Some boards include audio output for integrated speakers.
- Remote Control Support: Enables remote adjustments, useful for digital signage and TVs.
These features make LCD display boards highly versatile, capable of supporting a wide range of display technologies and user requirements.
LCD display boards are found in a wide range of devices and industries:
- Consumer Electronics: TVs, monitors, laptops, tablets, smartphones
- Industrial Equipment: Machine interfaces, control panels, digital signage
- Medical Devices: Diagnostic screens, patient monitors
- Automotive Displays: Dashboard screens, infotainment systems
- Retail and Advertising: Kiosks, point-of-sale terminals, digital billboards
- Education: Interactive whiteboards, e-learning devices
- Aerospace and Defense: Cockpit displays, ruggedized field monitors
- Smart Home Devices: Thermostats, smart mirrors, home automation panels
The adaptability of LCD display boards allows them to be used in environments that demand reliability, clarity, and user interaction.
When selecting a display board for an LCD, consider the following factors:
- Panel Specifications: Resolution, size, refresh rate, and interface type of your LCD panel.
- Input Requirements: What devices will send video to your display? (HDMI, VGA, DP, etc.)
- Output Compatibility: Does the board output the correct signal for your panel? (LVDS, eDP, etc.)
- Power Needs: Voltage and current requirements for both the panel and backlight.
- Advanced Features: Touch support, OSD, audio, firmware upgradability.
- Environmental Factors: Temperature range, humidity, electromagnetic compatibility.
- Mounting and Form Factor: Ensure the board fits within your device's enclosure.
- Support and Documentation: Good technical support and clear documentation can save time during integration.
Carefully matching the board's capabilities to your application's requirements is essential for a successful display project.
Common issues with LCD display boards include:
- No Display / Blank Screen: Check power supply, input signal, and cable connections.
- Distorted or Flickering Image: Ensure signal compatibility, check for firmware updates, and inspect for damaged components.
- Incorrect Colors or Brightness: Adjust OSD settings, check backlight control, and verify panel compatibility.
- Touch Not Working: Confirm touch controller is properly connected and configured.
- Overheating: Ensure adequate ventilation and avoid placing the board near heat sources.
- Firmware Issues: Regularly check for updates and apply them as recommended by the manufacturer.
Routine maintenance involves keeping the board clean, ensuring proper ventilation, and updating firmware when available. In industrial or outdoor environments, additional protection such as conformal coating or sealed enclosures may be necessary to guard against dust, moisture, and vibration.
The world of LCD display boards is constantly evolving. Recent innovations include:
- Integration with IoT: Many modern controller boards now support network connectivity, enabling remote monitoring, diagnostics, and updates.
- Higher Resolutions and Refresh Rates: Support for 4K and even 8K panels, as well as high refresh rates for gaming and professional applications.
- Advanced Touch Technologies: Capacitive, resistive, and even haptic feedback integration for more interactive experiences.
- Miniaturization: Smaller, more efficient boards for compact devices such as wearables and portable medical equipment.
- Energy Efficiency: Improved power management and low-power standby modes for battery-operated devices.
- Customization: Manufacturers offer custom firmware and hardware solutions for specialized applications, such as outdoor displays with sunlight-readable panels or ruggedized boards for harsh environments.
These advancements ensure that LCD display boards will continue to meet the demands of future technologies and applications.
As electronic waste becomes a growing concern, manufacturers are focusing on making LCD display boards more environmentally friendly. This includes:
- Lead-Free Soldering: Using materials that comply with RoHS (Restriction of Hazardous Substances) standards.
- Recyclable Materials: Designing boards with components that are easier to recycle at the end of their life cycle.
- Energy Efficiency: Lowering power consumption not only saves energy but also extends the lifespan of both the board and the display.
- Long-Term Support: Providing firmware updates and spare parts to extend the useful life of products, reducing the need for replacements.
Consumers and businesses alike are encouraged to consider the environmental impact of their display solutions and to choose products from manufacturers committed to sustainability.
The display board is the unsung hero of every LCD system. Acting as the critical interface between the host device and the LCD panel, it ensures that images and videos are displayed accurately, efficiently, and reliably. From simple monitors to advanced industrial touchscreens, the right LCD controller board is essential for optimal performance. As LCD technology continues to evolve, so too do the capabilities and complexity of these indispensable boards. Whether you are building a custom display for an industrial machine or upgrading a home entertainment system, understanding the role and features of the LCD display board will help you make informed decisions and achieve the best possible results.
An LCD controller board and a driver board are often used interchangeably. Both refer to the electronic circuit that converts input signals into a format the LCD can use. However, in some contexts, the driver board may specifically refer to the part that handles the final stage of signal delivery to the panel, while the controller board manages input and signal processing.
No, compatibility depends on the panel's resolution, interface type, voltage, and timing requirements. Always check the specifications of both the panel and the controller board to ensure they match.
Common input interfaces include HDMI, VGA, DVI, DisplayPort, and USB-C. Output interfaces to the panel include LVDS, eDP, MIPI, RGB, and TTL.
Firmware updates are typically delivered via USB, SD card, or through a dedicated update interface. Follow the manufacturer's instructions for safe updating.
Look for support for your panel's resolution and refresh rate, multiple input options, advanced image processing, OSD controls, power management, and, if needed, touchscreen support.
