LCD (Liquid Crystal Display) technology is at the heart of modern screens, powering everything from smartphones and televisions to computer monitors and automotive dashboards. One of the most critical aspects of an LCD is its ability to produce a bright, vivid image. But unlike some other display technologies, LCDs do not emit light on their own. Instead, they rely on a dedicated component to provide illumination. This article will explore in detail what component of an LCD display illuminates the display, how it works, and why it is essential to the functioning of LCD screens.
LCDs have revolutionized the way we interact with digital information. Their thin profile, energy efficiency, and ability to display sharp images have made them the standard in many industries. However, the magic behind the vivid images on an LCD screen is not just the liquid crystals themselves, but the light source that makes those images visible.
LCDs are fundamentally different from older CRT (cathode ray tube) displays and newer OLED (organic light-emitting diode) screens. While CRTs and OLEDs generate their own light, LCDs require a separate illumination system. This is why understanding the backlight is crucial to understanding LCD technology as a whole.
At the core of every modern LCD display is the backlight. This is the component responsible for illuminating the display, allowing the images created by the liquid crystals to be visible to the user. Without a backlight, an LCD screen would appear dark and unreadable in most environments, as liquid crystals do not emit light themselves. The backlight shines light through the various layers of the display, which is then modulated by the liquid crystals and color filters to produce the final image you see.
The backlight must be bright enough to overcome ambient lighting and provide a clear, vibrant image. It must also be uniform, so that the entire screen is evenly lit without noticeable bright or dark spots. Achieving this requires careful engineering and precise manufacturing.
The backlight in an LCD can be implemented using different technologies, each with its own advantages and applications:
- The most common type in modern LCDs.
- Offer high energy efficiency, long lifespan, and compact size.
- Can be arranged as edge-lit or direct-lit configurations.
- Used in older LCDs.
- Provide uniform light but consume more power and have a shorter lifespan than LEDs.
LED backlights have largely replaced CCFLs due to their superior performance, environmental friendliness, and design flexibility.

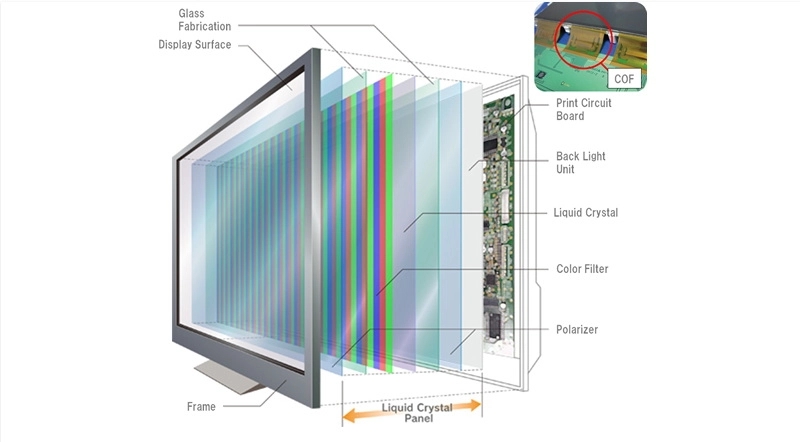

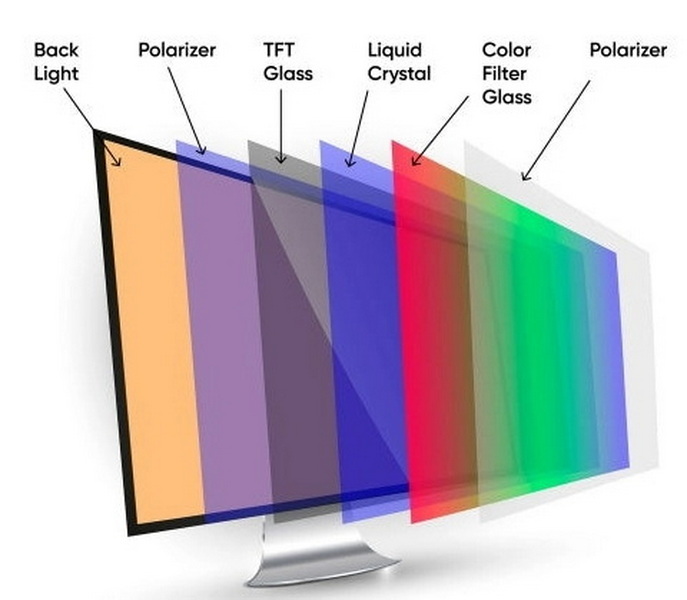

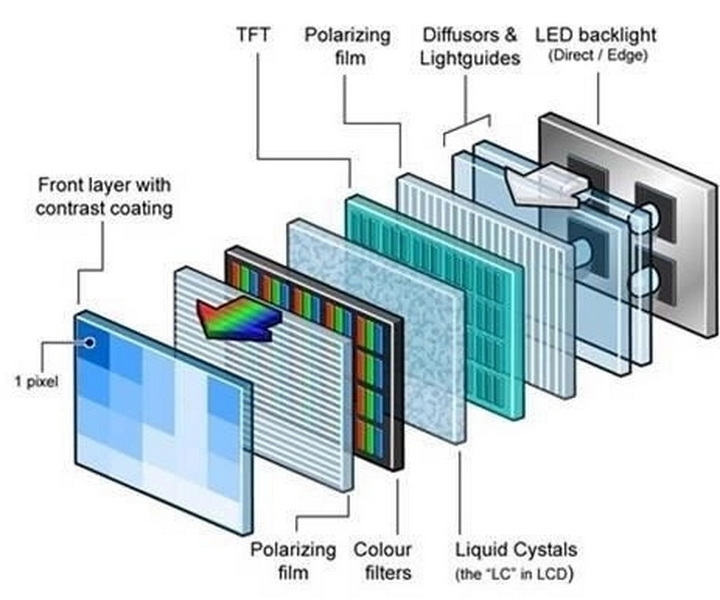

To understand how the backlight illuminates the display, it's helpful to look at the internal structure of an LCD. The main components include:
- Backlight Unit: The light source, usually composed of LEDs or CCFLs.
- Light Guide Plate and Diffusers: Spread the light evenly across the display.
- Polarizing Filters: Control the direction of light waves.
- Glass Substrates: Hold the liquid crystal layer in place.
- Liquid Crystal Layer: Modulates the light passing through.
- Color Filters: Add red, green, and blue colors to each pixel.
- Thin Film Transistor (TFT) Matrix: Controls the voltage applied to each pixel.
Each of these layers has a specific function, but it is the backlight that provides the initial illumination necessary for the entire process.
The process of illumination in an LCD display involves several steps:
1. Backlight Generation
The backlight emits white light from behind or the side of the display.
2. Diffusion and Polarization
The light passes through a diffuser and the first polarizing filter, becoming polarized.
3. Liquid Crystal Modulation
The liquid crystal layer, controlled by electrical signals, twists or aligns to allow varying amounts of light to pass through.
4. Color Filtering
The modulated light passes through color filters to create the desired color for each pixel.
5. Final Polarization
The light passes through a second polarizer before reaching the viewer, ensuring only the intended light makes it through.
This complex journey ensures that the right amount and color of light reach your eyes, forming the images you see on the screen.
Feature | LED Backlight | CCFL Backlight |
---|---|---|
Energy Efficiency | High | Moderate |
Lifespan | Long | Shorter |
Size | Compact | Bulkier |
Color Control | Excellent (local dimming possible) | Limited |
Application | Modern LCDs, TVs, monitors | Older LCDs |
LEDs are now the standard due to their superior performance and flexibility. They can be arranged in different configurations, such as edge-lit (LEDs along the edges and light guided across the screen) or direct-lit (LEDs placed directly behind the screen for higher brightness and contrast).
CCFLs were once common but are now largely obsolete. They provide even illumination but are less efficient and cannot be easily dimmed in specific areas of the screen.
Each pixel on an LCD display is made up of three sub-pixels: red, green, and blue. The backlight provides white light, which is then filtered and modulated by the liquid crystals and color filters to produce the full spectrum of colors. The intensity of each sub-pixel is controlled by the voltage applied to the liquid crystal layer, allowing for millions of color combinations.
The quality of the backlight directly affects the accuracy and vibrancy of the colors displayed. High-quality backlights can produce a wider color gamut, deeper blacks, and brighter whites, all of which contribute to a better viewing experience.
The backlight system is more than just a row of lights. It includes:
- Power Chip: Generates the signal for the backlight.
- Inductor and Diode: Manage and protect the electrical flow.
- Ribbon Cable: Transfers the signal to the LED strip.
- Backlight Driver Chip: Processes and controls the backlight in some models.
In many displays, the LED strips are arranged in series. If one LED fails, it can cause the entire backlight to go dark, making diagnosis and repair important for maintaining display performance.
Modern LCDs also use sophisticated power management techniques to adjust the brightness of the backlight based on ambient light conditions or user preferences. This not only improves the viewing experience but also extends the lifespan of the backlight and reduces energy consumption.
Backlight failure is a common issue in LCD displays. Symptoms include a dim or completely dark screen, flickering, or uneven brightness. Diagnosing involves:
- Visual inspection for burnt or damaged LEDs.
- Using a multimeter or backlight tester to check for faults.
- Replacing faulty LED strips if necessary.
Proper power management and regular maintenance can extend the life of the backlight and ensure consistent display quality.
If the backlight fails, the display may still show a faint image when viewed under bright light, indicating that the liquid crystal layer is still functioning. In such cases, replacing the backlight can restore full functionality to the display.
Backlighting technology has evolved significantly since the introduction of LCDs. Early displays used bulky and inefficient CCFLs, which limited the thinness and energy efficiency of screens. The transition to LED backlights enabled manufacturers to produce thinner, lighter, and more energy-efficient displays.
The next major leap was the development of local dimming technology, where individual zones of the backlight can be dimmed or brightened independently. This allows for improved contrast ratios and deeper blacks, bringing LCD performance closer to that of OLED displays.
Recent years have seen the introduction of Mini-LED backlighting, which uses thousands of tiny LEDs to provide even more precise control over brightness and contrast. Mini-LED backlights can offer:
- Higher peak brightness
- Improved local dimming with more zones
- Better HDR (High Dynamic Range) performance
- Thinner display profiles
Some high-end monitors and televisions now use Mini-LED technology, pushing the boundaries of what LCDs can achieve. Research continues into even more advanced backlighting systems, such as Micro-LED and quantum dot-enhanced backlights, which promise further improvements in efficiency, color accuracy, and image quality.
As with all electronic components, the environmental impact of backlighting technology is an important consideration. LED backlights are more environmentally friendly than CCFLs, as they do not contain hazardous mercury and consume less power. Manufacturers are also working to improve the recyclability of backlight components and reduce the use of rare or toxic materials.
Energy-efficient backlighting not only benefits the environment but also reduces operating costs for consumers and businesses. As LCD technology continues to evolve, sustainability will remain a key focus for researchers and manufacturers alike.
The backlight is the essential component that illuminates an LCD display, making it possible for us to see the vibrant images and text on our screens. While the liquid crystal layer and color filters are responsible for creating the images, it is the backlight—usually composed of LEDs in modern displays—that provides the necessary illumination. Understanding the structure and function of the backlight not only deepens our appreciation for this ubiquitous technology but also equips us to diagnose and address common display issues. As display technology continues to evolve, innovations in backlighting will further enhance the visual experiences offered by LCD screens.
From the early days of CCFLs to the latest advancements in Mini-LED, the evolution of backlighting has been central to the progress of LCD technology. As we look to the future, continued innovation in backlighting will drive improvements in energy efficiency, image quality, and environmental sustainability, ensuring that LCD displays remain a vital part of our digital world.
The primary component that illuminates an LCD display is the backlight, typically made up of LEDs in modern screens. The backlight sits behind or to the side of the liquid crystal layer and provides the necessary light for the display to be visible.
LCDs use liquid crystals to modulate light but do not generate light. They require an external light source (the backlight) to produce a visible image. Without a backlight, the screen would be dark except in reflective or transflective designs that use ambient light.
LED backlights are more energy-efficient, have a longer lifespan, are thinner, offer better color control, and can be used for local dimming to improve contrast. CCFLs are bulkier, less efficient, and offer less control over brightness and color.
The backlight's brightness, uniformity, and color temperature directly influence image quality. Advanced backlighting systems with local dimming can enhance contrast and black levels, making images appear more vibrant and realistic.
Yes, in most cases, a faulty backlight can be diagnosed and replaced. This involves opening the display, identifying the faulty LED or CCFL strip, and replacing it with a compatible part. Proper safety precautions and technical knowledge are required for such repairs.
