The VEX LCD display is an essential component for many robotics projects, offering a versatile interface for displaying information, interacting with users, and debugging robot behavior. Whether you are a beginner or an experienced robotics programmer, mastering the use of the VEX LCD display can greatly enhance your robot's capabilities and user experience. This comprehensive guide will walk you through everything you need to know about using the VEX LCD display, from setup and programming to advanced features and troubleshooting.

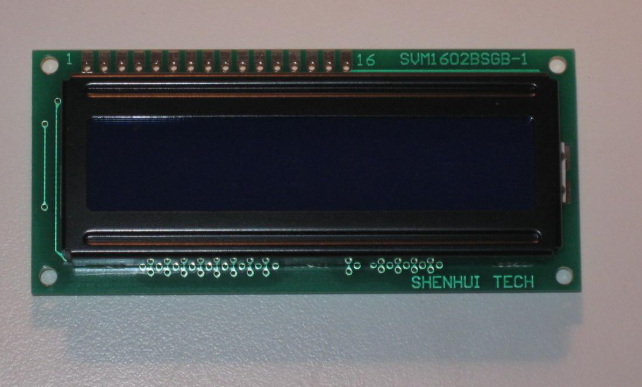

The VEX LCD display is a small screen module designed to connect with VEX microcontrollers such as the VEX Cortex and VEX V5 Brain. It provides a simple way to display text, numbers, menus, and even images in some cases. The display is typically accompanied by three buttons-left, center, and right-that can be programmed to respond to user input, making it a valuable tool for creating interactive menus and controls on your robot.
For the VEX Cortex microcontroller, the LCD display connects via a serial Y-cable. This cable has a 4-pin connector on one end that plugs into UART port 2 on the Cortex, and two 3-pin connectors on the other end that connect to the RX and TX ports on the LCD module. It is important to ensure the yellow wire connects to the RX port and the white wire to the TX port to maintain proper communication.
For the VEX V5 Brain, the LCD screen is integrated into the brain itself, allowing direct control without additional cables. This screen is larger and supports higher resolution graphics, including the ability to display images and more complex interfaces.
Physically mounting the LCD display on your robot is straightforward. Most users attach the LCD module to the robot chassis or a control panel using screws or Velcro strips. Position it where it can be easily viewed and accessed during operation or testing.
The LCD display draws power from the microcontroller, so ensure your robot's battery is fully charged and capable of supplying sufficient current. For extended use, especially when displaying images or running complex menus, it's advisable to monitor battery levels to avoid unexpected shutdowns.
Programming the LCD display involves sending commands to control what is shown on the screen and how the buttons respond. The approach varies depending on the programming environment you use.
ROBOTC is a popular programming language for VEX Cortex robots. It provides built-in functions for controlling the LCD display, such as clearing lines, displaying strings, showing numbers, and detecting button presses.
You can display sensor values in real-time, create menus for autonomous program selection, and even build interactive interfaces that respond to button presses. For example, you might display battery voltage, motor speeds, or sensor readings to help with debugging and tuning your robot.
For the VEX V5 Brain, VEXcode and the VEX V5 SDK offer modern C++-based programming environments. These platforms allow you to leverage the brain's built-in LCD screen with enhanced graphics capabilities.
You can draw text, shapes, and images, as well as handle touch or button inputs. The SDK includes functions for setting foreground and background colors, positioning text precisely, and managing screen refreshes efficiently.
One of the most powerful uses of the LCD display is creating custom menus that allow users to navigate options, select autonomous routines, or adjust settings without needing to connect to a computer.
By programming the LCD buttons to move through menu items and confirm selections, you can build intuitive interfaces that make your robot easier to operate in competition or demonstration settings.
While the VEX Cortex LCD is limited to text and simple graphics, the VEX V5 Brain's LCD screen supports full-color images and more complex graphical elements.
Using image converters and the LVGL graphics library, you can display logos, icons, or other images that enhance the visual appeal and professionalism of your robot's interface.
The LCD display can serve as a dashboard for real-time data visualization. You can show sensor readings, motor power levels, and control loop errors to monitor your robot's performance live.
This is especially useful during autonomous operation or when fine-tuning PID controllers, as you can see immediate feedback without needing to connect to a debugger.
- Check all wiring connections carefully, ensuring the serial Y-cable is plugged into the correct UART port and the RX/TX wires are connected properly.
- Verify that your code includes commands to initialize and update the LCD display.
- Make sure the microcontroller is powered and running the program correctly.
- Confirm that you are using the correct button constants in your code.
- Test the buttons physically to ensure they are not damaged.
- Use debugging statements to check if button presses are detected in your program.
- Ensure your code clears the LCD lines before displaying new content.
- Check that sensor values or variables being displayed are valid and updated properly.
- Avoid sending too much data too quickly to the LCD, which can cause communication issues.
Many teams use the LCD display to select which autonomous routine to run before a match. By programming a menu that cycles through options with the left and right buttons and confirms selection with the center button, you can easily switch between different strategies without reprogramming the robot.
During testing and competition, it's helpful to display battery voltage and sensor readings on the LCD. This allows quick checks to ensure everything is functioning correctly and can alert you to potential issues like low battery or sensor faults.
Displaying debug information such as motor speeds, encoder counts, or PID loop errors on the LCD helps with tuning your robot's performance. You can observe how changes in code affect behavior in real-time, speeding up development.
- Keep Displays Clear and Concise: Avoid cluttering the screen with too much information. Use clear labels and update only what is necessary.
- Use Menus for User Interaction: Menus improve usability by organizing options logically and preventing accidental selections.
- Test Button Responses Thoroughly: Ensure all button presses are correctly detected and handled to prevent user frustration.
- Monitor Battery Levels: Display battery voltage regularly to avoid unexpected power loss.
- Use Comments in Code: Document your LCD display code well to make future modifications easier.
The VEX LCD display is a powerful and flexible tool that can greatly enhance your robotics projects. From simple text displays to interactive menus and real-time data visualization, mastering the LCD display opens up new possibilities for robot control and user interaction. Whether you are programming with ROBOTC, VEXcode, or the VEX V5 SDK, understanding how to effectively use the LCD display will help you build smarter, more user-friendly robots.
By following the setup instructions, exploring programming examples, and applying best practices, you can leverage the full potential of the VEX LCD display to improve your robot's functionality and your overall robotics experience.
