Arduino projects often require displaying real-time data from sensors in a clear and interactive way. LCD (Liquid Crystal Display) screens are a popular choice for this purpose due to their affordability, ease of use, and versatility. This article provides a detailed, step-by-step guide on how to use an LCD screen with Arduino to display sensor readings. We will cover wiring, coding, troubleshooting, and advanced tips, complemented by detailed explanations to enhance understanding.
LCD screens come in various types, but the most common for Arduino projects are:
- 16x2 Character LCD: Displays 16 characters per line on 2 lines, ideal for text and simple numeric data.
- 20x4 Character LCD: Provides more space with 20 characters per line and 4 lines, useful for displaying more information simultaneously.
- TFT LCD Screens: Color graphical displays capable of showing images, animations, and complex graphics.
- I2C LCD Modules: 16x2 or 20x4 LCDs with an I2C interface, reducing wiring complexity significantly.

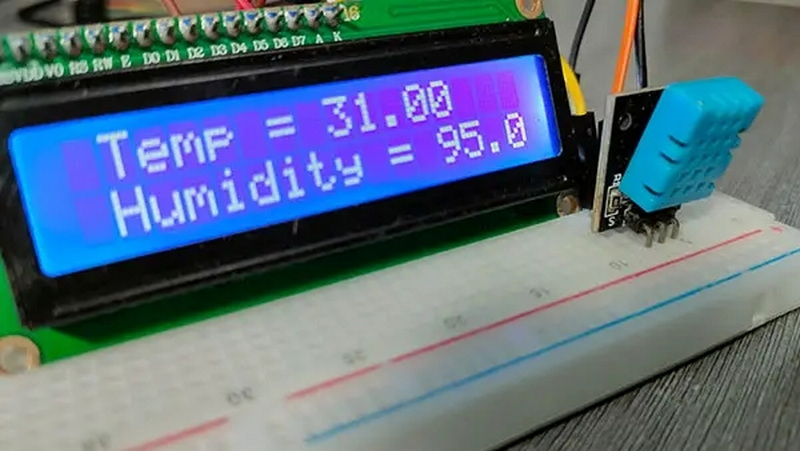

For sensor data display, the 16x2 LCD is widely used due to its simplicity and cost-effectiveness. It can display sensor values like temperature, distance, humidity, or light intensity in real time, making it perfect for beginner and intermediate Arduino projects.
To successfully display sensor data on an LCD using Arduino, you will need the following components:
- Arduino board (e.g., Arduino Uno, Nano, or Mega)
- 16x2 LCD display (with or without I2C module)
- Sensor(s) (examples include temperature sensors like TMP36, ultrasonic distance sensors like HC-SR04, light sensors like LDR)
- 10kΩ potentiometer (for LCD contrast adjustment)
- 220Ω resistor (for LCD backlight protection)
- Breadboard and jumper wires (for easy connections)
- USB cable (for programming the Arduino)
Having these components ready will streamline the building and programming process.
The standard 16x2 LCD module has 16 pins, each serving a specific function. Here is a summary of the essential connections:
- Power and Ground: Pin 1 (VSS) connects to GND, and Pin 2 (VDD) connects to +5V on the Arduino.
- Contrast Control: Pin 3 (VO) connects to the wiper (middle pin) of the potentiometer; the other two potentiometer pins connect to +5V and GND. This setup adjusts the screen contrast.
- Register Select (RS): Pin 4 connects to Arduino digital pin 12. This pin selects whether data or command is sent.
- Read/Write (RW): Pin 5 connects to GND to set the LCD in write mode.
- Enable (EN): Pin 6 connects to Arduino digital pin 11. This pin enables the LCD to latch data.
- Data Pins (D4-D7): Pins 11 to 14 connect to Arduino digital pins 5, 4, 3, and 2 respectively. These pins send data to the LCD.
- Backlight: Pin 15 (LED+) connects through a 220Ω resistor to +5V, and Pin 16 (LED-) connects to GND.
This wiring scheme uses a 4-bit data mode, which reduces the number of Arduino pins needed and simplifies the code.
The TMP36 sensor is a popular analog temperature sensor that outputs voltage proportional to temperature. Its three pins are connected as follows:
- Left pin to +5V power supply.
- Middle pin to Arduino analog input pin (e.g., A0).
- Right pin to GND.
This simple connection allows the Arduino to read the analog voltage and convert it into temperature.
For projects requiring distance measurement, the HC-SR04 ultrasonic sensor is a great choice. Its four pins connect as follows:
- VCC to +5V.
- GND to GND.
- Trigger pin to Arduino digital pin 9.
- Echo pin to Arduino digital pin 10.
With these connections, the Arduino can send ultrasonic pulses and measure the time it takes for the echo to return, calculating distance accordingly.
Before writing code, ensure your Arduino IDE is ready:
- For standard 16x2 LCDs, the built-in `LiquidCrystal` library suffices.
- For I2C LCDs, install the `LiquidCrystal_I2C` library via the Library Manager.
- For TFT LCDs, libraries such as `Adafruit_GFX` and `Adafruit_ST7735` are commonly used.
Installing and including the correct libraries is crucial for smooth communication between the Arduino and the LCD.
The core concept involves reading sensor data, processing it, and sending the output to the LCD. For example, reading temperature from the TMP36 sensor and displaying it on the LCD involves:
- Initializing the LCD.
- Reading analog input from the sensor.
- Converting the analog voltage to temperature.
- Displaying the temperature value on the LCD screen.
The code loops continuously, updating the display every second to show real-time data.
To display multiple sensor readings, such as temperature and distance, you can assign each value to a different line on the LCD. Use the `lcd.setCursor(column, row)` function to position the cursor before printing each sensor value. This allows simultaneous monitoring of various parameters.
To improve readability and presentation:
- Add units (e.g., "C" for Celsius, "cm" for centimeters).
- Clear the display before updating to avoid overlapping text.
- Format floating-point numbers to a fixed number of decimal places.
- Use custom characters for symbols like the degree sign.
LCDs allow the creation of up to eight custom characters. This is useful for displaying symbols not included in the standard character set, such as a degree symbol for temperature or arrows for direction.
If your message exceeds the LCD width, you can implement scrolling text using functions like `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()`. This feature is excellent for displaying longer sensor names or status messages.

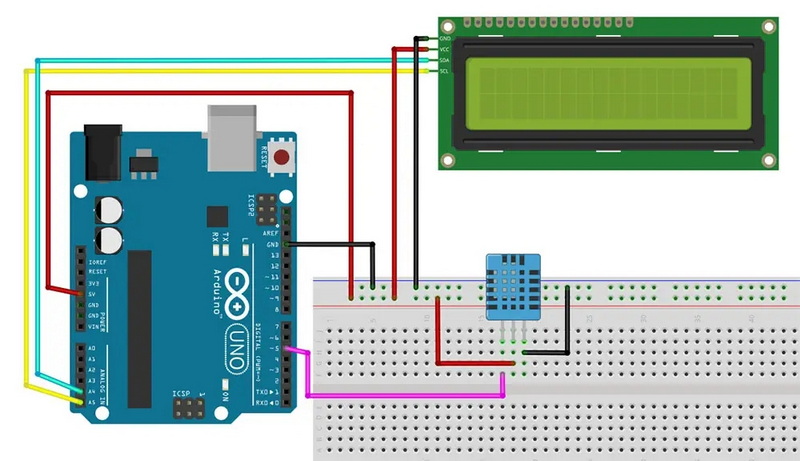

I2C LCDs simplify wiring by reducing the number of connections to just four:
- VCC to +5V
- GND to GND
- SDA to Arduino SDA pin (A4 on Uno)
- SCL to Arduino SCL pin (A5 on Uno)
This makes the setup neater and easier to manage, especially in complex projects.
For more advanced projects, TFT LCDs offer the ability to display colorful graphics, charts, and even images. This capability allows visualization of sensor data trends over time or interactive interfaces.
Even with careful planning, issues may arise. Here are common problems and solutions:
- Blank or dim LCD screen: Adjust the potentiometer to set the correct contrast.
- Only blocks or squares displayed: Usually indicates the LCD is powered but not initialized properly. Check your code's initialization commands and wiring.
- No display at all: Verify power connections, ensure the LCD backlight is connected, and confirm Arduino pins match those defined in the code.
- Incorrect sensor readings: Check sensor wiring and calibration. Use serial print statements to debug sensor values.
- I2C LCD not detected: Run an I2C scanner sketch to find the device address. Ensure SDA and SCL lines are connected correctly.
- Use a stable power supply to prevent flickering or resets.
- Keep wiring short and secure to avoid interference.
- Add capacitors if you experience noise on analog sensor readings.
- Use comments in your code to document pin assignments and sensor functions.
- Test individual components separately before integrating.
Using an LCD screen with Arduino to display sensor data is a fundamental skill that opens up many possibilities for interactive and informative projects. Whether you are monitoring temperature, distance, humidity, or other environmental parameters, an LCD provides a simple and effective interface for real-time feedback.
This guide has walked you through the essential steps: understanding LCD types, wiring components, writing and enhancing code, troubleshooting common issues, and exploring advanced features. With practice, you can build increasingly sophisticated projects, incorporating multiple sensors and more complex displays such as graphical TFT screens.
By mastering LCD integration, you enhance the usability and professionalism of your Arduino projects, making your sensor data accessible and visually appealing.
Connect the I2C LCD's VCC to +5V, GND to GND, SDA to Arduino's SDA pin (A4 on Uno), and SCL to Arduino's SCL pin (A5 on Uno). Use the `LiquidCrystal_I2C` library to control the display. If the LCD is not detected, run an I2C scanner sketch to find its address.
The potentiometer adjusts the voltage on the LCD's contrast pin, controlling how dark or light the characters appear. Proper adjustment ensures the text is visible and clear.
Yes, Arduino supports various LCD types including character LCDs (16x2, 20x4), graphical LCDs, and TFT LCDs. Each type requires specific wiring and libraries, but the principles of displaying sensor data remain similar.
Check the wiring carefully, especially power, ground, and contrast connections. Make sure the LCD is correctly initialized in your code. Adjust the potentiometer for contrast. Confirm that the pins defined in your code match your wiring.
Use the `lcd.setCursor(column, row)` function to position the cursor before printing each sensor value. Assign different sensors to different rows or columns on the LCD. Update the values regularly within the loop to reflect real-time data.
