The LCD display is an essential tool in VEX robotics programming with ROBOTC, providing real-time feedback, debugging information, sensor readings, and user interaction capabilities directly on your robot. This article will guide you through everything you need to know about using the LCD display in ROBOTC, including setup, programming basics, advanced features, and practical examples. Along the way, you will find detailed explanations and practical tips to enhance your understanding.

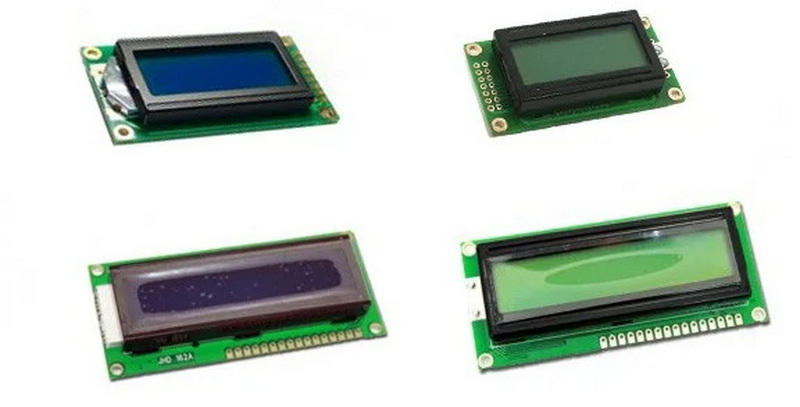

The VEX LCD display is a two-line, 16-character per line screen that connects to the VEX Cortex microcontroller via UART port 2. It allows your robot to display text, numbers, and sensor data, and it also includes three pushbuttons for input, enabling interactive menus and control schemes. This small but powerful interface can significantly improve the way you monitor and control your robot during development and competitions.
To connect the LCD display to your VEX Cortex:
- Use the VEX Serial Y-Cable.
- Connect the 4-pin end of the LCD to UART Port 2 on the Cortex.
- The Y-cable splits into two 3-pin connectors: connect the one with the yellow wire to the RX (receive) port of the LCD and the one with the white wire to the TX (transmit) port of the LCD.
- Ensure the wires are not swapped; if the LCD shows zeros or garbled text, try switching the RX and TX connections.
This setup enables two-way serial communication between the Cortex and the LCD, allowing your program to send and receive data from the display.
In ROBOTC, UART port 2 is reserved for the LCD, so no special configuration is needed beyond the physical connection. When you power on the Cortex with the LCD connected, the screen will automatically display the name of the program currently running, even before you add any code. This default behavior confirms that the LCD is properly connected and communicating.
To make the LCD screen visible, turn on the backlight in your program. The backlight improves readability, especially in bright environments or under competition lighting conditions.
Before displaying new information, it is important to clear the existing text on the LCD lines to avoid overlapping characters or leftover text.
You can display text strings on the LCD using the following functions:
- `displayLCDString(line, position, "text")` - Displays a string starting at a specific position on a line.
- `displayNextLCDString("text")` - Continues displaying text after the previous string on the same line.
Since the LCD only displays strings, numbers must be converted to strings before displaying. This is typically done using the `sprintf` function, which formats numbers into strings.
The LCD has three buttons: left, center, and right. These buttons allow you to add interactivity to your robot's interface, such as selecting autonomous routines, adjusting settings, or navigating menus.
You can detect button presses by checking the `nLCDButtons` variable, which holds the current button state. The buttons are represented by constants:
- `kButtonLeft`
- `kButtonCenter`
- `kButtonRight`
By combining button input with display updates, you can create a menu system that lets users scroll through options and make selections.
Example logic:
- Use left and right buttons to cycle through menu options.
- Use the center button to confirm a selection.
- Display the current option on the LCD.
This approach is especially useful for choosing autonomous modes before a match.
The LCD can show real-time sensor readings such as ultrasonic distances, gyro angles, or accelerometer values. This is invaluable for debugging sensor integration and tuning your robot's behavior.
The LCD is a great debugging tool when you cannot connect the Cortex to a computer during operation. You can display variable values, program states, or error messages directly on the robot, making troubleshooting faster and more efficient.
While the VEX LCD is limited to text display, other platforms like the LEGO NXT LCD support pixel-level drawing functions that allow you to create simple graphics such as lines, rectangles, and circles. Although this is not available on the VEX LCD, understanding this can inspire creative ways to represent data visually using text characters.
- Refresh Rate: Avoid refreshing the LCD too quickly. A delay of about 100 milliseconds between updates is sufficient to keep the display responsive without flickering.
- Clear Lines Before Writing: Always clear the line before writing new information to prevent leftover characters from previous messages.
- Button Debouncing: Add a small delay after detecting a button press to avoid multiple rapid detections caused by button bounce.
- Use Meaningful Messages: Display clear and concise information for easier debugging and user interaction.
- Test Connections: If the LCD shows garbled text or zeros, check the RX/TX wiring and ensure the backlight is turned on.
- Limit Text Length: Remember the LCD can only display 16 characters per line, so keep messages short or use scrolling techniques if necessary.
Using the LCD display to select autonomous routines before a match is a common practice in VEX robotics competitions. By creating a menu system that cycles through available autonomous programs, you can select the desired routine without needing to reprogram the Cortex between matches. This flexibility saves time and allows quick adjustments based on match strategy.
During user control, the LCD can provide feedback such as current drive mode, sensor statuses, or warnings, enhancing driver awareness and robot performance.
- No Display or Garbled Text: Check that the Y-cable is connected correctly, especially the RX and TX wires. Swap them if necessary.
- Backlight Not Turning On: Ensure your program sets `bLCDBacklight = true`.
- Buttons Not Responding: Verify that your code reads `nLCDButtons` correctly and includes delays to handle button debouncing.
- Text Overlapping or Incomplete: Always clear the LCD lines before writing new messages.
- Program Not Running: Confirm your program is downloaded to the Cortex and running. The LCD will show the program name if connected properly.
The LCD display is a powerful and versatile component in VEX robotics programming with ROBOTC. It provides a direct interface for displaying important information, debugging, and interacting with your robot through its buttons. By mastering the hardware setup, basic and advanced programming techniques, and practical usage tips outlined in this guide, you can greatly enhance your robot's functionality and your development workflow. Whether you want to monitor battery levels, display sensor data, create interactive menus, or debug your code on the fly, the LCD display is an indispensable tool that every VEX programmer should utilize.
Use the VEX Serial Y-Cable to connect the LCD to UART port 2 on the Cortex. Make sure the yellow wire connects to the RX port and the white wire to the TX port on the LCD. Swap them if you see zeros on the screen.
Use `displayLCDString()` and `displayNextLCDNumber()` functions to write text and numbers. Clear the lines before writing and update the display in a loop with a small delay to keep the information current.
Check the `nLCDButtons` variable against constants `kButtonLeft`, `kButtonCenter`, and `kButtonRight` to detect which button is pressed. Add delays to debounce button inputs.
Yes, by detecting button presses and updating the displayed text accordingly, you can create scrollable menus to select autonomous modes or other options. This enhances user interaction without needing a computer.
Common problems include incorrect wiring of RX/TX cables, forgetting to turn on the backlight, not clearing lines before writing, refreshing the display too quickly, and not handling button debounce. Also, ensure your program is downloaded correctly to the Cortex.
