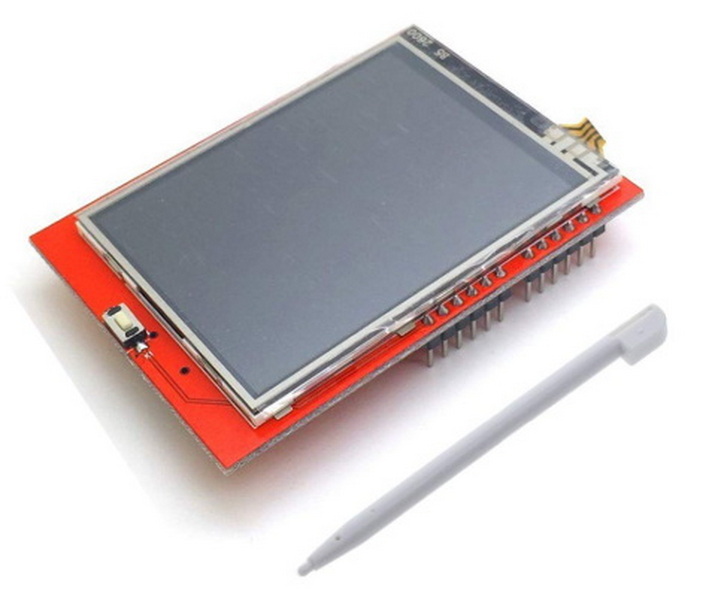

The HiLetgo LCD display series, especially the popular 3.5-inch and 2.2-inch TFT LCD modules, are widely used in DIY electronics projects for their vibrant colors, decent resolution, and compatibility with popular microcontrollers like Arduino and Raspberry Pi. This guide will walk you through everything you need to know about setting up, programming, and troubleshooting HiLetgo LCD displays, with detailed instructions, visuals, and explanations to help you along the way.
HiLetgo LCD displays come in various sizes and driver ICs, with the 3.5-inch TFT LCD (480x320 pixels) and the 2.2-inch ILI9341-based TFT LCD (240x320 pixels) being among the most common. These displays are often used in embedded systems, robotics, and portable devices due to their compact size and rich graphical capabilities.
- Display Size: 2.2" or 3.5 TFT LCD
- Resolution: 240x320 (2.2") or 480x320 (3.5")
- Driver ICs: ILI9341, ILI9481, ILI9486, HX8357B/C
- Interface: SPI (2.2" models) or 16-bit parallel (3.5" models)
- Touchscreen: Capacitive or resistive touch support (depending on model)
- Additional: Some models include SD card slots for image storage
These features make HiLetgo LCD displays versatile for a wide range of projects, from simple text displays to complex graphical user interfaces.
To get started, you will need:
- HiLetgo TFT LCD display (2.2" or 3.5")
- Microcontroller board (Arduino Uno, Mega 2560, or Raspberry Pi)
- Jumper wires and breadboard (optional)
- USB cable or power supply for the microcontroller
- SD card (optional, for image loading)
Choosing the right microcontroller is important. For the 3.5" display with a 16-bit parallel interface, an Arduino Mega or similar board with more pins is recommended due to the number of data lines required. For the 2.2" SPI-based display, an Arduino Uno or even smaller boards can be sufficient.
Correct wiring is crucial for the display to function properly. Depending on the model of your HiLetgo LCD, the wiring will differ.
For 3.5" TFT LCD (16-bit Parallel Interface)
The 3.5" HiLetgo TFT LCD uses a 16-bit parallel interface, which requires multiple data and control pins connected to the Arduino Mega 2560 or similar boards.
TFT LCD Pin | Arduino Mega Pin |
---|---|
VCC | 5V |
GND | GND |
CS | 40 |
RESET | 38 |
RS (DC) | 39 |
WR | 41 |
RD | 43 |
LED | 3.3V (with resistor) |
DB0 - DB15 | 22 - 37 |
Make sure to double-check the datasheet or pinout diagram of your specific display model, as pin assignments can vary slightly. The LED pin controls the backlight and should be connected to a suitable power source, often 3.3V through a resistor to limit current.
For 2.2" TFT LCD (SPI Interface)
The 2.2" HiLetgo display uses SPI, which simplifies wiring and reduces the number of pins needed:
Display Pin | Arduino Pin |
---|---|
VCC | 5V |
GND | GND |
CS | D10 |
RESET | D9 |
DC/RS | D8 |
MOSI (SDI) | D11 |
SCK | D13 |
SPI wiring is more straightforward and compatible with most Arduino boards. The CS (chip select) pin can be changed if needed but must be reflected in your code.
To control the HiLetgo LCD, you need to install libraries that provide graphics and touchscreen support.
For ILI9341-based displays (2.2"):
- Adafruit GFX Library
- Adafruit ILI9341 Library
For 3.5" TFT LCD with HX8357 or ILI9481 drivers:
- TFT_HX8357 Library (available on GitHub)
- UTFT Library (alternative for ILI9481/ILI9486)
1. Open Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for the above libraries and install them.
4. For some libraries like TFT_HX8357, download the ZIP from GitHub and add it via Sketch > Include Library > Add .ZIP Library.
Installing the correct libraries is essential. The Adafruit libraries are well-documented and beginner-friendly, while TFT_HX8357 and UTFT provide support for larger displays with parallel interfaces.
Before running your code, you need to configure the display driver in the library settings.
- Open the `User_Setup.h` file inside the TFT_HX8357 library folder.
- Uncomment the driver that matches your display (e.g., `#define HX8357B` for HX8357B driver).
- Set the display width and height accordingly.
- Comment out unused fonts to save memory.
This step ensures the library communicates correctly with your specific LCD controller chip.
Example Initialization Code for 3.5" TFT LCD (Arduino Mega 2560)
For the 3.5" TFT LCD, the initialization is more complex due to the parallel interface. After installing the TFT_HX8357 library, use the example sketches provided. Typically, the code includes:
- Initializing the display with correct pins.
- Setting rotation and color depth.
- Running graphic tests or displaying images.
The library examples like `graphicstest` or `tfttest` are good starting points to verify your wiring and setup.
HiLetgo displays with an SD card slot allow you to load images directly from the card. This feature is especially useful for photo frames or dynamic graphical interfaces.
1. Format your SD card to FAT32.
2. Store BMP images with compatible resolution (matching the display resolution).
3. Use example code to read BMP files from the SD card and display them on the screen.
The Arduino SD library combined with the display libraries makes it possible to open image files and render them pixel by pixel. Keep in mind that BMP files should be uncompressed and in 24-bit color format for compatibility.
Some HiLetgo models come with capacitive or resistive touchscreens. To use touch:
- Connect touch pins as specified by the display datasheet.
- Install touch libraries like `TouchScreen` or `Adafruit TouchScreen`.
- Use library functions to detect touch coordinates and implement interactive UI elements like buttons and sliders.
For resistive touchscreens, four pins are usually involved: XP, XM, YP, YM. These connect to analog and digital pins on the microcontroller.
Capacitive touchscreens often use I2C or SPI interfaces and require different wiring and drivers.
Once wired, your code can poll the touchscreen for coordinates. You can then map these coordinates to screen positions and trigger events, such as button presses or menu navigation.
HiLetgo LCD displays are versatile and can be used in many projects:
- Robotics: Display sensor data and control interfaces, allowing real-time feedback.
- Portable Devices: User interfaces for handheld gadgets like game consoles or measurement tools.
- Games: Simple touchscreen games or graphical interfaces.
- Photo Frames: Display images from SD cards, creating customizable digital photo frames.
- Data Visualization: Graphs and charts for embedded systems, such as temperature monitors or data loggers.
The ability to display rich colors and graphics combined with touch input makes these displays ideal for interactive projects.
When working with HiLetgo LCD displays, you might encounter some common problems. Here are solutions for the most frequent issues:
- Blank Screen: Check wiring and power supply. Verify correct driver selection in code. Ensure the backlight pin is powered.
- Incorrect Colors: Ensure the right driver IC is defined and wiring matches. Sometimes swapping the red and blue channels in code fixes color issues.
- Touch Not Working: Confirm touch pins are connected and the correct library is used. Check for calibration issues.
- Pin Conflicts: When using shields, some Arduino pins may be occupied. Consider alternative pin configurations or use software SPI if possible.
- Compatibility: Some HiLetgo displays are not fully compatible with all Arduino boards; verify support for your specific microcontroller.
Careful double-checking of connections and code settings usually resolves most problems.
The HiLetgo LCD displays offer an excellent balance of quality, affordability, and versatility for hobbyists and professionals alike. Whether you are working on a simple text display or a complex graphical user interface, these displays can be integrated with Arduino or Raspberry Pi with the right wiring and software setup. By following the steps outlined in this guide, including hardware connections, library installations, and example codes, you can efficiently utilize your HiLetgo LCD display in various projects. Troubleshooting tips and practical applications further enhance your ability to harness the full potential of these displays.
With patience and practice, you can create engaging, colorful, and interactive projects that leverage the full capabilities of HiLetgo LCD modules.
The resolution is 480 x 320 pixels, providing clear and colorful visuals for most applications.
For 2.2" ILI9341 displays, use the Adafruit GFX and Adafruit ILI9341 libraries. For 3.5" displays with HX8357 or ILI9481 drivers, use the TFT_HX8357 or UTFT libraries.
Yes, with proper wiring and compatible libraries, HiLetgo displays can be interfaced with Raspberry Pi for various projects.
Use the SD card slot on the display to store BMP images and use Arduino's SD library along with the display library to render images.
Check all wiring connections, ensure the correct driver is selected in your code, verify power supply, and confirm that the libraries are properly installed.
