The 128x64 OLED display is a compact, high-contrast screen ideal for displaying text, graphics, and sensor data in Arduino projects. It uses organic light-emitting diodes, which means each pixel emits its own light and no backlight is required. This results in deep blacks and excellent visibility even in low-light conditions. The most common driver for these displays is the SSD1306, which supports both I2C and SPI communication, but the I2C version is favored for its simplicity and minimal wiring.
This display is widely used in applications ranging from wearable devices to sensor dashboards and mini gaming consoles, thanks to its crisp resolution and ease of integration.
I2C (Inter-Integrated Circuit) is a two-wire communication protocol consisting of a data line (SDA) and a clock line (SCL). This allows you to connect multiple devices using just two pins on the Arduino. The SSD1306 driver chip controls the OLED, handling the pixel data and communication with the microcontroller.
The I2C protocol simplifies wiring and reduces pin usage, which is especially beneficial when working with microcontrollers that have limited I/O pins. The SSD1306 driver manages the display buffer internally, enabling smooth rendering of text and graphics.
- Arduino board (Uno, Nano, Mega, Leonardo, etc.)
- 128x64 I2C OLED display (SSD1306-based)
- Jumper wires
- Breadboard (optional for prototyping)
- Computer with Arduino IDE installed
- USB cable for programming

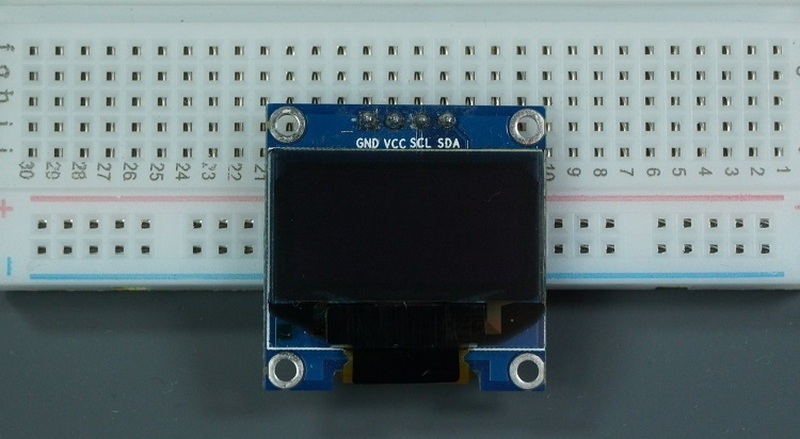

Wiring the 128x64 OLED display is straightforward. The module typically has four pins: VCC, GND, SCL, and SDA.
| OLED Pin | Arduino Uno Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| SCL | A5 |
| SDA | A4 |

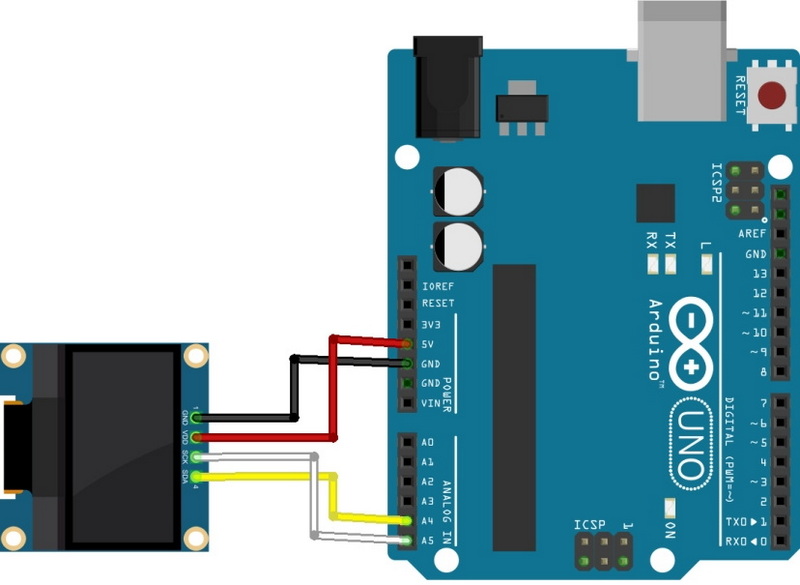

Wiring Diagram:
+------------------+ +-----------------+
| OLED Display | | Arduino Uno |
+------------------+ +-----------------+
| VCC ------------> 5V | |
| GND ------------> GND | |
| SCL ------------> A5 | |
| SDA ------------> A4 | |
+------------------+ +-----------------+
Note: For other Arduino boards, double-check the I2C pinout:
- Nano: SDA (A4), SCL (A5)
- Mega: SDA (20), SCL (21)
- Leonardo: SDA (20), SCL (21)
Using the correct pins is vital for proper communication.
Before programming, install the necessary libraries in the Arduino IDE:
1. Open Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for and install:
- Adafruit SSD1306
- Adafruit GFX Library
These libraries simplify communication with the OLED and provide functions for drawing text and graphics.
Beyond text, you can draw shapes and display bitmaps:
cpp:
display.clearDisplay();
display.drawRect(10, 10, 50, 30, SSD1306_WHITE); // Draw rectangle
display.fillCircle(64, 32, 10, SSD1306_WHITE); // Draw filled circle
display.display();
To display images, convert them to monochrome bitmaps (e.g., using online tools) and use the `drawBitmap()` function.
Drawing shapes such as lines, circles, rectangles, and triangles is straightforward with the Adafruit GFX library. This enables you to create custom UI elements or simple animations.
The Adafruit GFX library supports multiple fonts beyond the default 5x7 pixel font. You can import custom fonts to enhance your display's aesthetics.
To use custom fonts:
1. Download the font files compatible with the Adafruit GFX library.
2. Include the font header file in your sketch.
3. Use `display.setFont()` to select the font before printing text.
You can also create effects like blinking text, scrolling messages, or inverted colors by manipulating the display buffer and refreshing the screen at intervals.

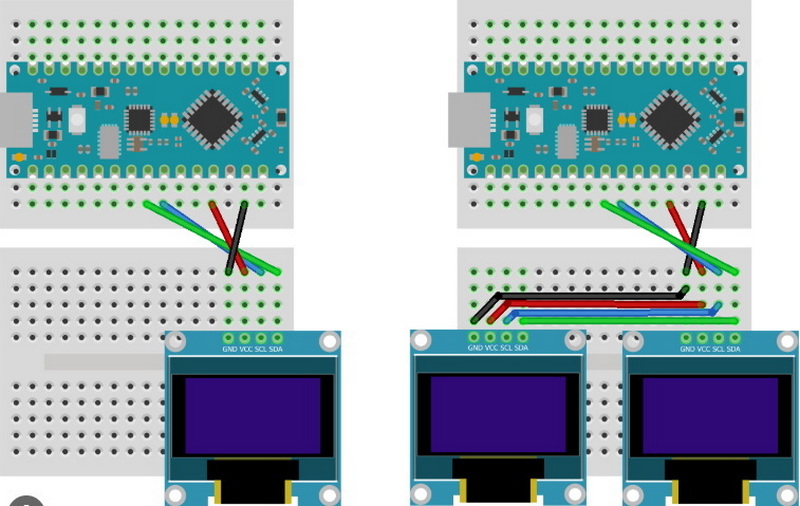

If your project requires more display area, you can connect multiple OLED screens via I2C by ensuring each has a unique address (some modules allow address changes via solder pads).
Scrolling is another useful feature, especially for displaying long messages or sensor logs. The SSD1306 driver supports hardware scrolling commands, which can be accessed through the library:
- Horizontal scroll
- Vertical scroll
- Diagonal scroll
These effects can be started and stopped programmatically, adding dynamic visual appeal to your projects.
1. Nothing displays on the screen
- Double-check wiring (especially SDA/SCL).
- Verify the I2C address using an I2C scanner sketch.
- Ensure the correct display size is set in the library configuration.
2. Compilation error: "Height incorrect, please fix Adafruit_SSD1306.h!"
- Edit the `Adafruit_SSD1306.h` file to define the correct screen size (`#define SSD1306_128_64`).
3. Garbled or partial display
- Power supply may be insufficient; use a stable 5V source.
- Check for conflicting I2C devices on the same bus.
4. Flickering or slow updates
- Avoid calling `display.display()` too frequently; update only when necessary.
- Optimize your drawing code to minimize redraws.
- Sensor Dashboards: Display temperature, humidity, or other sensor data in real time. Use multiple pages or scrolling to cycle through data.
- Mini Games: Use the graphics functions to create simple games like Pong or Snake. Implement button inputs for interaction.
- Custom Animations: Animate icons or text for creative effects, such as loading bars or status indicators.
- Wearable Displays: Integrate the OLED into wearable gadgets for notifications or fitness tracking.
- Data Loggers: Show logging status or summaries on the display, useful for environmental monitoring or experiments.
These projects highlight the versatility of the 128x64 OLED screen and encourage creativity in your Arduino applications.
The 128x64 I2C OLED display is a powerful addition to any Arduino project, offering crisp visuals and flexible display options with minimal wiring. By following this guide, you can quickly set up your display, show text and graphics, and troubleshoot common issues. The Adafruit libraries provide a robust foundation for both beginners and advanced users to create engaging interfaces and projects.
With practice, you can expand your skills to include custom fonts, animations, multiple screens, and interactive applications, making the OLED display an indispensable tool in your electronics toolkit.
The default I2C address is usually 0x3C, but some modules use 0x3D. Use an I2C scanner sketch to confirm your module's address.
Yes, most SSD1306 OLED modules work with both 3.3V and 5V logic. Check your module's specifications to be sure.
Convert your image to a monochrome bitmap and use the `drawBitmap()` function in the Adafruit SSD1306 library to display it on the screen.
Check the wiring, ensure the correct I2C address, and confirm the display size is set correctly in the library configuration. Also, verify that the display is receiving power.
Yes, you can connect multiple I2C devices as long as each has a unique address. Use pull-up resistors if needed for reliable communication.
