The Fujifilm X-T2 is a highly versatile mirrorless camera favored by photographers for its excellent image quality and customizable features. One common question among users is how to turn off the LCD display, either to save battery life or to rely solely on the electronic viewfinder (EVF). This detailed guide will walk you through the process of turning off the LCD display on the X-T2, explain the different view modes, and provide tips on customizing your camera's display settings for optimal use.

Understanding the Fujifilm X-T2 Display System

The X-T2 features two main display components:

- LCD Monitor (Rear Screen): Used for composing shots, reviewing images, and navigating menus.

- Electronic Viewfinder (EVF): A small screen inside the viewfinder that provides a real-time preview of your image.

The camera allows you to switch between these displays or use them in combination, depending on your shooting style and preferences.

How to Turn Off the LCD Display on the X-T2

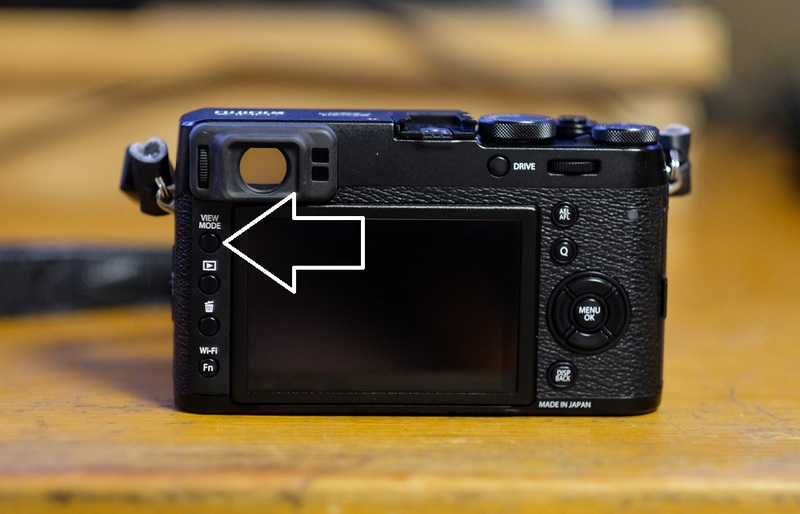

Using the View Mode Button

The simplest way to turn off the LCD display is by cycling through the camera's view modes using the View Mode button located near the EVF housing:

1. Locate the View Mode button on the side of the EVF.

2. Press the button repeatedly to cycle through the following modes:

- LCD Only: The rear LCD screen stays on continuously, and the EVF is off.

- EVF Only: The electronic viewfinder is on continuously, and the LCD is off.

- Eye Sensor + EVF: The LCD stays off, and the EVF activates automatically when you bring the camera to your eye.

- Eye Sensor + LCD Image Display: The LCD is on most of the time but switches to the EVF when the camera is raised to your eye.

To turn off the LCD display entirely, select either EVF Only or Eye Sensor + EVF modes. This will keep the LCD off and either have the EVF on all the time or activate it automatically when you bring the camera to your eye[1][2][6].

Adjusting Display Settings in the Menu

For more granular control over the LCD display, you can adjust settings in the camera's menu:

1. Press MENU/OK.

2. Navigate to the SET UP tab.

3. Select SCREEN SET-UP.

4. Here, you can adjust:

- LCD Brightness and LCD Color to customize the appearance.

- Image Display to control whether the image preview appears after taking a shot.

- Auto Rotate Displays to enable or disable automatic rotation of the display based on camera orientation.

5. To disable the LCD preview after shooting (which can help reduce LCD usage), set Image Display to OFF[1][5][8].

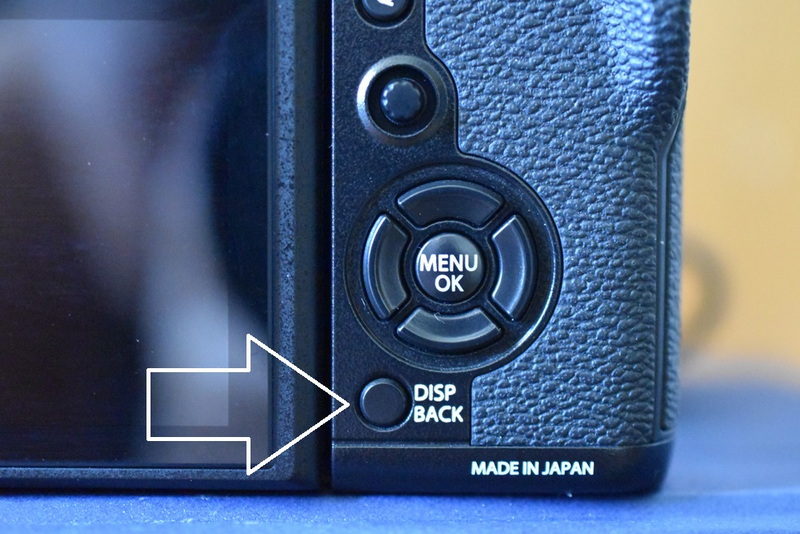

Using the DISP/BACK Button to Control Display Information

The DISP/BACK button on the rear of the camera cycles through different display modes on both the EVF and LCD:

- Pressing this button repeatedly toggles between:

- Full information display

- Minimal information display

- No information (clean view)

While this does not turn off the LCD, it can reduce clutter on the screen, which some users prefer when shooting[1][3][8].

Tips for Managing the LCD Display on the X-T2

- Eye Sensor Cleaning: The eye sensor near the EVF detects when you bring the camera to your eye to switch displays. If the LCD does not turn off as expected, clean this sensor as dirt or smudges can interfere with its function[7].

- Battery Saving: Using EVF Only or Eye Sensor + EVF modes can significantly extend battery life since the LCD consumes more power.

- Custom Display Settings: You can customize which indicators appear on the LCD or EVF via DISP. CUSTOM SETTING in the setup menu, allowing you to tailor the display to your preferences[1][5].

- Large Indicators Mode: For easier viewing, especially in bright light, enable Large Indicators Mode to display larger icons on the LCD or EVF[5].

- Firmware Updates: Ensure your camera firmware is up to date to avoid bugs related to display functions[7].

Troubleshooting LCD Display Issues

If your LCD screen is not turning on or displaying incorrectly, consider the following:

- Cycle through the view modes using the View Mode button to reset the display mode.

- Check the Eye Sensor for dirt or obstruction.

- Reset the camera settings via Menu > Wrench > User Settings > Reset.

- If the LCD flickers or shows lines when the screen is articulated, the connecting cable might be loose or damaged, requiring professional repair[7].

- Contact Fujifilm support if problems persist.

Conclusion

Turning off the LCD display on the Fujifilm X-T2 is straightforward once you understand the camera's view modes and menu settings. Using the View Mode button to switch to EVF Only or Eye Sensor + EVF modes effectively disables the LCD, helping conserve battery and improve shooting experience. Additionally, customizing display settings in the menu allows you to tailor the camera to your needs. If you encounter issues with the LCD, basic troubleshooting steps or professional repair may be necessary. Mastering these settings will help you get the most out of your X-T2's display capabilities.

Related Questions

1. How do I switch between the EVF and LCD on the X-T2?

Press the View Mode button near the EVF to cycle through LCD Only, EVF Only, Eye Sensor + EVF, and Eye Sensor + LCD Image Display modes[1][2].

2. What does the Eye Sensor do on the Fujifilm X-T2?

The Eye Sensor detects when you bring the camera to your eye and automatically switches the display from the LCD to the EVF[1][2].

3. How can I save battery life related to the display on the X-T2?

Use the EVF Only or Eye Sensor + EVF modes to keep the LCD off as it consumes more power than the EVF[2][6].

4. Why is my X-T2 LCD screen not displaying properly?

Possible causes include a dirty eye sensor, incorrect view mode settings, or a loose/faulty LCD cable. Resetting settings or professional repair may be required[7].

5. Can I customize the information shown on the LCD and EVF?

Yes, through the DISP. CUSTOM SETTING menu, you can select which indicators and overlays appear on both displays[1][5].
