OLED (Organic Light Emitting Diode) screens have become increasingly popular due to their superior display quality, offering vibrant colors, deep blacks, and fast response times. However, like any technology, OLED screens have their challenges, such as burn-in and image retention. In this article, we will explore how to test OLED screens for these issues and discuss various methods to evaluate their performance.
OLED burn-in occurs when static images are displayed for extended periods, causing permanent degradation of the pixels. This results in ghost images or discoloration on the screen. To check for burn-in, you can use a simple test:
OLED Burn-in Test: Open an OLED burn-in test on your web browser. The test will display a black screen that changes colors (red, green, blue, and gray) when clicked. Look for any ghosted logos or shapes on these colors.
To prevent burn-in, follow these tips:
- Reduce Screen Brightness: Lowering the brightness can help reduce pixel degradation.
- Change Channels Periodically: Avoid static images by switching channels or content regularly.
- Enable Screensaver: Activate a screensaver when pausing videos or games.
- Use Sleep Timer: Turn off the TV or display if you fall asleep while watching.
Beyond burn-in, OLED screens can be tested for other performance metrics:
OLEDs are self-luminous, meaning they consume less power when displaying black or dark content. To test brightness and power consumption:
- Full Screen Brightness: Measure the brightness of a full white screen.
- 4% Window Brightness: This test characterizes the average brightness when only a small portion of the screen is lit.
This test evaluates how well the screen performs in dark environments:
- Full-Screen Darkroom Contrast: Measure the contrast when the entire screen is black.
- 4% Window Darkroom Contrast: Test the contrast with only a small portion of the screen lit.
To assess color accuracy and uniformity:
- Color Patterns: Display solid colors or gradients to check for any color inconsistencies.
- Grey Patterns: Use 5%, 10%, and 20% grey screens to evaluate uniformity and banding.
For more detailed analysis, advanced tools and techniques are available:
These devices measure the brightness and color of each pixel, ensuring accurate calibration and quality control during manufacturing.
Tools like TrueTest by Radiant Vision Systems automate the testing process, allowing for efficient detection of defects and uniformity issues.
Understanding the underlying technology of OLEDs can help in evaluating their performance:

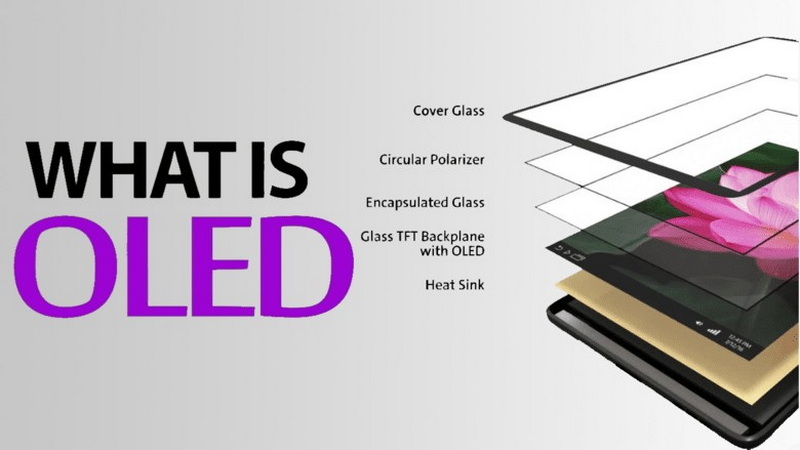

OLED panels consist of an organic material that emits light when an electric current is passed through it. This organic material is sandwiched between two electrodes, one of which is transparent to allow light to pass through.
- Infinite Contrast Ratio: Since each pixel can be turned on and off independently, OLEDs can achieve true blacks, resulting in an infinite contrast ratio.
- Fast Response Time: OLEDs have a fast response time, making them ideal for fast-paced content like sports and action movies.
- Wide Viewing Angles: The viewing angles of OLEDs are significantly better than those of LCDs, ensuring that the image remains vibrant even when viewed from the side.
Despite the advantages, OLED manufacturing poses several challenges:
- Yield Issues: The production process can be complex, leading to yield issues and higher costs compared to LCDs.
- Material Degradation: The organic material used in OLEDs can degrade over time, affecting the lifespan of the display.
OLED screens are used in a variety of applications due to their superior display quality:
OLED screens are widely used in smartphones, offering better battery life and more vibrant colors compared to LCDs.
OLED TVs provide an immersive viewing experience with their deep blacks and wide viewing angles, making them ideal for home theaters.
In wearables like smartwatches, OLEDs are preferred for their low power consumption and high contrast ratios, which enhance readability in various lighting conditions.
Testing OLED screens involves checking for burn-in, evaluating brightness and power consumption, assessing darkroom contrast, and ensuring color accuracy and uniformity. By using these methods, users can ensure their OLED devices perform optimally and minimize potential issues. Understanding the technology behind OLEDs and their applications can further enhance the user experience.
OLED burn-in is a permanent image retention issue caused by prolonged display of static elements. It can be prevented by reducing screen brightness, changing channels periodically, enabling screensavers, and using sleep timers.
Use an OLED burn-in test that displays different colors (red, green, blue, gray) to check for ghost images or discoloration on your screen.
OLED screens offer superior contrast, vibrant colors, fast response times, and low power consumption compared to traditional displays.
Turn off the screen and use a flashlight to check for scratches. Then, boot up the device and look for stuck or dead pixels by displaying a solid color or pattern.
Early-stage burn-in can sometimes be fixed by playing a color-changing video on the screen. However, severe burn-in is often irreversible.
