Integrating an LCD display with Arduino is a foundational skill for electronics enthusiasts, students, and makers. LCDs provide a simple, interactive way to show data, messages, sensor readings, and more. This guide will walk you through everything you need to know about setting up both parallel and I2C LCD displays with Arduino, including wiring, programming, troubleshooting, and advanced features. Throughout, you'll find step-by-step explanations, diagrams, and references for further learning.

What is an LCD Character Display?

An LCD (Liquid Crystal Display) character module is a display device capable of showing alphanumeric characters, symbols, and even simple graphics. The most common types used with Arduino are the 16x2 (16 columns by 2 rows) and 20x4 (20 columns by 4 rows) modules. These displays typically use the Hitachi HD44780 driver, which is supported by Arduino's LiquidCrystal library.

LCD displays are popular because they are inexpensive, easy to use, and highly versatile. They can display sensor data, system status, user prompts, and more, making them ideal for a wide range of Arduino projects.

Required Components

To set up a standard 16x2 or 20x4 LCD display with Arduino, you will need:

- Arduino Uno, Nano, or similar board

- 16x2 or 20x4 LCD display (HD44780-compatible)

- 10kΩ potentiometer (for contrast adjustment)

- 220Ω resistor (for backlight current limiting)

- Breadboard and jumper wires

- (Optional) I2C adapter module for simplified wiring

Having these components ready will make the setup process smooth and efficient.

Understanding LCD Pinouts

A typical 16x2 LCD has 16 pins, each with a specific function:

Pin	Function	Description
1	VSS	Ground
2	VCC	+5V Power supply
3	VO	Contrast adjustment (connect to potentiometer)
4	RS	Register Select (command/data)
5	RW	Read/Write selection (usually tied to ground)
6	E	Enable signal
7-14	D0-D7	Data pins
15	LED+ (A)	Backlight anode (+, via resistor)
16	LED- (K)	Backlight cathode (ground)

Tip: Most Arduino projects use 4-bit mode (D4-D7), saving pins and simplifying wiring.

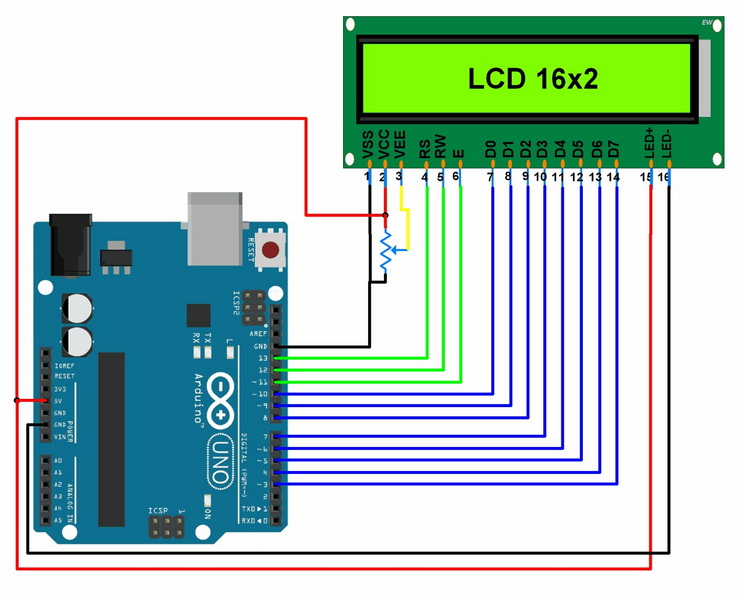

Wiring a 16x2 LCD to Arduino (Parallel Interface)

Step-by-Step Wiring Guide

1. Place the LCD and Arduino on a breadboard.

2. Connect Power and Ground:

- LCD VSS to Arduino GND

- LCD VCC to Arduino 5V

3. Contrast Adjustment:

- LCD VO to the middle pin of the 10k potentiometer

- Potentiometer ends to 5V and GND

4. Control Pins:

- LCD RS to Arduino digital pin 12

- LCD RW to GND

- LCD E to Arduino digital pin 11

5. Data Pins (4-bit mode):

- LCD D4 to Arduino pin 5

- LCD D5 to Arduino pin 4

- LCD D6 to Arduino pin 3

- LCD D7 to Arduino pin 2

6. Backlight:

- LCD LED+ (A) to 5V via 220Ω resistor

- LCD LED- (K) to GND

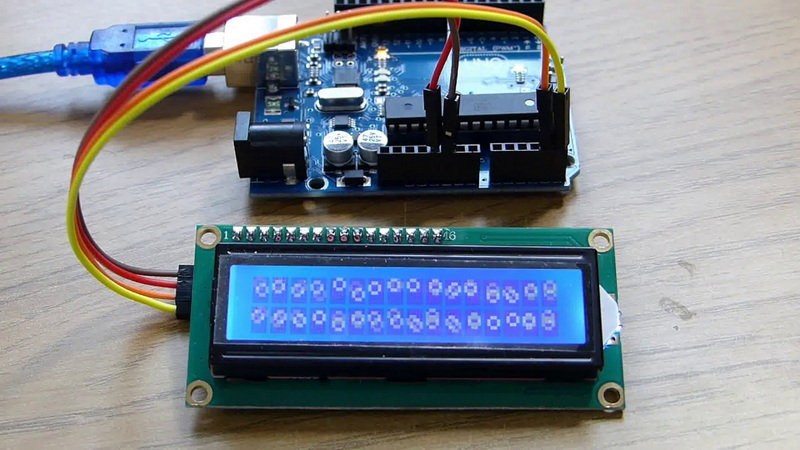

Using an I2C LCD with Arduino

I2C adapters simplify wiring by reducing the number of connections to just four:

I2C LCD Pin	Arduino Connection
GND	GND
VCC	5V
SDA	A4
SCL	A5

Advantages:

- Cleaner setup

- Frees up Arduino pins for other uses

- Ideal for complex projects or limited space

Programming the LCD with the LiquidCrystal Library

The Arduino IDE includes the LiquidCrystal library, which makes controlling an LCD straightforward.

Key Functions:

- `begin(cols, rows)`: Initializes display size

- `print()`: Prints text to the display

- `setCursor(col, row)`: Moves cursor to specified position

- `clear()`: Clears the display

- `scrollDisplayLeft()` / `scrollDisplayRight()`: Scrolls text

For I2C LCDs, you will need the LiquidCrystal_I2C library, which offers similar functions but communicates over the I2C bus.

Example Initialization:

- For parallel LCD: `LiquidCrystal lcd(12, 11, 5, 4, 3, 2);`

- For I2C LCD: `LiquidCrystal_I2C lcd(0x27, 16, 2);`

Displaying Text and Custom Characters

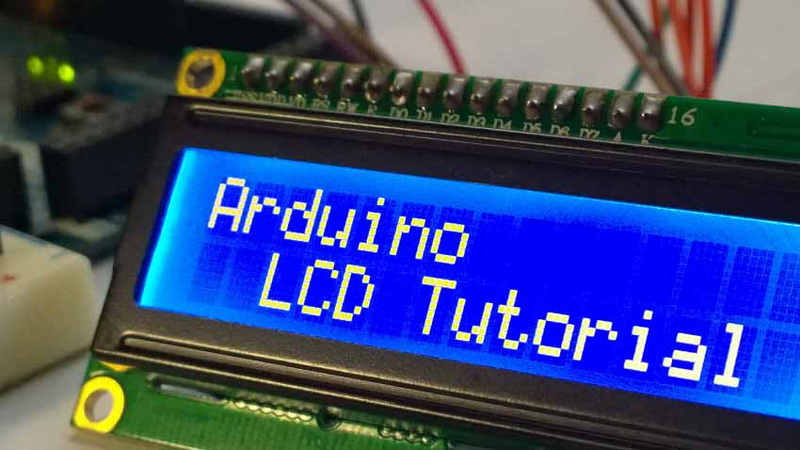

Printing Text

- Use `print()` to display messages.

- Use `setCursor()` to position text anywhere on the screen.

- For longer messages, implement scrolling to display all content.

Creating Custom Characters

- Define a byte array representing the pixel pattern of your character.

- Store it in the LCD's memory and display as needed.

- Great for icons, symbols, or graphics.

Troubleshooting Common Issues

- No display/blank screen: Check power and contrast potentiometer.

- Garbled characters: Double-check wiring, especially data pins.

- Backlight not working: Ensure resistor and wiring to pins 15/16 are correct.

- I2C LCD not detected: Scan for correct I2C address and ensure the library is installed.

- Display flickering or dim: Adjust potentiometer and check for loose connections.

Advanced Features: Scrolling, Blinking, and More

- Scrolling Text: Use built-in functions to scroll messages left or right, useful for long strings.

- Blinking Cursor: Enable blinking to highlight input positions.

- Custom Graphics: Display bar graphs, icons, or simple animations by updating custom characters dynamically.

Practical Applications of LCDs in Arduino Projects

LCD displays are used in a wide variety of Arduino projects, including:

- Weather Stations: Display temperature, humidity, and other sensor readings.

- Clocks and Timers: Show real-time clocks, countdowns, and alarms.

- Menu Systems: Create interactive menus for user input and control.

- Robotics: Display robot status, sensor data, and error messages.

- Home Automation: Show system status, security alerts, and device control feedback.

By adding a simple LCD, you can transform your project from a “black box” into an interactive system.

Tips for Optimizing Your LCD Setup

Use Shielded Wires for Longer Connections

If your LCD is far from your Arduino, use shielded or twisted-pair wires to reduce electrical noise and interference.

Mount the Potentiometer Accessibly

Place the contrast potentiometer where you can easily adjust it, especially during initial setup and calibration.

Use I2C for Complex Projects

If your project uses many sensors or actuators, I2C LCDs free up valuable digital pins and simplify wiring.

Power Considerations

Ensure your Arduino's 5V supply can handle the LCD's current draw, especially if you use multiple displays or backlight-intensive configurations.

Protect Against Voltage Spikes

If your project operates in a noisy environment, consider adding capacitors across the power lines close to the LCD to filter out voltage spikes.

Conclusion

Setting up an LCD display with Arduino is a rewarding project that enhances the interactivity and usability of your electronics. Whether you choose the classic parallel interface or the streamlined I2C approach, the process is straightforward with the right components and guidance. By mastering the LiquidCrystal library, you can display text, create custom characters, and add advanced features like scrolling and blinking. Troubleshooting is simplified with a systematic approach to wiring and software. With these skills, you can bring your Arduino projects to life with dynamic visual feedback.

Frequently Asked Questions

1. What is the difference between 4-bit and 8-bit LCD modes?

4-bit mode uses only four data lines (D4-D7), saving Arduino pins and simplifying wiring, while 8-bit mode uses all eight data lines for potentially faster data transfer. Most projects use 4-bit mode as it is sufficient for displaying text and basic graphics.

2. Can I use a 3.3V Arduino board with a standard LCD?

Standard LCDs are designed for 5V operation. If using a 3.3V Arduino, you may need a logic level shifter or a display designed for 3.3V compatibility to avoid damage or unreliable operation.

3. How do I adjust the brightness and contrast of the LCD?

Brightness is controlled by the current-limiting resistor (typically 220Ω) on the backlight pins. Contrast is adjusted with a 10kΩ potentiometer connected to the VO pin.

4. Why is my LCD not displaying anything after uploading the code?

Common causes include incorrect wiring, insufficient power, missing or incorrect library, or the contrast potentiometer set too low or high. Double-check all connections and adjust the potentiometer while the display is powered on.

5. How can I display sensor data in real-time on the LCD?

Read the sensor value in your Arduino code and use the `print()` and `setCursor()` functions to update the display. For dynamic data, clear or overwrite the previous value to keep the display current.
