In the world of DIY electronics and microcontroller projects, displaying information is often crucial. One of the most popular and versatile display options is the 16x2 LCD module. However, traditional LCD modules require many pins for connection, which can be a problem when working with limited I/O ports. This is where the I2C 1602 LCD module comes to the rescue. By utilizing the I2C (Inter-Integrated Circuit) communication protocol, we can significantly reduce the number of required connections while still enjoying the benefits of a clear and customizable display.
In this comprehensive guide, we'll walk you through the process of setting up and configuring an I2C 1602 LCD module for your DIY project. We'll cover everything from understanding the basics of I2C communication to writing code that brings your display to life. Whether you're a beginner or an experienced maker, this article will provide you with the knowledge and tools you need to incorporate an I2C 1602 LCD into your next project.
Before we dive into the specifics of the I2C 1602 LCD module, it's essential to understand the basics of I2C communication. I2C, also known as IIC (Inter-Integrated Circuit) or TWI (Two-Wire Interface), is a serial communication protocol that allows multiple devices to communicate using just two wires: SDA (Serial Data) and SCL (Serial Clock).
The I2C protocol uses a master-slave architecture, where one device (usually the microcontroller) acts as the master, and the other devices (like our LCD module) act as slaves. Each slave device has a unique address, allowing the master to communicate with specific devices on the bus.
To get started with your I2C 1602 LCD project, you'll need the following components:
1. Arduino board (or any compatible microcontroller)
2. I2C 1602 LCD module
3. Jumper wires
4. Breadboard (optional, but recommended for prototyping)
5. USB cable for programming the Arduino
Setting up the I2C 1602 LCD module is straightforward due to the reduced number of connections required. Follow these steps to connect your LCD module to your Arduino:
1. Connect the VCC pin of the LCD module to the 5V pin on your Arduino.
2. Connect the GND pin of the LCD module to the GND pin on your Arduino.
3. Connect the SDA pin of the LCD module to the SDA pin on your Arduino (A4 on most Arduino boards).
4. Connect the SCL pin of the LCD module to the SCL pin on your Arduino (A5 on most Arduino boards).
Now that we have our hardware connected, let's set up the software environment to communicate with our I2C 1602 LCD module.
To simplify working with the I2C 1602 LCD, we'll use the LiquidCrystal_I2C library. To install this library:
1. Open the Arduino IDE
2. Go to Sketch > Include Library > Manage Libraries
3. Search for "LiquidCrystal I2C"
4. Find the library by Frank de Brabander and click "Install"
Before we can use our LCD module, we need to know its I2C address. Most I2C 1602 LCD modules use the address 0x27, but it's always good to verify.
Now that we've got the basics down, let's explore some more advanced features of the I2C 1602 LCD module.
One of the cool features of the 1602 LCD is the ability to create custom characters.
If you're having trouble getting your I2C 1602 LCD module to work, here are some common issues and solutions:
1. No display: Check your connections and make sure the contrast potentiometer on the back of the LCD module is adjusted correctly.
2. Garbled text: Verify that you're using the correct I2C address in your code.
3. No backlight: Ensure that the backlight jumper on the I2C module is in the correct position.
4. I2C scanner doesn't find the device: Double-check your SDA and SCL connections, and make sure you're using the correct pins for your Arduino board.
Now that you're comfortable with using the I2C 1602 LCD module, here are some project ideas to inspire you:
1. Digital Clock: Use the Arduino's internal clock or an RTC module to create a digital clock display.
2. Temperature and Humidity Monitor: Combine the LCD with a DHT22 sensor to display real-time temperature and humidity readings.
3. Menu System: Create a simple menu system for a larger project, using buttons to navigate through different options.
4. Game Score Display: Integrate the LCD into a simple game project to display scores and game information.
5. Serial Monitor: Use the LCD to display incoming serial data, creating a portable serial monitor.
The I2C 1602 LCD module is a versatile and easy-to-use display solution for your Arduino projects. By utilizing the I2C protocol, we can save valuable I/O pins while still enjoying the benefits of a clear, customizable display. From simple "Hello, World!" messages to complex menu systems and custom character displays, the I2C 1602 LCD opens up a world of possibilities for your DIY projects.
Remember to experiment with different features, create custom characters, and integrate the LCD into your larger projects. With practice, you'll find that the I2C 1602 LCD becomes an indispensable tool in your maker toolkit.
I2C (Inter-Integrated Circuit), IIC (Inter-Integrated Circuit), and TWI (Two-Wire Interface) all refer to the same communication protocol. I2C is the original name created by Philips Semiconductors (now NXP), while TWI is a trademark-free term used by some manufacturers, particularly Atmel. IIC is simply another way of writing I2C. They all describe the same two-wire serial communication protocol used in our 1602 LCD module.

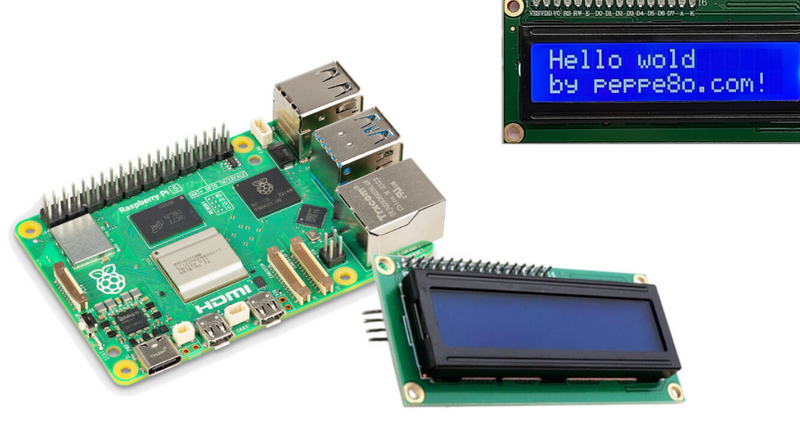

Yes, you can use an I2C 1602 LCD module with many other microcontrollers that support I2C communication. This includes popular boards like Raspberry Pi, ESP8266, ESP32, and many others. However, you may need to use different libraries or code depending on the platform you're using.
Most I2C 1602 LCD modules have a small potentiometer on the back of the module. This potentiometer controls the contrast of the display. If you're having trouble seeing characters on your LCD, try adjusting this potentiometer using a small screwdriver until the text becomes visible.
Yes, one of the advantages of I2C communication is that you can connect multiple devices to the same I2C bus. Each device will have a unique address, allowing the Arduino to communicate with them individually. Just make sure to connect all SDA pins together and all SCL pins together, and don't forget to use appropriate pull-up resistors if your devices don't have them built-in.
You can create simple animations on your I2C 1602 LCD by combining custom characters and timed updates. Create a set of custom characters that represent different frames of your animation. Then, in your loop() function, cycle through these characters at regular intervals to create the illusion of movement. You can also combine this with techniques like scrolling text to create more complex animations.
