● Understanding the LCD TV Display Panel
● Common Symptoms of LCD TV Display Panel Problems
● Step-by-Step Guide to Repairing Your LCD TV Display Panel
>> 1. Safety First: Unplug and Discharge
>> 2. Remove the TV Back Cover
>> 3. Identify Key Components Inside
>> 5. Repair or Replace Faulty Components
● How to Fix a Cracked LCD TV Screen
● Preventive Tips to Avoid LCD TV Display Panel Damage
● Frequently Asked Questions (FAQs)
>> 1. How can I tell if my LCD TV problem is with the panel or the circuit boards?
>> 2. Is it worth repairing a cracked LCD TV screen?
>> 3. Can I repair a short on the LCD panel myself?
>> 4. What tools do I need to repair an LCD TV panel?
>> 5. Where can I get replacement parts for my LCD TV?
LCD TV display panels are delicate and complex components that can develop various issues over time. Repairing an LCD TV display panel can save you money and reduce electronic waste, but it requires a careful approach, the right tools, and some technical knowledge. This article will guide you through the process of diagnosing and repairing common LCD TV display panel problems, supported by practical tips and detailed explanations to help you understand each step clearly.
An LCD TV display panel consists of multiple layers including the liquid crystal layer, backlight, polarizers, and various electronic components such as the T-con (Timing Control) board, main board, and power supply. Each layer and component plays a crucial role in producing the image you see on the screen. Problems in any of these can cause display issues such as vertical or horizontal lines, shadow bars, black screens, or color distortions.
The liquid crystal layer controls the passage of light to form images, while the backlight provides the illumination necessary for the display. The polarizers help in controlling light polarization to enhance image quality. The T-con board acts as the timing controller, converting signals from the main board into data that the LCD panel can use to display the image correctly. The main board processes input signals and controls the overall TV functions, and the power supply board provides the necessary voltages to all components.
Understanding these parts is essential before attempting any repair, as many symptoms can be traced back to specific components.
When your LCD TV display panel is malfunctioning, it often exhibits one or more of the following symptoms:
- Vertical or horizontal shadow bars on the screen: These lines or shadows can appear as a result of faulty T-con boards or damaged ribbon cables.
- Black or dark spots on part of the screen: This can be caused by dead pixels, backlight failure, or panel damage.
- Screen flickering or no image despite power being on: Flickering may be related to power supply issues or panel shorts.
- Color distortions or washed-out images: This often indicates problems with the T-con board or the LCD panel itself.
- Cracked or physically damaged screen: Physical damage usually requires panel replacement but can sometimes be temporarily managed.
Repairing an LCD TV display panel involves a systematic approach. Below is a detailed step-by-step guide:
Before starting any repair, unplug your TV from the power outlet. Press the power button on the remote or the TV itself to discharge any residual electricity stored in the capacitors. This step is critical to avoid electrical shock and to protect sensitive components from damage.
Place the TV on a soft, flat surface to avoid scratching the screen. Use a screwdriver to remove all screws securing the back panel. Keep track of the screws by organizing them in a container or on a magnetic mat. Gently pry off the back cover, taking care not to damage any internal cables or connectors.
Once the back cover is removed, you will see several circuit boards and the LCD panel itself. The main components to identify are:
- Main Board: Usually the largest board, connected to input ports and responsible for processing video and audio signals.
- Power Supply Board: Supplies power to the TV's components; often located near the power cord entry.
- T-con Board: A small board connected directly to the LCD panel via ribbon cables; it controls the timing of the display signals.
- LCD Panel: The large flat screen component itself.
Be cautious when handling the LCD panel, as it is fragile and expensive to replace.
Diagnosing the root cause of the display issue is the most critical step. Use the following methods:
- Check Power Supply Voltages: Using a multimeter, measure the voltages on the power supply board and T-con board. Missing or incorrect voltages often indicate faulty components such as capacitors or DC to DC converter ICs.
- Inspect Ribbon Cables: Ribbon cables connect the T-con board to the LCD panel and the main board to the T-con board. Disconnect and reconnect these cables to ensure good contact. Look for any visible damage such as tears or corrosion.
- Look for Shorts on the Panel: A short circuit on the LCD panel can cause the TV to reboot repeatedly or fail to display an image. You can isolate the short by disconnecting sections of the ribbon cable and using insulating tape to cover the affected pins.
- Visual Inspection: Look for burnt components, bulging capacitors, or corrosion on the boards.
Once the problem area is identified, proceed with the repair:
- T-con Board Repair: One of the most common causes of vertical or horizontal shadow bars is a faulty DC to DC converter IC on the T-con board. Replacing this IC can restore proper voltage and fix the display.
- Ribbon Cable Repair: If a ribbon cable is damaged, you can sometimes repair it by carefully cleaning the contacts or taping over damaged sections. If the damage is severe, replace the cable.
- LCD Panel Short Fix: Shorts on the LCD panel pins can sometimes be isolated by covering the shorted pins with insulating tape. This may restore partial display functionality.
- Backlight Replacement: If the screen is dark but you can faintly see images, the backlight LEDs might be faulty. Replacing the backlight strips or LEDs can restore brightness.
After completing repairs, carefully reassemble the TV. Replace the back cover and screws, then plug the TV back in and power it on. Test the display thoroughly to confirm that the issue is resolved. If problems persist, further diagnosis or professional assistance may be necessary.

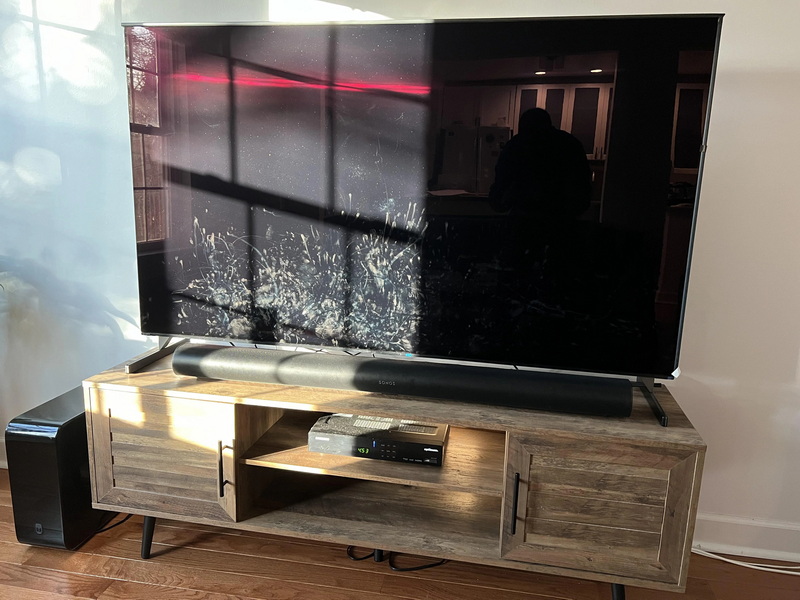

Cracked screens are among the most challenging problems to fix. Unlike other issues, a cracked LCD panel usually requires replacement, which can be costly and technically demanding. However, for minor cracks, some temporary fixes can help:
- Sealing the Crack with Clear Epoxy: Applying clear epoxy resin into the crack can prevent it from spreading further. This method is a temporary fix and may leave visible marks.
- Using DIY Screen Repair Kits: These kits often include special adhesives and tools designed to minimize the appearance of cracks. Results vary depending on the severity of the damage.
- Professional Repair Services: Some specialized repair shops offer screen replacement or advanced repair services. This is usually the most reliable but most expensive option.
It is important to weigh the cost of repair against the price of a new TV before deciding on cracked screen repairs.
Prevention is always better than cure. Here are some tips to help you avoid damage to your LCD TV display panel:
- Avoid Physical Impact: Handle your TV carefully to prevent cracks or internal damage.
- Keep Away from Moisture: Moisture can cause corrosion and shorts inside the TV.
- Use a Surge Protector: Power surges can damage the power supply and other components.
- Clean Properly: Use a soft, dry cloth to clean the screen. Avoid harsh chemicals.
- Ensure Proper Ventilation: Overheating can damage internal components, so keep the TV in a well-ventilated area.
Repairing an LCD TV display panel is a challenging but rewarding process that can extend the life of your TV and reduce electronic waste. By understanding the components involved, diagnosing the problem accurately, and applying targeted repairs such as fixing T-con board issues, isolating shorts, or replacing backlights, many common display problems can be resolved. While cracked screens are often not cost-effective to repair, minor cracks can sometimes be managed with DIY methods. Always prioritize safety and consider professional help for complex repairs. With patience and the right approach, you can bring your LCD TV back to life and enjoy your favorite shows once again.
If the TV powers on but shows distorted images or lines, check the voltages on the T-con and power boards first. Normal voltages with display issues often indicate panel problems. Disconnecting the T-con board and testing can help isolate the fault.
Generally, repairing a cracked screen is not cost-effective because the panel replacement cost is high. Minor cracks can be temporarily sealed, but full repair usually requires replacing the entire panel or TV.
You can attempt to isolate shorts by taping over affected ribbon cable pins or disconnecting parts of the cable to regain partial screen functionality. However, this is a temporary fix and may not restore full operation.
Basic tools include screwdrivers, a multimeter for voltage testing, insulating tape, and possibly soldering equipment for component-level repairs.
Replacement boards, cables, and components can be purchased online from electronics parts suppliers or specialized TV repair shops. Some shops also offer repair services if parts are unavailable.
