Removing solder from an LCD display is a delicate process that requires precision, the right tools, and careful technique to avoid damaging the fragile components. Whether you are repairing, replacing, or modifying an LCD screen, understanding how to properly desolder solder joints is essential. This guide provides an in-depth explanation of the methods, tools, and precautions necessary to remove solder from LCD displays effectively.
LCD displays typically have small, delicate solder joints connecting the display to the circuit board or flex cables. Removing solder from these joints is often necessary when replacing the LCD, repairing broken connections, or upgrading components.
Key challenges include:
- Avoiding damage to the LCD panel or PCB traces.
- Preventing overheating that can cause delamination or component failure.
- Ensuring complete removal of solder to allow clean re-soldering.
Before starting, gather the following tools commonly used for solder removal in LCD repairs:
- Soldering Iron with a fine tip (35W or higher recommended)
- Desoldering Pump (Solder Sucker)
- Desoldering Braid (Solder Wick) — preferably flux-treated copper braid
- Flux to improve solder flow and wick absorption
- Heat Gun or Hot Air Rework Station
- Tweezers and Pliers for component handling
- Isopropyl Alcohol and Lint-Free Cloth for cleaning
- Magnifying Glass or Microscope for precision work
This is the most common and accessible method.
- Heat the solder joint with the soldering iron until the solder melts.
- Quickly place the tip of the desoldering pump over the molten solder and activate it to suck up the solder.
- Repeat heating and pumping until the solder is sufficiently removed.
- Gently pull the component or flex cable once the solder is free.
Tips:
- Keep the soldering iron tip clean and well-tinned.
- Work quickly to avoid overheating the LCD or PCB.
- Use pliers to gently assist in lifting components once solder is removed[1][6].

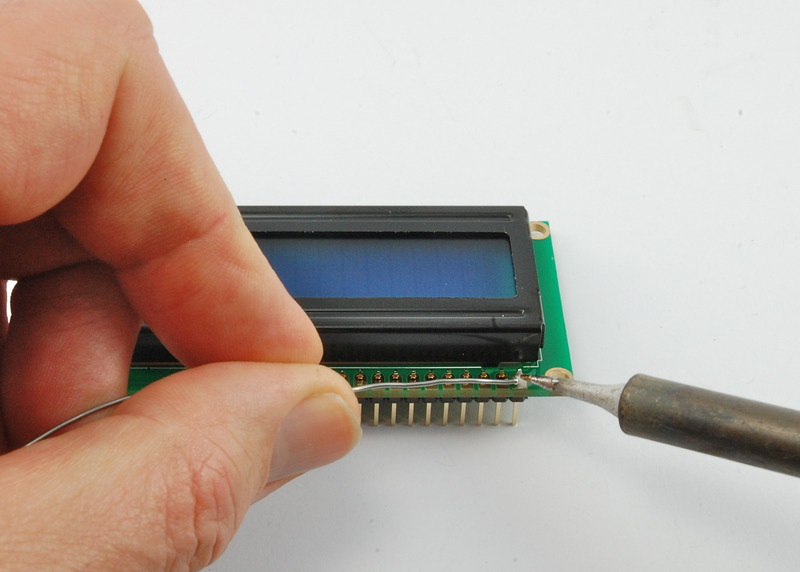

Solder wick is ideal for removing residual solder, especially in tight spaces.
- Place the flux-treated solder wick over the solder joint.
- Press the heated soldering iron tip onto the braid to transfer heat and melt the solder.
- The solder will be absorbed into the braid.
- Remove the braid and iron simultaneously once solder is absorbed.
- Repeat if necessary until the joint is clean.
Important: Use high-quality flux-treated braid for best results. Low-quality braid without flux will not absorb solder effectively[2][6][9].
A heat gun or hot air station can be used to soften solder across multiple joints simultaneously, especially useful when removing LCD screens attached with adhesive and solder.
- Set the heat gun to an appropriate temperature (usually around 250-300°C).
- Apply heat evenly to the solder joints or screen flex cables.
- Once solder softens, use tweezers or a pry tool to gently lift the components.
- Be cautious to avoid overheating or warping the LCD or PCB.
This method is often used in professional repairs and screen replacements[1][4][6].

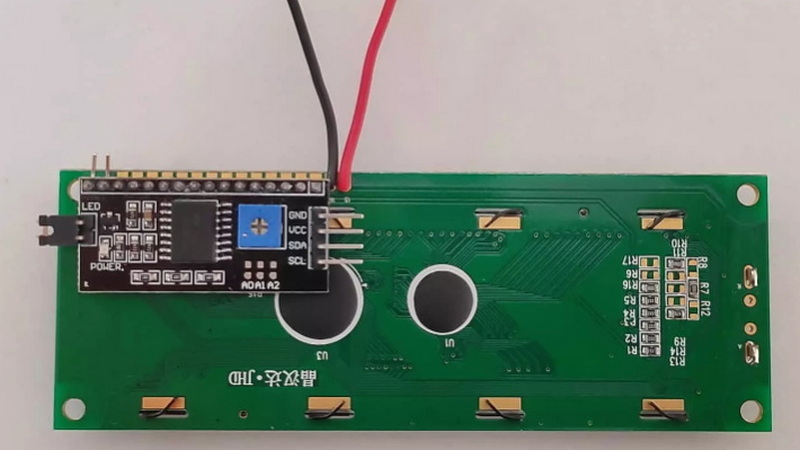

After solder removal, clean the area thoroughly:
- Use isopropyl alcohol and a lint-free cloth to remove flux residues and leftover solder particles.
- Inspect the pads and traces under magnification for damage or solder bridges.
- If pads are damaged, consider repairing with conductive ink or jumper wires[4][6][10].
- Damaged Pads or Traces: Excessive heat or mechanical force can lift pads off the PCB. Use controlled heat and gentle handling.
- Cold or Poor Solder Joints: Ensure the soldering iron is hot enough and the joint is clean before soldering.
- Microspheres or Air Bubbles: These can cause shorts; ensure proper flux application and heating technique[10].
- Overheating the LCD: Use temperature control tools and avoid prolonged heat exposure.
Removing solder from an LCD display requires patience, the right tools, and careful technique to avoid damaging the delicate components. The most effective methods involve using a soldering iron combined with a desoldering pump or solder wick, supplemented by heat guns for more complex repairs. Always ensure proper cleaning and inspection after solder removal to maintain the integrity of the display and PCB. With practice and attention to detail, solder removal from LCDs can be performed safely and efficiently, enabling successful repairs and replacements.
Use a soldering iron with a fine tip and a desoldering pump or solder wick. Apply heat carefully and avoid prolonged exposure to prevent damage. Use flux to improve solder flow and wick absorption[1][2][10].
A combination of a fine-tip soldering iron and flux-treated solder wick is best for small components. For larger areas, a hot air rework station can be used[2][6].
Yes, a heat gun can soften solder on LCD pins, but it requires careful temperature control and gentle handling to avoid damage[1][4][6].
If pads are lifted or damaged, you can repair them by soldering jumper wires to nearby traces or using conductive ink. Avoid excessive heat and mechanical force during soldering and desoldering[3][10].
Use isopropyl alcohol and a lint-free cloth or brush to clean the area. Proper cleaning ensures good solder joints and prevents corrosion[6][8].
