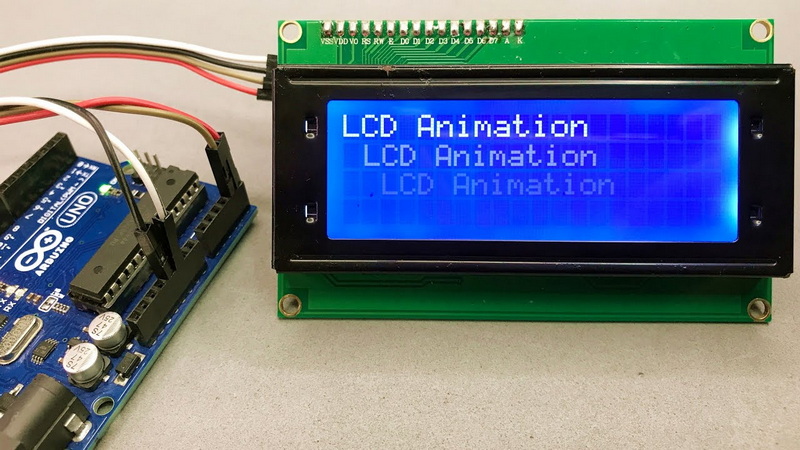

Programming a scrolling LCD display is a popular and practical project for embedded systems enthusiasts, hobbyists, and professionals alike. It allows you to display long messages or dynamic information on limited-character LCD screens, such as the common 16x2 or 20x4 character LCDs. This comprehensive guide will walk you through the concepts, hardware setup, programming techniques, and tips to create smooth scrolling text on an LCD display, primarily using Arduino as the microcontroller platform. The article also includes visual aids and video references to enhance understanding.
LCD (Liquid Crystal Display) modules, especially those based on the Hitachi HD44780 controller, are widely used in embedded projects. These displays typically have a fixed number of characters per line (e.g., 16 or 20) and a fixed number of lines (e.g., 2 or 4). When the text to be displayed exceeds the screen width, scrolling is an effective way to show the entire message.
- Display Long Messages: LCDs have limited space; scrolling allows longer messages to be shown.
- Dynamic Information: Useful for notifications, alerts, or real-time data.
- User Engagement: Adds a professional and interactive feel to your project.
To program a scrolling LCD display, you will need the following components:
- Microcontroller Board: Arduino Uno is commonly used.
- LCD Display: 16x2 or 20x4 character LCD compatible with HD44780 driver.
- Potentiometer (10k ohm): For contrast adjustment.
- Resistors: Typically 220 ohm for backlight.
- Connecting Wires and Breadboard: For circuit assembly.
- Optional: I2C LCD module for easier wiring.
The LCD pins are connected to Arduino digital pins as follows:
| LCD Pin | Function | Arduino Pin |
|---|---|---|
| RS | Register Select | 12 |
| Enable | Enable Signal | 11 |
| D4 | Data Bit 4 | 5 |
| D5 | Data Bit 5 | 4 |
| D6 | Data Bit 6 | 3 |
| D7 | Data Bit 7 | 2 |
| VO | Contrast (Potentiometer wiper) | Potentiometer connected between 5V and GND |
| Backlight Pins | Usually pins 15 and 16 | Through 220 ohm resistor to 5V |
This wiring allows the Arduino to control the LCD in 4-bit mode, which saves pins and is standard practice[1][8].
There are two main approaches to program scrolling text on an LCD:
The Arduino LiquidCrystal library provides convenient functions:
- scrollDisplayLeft(): Shifts the entire display one character to the left.
- scrollDisplayRight(): Shifts the entire display one character to the right.
- autoscroll(): Automatically scrolls text as new characters are printed.
These functions are easy to use and require minimal coding effort. For example, you can print a long message and then call `scrollDisplayLeft()` repeatedly with a delay to create a scrolling effect[1][2][8].
For more control, you can write custom functions that:
- Update the displayed substring of the message.
- Move the cursor position manually.
- Scroll only one line while keeping others static.
- Create smooth scrolling effects by defining custom characters.
This method is more flexible but requires more programming effort and understanding of LCD addressing[8][11].
Use the LiquidCrystal library to initialize the LCD with the correct dimensions (e.g., 16 columns, 2 rows).
Print the message that you want to scroll. If the message is longer than the display width, only part of it will be visible.
Use a loop to call `scrollDisplayLeft()` or `scrollDisplayRight()` with a delay between calls to create the scrolling effect.
- Use `setCursor()` to position text precisely.
- Use `clear()` to refresh the display.
- Implement bidirectional scrolling.
- Add buttons to control scrolling direction (scroll up/down or left/right)[4].
- Adjust Delay: The delay between scroll steps affects readability and smoothness.
- Use Potentiometer: Adjust contrast for better visibility.
- Custom Characters: For pixel-level smooth scrolling, define custom characters to simulate partial shifts.
- Memory Management: Keep messages within microcontroller memory limits.
- Use I2C Modules: Simplify wiring and reduce pin usage.
Programming a scrolling LCD display enhances the usability and aesthetics of embedded projects by allowing long messages to be displayed on limited-character screens. Using Arduino and the LiquidCrystal library, you can easily implement scrolling text with built-in functions like `scrollDisplayLeft()` and `scrollDisplayRight()`. For more advanced control, manual coding techniques enable scrolling of specific lines and smoother animations. Combining proper hardware setup, programming, and user interface design results in dynamic and engaging LCD displays suitable for various applications.
Connect the LCD pins RS, Enable, D4-D7 to Arduino digital pins (commonly 12, 11, 5, 4, 3, 2), use a 10k potentiometer for contrast on VO pin, and a 220 ohm resistor for backlight. Use the LiquidCrystal library to control the display[1][8].
The LiquidCrystal library provides `scrollDisplayLeft()` and `scrollDisplayRight()` to shift the entire display left or right, creating a scrolling effect[1][8].
Yes, but it requires manual coding to update only the desired line while keeping other lines static. This involves managing the cursor and text buffer carefully[8].
Smooth scrolling can be achieved by defining custom characters that simulate partial pixel shifts and updating the display more frequently with smaller movements[8].
Yes, by connecting buttons to input pins and programming the microcontroller to call `scrollDisplayLeft()` or `scrollDisplayRight()` based on button presses, you can control scrolling direction interactively[4].
