Programming a counter on an LCD display using Arduino is a fundamental project that combines basic electronics with programming skills. This project is ideal for beginners and enthusiasts alike, as it introduces the concepts of digital input, output, and display management. In this article, we will explore the components needed, the setup process, and how to program the Arduino to display a counter on an LCD screen.
To start this project, you will need the following components:
- Arduino Board: The brain of the operation, responsible for executing the program. Popular models include the Arduino Uno and Arduino Mega.
- LCD Display: A 16x2 LCD is commonly used for its simplicity and ease of integration with Arduino. It can display two lines of text, each with up to 16 characters.
- Push Buttons: Used for incrementing or decrementing the counter. Typically, two buttons are used for up and down operations.
- Breadboard and Jumper Wires: For connecting components in a flexible and temporary manner.
- Resistors and Potentiometer: For adjusting LCD contrast and button connections. Resistors are used to limit current flow, while a potentiometer helps adjust the LCD's contrast for better readability.

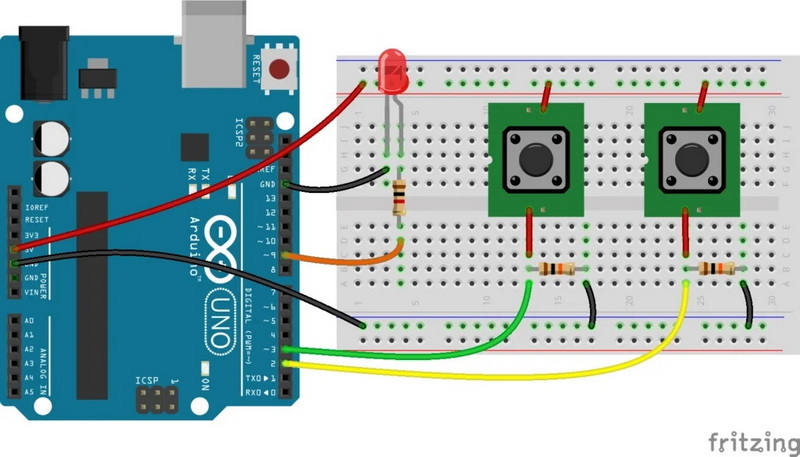

The circuit setup involves connecting the LCD to the Arduino and integrating the push buttons for input. Here's a simplified overview:
1. LCD Connection: Connect the LCD pins to the Arduino. Typically, the LCD pins are connected as follows:
- RS (Register Select) to a digital pin (e.g., pin 12).
- EN (Enable) to another digital pin (e.g., pin 11).
- D4, D5, D6, and D7 to digital pins (e.g., pins 5, 4, 3, and 2).
- VCC to 5V and GND to GND on the Arduino.
- K (Backlight) to 5V and A (Backlight Anode) to GND if your LCD has a backlight.
2. Button Connection: Connect each button between a digital input pin and GND. Use a pull-up resistor if necessary to prevent floating inputs.
To program the Arduino, you will use the Arduino IDE. The program involves reading the state of the buttons and updating the counter displayed on the LCD accordingly.
- Setup: Initialize the LCD and set up the button pins as inputs. Use the LiquidCrystal library to simplify LCD operations.
- Loop: Read the button states. If a button is pressed, increment or decrement the counter and update the LCD display using functions like `lcd.setCursor()` and `lcd.print()`.
The LiquidCrystal library is essential for controlling the LCD. It allows you to set the cursor position, print text, and clear the screen. You can install it via the Arduino IDE's Library Manager.
Button debouncing is crucial to prevent multiple counts from a single press. This can be achieved using software or hardware methods. Software debouncing involves checking the button state over time to ensure it remains stable before registering a press.
Several projects demonstrate how to create a counter with Arduino and LCD:
- Up/Down Counter: Uses two buttons to increment or decrement a counter displayed on the LCD.
- Digital Object Counter: Utilizes sensors and buttons for counting objects. This can be useful in inventory management or production environments.
- Scorekeeping System: Can be used in games or competitions to keep track of scores.
To enhance your project, consider adding features like:
- Memory Storage: Use EEPROM to save the counter value even when the Arduino is powered off.
- Alarms and Notifications: Trigger sounds or lights when the counter reaches a specific value.
- Remote Control: Use wireless communication modules like Bluetooth or Wi-Fi to control the counter remotely.
When setting up your project, you might encounter some common issues:
- LCD Not Displaying Text: Check the contrast adjustment and ensure all pins are correctly connected.
- Buttons Not Registering Presses: Verify that the buttons are properly connected and debounced.
- Counter Not Updating: Ensure the loop function is correctly reading button states and updating the counter.
Creating a counter on an LCD display with Arduino is a straightforward yet educational project. It introduces key concepts in electronics and programming, making it perfect for beginners. With the right components and a bit of practice, you can build a functional counter that increments or decrements based on button inputs. This project can be expanded with additional features to suit various applications.
The LiquidCrystal library is used to control LCD displays compatible with the Hitachi HD44780 driver, allowing you to print text and manage the display.
Connect the LCD pins to the Arduino's digital pins. Typically, RS, EN, D4, D5, D6, and D7 are connected to pins like 12, 11, 5, 4, 3, and 2, respectively.
Debouncing is a technique used to prevent multiple counts from a single button press by filtering out the noise or bounces that occur when a button is pressed.
Read the state of the buttons in the loop function. If a button is pressed, update the counter variable and display it on the LCD using functions like `lcd.setCursor()` and `lcd.print()`.
Applications include inventory tracking, scorekeeping, and object counting in various environments. It can also be used in educational settings to teach programming concepts.
