Organic Light Emitting Diode (OLED) technology has revolutionized display screens, making them thinner, more flexible, and capable of producing vibrant colors with deep blacks. This technology is widely used in smartphones, televisions, and wearable devices due to its superior display qualities. While commercial OLED screens are manufactured in high-tech cleanrooms with specialized equipment, it is possible to create simple OLED displays at home or in a well-equipped lab with some patience, the right materials, and a careful approach. This comprehensive guide will walk you through the process of making an OLED screen at home, from understanding the theory to hands-on assembly and programming, complete with detailed explanations and practical tips.
An OLED screen is a display technology that uses organic compounds to emit light when an electric current is applied. Unlike traditional LCDs, OLEDs do not require a backlight, which allows for thinner displays, better contrast, and improved energy efficiency. This self-emissive property enables OLEDs to achieve true blacks and a wide color gamut, making them highly desirable for modern electronic displays.
Before beginning your OLED project, it is crucial to gather all necessary materials and tools to ensure a smooth fabrication process. Some of these materials are specialized and may require ordering from scientific suppliers. Having the right tools, such as a spin coater and hotplate, will significantly improve the quality of your OLED device. Safety equipment like gloves and glasses are essential to protect yourself during the fabrication process.
- Pre-patterned ITO (Indium Tin Oxide) glass substrates
- PEDOT:PSS solution (hole transport layer)
- Organic emissive material (e.g., Alq3 or a suitable polymer)
- Calcium or aluminum for the cathode
- Spin coater (or manual alternative)
- Hotplate
- Pipettes and tweezers
- Cleanroom wipes or lint-free cloths
- Power supply and wiring
- Arduino or microcontroller (for display control)
- Soldering iron and solder
- Glove box (optional but recommended for best results)
- Protective gloves and safety glasses
When sourcing these materials, pay attention to purity and compatibility. For example, the ITO glass must be clean and defect-free, and the organic compounds must be stored in airtight containers to prevent degradation.
An OLED device typically consists of multiple ultra-thin layers, each serving a specific function in the light emission process. The substrate provides mechanical support and electrical connection, while the hole transport layer facilitates the movement of positive charges. The emissive layer is where the organic molecules emit light when excited by an electric current. The cathode injects electrons to complete the circuit. The precise control of layer thickness and uniformity is critical to device performance and longevity.
The typical layers in an OLED are:
1. Substrate: Usually glass or plastic coated with ITO, which acts as the anode.
2. Hole Transport Layer (HTL): Commonly PEDOT:PSS, which helps inject holes (positive charge carriers).
3. Emissive Layer: The organic compound that emits light when excited.
4. Cathode: Usually calcium or aluminum, which injects electrons.
The layers are extremely thin—often just a few hundred nanometers—and must be deposited with great care to avoid contamination and defects. Each layer's uniformity and purity directly impact the OLED's brightness, efficiency, and operational lifetime.
- Carefully handle the ITO glass substrate with tweezers to avoid fingerprints and scratches.
- Clean the substrate using isopropyl alcohol and lint-free wipes.
- Dry the substrate thoroughly.
A clean substrate is vital for ensuring proper adhesion and performance of subsequent layers. Even microscopic dust or oil can cause defects, so work in a well-ventilated, dust-free area.
- Filter the PEDOT:PSS solution using a 0.45 μm filter to remove particulates.
- Deposit 20–30 μl of PEDOT:PSS onto the center of the substrate.
- Use a spin coater at 5000–6000 rpm for 30 seconds to create a uniform thin film.
- Bake the substrate on a hotplate at 150°C for 5 minutes to remove residual water.
The spin coating process is critical for achieving a smooth, even layer. If you do not have a spin coater, you can try manually spreading the solution, but results may vary. The baking step ensures the removal of any solvent, which could otherwise interfere with the next layer.
- In a glove box or under low-intensity red light, deposit the organic emissive material (e.g., Alq3 or a polymer) onto the PEDOT:PSS layer.
- This can be done via spin coating or drop-casting, depending on the material and available equipment.
- Allow the layer to dry and inspect for uniformity.
The emissive layer is the heart of the OLED. Its quality determines the color and brightness of the display. Work quickly and minimize exposure to air, as many organic materials are sensitive to oxygen and moisture.
- Evaporate a thin layer (50–100 nm) of calcium or aluminum onto the organic layer using a thermal evaporator.
- This step is delicate and ideally performed in a glove box to prevent oxidation.
- If a vacuum evaporator is unavailable, consider using a DIY setup with extreme caution.
Metal deposition forms the cathode, completing the circuit for electron injection. Any exposure to air can oxidize the metal, reducing device efficiency. If you must work without a glove box, minimize the time the device is exposed to air and consider using an inert gas environment.
- Seal the device with a glass cover and UV-curable epoxy to protect the organic layers from moisture and oxygen.
- Allow the sealant to cure fully before handling.
Encapsulation is crucial for device longevity. Even a small leak can allow moisture in, rapidly degrading the OLED. Use a minimal amount of epoxy and ensure a tight seal around the edges.
- Attach wires to the ITO anode and cathode using conductive silver paste or by soldering carefully.
- Avoid applying excessive force to prevent cracking the glass or damaging the layers.
Make sure the connections are secure and do not short-circuit the device. Test continuity with a multimeter before applying power.
- Connect the OLED device to a power supply, applying the recommended voltage (typically 3–5V).
- Observe the device for electroluminescence (light emission).
If the device does not emit light, recheck all connections and review each fabrication step for possible errors. Sometimes, adjusting the voltage slightly can help, but do not exceed the recommended range to avoid damaging the device.

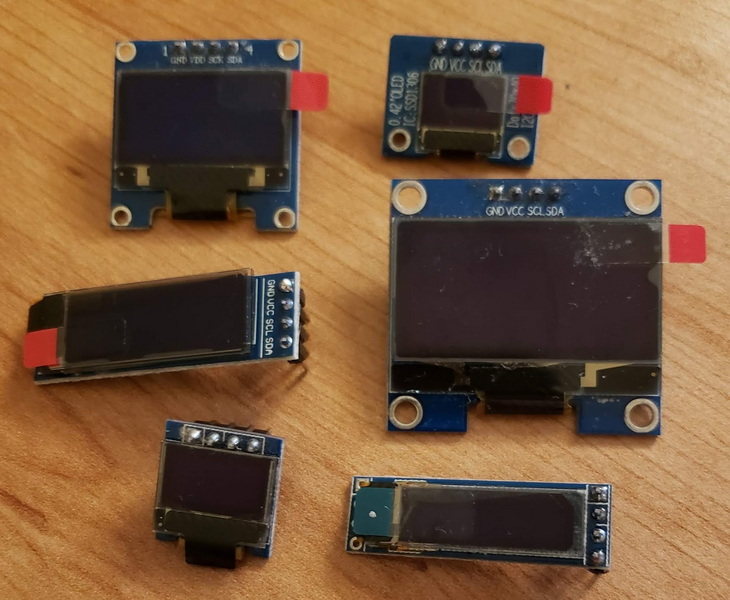

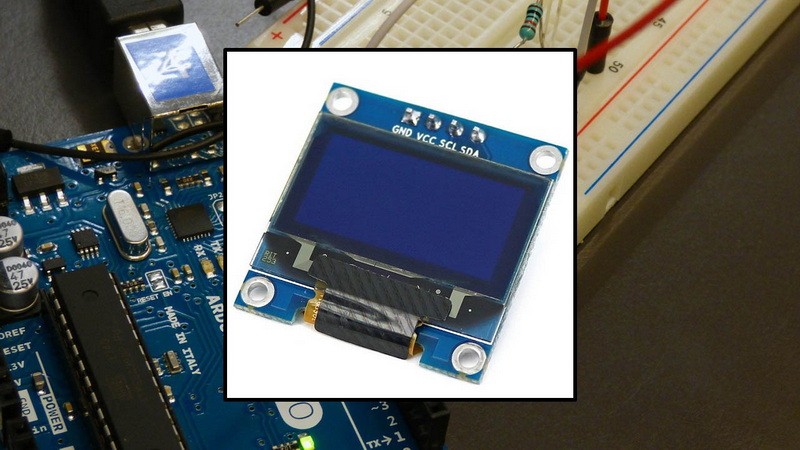

If you prefer to start with a ready-made OLED module (such as SSD1306-based displays), you can use an Arduino or similar microcontroller to display text, images, and animations. These modules are affordable and widely available, making them ideal for learning about OLED technology and display programming.
- Connect VCC to 5V (or 3.3V, depending on module)
- Connect GND to ground
- Connect SDA to Arduino A4
- Connect SCL to Arduino A5
- Install the Adafruit_SSD1306 and Adafruit_GFX libraries via Arduino IDE.
After setting up the hardware and libraries, you can display text, graphics, and even simple animations. Use the library functions to draw lines, shapes, and custom bitmaps. Images must be converted to monochrome bitmaps compatible with the display's resolution.
Animations can be created by updating the display buffer with different frames. This allows you to create dynamic visual effects, such as scrolling text or moving icons. For more advanced projects, you can use frame arrays and timers, or even import frame data from animation tools.
Creating a functional OLED screen at home requires attention to detail and a clean working environment. Working in a dust-free environment is essential to prevent defects that can cause uneven brightness or device failure. Handling substrates only with tweezers and avoiding direct contact with the active area will reduce contamination. Minimizing exposure of organic layers to air and light will help preserve their integrity. Using a glove box is highly recommended for sensitive steps, especially cathode deposition. Patience and methodical work are key to success, as small errors can lead to device failure.
- Work in a dust-free environment to prevent defects.
- Handle substrates only with tweezers and avoid touching the active area.
- Minimize exposure of organic layers to air and light.
- Use a glove box if possible, especially for sensitive layers and cathode deposition.
- Be patient and methodical; small errors can lead to device failure.
Additionally, keep detailed notes of your fabrication process. Recording each step and any deviations will help you troubleshoot issues and improve your technique over time.
Even with careful fabrication, issues may arise during OLED device creation. No light emission can result from electrical shorts, incorrect layer thickness, or reversed power supply polarity. Uneven brightness often indicates non-uniform coating or dust contamination. Rapid degradation is usually caused by poor encapsulation or exposure to moisture and oxygen. Understanding these common problems and their solutions will help you troubleshoot and improve your OLED devices.
- No Light Emission: Check for electrical shorts, ensure correct layer thickness, and verify power supply polarity.
- Uneven Brightness: Ensure uniform coating of layers and avoid dust contamination.
- Rapid Degradation: Improve encapsulation and minimize exposure to moisture and oxygen.
Other issues may include flickering (often due to unstable power supply), color shifts (from impure or degraded materials), or physical damage (from mishandling). Address each systematically, starting with the most likely causes.
For those looking to take their DIY OLED projects further, consider the following advanced topics:
- Patterning Techniques: Learn about photolithography or shadow masking to create patterned OLED pixels for more complex displays.
- Flexible Substrates: Experiment with plastic substrates to create bendable or wearable OLED devices.
- Multi-layer Devices: Explore tandem OLED structures for improved brightness and efficiency.
- Color Tuning: Investigate different organic compounds to produce various emission colors, potentially combining them for multi-color displays.
- Environmental Testing: Build simple test chambers to study how humidity, temperature, and light exposure affect your OLED's performance over time.
Engaging with online maker communities and academic resources can help you stay updated on the latest DIY OLED techniques and troubleshooting strategies.
Making an OLED screen at home is a challenging but rewarding project that combines chemistry, physics, and electronics. While you may not achieve the durability or resolution of commercial displays, building your own OLED provides invaluable insight into modern display technology and hands-on experience with advanced materials. Whether you fabricate the device from scratch or start with a commercial module and program it with Arduino, the process is an excellent way to deepen your understanding of electronics and materials science. Through careful preparation, attention to detail, and a willingness to experiment, you can successfully create your own OLED screen and join the growing community of DIY display enthusiasts.
The biggest challenges are ensuring a clean environment, handling sensitive materials, and achieving uniform thin films. Moisture and dust can quickly degrade performance or cause device failure.
Full-color OLEDs require precise deposition of multiple emissive materials and advanced patterning techniques, which are difficult to replicate outside of a professional lab. Most DIY projects focus on single-color (monochrome) displays.
A glove box is highly recommended for handling air- and moisture-sensitive materials, especially during cathode deposition. However, some steps can be performed in open air with careful handling and rapid processing.
Homemade OLEDs are prone to rapid degradation due to imperfect encapsulation and exposure to air. Lifetimes can range from minutes to days, depending on environmental conditions and fabrication quality.
Repairing a physically damaged OLED is extremely difficult due to the delicate, multilayer structure. For commercial modules, replacing the entire display is usually more practical.
