Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, found in everything from smartphones and laptops to televisions and digital signage[3]. Knowing how to identify an LCD display is crucial for various reasons, whether you're troubleshooting a device, comparing display technologies, or simply satisfying your curiosity. This comprehensive guide will provide you with the knowledge and techniques to confidently identify an LCD display, differentiating it from other display types such as LED and OLED.

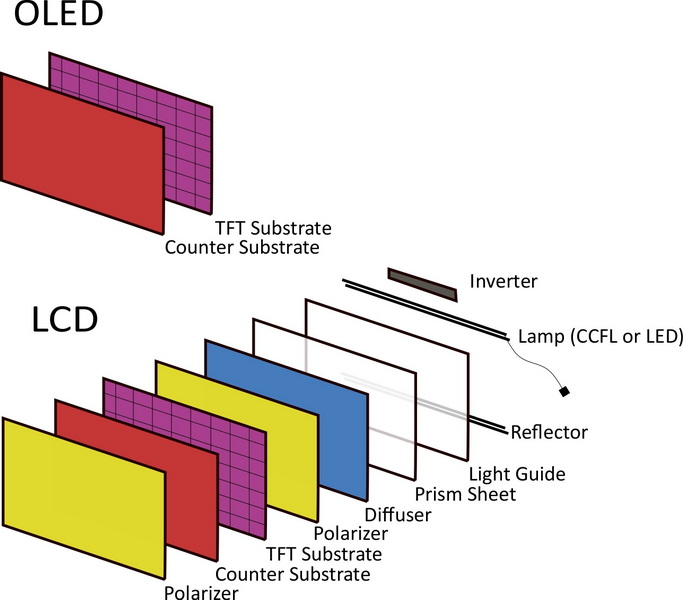

Before diving into identification methods, it's essential to understand the fundamental principles of LCD technology. Unlike Cathode Ray Tube (CRT) displays, which use electron beams to illuminate phosphors, LCDs rely on liquid crystals to modulate light[4]. These liquid crystals are arranged between two polarizing filters, and when an electric field is applied, they change their orientation, controlling the amount of light that passes through[2].
Key Components of an LCD Screen[2]:
- Backlight: Provides the light source necessary for the display. Without it, the liquid crystal layer would not be able to manipulate light to create images.
- Liquid Crystal Layer: Manipulates the light from the backlight to create images. This layer is made up of numerous tiny cells filled with liquid crystals. When an electric current is applied, these crystals change their orientation, thereby manipulating the light from the backlight.
- Color Filters: Add color to the images created by the liquid crystal layer. Each pixel on an LCD screen is made up of three sub-pixels: one with a red filter, one with a green filter, and one with a blue filter.
Pixel Formation in LCD Displays[2]:
Each pixel on an LCD screen is composed of three sub-pixels: red, green, and blue. These sub-pixels are controlled by a matrix of thin-film transistors (TFTs) that switch on and off to allow varying amounts of light to pass through. The degree to which the crystals twist is determined by the voltage applied, which in turn determines the amount of light that reaches each sub-pixel. By controlling the light reaching each red, green, and blue sub-pixel, the LCD display can produce a full spectrum of colors.
One of the easiest ways to identify an LCD display is through visual inspection. Here are some key characteristics to look for:
- Pixel Structure: Examine the screen closely, if possible with a magnifying glass. LCDs typically have a distinct pixel structure with clearly defined sub-pixels (red, green, and blue)[2].
- Backlighting: LCDs require a backlight to illuminate the screen[3]. In a dimly lit environment, observe the display at an angle. You may notice a slight glow or light bleed, especially around the edges, indicating the presence of a backlight.
- Response Time: LCDs generally have slower response times compared to OLED displays. This can result in motion blur or ghosting, especially in fast-paced content[4].
- Viewing Angles: LCDs can suffer from color shifting or reduced contrast when viewed from extreme angles[4]. This is more pronounced in older LCD technologies like TN panels.
To accurately identify an LCD, it's helpful to compare it to other common display technologies:

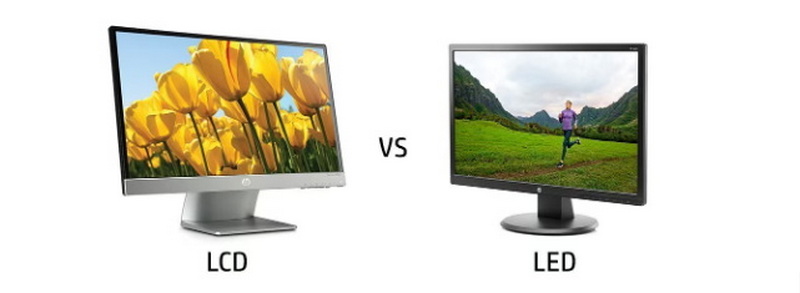

LCD vs. LED
LED (Light Emitting Diode) displays are often confused with LCDs, but they are actually a type of LCD[1]. The key difference lies in the backlighting. While traditional LCDs use cold cathode fluorescent lamps (CCFLs), LED displays use LEDs for backlighting[4]. This results in several advantages:
- Energy Efficiency: LED backlighting is more energy-efficient than CCFL backlighting[1].
- Brightness and Contrast: LED displays typically offer higher brightness and contrast ratios[1].
- Slimmer Design: LED backlights allow for thinner display designs[1].
To differentiate between an LCD and an LED display, look for the following:
- Specifications: Check the product specifications for terms like "LED-backlit LCD" or "LCD with LED backlight"[1].
- Thickness: LED displays are generally slimmer than CCFL-backlit LCDs[1].
LCD vs. OLED
OLED (Organic Light Emitting Diode) displays represent a fundamentally different technology compared to LCDs. OLEDs are emissive displays, meaning each pixel generates its own light[1]. This eliminates the need for a backlight, resulting in:
- Superior Contrast Ratios: OLEDs can achieve perfect black levels by turning off individual pixels, resulting in infinite contrast ratios.
- Wider Viewing Angles: OLEDs offer consistent color and contrast across a wide range of viewing angles.
- Faster Response Times: OLEDs have significantly faster response times than LCDs, resulting in smoother motion and reduced motion blur.
To distinguish between an LCD and an OLED display:
- Black Levels: Observe the display in a dark room. If the blacks appear truly black with no light bleed, it's likely an OLED display.
- Viewing Angles: Check the display at extreme angles. OLEDs maintain consistent color and contrast, while LCDs may exhibit color shifting.
Here are several practical methods you can use to identify an LCD display:
1. Check the Specifications: The easiest way to identify a display is by checking the product specifications[1]. Look for terms like "LCD," "LED-backlit LCD," or "TFT-LCD." This information can usually be found on the manufacturer's website, in the product manual, or on the packaging.
2. Examine the Display Thickness: As mentioned earlier, LED-backlit LCDs are generally thinner than CCFL-backlit LCDs[1]. If you can physically inspect the display, compare its thickness to similar models.
3. Assess Brightness and Contrast: LED displays typically exhibit higher brightness and contrast levels compared to CCFL-backlit LCDs[1]. Turn on the display and observe the vibrancy and clarity of the visuals.
4. Look for the LED Label: Some manufacturers explicitly label their products as "LED" displays[1]. Check the device for any labels or stickers indicating LED technology.
5. Energy Efficiency Ratings: LED displays are generally more energy-efficient than CCFL-backlit LCDs[1]. Check the product label or specifications for energy efficiency ratings.
6. Pixel Inversion Test: Display a black and white checkerboard pattern on the screen. If you notice a flickering or ghosting effect, it's likely an older LCD panel.
7. Viewing Angle Test: Observe the display from different angles. If the colors shift or the contrast decreases significantly, it's likely an LCD panel, especially a TN panel.
8. Backlight Inspection (If Possible): If you can safely disassemble the device, you can inspect the backlight directly. CCFL backlights are typically long, cylindrical tubes, while LED backlights are small, rectangular components.
9. Accessing the EDID Information: The Extended Display Identification Data (EDID) contains information about the monitor, including its manufacturer and model number. This data can be accessed through your computer's operating system, providing detailed information about the display type.
To find out the LCD screen model number, you need to take the screen out of the laptop and check the back of the LCD screen[5]. On the back side of the screen, you can see one or several labels with numbers[5]. 99% of the screens on the market today have the manufacturer's code and screen size included in the model number[5].
Here is a list of most common laptop LCD screen manufacturers with their abbreviations[5]:
- AU Optronics - B
- BOE Hydis - HB
- Chi Mei / Innolux - N
- Chunghwa - CLAA
- HannStar - HSD
- IVO - M
- LG Display - LP
- Samsung - LTN
- Sharp - LQ or LM
- Toshiba - LTM or LTD
- Display Technology Evolution: Display technology is constantly evolving, and new variations and hybrid technologies are emerging. Be aware of these advancements and adjust your identification techniques accordingly.
- Professional Tools: For critical applications, consider using professional display analysis tools to measure parameters like color accuracy, contrast ratio, and response time.
Identifying an LCD display can be straightforward with the right knowledge and techniques. By understanding the fundamental principles of LCD technology, comparing it to other display types, and employing practical identification methods, you can confidently determine whether a display is indeed an LCD. Remember to check the specifications, examine the display's physical characteristics, and perform visual tests to arrive at an accurate conclusion. As display technology continues to advance, staying informed and adapting your identification methods will be crucial.
LCD (Liquid Crystal Display) and LED (Light Emitting Diode) displays differ in their backlighting technology[1]. LCDs use cold cathode fluorescent lamps (CCFLs), while LED displays use LEDs for backlighting[4]. LED backlighting offers advantages such as higher energy efficiency, brightness, contrast, and slimmer designs[1].
OLED (Organic Light Emitting Diode) displays have superior contrast ratios, wider viewing angles, and faster response times compared to LCDs[1]. To distinguish between them, observe the display in a dark room. If the blacks appear truly black with no light bleed, it's likely an OLED display. Also, check the display at extreme angles; OLEDs maintain consistent color and contrast, while LCDs may exhibit color shifting.
LCD screens can be grouped into three categories: TN (twisted nematic), IPS (in-plane switching), and VA (Vertical Alignment)[6]. Each type offers different characteristics in terms of viewing angles, color reproduction, and response time.
To find out the LCD screen model number you need to take the screen out of the laptop and check the back of the LCD screen[5]. On the back side of the screen you can see one or several labels with numbers[5].
TFT-LCD stands for Thin-Film Transistor Liquid Crystal Display. TFT is a type of transistor technology used to control each pixel in the LCD, providing better image quality and faster response times.
