Interfacing an LCD (Liquid Crystal Display) with an Arduino is a rewarding project that allows hobbyists and professionals to display data in real-time. This guide will provide a detailed walkthrough on how to connect, configure, and use a 16x2 LCD display with an Arduino board. Whether you're building a weather station, a digital clock, or an interactive menu system, mastering this skill is essential.
An LCD is an electronic display module that uses liquid crystal technology to display information. The 16x2 LCD is the most commonly used variant in Arduino projects due to its simplicity and versatility. It features:
- 16 columns and 2 rows, allowing up to 32 characters.
- A built-in Hitachi HD44780 controller, which simplifies interfacing with microcontrollers.
- Displays alphanumeric characters and symbols.
- Operates in 4-bit or 8-bit communication mode.
- Adjustable contrast via a potentiometer.
- Backlit for better visibility in low-light conditions.
LCDs are ideal for displaying data in projects where visual feedback is essential. Common applications include:
1. Sensor Data Display: Show temperature, humidity, or distance readings.
2. Interactive Systems: Create menus for user interaction.
3. Debugging Tool: Display program states or error messages during development.
To interface a 16x2 LCD with Arduino, gather the following components:
1. Arduino board (e.g., Uno, Mega, or Nano).
2. 16x2 LCD module.
3. Breadboard.
4. Jumper wires.
5. 10k ohm potentiometer (for contrast adjustment).
6. 220 ohm resistor (for backlight brightness control).
For advanced setups or simplified wiring, consider using an I2C adapter.
The standard 16-pin configuration of the LCD includes:
1. VSS: Ground connection.
2. VDD: Power supply (+5V).
3. VO: Contrast adjustment pin (connected to the potentiometer).
4. RS: Register Select pin (data/command selection).
5. RW: Read/Write pin (set to Ground for write-only mode).
6. E: Enable pin (activates data read/write).
7-14. D0-D7: Data pins for sending data/commands.
15-16. LED+ and LED-: Backlight pins.

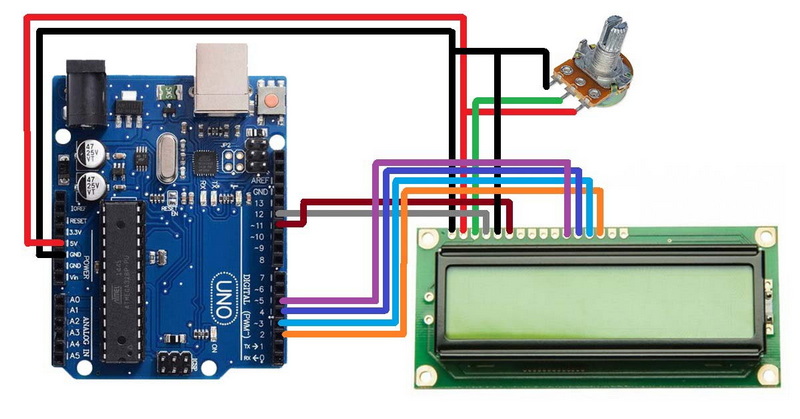

Below is a typical wiring configuration for using the LCD in 4-bit mode:
LCD Pin | Function | Arduino Pin |
---|---|---|
VSS | Ground | GND |
VDD | Power supply (+5V) | 5V |
VO | Contrast adjustment | Middle pin of potentiometer |
RS | Register Select | Digital Pin 12 |
RW | Read/Write | GND |
E | Enable | Digital Pin 11 |
D4-D7 | Data pins | Digital Pins 5-2 |
A (LED+) | Backlight power | +5V via resistor |
K (LED-) | Backlight ground | GND |

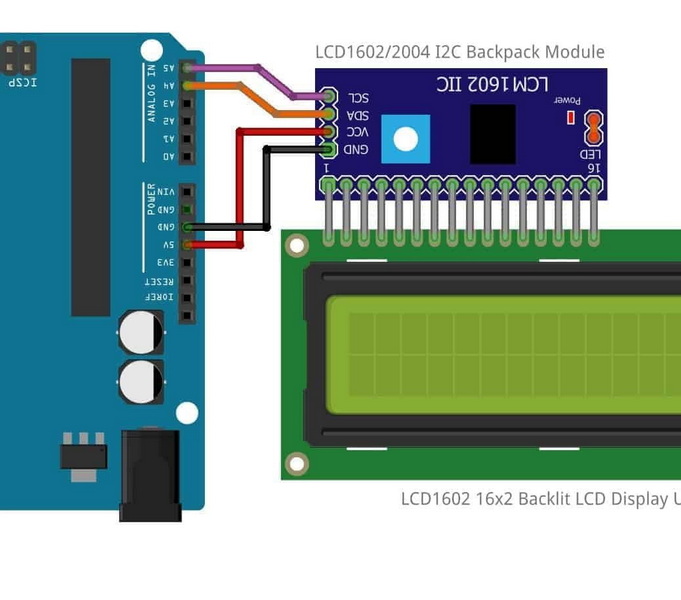

An I2C module reduces the number of connections to just four:
1. VCC - Connect to +5V.
2. GND - Connect to GND.
3. SDA - Connect to A4 (on Uno) or dedicated SDA pin.
4. SCL - Connect to A5 (on Uno) or dedicated SCL pin.
To control the LCD, you need the appropriate library:
1. For parallel communication, use the built-in `LiquidCrystal` library in Arduino IDE.
2. For I2C communication, install the `LiquidCrystal_I2C` library:
- Open Arduino IDE.
- Navigate to Sketch > Include Library > Manage Libraries.
- Search for "LiquidCrystal_I2C" and install it.
The `LiquidCrystal` library provides functions like `lcd.print()` and `lcd.setCursor()` to control the display easily.
1. `lcd.begin(16, 2)`: Initializes the display with 16 columns and 2 rows.
2. `lcd.print("Text")`: Displays text on the screen.
3. `lcd.setCursor(col, row)`: Sets the cursor position for subsequent text.
- Adjust screen contrast using a potentiometer connected to the VO pin.
- Control backlight brightness with a resistor (typically 220 ohms).
Display real-time temperature and humidity readings from sensors like DHT11 or DHT22.
Show time using RTC modules like DS3231 or DS1307.
Create interactive menus for user input via buttons or rotary encoders.
Display status messages such as "Access Granted" or "Access Denied."
Use it in vending machines, range finders, or gaming systems.
The `createChar()` function allows you to design custom characters by defining pixel patterns.
Use commands like `lcd.scrollDisplayLeft()` and `lcd.scrollDisplayRight()` to create scrolling effects.
Control multiple LCDs by assigning unique pins or using multiple I2C addresses.
1. Ensure proper wiring connections.
2. Verify that the correct library is installed and included in your code.
3. Adjust contrast if characters are not visible.
4. Check power supply voltage; ensure it meets the LCD's requirements.
Interfacing an LCD with Arduino is a fundamental skill that enhances your ability to display data in real-time projects effectively. By understanding the wiring, programming, and applications of an LCD module, you can create interactive systems that provide valuable feedback to users.
Whether you're building a weather station, digital clock, or custom menu system, mastering this technique opens up endless possibilities for your electronics projects.
The potentiometer adjusts the contrast of the LCD screen, ensuring text is clearly visible.
Yes, as long as your LCD supports parallel communication, you can attach an I2C adapter for easier wiring.
Common issues include incorrect wiring, missing libraries, insufficient power supply, or improper contrast settings.
You can create custom characters using the `createChar()` function in the LiquidCrystal library by defining pixel patterns.
Yes! Alternatives include OLED displays, TFT screens, and e-paper displays for more advanced projects requiring higher resolution or color output.
