Fixing an LCD display screen can be a challenging task, but with the right tools and techniques, it is achievable. LCD screens are widely used in various devices, including smartphones, laptops, and calculators. When an LCD screen malfunctions, it can be due to several reasons such as dead pixels, faulty connections, or physical damage. In this article, we will explore the methods to repair common issues with LCD screens, including step-by-step guides and troubleshooting tips.
1. Dead Pixels or Lines: These are small, non-responsive areas on the screen that appear as black dots or lines. Dead pixels can be annoying but usually do not affect the overall functionality of the device.
2. Faded or Burned-out Displays: This occurs when the screen's brightness decreases over time or when certain areas become permanently dark. Faded displays might be due to aging, while burned-out areas often result from prolonged exposure to static images.
3. Faulty Connections: Loose or damaged connections between the screen and the device's circuit board can cause display issues. This is common in devices that have been dropped or subjected to physical stress.
For small devices like calculators or remote controls, repairing the LCD screen involves a few simple steps:
1. Remove Batteries: Start by taking out the batteries to prevent any accidental power-ons during the repair process. This ensures safety and prevents potential damage to the circuitry.
2. Unscrew the Back Cover: Use a small screwdriver to remove the screws holding the back cover in place. Carefully pry the cover open, taking care not to damage any internal components.

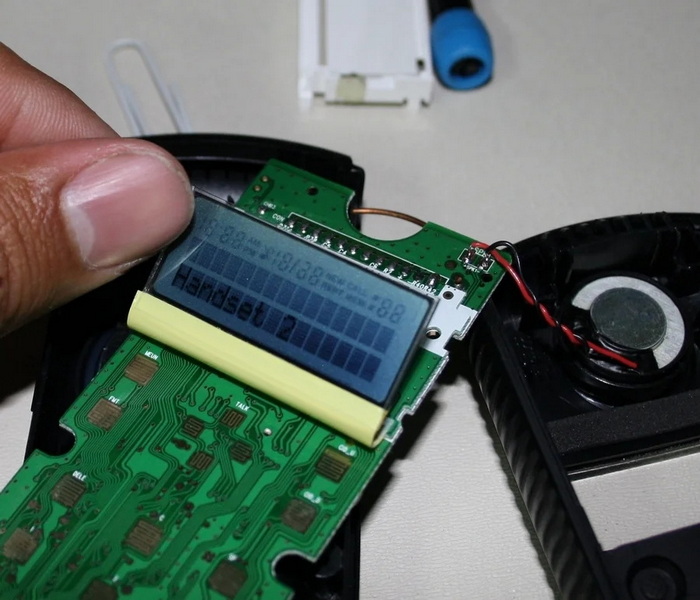

3. Remove the PCB: Gently lift the printed circuit board (PCB) to access the LCD screen. This is a delicate operation, so be cautious not to damage any components or wires.
4. Clean or Replace the Reflective Backing: If the reflective backing is deteriorated, you can replace it with a piece of white paper or aluminum foil. Secure it with tape to ensure it stays in place.
5. Reassemble the Device: Once the repairs are complete, carefully put everything back together and replace the batteries.
For larger devices like laptops, the process is more complex and involves replacing the entire screen if damaged.
1. Identify the Screen Type: Check the device's documentation or manufacturer's website to determine the correct replacement screen model. This is crucial to ensure compatibility and proper fit.
2. Disassemble the Device: Remove the outer casing to access the LCD screen. This may involve removing screws and carefully prying open panels. Be cautious of any cables or wires that may be connected to the screen.
3. Disconnect the Screen Cable: Gently pull out the cable connecting the LCD screen to the motherboard. Be careful not to damage the connector or the cable itself.
4. Remove the Old Screen: Take out the damaged screen and prepare the new one for installation. Ensure the new screen is properly aligned with the casing.
5. Install the New Screen: Align the new screen with the casing and secure it with screws. Reconnect the cable, ensuring it is properly seated and secure.
6. Reassemble the Device: Put everything back together in reverse order of disassembly. Make sure all screws are tightened securely and all cables are properly connected.
- Cleaning Contacts: For issues related to faulty connections, clean the contacts with rubbing alcohol to ensure good conductivity. This can often resolve minor connectivity problems.
- Applying Pressure: Use electrical tape to apply additional pressure on the conductive rubber strips to improve contact with the circuit board. This method can help stabilize connections.
- Checking for Physical Damage: Inspect the screen for any physical damage such as cracks or scratches. If the damage is extensive, replacing the screen might be the only viable option.
For more complex issues, advanced techniques may be required:

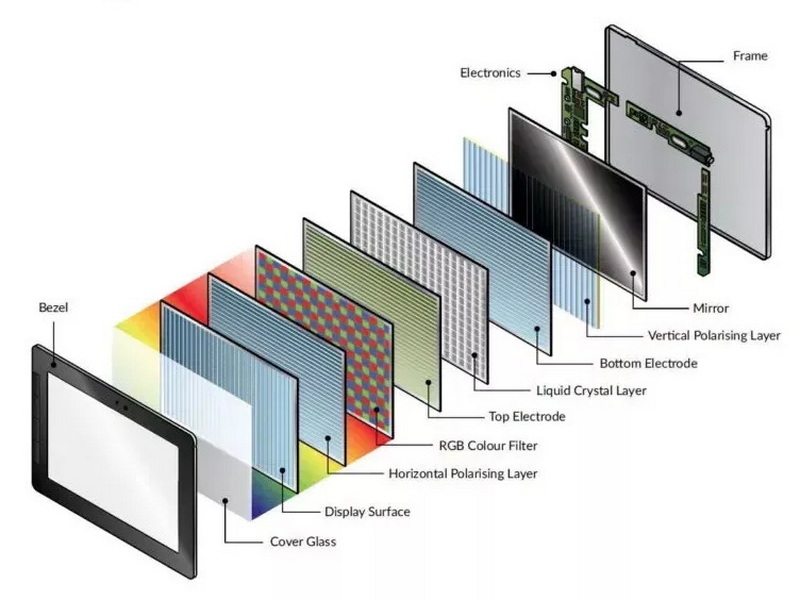

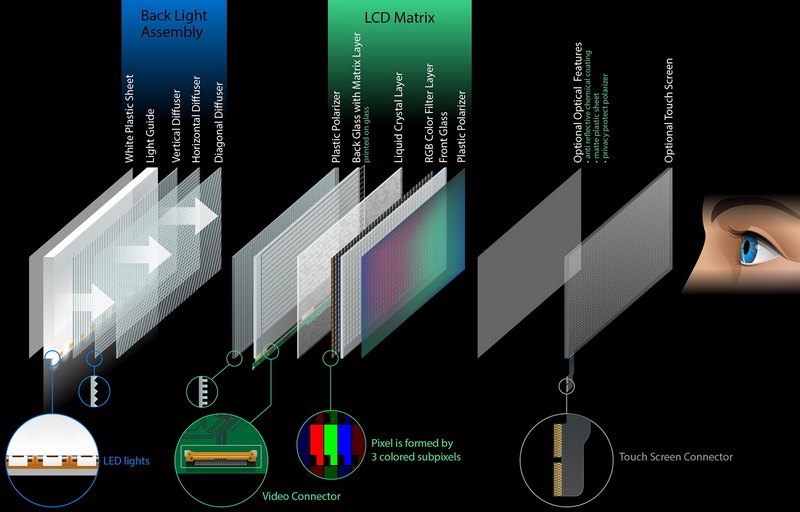

1. Replacing Polarizer Films: If the screen's polarizer films are damaged, they can be replaced. This involves carefully removing the old films and applying new ones, ensuring proper alignment.
2. Using a UV Light for Dead Pixels: In some cases, using a UV light can temporarily fix dead pixels by heating them up. However, this method is not always effective and may not provide a permanent solution.
3. Refurbishing the LCD Panel: For more severe damage, refurbishing the LCD panel itself might be necessary. This involves replacing damaged components within the panel, which requires specialized tools and expertise.
To extend the lifespan of your LCD screens and prevent common issues:
1. Avoid Physical Stress: Handle devices with care to prevent drops or impacts that can cause physical damage to the screen.
2. Use Screen Protectors: Applying screen protectors can help shield the screen from scratches and minor impacts.
3. Avoid Extreme Temperatures: Keep devices away from extreme temperatures, as these can affect the screen's performance and longevity.
4. Update Software Regularly: Ensure that your device's software is up-to-date, as updates often include fixes for display-related issues.
5. Clean the Screen Regularly: Use a soft cloth to clean the screen regularly, avoiding harsh chemicals that might damage the display.
Repairing an LCD display screen requires patience, the right tools, and careful handling of components. Whether it's a small device like a calculator or a larger one like a laptop, understanding the common issues and having a step-by-step guide can make the process much easier. Always ensure that you follow safety precautions and use appropriate techniques to avoid further damage.

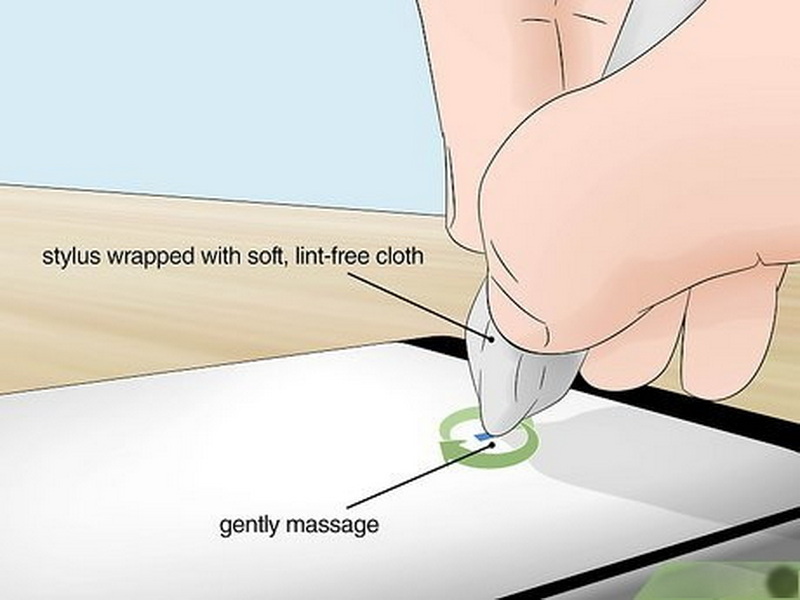

- Dead pixels can be frustrating but often do not require immediate repair. If the issue persists, using a pixel fixer tool or replacing the screen might be necessary.
- If the screen appears dim, check the brightness settings first. If the issue persists, cleaning the screen or replacing the backlight might be required.
- A cracked screen usually requires replacement. However, temporary fixes like applying a screen protector or using a screen repair kit can help until a full replacement is possible.
- Preventing screen damage involves handling devices with care, using protective cases, and avoiding extreme temperatures. Regular cleaning can also help maintain screen quality.
- When choosing a replacement screen, ensure it matches the device's specifications exactly. Check for compatibility with the device's model and size to ensure a proper fit.
- Small screwdrivers, white paper or aluminum foil, cutter or scissors, and tape are typically required.
- Avoid applying excessive heat directly to the LCD screen, and handle components with care to prevent physical damage.
- In most cases, a burned-out LCD screen cannot be repaired and may need to be replaced. However, cleaning contacts or replacing polarizer films might help in some instances.
- Clean the contacts with rubbing alcohol and apply gentle pressure using electrical tape if necessary.
- Always ground yourself to prevent static electricity damage, and handle components by the edges to avoid touching sensitive areas.
