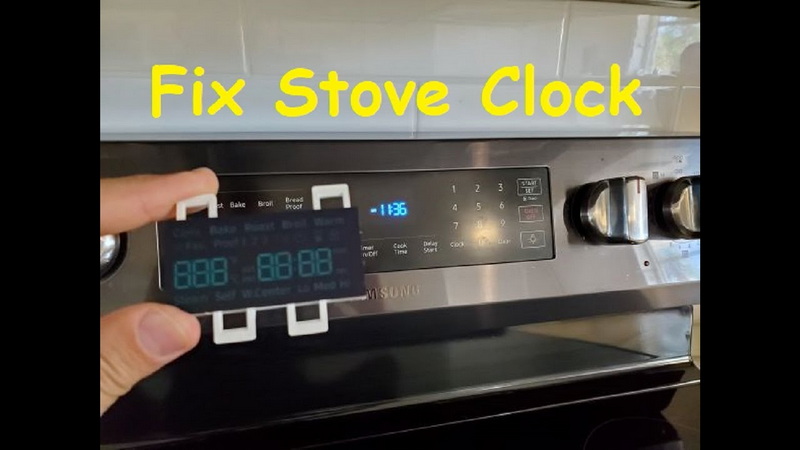

Fixing a dim LCD display on a stove can be a challenging task, but with the right approach, it's achievable. This article will guide you through the process, covering common issues, troubleshooting steps, and potential fixes. We'll also explore some related technologies and methods that might help in addressing display brightness issues.
LCD displays on stoves are essential for controlling cooking settings and monitoring the cooking process. However, over time, these displays can become dim, making it difficult to read the information. This dimming can be due to various factors, including faulty capacitors, loose connections, or issues with the display itself.
1. Faulty Capacitors: Capacitors on the display board can dry out over time, especially in warm environments, leading to dimming issues. This is because capacitors are sensitive to temperature and humidity, which can affect their performance.
2. Loose Connections: Sometimes, the connections between the display and the control board can become loose, causing the display to dim. This can happen due to vibrations from the stove or simply from wear and tear over time.
3. Display Wear and Tear: Over time, the display itself can degrade, leading to reduced brightness. This is a common issue with LCDs that have been in use for several years.
Ensure that the stove is receiving the correct power supply. Sometimes, a dim display can be due to insufficient power. Check your circuit breaker or fuse box to ensure that the stove is getting the required voltage.
Turn off the power to the stove and inspect the connections between the display and the control board. Make sure all connections are secure. Use a multimeter to check for any signs of damage or corrosion.
If you suspect faulty capacitors, consider replacing them. Common capacitors used in display boards include those with values like 0.47uF, 4.7uF, and 10uF. When replacing capacitors, ensure they are of the same type and rating as the originals.
In some cases, like with Wolf ovens, a loose black harness connected to the control board can cause dimming. Simply unplugging and replugging it might resolve the issue. This is a quick fix that can save you from more complex repairs.
For LED screens, temperature can affect brightness. A method for rapid thermal screen correction involves adjusting the correction coefficients based on the screen's temperature to maintain uniform brightness. This technology is particularly useful in environments where temperature fluctuations are common.
Maintaining color uniformity in LCDs is crucial. Technologies exist to recalibrate LCDs for better color consistency, which can indirectly affect brightness perception. By ensuring that colors are displayed uniformly, the overall brightness of the display can appear more consistent.
Calibrating the display can also improve brightness and clarity. This involves adjusting settings such as contrast and backlight to optimize the display's performance. Calibration tools are available for various types of displays, including those used in stoves.
1. Turn Off Power: Ensure the stove is completely powered off at the circuit breaker.
2. Remove Panels: Depending on your stove model, you may need to remove panels to access the display board. Use a screwdriver to remove screws and gently pull off the panels.
3. Inspect and Replace Capacitors: Check for bulging or damaged capacitors and replace them if necessary. Use a soldering iron to remove old capacitors and install new ones.
4. Reconnect Harnesses: If applicable, ensure all harnesses are securely connected. Check for any signs of wear or damage on the harnesses.
For more complex issues, you may need to use specialized tools like a multimeter to diagnose problems. This can help identify issues with the circuitry or components on the display board.
- Problem: Capacitors on the display board can dry out over time.
- Solution: Replace the capacitors with new ones of the same specifications. Ensure they are compatible with the display board's requirements.
- Problem: Connections between the display and control board can become loose.
- Solution: Inspect and secure all connections. Use electrical tape or wire nuts to keep connections in place.
- Problem: The display itself can degrade over time.
- Solution: Consider replacing the display if other fixes don't work. This might require purchasing a new display unit compatible with your stove model.
- Problem: Insufficient power can cause dimming.
- Solution: Check the power supply and ensure it meets the stove's requirements. Consult your stove's manual for specific power needs.
- Problem: Environmental factors like temperature can affect display brightness.
- Solution: Use methods like thermal screen correction to adjust for temperature variations. This can help maintain consistent brightness in varying conditions.
When working with electrical components, safety is paramount. Always ensure that the stove is powered off before starting any repairs. Wear protective gear like gloves and safety glasses to prevent injury.
Regular maintenance can help prevent dimming issues. Check the display and connections periodically to ensure everything is secure and functioning properly. Cleaning dust from the display and surrounding areas can also improve performance.
Replacing capacitors or securing connections can be cost-effective solutions compared to replacing the entire display. However, if the display is severely damaged, replacement might be the only option.
Fixing a dim LCD display on a stove requires patience and basic troubleshooting skills. By following the steps outlined above and considering related technologies, you can often resolve the issue without needing professional assistance. Remember to always ensure safety when working with electrical components.
A: Common causes include faulty capacitors, loose connections, and display wear and tear.
A: Turn off the power, locate the capacitors, and replace them with new ones of the same specifications.
A: Yes, sometimes simply disconnecting and reconnecting the display board can resolve the issue.
A: If replacing capacitors doesn't work, consider checking for loose connections or replacing the display itself.
A: Always turn off the power to the stove at the circuit breaker before starting any repairs.
