Fixing an LCD display on a microwave can be a challenging task, but with the right guidance, you can troubleshoot and potentially repair it yourself. This article will walk you through the steps to diagnose and fix common issues with microwave LCD displays.
Microwave LCD displays are crucial for operating the appliance, providing essential information like cooking time, power levels, and error messages. However, these displays can sometimes malfunction due to various reasons such as faulty connections, damaged control boards, or environmental factors.

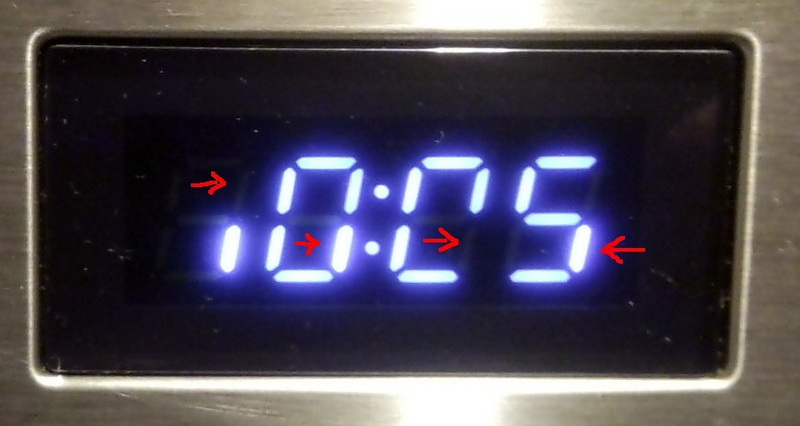

1. Partial Display Failure: Only some segments of the display are visible or functioning.
2. Complete Display Failure: The display is completely blank.
3. Intermittent Display Issues: The display flickers or turns on and off randomly.
These issues can be frustrating, especially if you rely on the microwave for daily cooking tasks. Understanding the causes and troubleshooting steps can help you resolve these problems efficiently.
Before attempting any repairs, ensure your safety by unplugging the microwave from the power source. Here are some steps to troubleshoot common issues:
1. Check Power Supply: Ensure the microwave is properly plugged into a working outlet and there are no tripped circuit breakers or blown fuses. This is a simple yet often overlooked step that can resolve many issues.
2. Restart the Microwave: Sometimes, simply unplugging the microwave for a few minutes and then plugging it back in can reset the control panel and resolve minor issues. This is similar to restarting a computer when it freezes.
3. Inspect the Display: Carefully examine the display for any physical damage, such as cracks or moisture inside the screen. If you notice damage, the display panel might need to be replaced. Moisture can be particularly problematic, as it can cause short circuits.
4. Test for a Faulty Control Board: The display panel is typically connected to a control board. If the display isn't working, it could be due to a faulty control board. Use a multimeter to test the control board for continuity or visible damage. This requires some basic knowledge of electronics.
5. Check for Loose Connections: Inspect the wiring and connectors that link the display panel to the control board. Loose or disconnected wires can cause display issues. Carefully reconnect any loose wires and test the microwave.
If your troubleshooting reveals that the issue is with the LCD display itself, you may need to repair or replace it. Here are some steps for repairing an LCD display:
1. Open the Microwave Safely: Ensure the microwave is unplugged and wait for at least 24 hours before opening it to allow any stored charge in the capacitor to dissipate. Wear protective gloves and safety glasses. This step is crucial for safety.
2. Locate the Display: The LCD is usually mounted on the back of the controller PCB and connected via a ribbon cable. Be careful not to damage any components during disassembly.
3. Fix Loose Connections: If the ribbon cable is loose, reconnect it securely. If the connection is faulty, you may need to apply conductive glue or solder. Ensure the connection is secure to prevent future issues.
4. Replace the Display or Control Board: If the display is damaged beyond repair or if the control board is faulty, you may need to replace these components. Ensure you purchase the correct replacement parts for your microwave model. Using incorrect parts can lead to further malfunctions.
5. Reassemble the Microwave: Once the repairs are complete, carefully reassemble the microwave. Ensure all screws are securely tightened and all panels are properly aligned.
Working with electrical appliances like microwaves can be dangerous due to high voltages. Always ensure the microwave is unplugged before attempting any repairs, and avoid touching components like the magnetron, transformer, or capacitor. These components can store high voltages even when the microwave is unplugged.
- Use Protective Gear: Always wear protective gloves and safety glasses when working with electrical components.
- Avoid Overheating: Ensure the microwave is in a well-ventilated area to prevent overheating during repairs.
- Consult a Professional: If you are unsure about any part of the repair process, consider consulting a professional. They can provide guidance and ensure the repairs are done safely and correctly.
During the repair process, there are several common mistakes to avoid:
1. Incorrect Replacement Parts: Using parts that are not compatible with your microwave model can lead to further malfunctions or safety hazards.
2. Improper Disassembly: Failing to properly disconnect components or not waiting long enough for the capacitor to discharge can lead to electrical shocks or damage to the microwave.
3. Insufficient Safety Precautions: Not wearing protective gear or ignoring safety guidelines can result in injury.
To prevent future issues with your microwave's LCD display, consider the following:
1. Regular Cleaning: Keep the microwave clean and free of moisture to prevent damage to electrical components.
2. Avoid Physical Stress: Handle the microwave with care to avoid physical damage to the display or other components.
3. Monitor for Signs of Wear: Regularly inspect the display and connections for signs of wear or damage.
For more complex issues, you may need to use advanced troubleshooting techniques:
1. Using a Multimeter: A multimeter can help you identify faulty connections or components by measuring voltage, current, and resistance.
2. Checking Capacitors: Capacitors can store high voltages even when the microwave is unplugged. Use caution when handling them.
3. Inspecting the Magnetron: The magnetron is a critical component that can affect the microwave's operation. Ensure it is functioning properly.
Having the right tools can make troubleshooting easier and safer. Some essential tools include:
1. Multimeter: For measuring electrical properties.
2. Soldering Iron: For repairing or replacing connections.
3. Torx Screwdrivers: For disassembling the microwave.

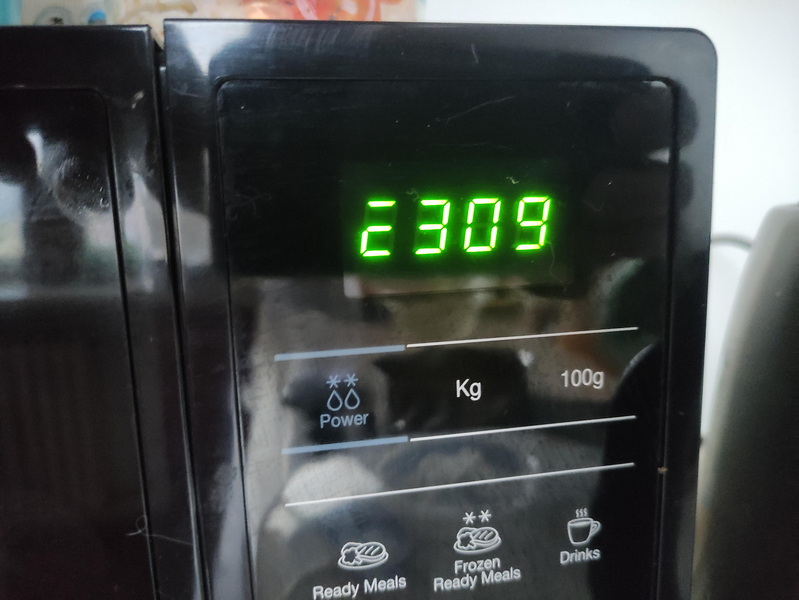

Many modern microwaves display error codes when there is a problem. These codes can help you identify the issue:
1. Error Code for Display Failure: If the display shows an error code related to the display, it might indicate a problem with the control board or display panel.
2. Error Code for Sensor Issues: Some error codes may indicate issues with sensors that affect cooking performance.
Understanding what each error code means can help you troubleshoot more efficiently. Refer to your microwave's user manual or manufacturer's website for specific error code explanations.
Fixing an LCD display on a microwave requires patience and caution. By following the troubleshooting steps and safety guidelines outlined in this article, you can diagnose and potentially repair common issues with your microwave's LCD display. If the problem persists, it may be best to consult a professional for assistance.
- Ensure the microwave is unplugged and wait at least 24 hours before opening it. Wear protective gloves and safety glasses to avoid injury from high voltage components.
- Common causes include faulty connections, damaged control boards, and environmental factors like moisture or physical damage.
- Yes, if the display is partially working, it might be due to a faulty connection or a minor issue with the display board. Check for loose connections and ensure all segments are properly connected.
- To replace a control board, first ensure the microwave is unplugged. Remove the front panel, locate the control board, and disconnect all wires. Use a soldering iron or hot air gun to desolder the old board and solder the new one in place.
- While it is possible to repair a microwave yourself, it is generally recommended to seek professional help due to the high voltages involved, which can be dangerous if not handled properly.
