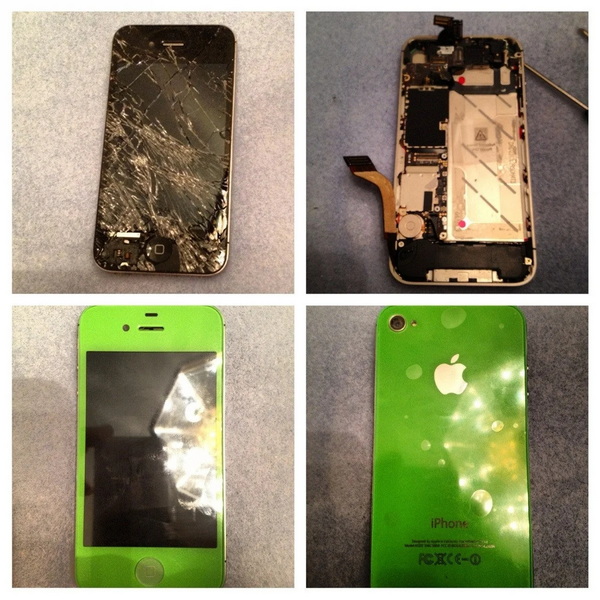

The iPhone 4S, released in 2011, was a significant upgrade to Apple's iPhone lineup, featuring improved performance and a new Siri assistant. However, like any electronic device, it can suffer from screen damage, which may require repair or replacement. This guide will walk you through the process of fixing the LCD display on an iPhone 4S, including step-by-step instructions and tips for a successful repair.
Repairing the LCD display on an iPhone 4S involves several steps, from disassembling the device to installing a new screen. It requires patience, the right tools, and attention to detail to ensure everything goes smoothly.
Before starting, gather the necessary tools:
- Pentalobe screwdriver (for iPhone 4S models)
- Phillips screwdriver
- Nylon spudger or similar prying tool
- Tweezers
- Anti-static wrist strap (optional)
- New LCD + Digitizer Assembly
1. Power Down and Remove SIM Card
- Start by turning off your iPhone 4S.
- Remove the SIM card tray using a SIM ejector tool.
2. Remove Bottom Screws
- Use a Pentalobe screwdriver to remove the two screws at the bottom of the iPhone.
- Gently slide the back cover upwards and remove it.
3. Disconnect Battery Connector
- Locate the battery connector and remove the small screw holding it in place.
- Use a spudger to carefully pry the connector off the logic board.
4. Remove Battery
- Gently lift the battery out of the iPhone.
5. Remove Logic Board and Other Components
- Disconnect and remove various components like the Wi-Fi cover, rear camera, and vibration motor.
- Use a spudger to disconnect the connectors for the display.
6. Remove Display Assembly
- Remove the screws holding the display assembly in place.
- Carefully pry the display away from the frame, ensuring not to damage the cables.
7. Install New Display
- Feed the new display cables through the frame.
- Secure the display with screws and reconnect all components.
8. Reassemble iPhone
- Reverse the steps to reassemble your iPhone.
- Stay Organized: Use a screw organizer to keep track of screws.
- Use Proper Tools: Avoid damaging components with improper tools.
- Apply Heat: Use a hair dryer to loosen adhesive if necessary.
During the repair process, you might encounter several common issues:
- Damaged Cables: Be careful not to damage the delicate cables when disconnecting or reconnecting them.
- Misaligned Screws: Ensure all screws are properly aligned to avoid stripping the screw heads.
- Screen Not Responding: If the new screen doesn't respond, check the connections and ensure they are secure.
When handling delicate components like the logic board or display cables, use tweezers and a spudger to avoid direct contact and potential damage. This will help prevent static electricity damage and ensure that all components are properly secured during reassembly.
Use an anti-static wrist strap to prevent static electricity from damaging your iPhone's components. Static electricity can easily damage sensitive electronics, so taking this precaution is crucial.
Reassemble your iPhone in reverse order of disassembly, ensuring all screws are securely tightened and components are properly connected. Double-check that all cables are securely connected to their respective ports.
If you encounter issues during or after the repair, such as a non-responsive screen or poor display quality, check the connections and ensure they are secure. Sometimes, simply reseating the cables can resolve these issues.

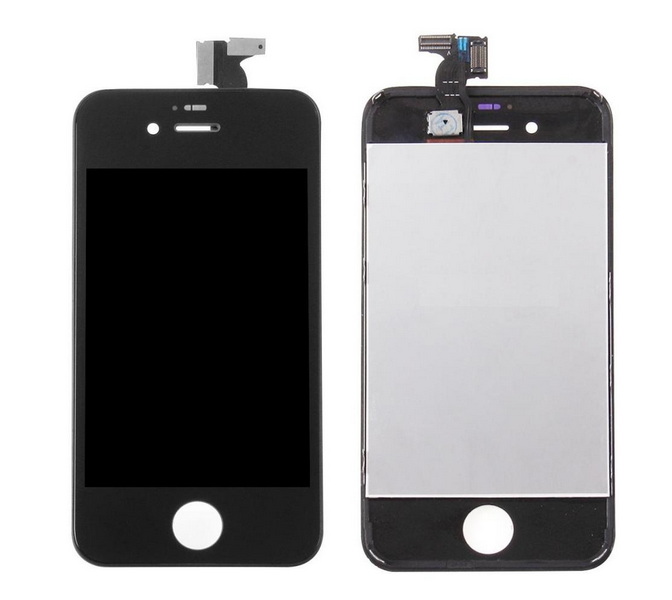

When purchasing a new LCD + Digitizer Assembly, ensure it is compatible with your iPhone 4S model. Check reviews and purchase from reputable sellers to avoid receiving low-quality parts.
If the new screen doesn't respond after installation, check that all connections are secure and properly aligned. Ensure that the display cables are not damaged and are correctly seated in their connectors.

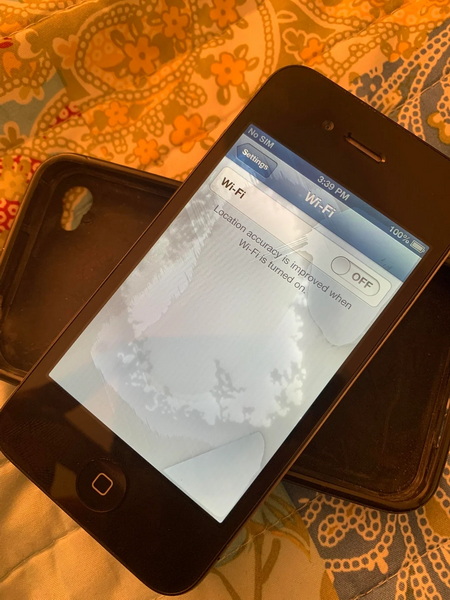

If the display quality is poor or shows signs of damage, check for any debris or dust that might be affecting the screen. Clean the screen gently with a soft cloth and ensure it is properly aligned with the frame.
After repair, if you notice battery life issues, ensure that the battery connector is securely connected to the logic board. Also, check for any signs of physical damage to the battery itself.
Fixing the LCD display on an iPhone 4S requires attention to detail and the right tools. By following these steps and staying organized, you can successfully repair your device. Remember to handle components with care to avoid further damage.
- You will need a Pentalobe screwdriver, Phillips screwdriver, nylon spudger, tweezers, and a new LCD + Digitizer Assembly.
- Use a spudger to gently disconnect cables, and avoid pulling on them directly.
- Check that all connections are secure and properly aligned.
- Yes, a hair dryer can be used to loosen adhesive, but be cautious not to apply too much heat.
- Use a screw organizer to keep screws organized and avoid mixing them up.
