The Samsung Galaxy Note 2 is a powerful device known for its large display and stylus functionality. However, like any other smartphone, it can suffer from screen issues, particularly with the LCD display. This article will guide you through the process of fixing the LCD display of your Samsung Galaxy Note 2, including troubleshooting common problems and performing a full display assembly replacement.
Before diving into the repair process, it's essential to identify common issues that might affect your Note 2's LCD display:
- Cracked Screen: A cracked screen can be due to physical damage, which may require replacing the entire display assembly.
- Unresponsive Touchscreen: This could be due to a damaged digitizer or improper installation of the screen components.
- Display Not Turning On: This might be related to a faulty LCD panel or issues with the display connectors.
First, inspect your device for any physical damage. If the screen is cracked, you might need to replace the entire display assembly. Look for any signs of impact or stress on the screen's surface.
Ensure that all connectors are securely attached. Sometimes, a loose connection can cause display issues. Check the display cable and any other related connectors.
If available, use diagnostic tools to check for any software-related problems that might be affecting the display. This can help determine if the issue is hardware or software-related.
Replacing the display assembly involves several steps. It's crucial to follow these steps carefully to avoid damaging other components.
- Safe Pry Opening Tool: This is used to safely pry open the device without causing damage to the housing.
- Small Phillips Screwdriver (#00): Necessary for removing screws from the back housing.
- Small Flathead Screwdriver: Useful for prying open small components.
- Spudger Tool: Helps in disconnecting cables and prying components apart.
- Adhesive Strips: Needed for securing the new display assembly in place.
- Heat Gun/Blow Dryer: Used to loosen the adhesive holding the screen assembly.

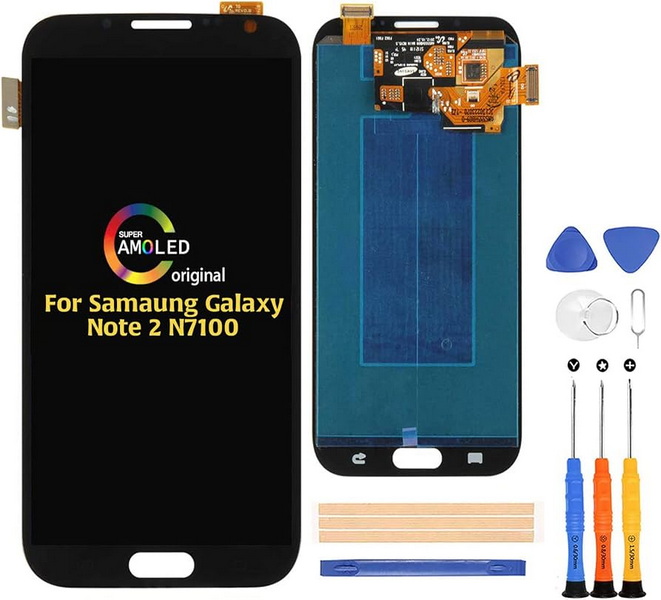

- New Display Assembly (LCD + Touch Screen): This includes the glass, digitizer, and LCD panel.
1. Power Off Your Device: Start by powering off your Samsung Galaxy Note 2. This is crucial to prevent any accidental power-ons during the repair process.

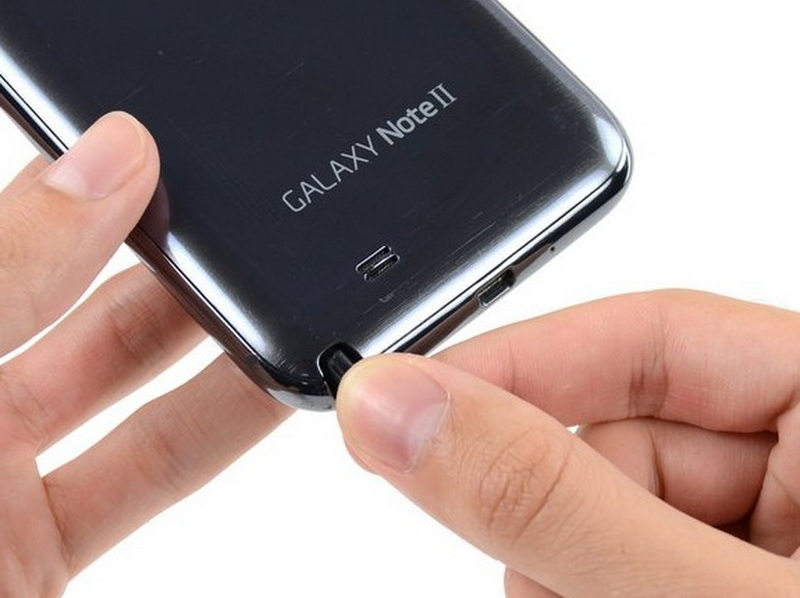

2. Remove the Stylus and Back Cover: Take out the stylus and remove the back battery cover. Then, remove the battery, SIM card, and memory card. This will give you access to the internal components.
3. Remove Screws: Use a small Phillips screwdriver to unscrew the eleven screws from the back housing. These screws hold the back housing in place.

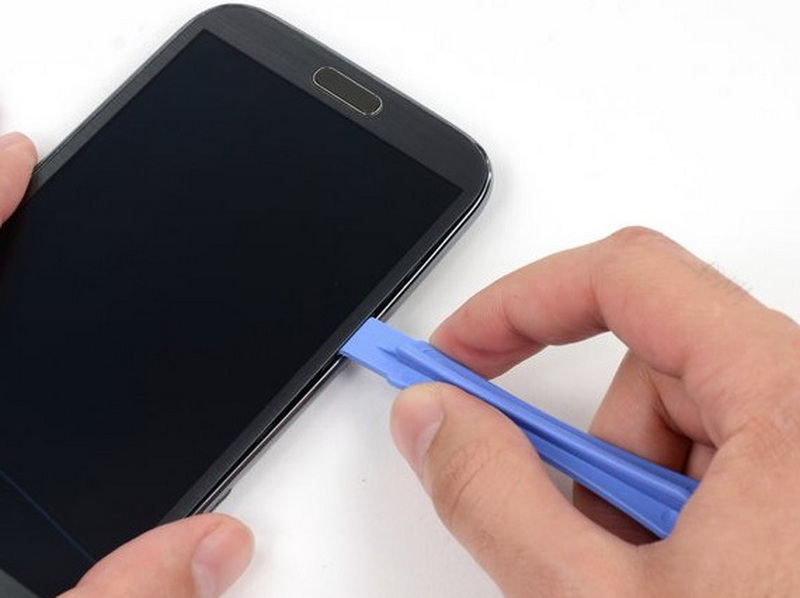

4. Pry Off the Back Housing: Use a safe pry tool to remove the back housing by wedging it into the seam between the housing and the chrome bezel. Be careful not to apply too much force, which could damage the device.
5. Disconnect Cables: Disconnect the vibrator/power button assembly cable, antenna cable, and display cable. Use a spudger tool to gently pry these cables away from their connectors.
6. Remove the Front Housing: Use a heat gun or blow dryer to loosen the adhesive holding the screen assembly. Then, pry the screen away from the front housing. This step requires patience and care to avoid damaging the LCD or digitizer.

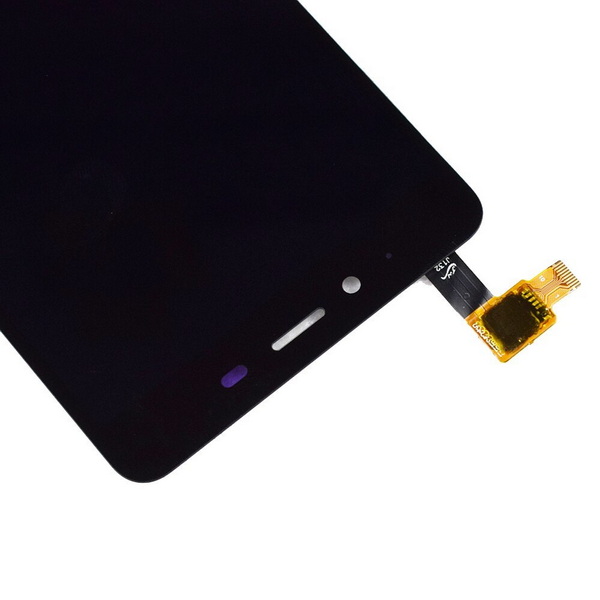

7. Replace the Display Assembly: Install the new display assembly, ensuring all connectors are securely attached. Make sure the adhesive strips are properly aligned to secure the screen in place.
8. Reassemble Your Device: Reverse the steps to reassemble your device. Ensure all screws are tightened securely and all cables are properly connected.
- Use Original Parts: Ensure you use original or high-quality replacement parts to avoid compatibility issues. Non-original parts might not fit perfectly or function as expected.
- Follow Repair Guides: Use detailed repair guides or tutorials for specific steps, as different models may have variations. This will help you avoid common pitfalls during the repair process.
- Handle Components with Care: Be gentle when handling internal components to avoid damage. Static electricity can also harm sensitive electronics, so consider grounding yourself before starting the repair.
For more complex issues, advanced troubleshooting techniques may be required. This includes checking for software glitches that could affect the display. Sometimes, a factory reset or updating the software can resolve display-related problems.
When selecting replacement parts, ensure they are compatible with your device model. Using parts that are not designed for your specific model can lead to poor performance or failure to function altogether.
Always follow safety precautions when performing repairs. This includes grounding yourself to prevent static electricity damage and using protective gear like gloves and safety glasses.
Fixing the LCD display of your Samsung Galaxy Note 2 requires careful attention to detail and the right tools. Whether you're dealing with a cracked screen or an unresponsive touchscreen, following a step-by-step guide can help you achieve a successful repair. Remember to use high-quality replacement parts and consider seeking professional help if you're unsure about any part of the process.
To fix a cracked screen, you typically need to replace the entire display assembly, which includes the glass, digitizer, and LCD. This is because these components are often integrated into a single unit for the Samsung Galaxy Note series. Replacing just the glass can be challenging and may not be cost-effective.
If the touchscreen becomes unresponsive after replacing the glass, it might be due to improper installation or damage to the digitizer. Ensure that all connectors are securely attached and consider replacing the entire display assembly if necessary. Sometimes, the digitizer may be damaged during the repair process.
To prevent damage during repair, use the right tools, follow detailed guides, and handle components with care. Avoid applying excessive heat or force, which can damage the LCD or other components. Grounding yourself to prevent static electricity is also important.
While it's technically possible to replace just the glass, it's often risky and may not be recommended, especially if you're not experienced with such repairs. The risk of damaging the digitizer or LCD is high, and it might be more cost-effective to replace the entire assembly.
Signs of a faulty LCD panel include a display that won't turn on, distorted images, or lines across the screen. In such cases, replacing the LCD panel is usually necessary. If the issue persists after replacing the LCD, it might be related to other components like the motherboard.
The cost can vary depending on the source and quality of the replacement parts, but it typically ranges from $150 to $300.
While possible, it's often not recommended due to the risk of damaging other components.
You will need a safe pry tool, small Phillips screwdriver, small flathead screwdriver, spudger tool, adhesive strips, and a heat gun or blow dryer.
The process can take about an hour to two hours, depending on your experience and the complexity of the repair.
While possible, using non-original parts can lead to compatibility issues and is generally not recommended.
