Driving an LCD display involves understanding its components, connecting it to a microcontroller like Arduino, and using appropriate software libraries to control it. This guide will walk you through the process step by step, including troubleshooting common issues and exploring different types of LCD displays.
LCD displays are widely used in various applications, from simple character displays to high-resolution TFT screens. They are popular due to their low power consumption and versatility. For beginners, understanding how to drive an LCD display is essential for projects involving Arduino or other microcontrollers.
- Character LCDs: These are the simplest form of LCDs, typically displaying text in a fixed font. They are commonly used in Arduino projects due to their ease of use and low cost. Character LCDs usually come in sizes like 16x2 or 20x4, meaning they can display 16 characters per line for two lines or 20 characters per line for four lines.
- TFT LCDs: These displays can show images and videos, offering higher resolution and color capabilities. They are more complex to drive but provide a richer user interface. TFT LCDs are often used in more advanced projects, such as graphical user interfaces or interactive displays.

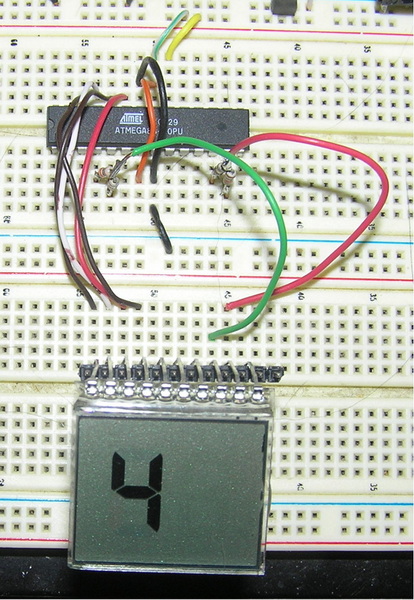

To drive an LCD display using Arduino, you need to understand the pinout and how to connect it to your Arduino board.
The typical pinout for a character LCD includes:
- VCC and GND: Power supply pins.
- Vo: Contrast adjustment pin.
- RS: Register select pin (commands or data).
- RW: Read/write pin (usually set to write mode).
- E: Enable pin.
- D0-D7: Data pins (used in 4-bit or 8-bit mode).
- Backlight Pins: For LED backlight control.

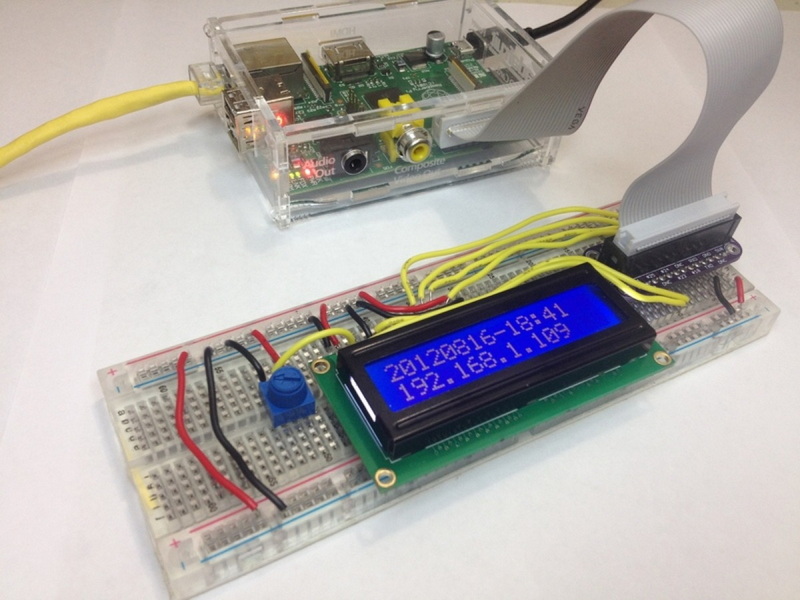

For a basic setup, you'll need:
- Arduino Uno
- Breadboard
- LCD display (e.g., 16x2)
- Potentiometer (for contrast adjustment)
- Jumper wires

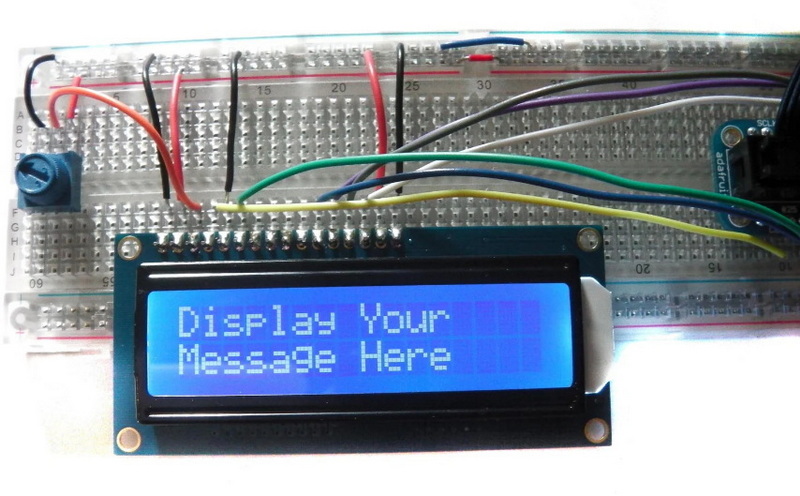

Step-by-Step Connection Guide:
1. Connect VCC to Arduino's 5V and GND to Arduino's GND.
2. Attach the potentiometer to Vo for contrast adjustment.
3. Connect RS, RW, and E to digital pins on Arduino (e.g., RS to pin 12, RW to GND, E to pin 11).
4. Use D4-D7 for 4-bit mode (connect to pins 5-8 on Arduino).
The LiquidCrystal library simplifies controlling the LCD. You can use functions like `lcd.begin()`, `lcd.print()`, and `lcd.setCursor()` to display text. Here's a basic example of how to use it:
- Initialize the LCD with `lcd.begin(16, 2);` for a 16x2 display.
- Set the cursor position with `lcd.setCursor(0, 0);`.
- Print text with `lcd.print("Hello, World!");`.
- No Display: Check power connections and ensure the backlight is enabled.
- Intermittent Power Loss: Verify the power supply and check for loose connections.
- Incorrect Text Display: Ensure correct pin connections and library usage.
- Backlight Not Working: Check backlight pin connections and power supply.
TFT LCDs offer more complex functionalities but require additional hardware and software support.
- Hardware Requirements: TFT LCD module, microcontroller (e.g., Arduino Due), and appropriate libraries.
- Software Setup: Use libraries like Adafruit's TFT library to handle graphics and touch input. These libraries provide functions for drawing shapes, displaying images, and handling touch events.
Creating a simple graphical interface with a TFT LCD involves:
- Initializing the display with the appropriate library.
- Drawing shapes or text on the screen.
- Handling touch input for user interaction.
Solution: Check power connections, ensure the backlight is enabled, and verify that the display is properly connected to the microcontroller.
Solution: Verify pin connections, especially RS and RW pins, and ensure correct usage of the LiquidCrystal library functions.
Solution: Check backlight pin connections and ensure power supply to these pins.
Solution: Adjust the potentiometer connected to the Vo pin to optimize display visibility.
Solution: Ensure stable power supply and check for loose connections.
Beyond basic text displays, you can create more complex projects using LCDs, such as:
- Interactive Menus: Use buttons or touchscreens to navigate through menus.
- Data Logging Displays: Display sensor data or other real-time information.
- Gaming Consoles: Create simple games using TFT LCDs and microcontrollers.
Driving an LCD display involves understanding its components, connecting it correctly to a microcontroller, and using appropriate software libraries. Whether you're working with simple character displays or advanced TFT LCDs, mastering these basics will help you create engaging and interactive projects.
- 4-bit mode uses fewer pins (7) and is sufficient for most text displays, while 8-bit mode uses more pins (11) and offers faster data transfer.
- Use a potentiometer connected to the Vo pin to adjust the contrast.
- Most microcontrollers can drive LCDs, but specific libraries and hardware configurations may vary.
- Flickering can be due to unstable power supply or loose connections.
- For monitors, use the OSD menu to reset settings; for character LCDs, simply restart the microcontroller.
