Displaying voltage on an LCD using an 8051 microcontroller is a common task in embedded systems, allowing users to monitor and visualize data in real-time. This article will guide you through the process, covering the necessary hardware setup, programming concepts, and troubleshooting tips.
The 8051 microcontroller is a widely used chip in embedded systems due to its simplicity and versatility. It features four 8-bit input/output ports, making it suitable for interfacing with various devices, including LCD displays. The 8051 also includes a built-in timer/counter, serial communication capabilities, and a relatively low power consumption, which are advantageous for battery-powered applications.
A 16x2 LCD is a common choice for displaying text-based information. It consists of two lines, each capable of displaying 16 characters, with each character represented by a 5x7 pixel matrix. This compact size makes it ideal for small projects where space is limited.
- 8051 Microcontroller (AT89S52): This is the brain of the system, responsible for processing and sending data to the LCD.
- 16x2 LCD Display: Used for displaying the voltage readings.
- Voltage Sensor: Converts analog voltage signals into digital data that the microcontroller can process. Common sensors include the LM35 temperature sensor, which can also be adapted for voltage measurement with appropriate circuitry.
- Breadboard and Jumper Wires: For connecting components.
- Power Supply: Provides the necessary voltage to power the system. Typically, a 5V supply is used for both the microcontroller and the LCD.

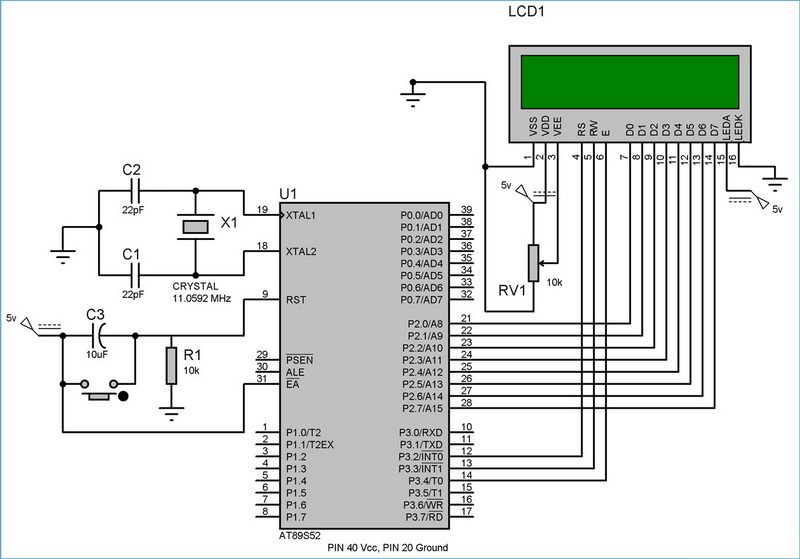

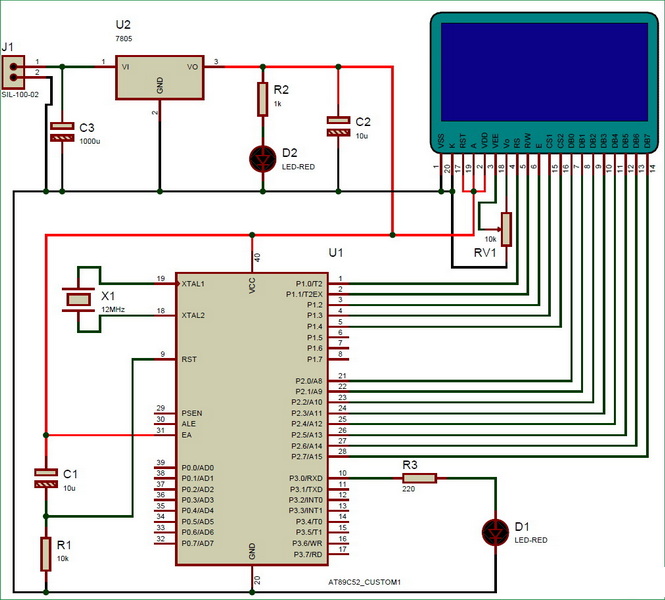

To interface the LCD with the 8051 microcontroller, follow these steps:
1. Connect Power Pins:
- Connect VDD (PIN 2) of the LCD to the 5V supply from the microcontroller.
- Connect VSS (PIN 1) to ground.
- Connect the backlight pins (PIN 15 and PIN 16) to 5V and ground respectively. This will ensure that the LCD is visible in various lighting conditions.

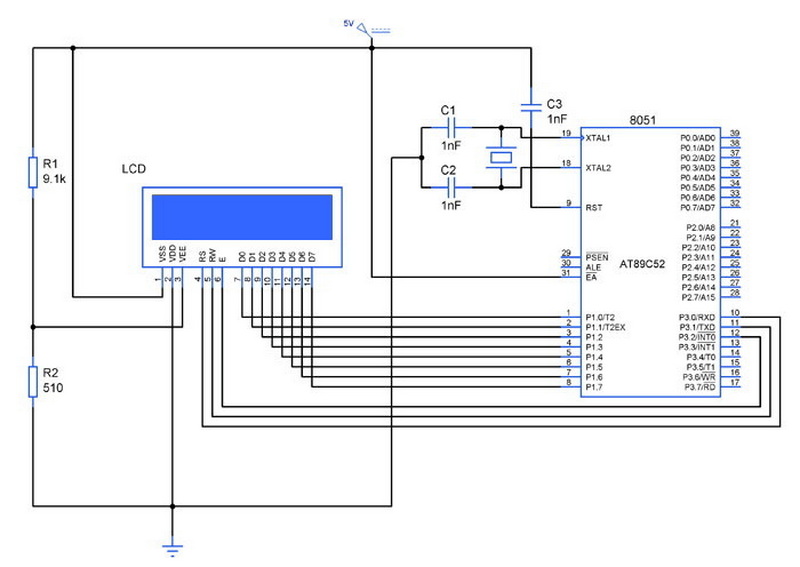

2. Connect Control Pins:
- Connect RS (PIN 4) to a GPIO pin on the microcontroller (e.g., P3.2). This pin determines whether the LCD is in command or data mode.
- Connect RW (PIN 5) to another GPIO pin (e.g., P3.3). This pin selects between read and write operations.
- Connect E (PIN 6) to a GPIO pin (e.g., P3.4). This pin is used to enable data transfer.

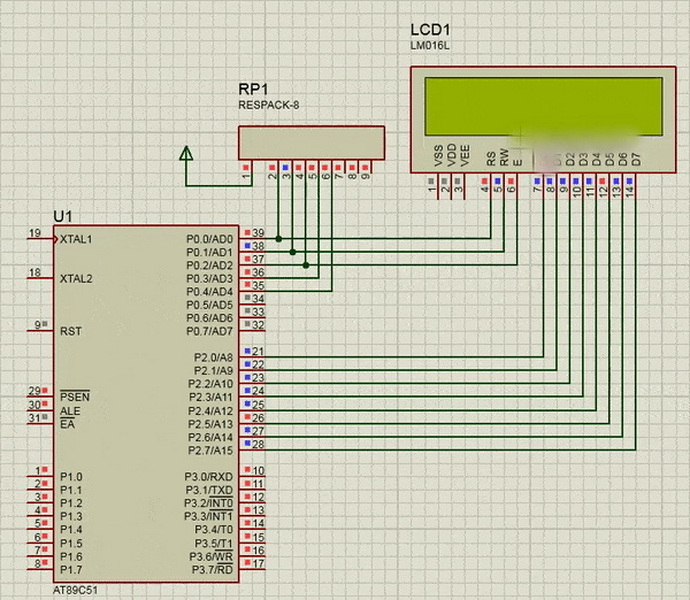

3. Connect Data Pins:
- Connect D0-D7 (PIN 7-14) to Port 2 of the microcontroller (P2.0-P2.7). These pins are used to send data or commands to the LCD.
4. Connect Contrast Pin:
- Connect V0 (PIN 3) to a variable resistor to adjust the contrast. Proper contrast adjustment is crucial for optimal readability.
The LCD operates in two primary modes: command mode and data mode. In command mode, the microcontroller sends instructions to configure the LCD, such as setting the cursor position or clearing the display. In data mode, the microcontroller sends characters to be displayed on the LCD.
To display voltage on the LCD, you need to program the microcontroller to read voltage data from a sensor, convert it into a readable format, and then send it to the LCD.
1. Initialize the LCD:
- Send initialization commands to set the LCD to 8-bit mode and configure the display settings. This includes setting the display on/off, cursor on/off, and blink on/off.
2. Read Voltage Data:
- Use an analog-to-digital converter (ADC) to read voltage from a sensor. If the 8051 does not have a built-in ADC, an external ADC chip can be used.
3. Convert and Format Data:
- Convert the raw ADC data into a voltage reading and format it as a string. This may involve scaling the ADC output based on the sensor's specifications.
4. Send Data to LCD:
- Use the LCD control pins to send the formatted string to the LCD for display. Ensure that the RS pin is set to data mode before sending the string.
When using an ADC to convert analog voltage signals to digital data, it's essential to understand the resolution and scaling factors. For example, a 10-bit ADC provides 1024 possible output values, which can be scaled to represent a specific voltage range.
LCD Not Turning On:
- Check power connections and ensure the backlight is properly connected. Verify that the power supply is stable and within the required voltage range.
No Display on LCD:
- Verify that the contrast is set correctly and the LCD is initialized properly. Check that the RS, RW, and E pins are connected correctly.
Incorrect Readings:
- Check the voltage sensor connections and ensure proper calibration. Verify that the ADC conversion is accurate and scaled correctly.
Adjusting the contrast is crucial for optimal readability. Use a variable resistor to adjust the voltage applied to the V0 pin. This allows you to fine-tune the display to work well in different lighting conditions.
Ensure that the RS, RW, and E pins are connected correctly and that the LCD is initialized with the correct commands. Check that the data pins are properly connected to the microcontroller's port.
Calibrating the voltage sensor is essential for accurate readings. This may involve adjusting the sensor's gain or offset to match the expected voltage range.
In addition to displaying voltage, the 8051 microcontroller can be used for more complex applications such as:
- Data Logging: Store voltage readings over time for later analysis.
- Control Systems: Use voltage readings to control external devices, such as relays or motors.
- Wireless Communication: Send voltage data wirelessly using modules like Bluetooth or Wi-Fi.
These applications require additional hardware and software components but can significantly enhance the functionality of the system.
Displaying voltage on an LCD using an 8051 microcontroller is a straightforward process that involves setting up the hardware, programming the microcontroller, and troubleshooting any issues that arise. By following these steps and tips, you can create a robust system for monitoring voltage levels in various applications.
The RS pin is used to select between command mode (RS=0) and data mode (RS=1).
Adjust the contrast by connecting a variable resistor to the V0 pin and adjusting it to achieve optimal readability.
In 4-bit mode, only four data pins are used, reducing the number of microcontroller pins required. In 8-bit mode, all eight data pins are used, allowing faster data transfer.
The E pin is used to trigger the LCD to latch in data or commands. A high-to-low pulse on this pin enables data transfer.
While the 8051 can interface with various LCDs, the most common is the 16x2 alphanumeric LCD due to its simplicity and widespread availability.
