Displaying text or data on an LCD screen using Arduino is a fundamental skill for many electronics projects. This guide will walk you through the process of connecting and programming an LCD display with Arduino, including troubleshooting tips and examples of projects you can create.
To get started, you'll need the following components:
- Arduino Board (e.g., Arduino Uno)
- LCD Display (e.g., 16x2 LCD)
- Breadboard
- Jumper Wires
- Potentiometer (for adjusting contrast)
- Resistors (for backlight if needed)
Understanding the LCD pinout is crucial for connecting it correctly to your Arduino. The typical pins include:
- VCC and GND for power supply
- Vo for contrast adjustment
- RS (Register Select) for choosing between commands and data
- R/W (Read/Write) for selecting read or write mode
- E (Enable) for enabling data transfer
- D0-D7 for data transfer (you'll use D4-D7 in 4-bit mode)
- Backlight Pins for LED backlight control

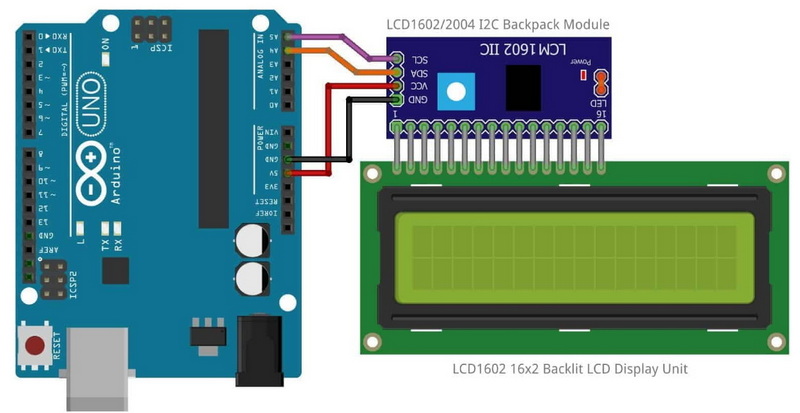

To connect the LCD to your Arduino, follow these steps:
1. Power Supply: Connect VCC to Arduino's 5V and GND to Arduino's GND.
2. Contrast Adjustment: Connect Vo to a potentiometer, which is then connected to GND and VCC.
3. Signal Pins: Connect RS, R/W, E, D4, D5, D6, and D7 to digital pins on your Arduino.
A common setup uses the following Arduino pins:
- RS to pin 12
- E to pin 11
- D4 to pin 5
- D5 to pin 4
- D6 to pin 3
- D7 to pin 2
Once connected, you can program the LCD using the LiquidCrystal library. This library simplifies the process of sending commands and data to the LCD.
- lcd.begin(): Initializes the LCD with the number of columns and rows.
- lcd.print(): Prints text on the LCD.
- lcd.setCursor(): Sets the cursor position for text output.
Common issues include:
- No Display: Check contrast and power connections.
- Incorrect Text: Ensure RS pin is set correctly for data or commands.
1. Temperature Display: Use a temperature sensor to display real-time temperature readings.
2. Countdown Timer: Create a countdown timer that displays time remaining on the LCD.
3. Sensor Data Display: Display data from various sensors like humidity, pressure, etc.
- Interactive Menu Systems: Create menus that allow users to navigate through options using buttons.
- Real-time Clock Displays: Use an RTC module to display current time and date.
- Weather Stations: Combine temperature, humidity, and pressure sensors to create a comprehensive weather station.
LCDs can operate in two main modes: 4-bit and 8-bit. The choice between these modes depends on your project's requirements.
4-bit mode is the most commonly used mode for LCDs with Arduino. It uses fewer pins (7) and is sufficient for most text displays. This mode is ideal for projects where pin conservation is important.
8-bit mode uses more pins (11) and can be faster than 4-bit mode. However, it is generally unnecessary for simple text displays and is more commonly used in applications requiring high-speed data transfer.
There are several types of LCDs available, each with its own characteristics.

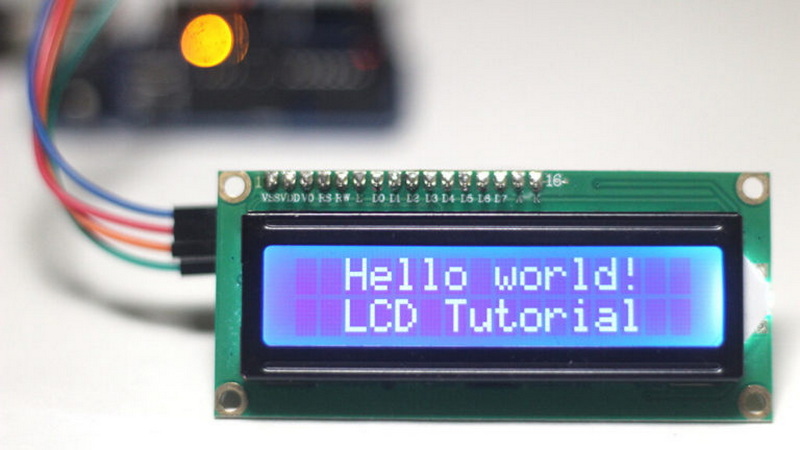

Character LCDs, like the 16x2 LCD, are the most common type used with Arduino. They display text and are ideal for simple projects.
Graphic LCDs allow for more complex displays, including images and graphics. They are more challenging to program but offer greater flexibility.
TFT (Thin-Film Transistor) LCDs are color displays that can show images and videos. They require more complex programming and hardware but offer a rich visual experience.
Displaying text on an LCD with Arduino is a versatile skill that can enhance a wide range of projects. By understanding how to connect and program an LCD, you can create interactive and informative displays for various applications.
To adjust the contrast, use a potentiometer connected to the Vo pin. Turning the potentiometer adjusts the contrast, making the text more or less visible.
Check that the power connections are correct and the contrast is properly adjusted. Also, ensure that the RS pin is set correctly for data or commands.
Yes, you can use an LCD display with other Arduino boards like Arduino Mega or Arduino Nano, but you may need to adjust the pin connections based on the board's layout.
You can use the `scrollDisplayLeft()` or `scrollDisplayRight()` functions from the LiquidCrystal library to scroll text on the LCD.
4-bit mode uses fewer pins (7) and is sufficient for most text displays, while 8-bit mode uses more pins (11) and can be faster but is generally unnecessary for simple text displays.
