Displaying integers on LCDs is a fundamental task in electronics and programming, especially when working with microcontrollers like Arduino. This guide will walk you through the basics of LCD displays, how they work, and how to display integers on them. We will also cover common issues and solutions, along with examples and illustrations to make the process clearer.
LCD (Liquid Crystal Display) screens are widely used in electronic devices due to their low power consumption and versatility. They can display text, numbers, and even simple graphics. LCDs are commonly used in calculators, watches, and other small electronic devices.
LCDs work by blocking or allowing light to pass through a matrix of liquid crystals. Each pixel in the LCD is made up of three sub-pixels, one for each primary color (red, green, and blue), which can be combined to produce a wide range of colors. However, in simple text-based LCDs, such as those used with Arduino, the display is typically monochrome.

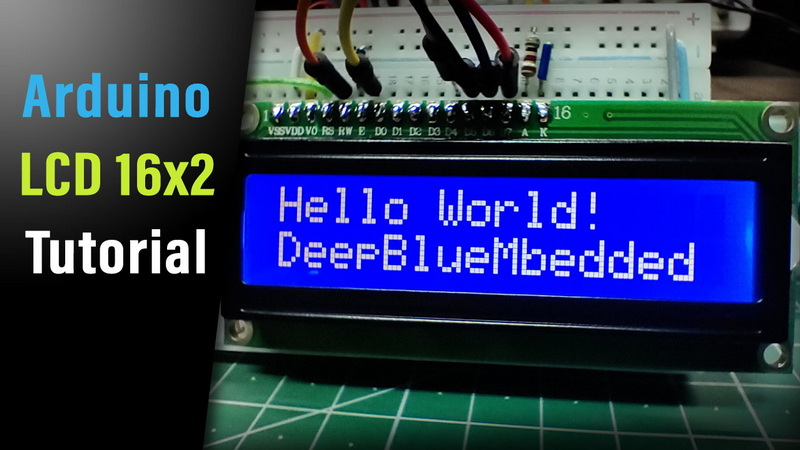

A typical LCD display has several pins:
- VSS (GND): Ground connection.
- VDD (+5V): Power supply.
- VEE: Contrast control.
- RS (Register Select): Toggles between command and data mode.
- RW (Read/Write): Determines whether data is being read or written.
- E (Enable): Enables data transfer.
- D0-D7: Data pins for sending characters or commands.
- A (Anode) and K (Cathode): Backlight LED connections.

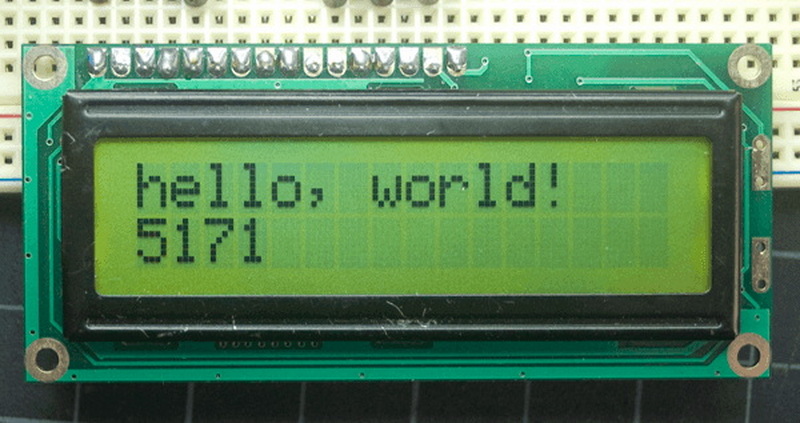

To display integers on an LCD, you need to convert the integer into a string format that the LCD can understand. This is because LCDs display characters based on ASCII codes.
1. Convert Integer to String: Use functions like `itoa()` in C/C++ to convert an integer into a string.
2. Send to LCD: Use the LCD's data mode to send the string to the display.
- Data Type Conversion: Ensure that integers are correctly converted to strings to avoid display errors.
- Cursor Positioning: Use the LCD's cursor control commands to position the text correctly on the screen.

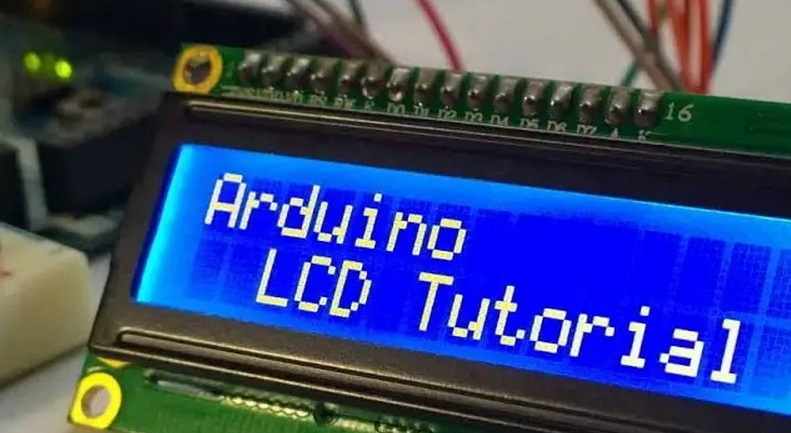

Arduino boards are popular for interfacing with LCDs due to their ease of use and the availability of libraries like LiquidCrystal.
- Connect the LCD's RS pin to an Arduino digital pin (e.g., pin 12).
- Connect the E pin to another digital pin (e.g., pin 11).
- Connect D4-D7 to digital pins (e.g., pins 5, 4, 3, 2).
- Connect VSS to GND and VDD to 5V on the Arduino.
The LiquidCrystal library simplifies the process of controlling the LCD. You can use functions like `lcd.print()` to display text and integers.
If your LCD displays incorrect characters, check the following:
- Ensure the RS pin is set correctly for data mode.
- Verify that the integer is correctly converted to a string.
If the cursor is not positioning correctly:
- Use `lcd.setCursor()` to set the cursor to the desired position.
- Check that the LCD is in data mode.
If the backlight is not working:
- Check the connections to the A and K pins.
- Ensure power is supplied to these pins.
To display negative numbers:
- Convert the number to a string, ensuring the negative sign is included.
- Send the string to the LCD.
For large numbers:
- Ensure the LCD has enough space to display the number.
- Use cursor control to position the number correctly.
Displaying integers on LCDs involves converting the integers to strings and sending them to the LCD in data mode. Understanding how LCDs work and using libraries like LiquidCrystal can simplify this process. Common issues like incorrect character display or cursor positioning can be resolved by checking the RS pin state and using cursor control functions.
- Connect the LCD's RS, E, D4-D7 pins to Arduino digital pins. Connect VSS to GND and VDD to 5V.
- Check that the RS pin is in data mode and that integers are correctly converted to strings.
- Use the `lcd.setCursor()` function to set the cursor position.
- Check connections to the A and K pins and ensure power is supplied.
- Convert the number to a string, including the negative sign, and send it to the LCD.
