How To Display Hindi Characters on Lcd?

Content Menu

Understanding LCDs

>> Custom Character Creation

Using Microcontrollers

>> 8051 Microcontroller

>> Arduino Boards

Challenges and Solutions

>> Limited Character Storage

>> Complexity of Custom Characters

Displaying Multilingual Text

Advanced Techniques for Multilingual Support

>> Using OLED Displays

>> Using TFT Displays

Practical Applications

Future Developments

>> Emerging Trends

>> Impact on Education and Communication

Conclusion

>> Frequently Asked Questions

>> 1. How do I create custom characters for Hindi on an LCD?

>> 2. What microcontrollers can be used to display Hindi characters on an LCD?

>> 3. How many custom characters can be stored in an LCD's CG RAM?

>> 4. What are the challenges in displaying Hindi characters on an LCD?

>> 5. How can I display a full set of Hindi characters on an LCD?

Displaying Hindi characters on an LCD screen involves creating custom characters, as standard LCDs are designed primarily for English text. This process requires understanding how LCDs work and how to use their custom character capabilities. In this article, we will explore the steps and techniques for displaying Hindi characters on LCDs using both microcontrollers like the 8051 and Arduino boards.

how to display hindi characters on lcd_2

Understanding LCDs

LCDs, such as the 16x2 LCD, have a limited number of predefined character sets stored in their Character Generator ROM (CG ROM). These sets typically include English letters and some symbols. However, to display regional languages like Hindi, we need to utilize the Character Generator RAM (CG RAM), which allows us to create and store custom characters.

Custom Character Creation

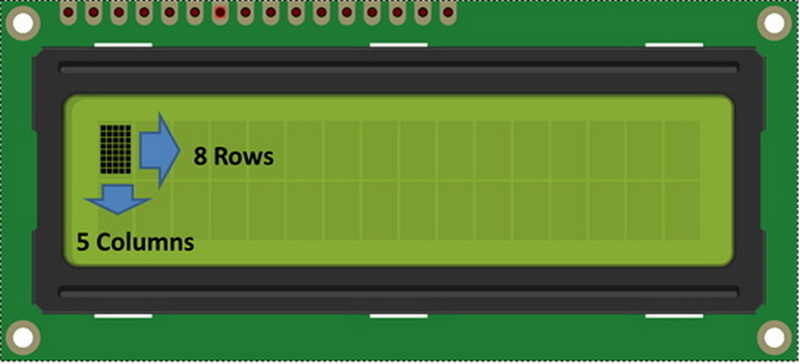

Each custom character is represented by a 5x8 pixel matrix. This means each character requires 8 bytes of data, with each byte corresponding to a row in the matrix. To create a Hindi character, you design the character on this matrix, converting it into binary or hexadecimal code.

Example of Creating a Custom Character:

1. Design the Character: Use a tool or manually create the character on a 5x8 grid.

2. Convert to Binary/Hexadecimal: Each row of the grid translates into a byte of binary or hexadecimal data.

3. Store in CG RAM: Send the character data to the CG RAM of the LCD.

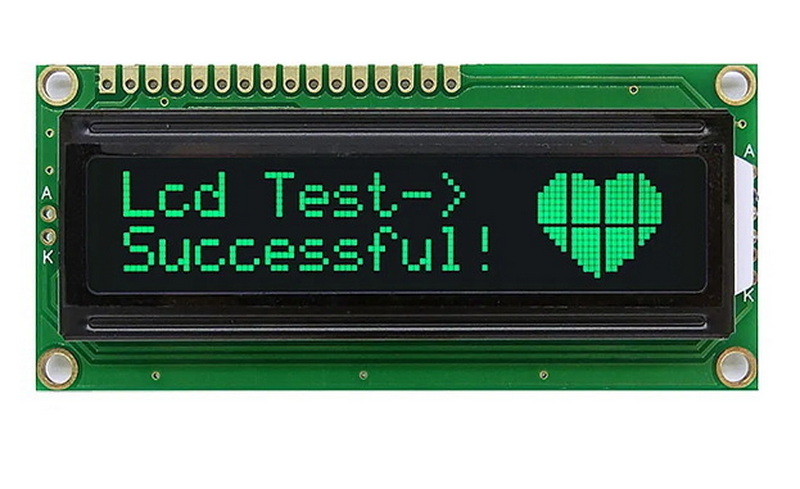

how to display hindi characters on lcd_1

Using Microcontrollers

Microcontrollers like the 8051 (AT89C51) or Arduino Uno can be used to interface with the LCD and send custom character data.

8051 Microcontroller

The 8051 microcontroller can be programmed to send custom character data to the LCD. This involves defining the character patterns in the program and using functions to send these patterns to the LCD's CG RAM.

Key Steps:

- Program the Microcontroller: Write a program that defines the Hindi characters as custom patterns.

- Interface with LCD: Connect the microcontroller to the LCD and send the character data.

Arduino Boards

Arduino boards are popular for their ease of use and versatility. They can also be used to display Hindi characters on an LCD.

Key Steps:

- Use the LiquidCrystal Library: This library simplifies the process of sending data to the LCD.

- Create Custom Characters: Define the Hindi characters as custom patterns using the `createChar()` function.

Challenges and Solutions

Displaying Hindi characters can pose several challenges, including limited character storage and the complexity of creating custom characters.

Limited Character Storage

LCDs typically have space for only 8 custom characters in their CG RAM. To display more characters, you need to continuously update the CG RAM with new character sets. This can be achieved by dynamically changing the character set based on the text being displayed.

Complexity of Custom Characters

Creating custom characters requires designing each character on a 5x8 grid and converting it into binary or hexadecimal code. This can be time-consuming and requires precision. Tools and software can help simplify this process by providing a graphical interface to design characters.

Displaying Multilingual Text

For languages like Hindi, which require a large character set, displaying multilingual text can be challenging. Solutions include using Unicode fonts or continuously updating the custom character set. However, using Unicode fonts might require more advanced display technologies beyond standard LCDs.

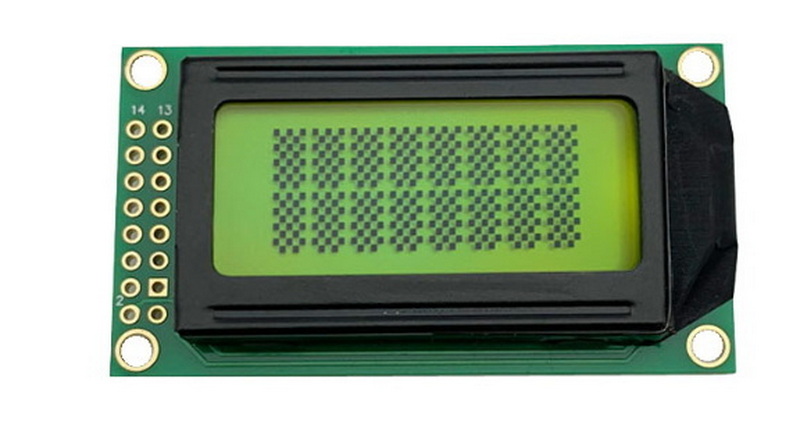

how to display hindi characters on lcd_3

Advanced Techniques for Multilingual Support

In recent years, there has been a shift towards using more advanced display technologies like OLED or TFT displays that support a wider range of characters and colors. These displays often have built-in support for Unicode characters, making it easier to display multilingual text without the need for custom character creation.

Using OLED Displays

OLED displays offer high contrast and can display a wide range of colors, making them ideal for multilingual applications. They often support Unicode fonts directly, eliminating the need for custom character creation.

Using TFT Displays

TFT displays provide a higher resolution and can display complex graphics and text. They are commonly used in applications where multilingual support is crucial, such as in mobile devices or digital signage.

Practical Applications

Displaying Hindi characters on LCDs has numerous practical applications, including:

- Digital Signage: In public places, digital signs can display information in local languages.

- Embedded Systems: Devices like vending machines or ticket dispensers can provide instructions in Hindi.

- Educational Tools: Interactive learning devices can use LCDs to teach Hindi language and scripts.

Future Developments

As technology advances, we can expect more efficient methods for displaying multilingual text on LCDs. This might include better software tools for creating custom characters or more affordable high-resolution displays that support a wide range of languages.

Emerging Trends

Emerging trends in display technology, such as flexible displays and augmented reality interfaces, may further enhance the capabilities for multilingual text display. These technologies could provide more intuitive and interactive ways to engage with text in various languages.

Impact on Education and Communication

The ability to display multilingual text effectively can significantly impact education and communication. It allows for more inclusive and accessible information dissemination, bridging language barriers and enhancing cultural exchange.

Conclusion

Displaying Hindi characters on an LCD involves creating custom characters using the LCD's CG RAM. This process can be managed using microcontrollers like the 8051 or Arduino boards. While there are challenges, such as limited character storage and complexity in creating custom characters, these can be overcome with careful planning and the use of appropriate tools. As technology advances, we can expect more efficient and accessible methods for multilingual text display.

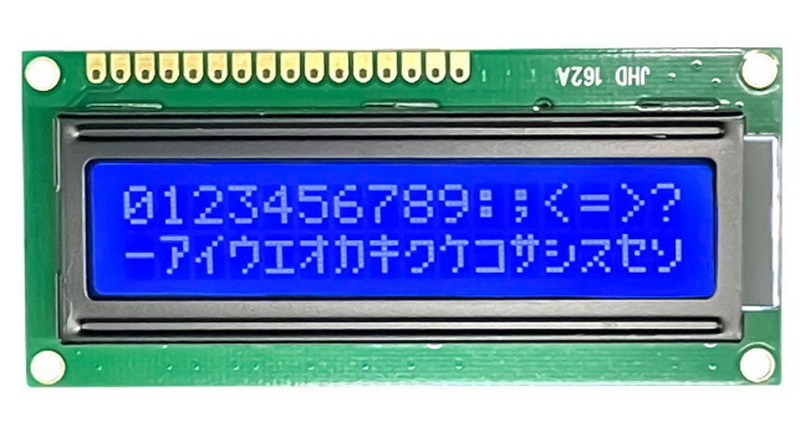

how to display hindi characters on lcd_4

Frequently Asked Questions

1. How do I create custom characters for Hindi on an LCD?

- Create the character on a 5x8 pixel matrix, convert it into binary or hexadecimal code, and store it in the LCD's CG RAM.

2. What microcontrollers can be used to display Hindi characters on an LCD?

- Microcontrollers like the 8051 (AT89C51) and Arduino Uno can be used.

3. How many custom characters can be stored in an LCD's CG RAM?

- Typically, an LCD can store up to 8 custom characters in its CG RAM.

4. What are the challenges in displaying Hindi characters on an LCD?

- Limited character storage and the complexity of creating custom characters are significant challenges.

5. How can I display a full set of Hindi characters on an LCD?

- Continuously update the CG RAM with new character sets to display a full set of characters.
