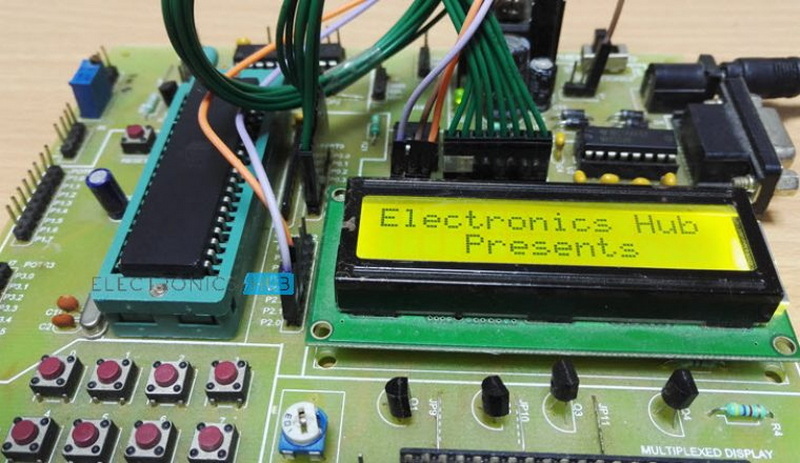

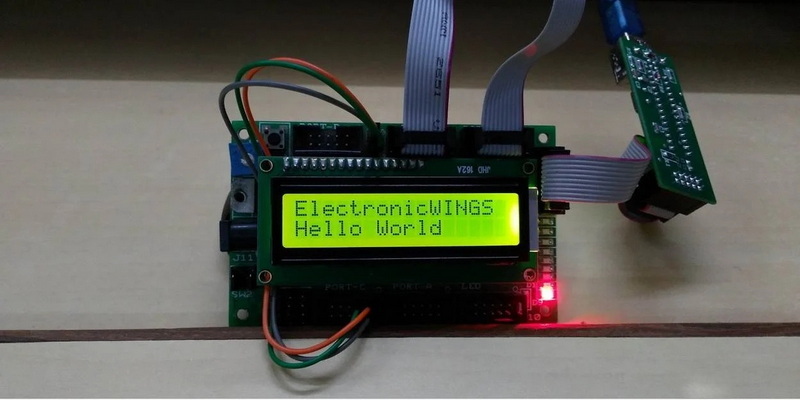

Displaying data on an LCD (Liquid Crystal Display) using an 8051 microcontroller is a fundamental skill in embedded systems and electronics. This process involves connecting the LCD to the microcontroller, writing the necessary code, and ensuring that the data is correctly displayed. In this article, we will explore the steps and concepts involved in interfacing an LCD with an 8051 microcontroller.
The 8051 microcontroller is a widely used chip in embedded systems due to its simplicity and versatility. It has four 8-bit input/output ports, making it suitable for interfacing with various devices, including LCDs. A 16x2 LCD is commonly used for displaying messages and data, as it can show two lines of 16 characters each.

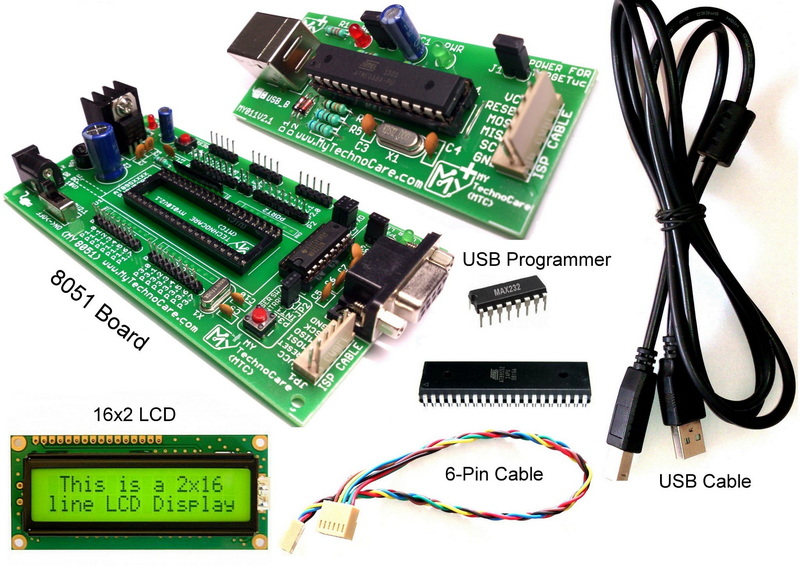

To interface an LCD with an 8051 microcontroller, you need the following components:
- 8051 Microcontroller (e.g., AT89S52 or AT89C51)
- 16x2 LCD Module
- Breadboard
- Jumper Wires
- Power Supply (5V)
- Variable Resistor (for contrast adjustment)
- USB to UART Converter (for uploading code)

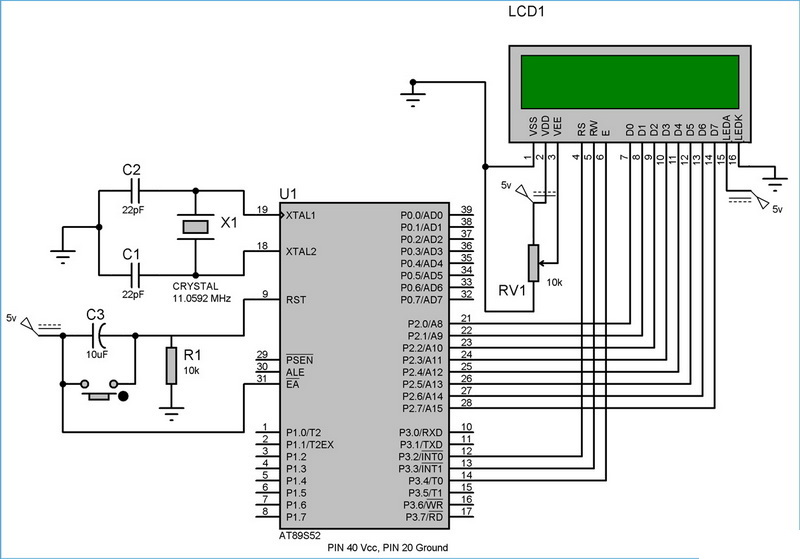

The circuit involves connecting the LCD's power pins to the microcontroller's power supply, and the control and data pins to the microcontroller's GPIO ports.
Power Pins:
- VSS (Pin 1): Ground
- VDD (Pin 2): +5V
- V0 (Pin 3): Contrast adjustment via a variable resistor
Control Pins:
- RS (Pin 4): Register Select (Command/Data mode)
- RW (Pin 5): Read/Write (0 for write, 1 for read)
- E (Pin 6): Enable (High to Low pulse to latch data)
Data Pins:
- D0-D7 (Pins 7-14): Data transfer (8-bit mode uses all pins, 4-bit mode uses D4-D7)
Backlight Pins:
- LED+ (Pin 15): Backlight positive
- LED- (Pin 16): Backlight ground
1. Connect Power Pins:
Connect VSS to ground and VDD to +5V. Adjust contrast using a variable resistor connected to V0.
2. Connect Control Pins:
Connect RS, RW, and E pins to GPIO pins on the microcontroller (e.g., RS to P3.2, RW to P3.3, E to P3.4).
3. Connect Data Pins:
For 8-bit mode, connect D0-D7 to P2.0-P2.7. For 4-bit mode, connect D4-D7 to P2.0-P2.3.
4. Initialize LCD:
Send initialization commands to set the LCD mode (e.g., 8-bit or 4-bit), turn on the display, and clear the screen.
Programming involves writing functions to send commands and data to the LCD. This includes initializing the LCD, sending commands to set the display mode, and writing data to display messages.
- Displaying Messages: Useful in projects where user interaction is required, such as displaying error messages or system status.
- Real-Time Data Display: Can be used to display sensor readings or other real-time data in embedded systems.
- Check Connections: Ensure all pins are correctly connected.
- Contrast Adjustment: Adjust the variable resistor for better visibility.
- Power Supply: Verify that the power supply is stable and within the required voltage range.
Interfacing an LCD with an 8051 microcontroller is a straightforward process once you understand the connections and programming involved. It is a valuable skill for anyone working with embedded systems, allowing for the creation of interactive and user-friendly projects.
- 8-bit mode uses all eight data pins (D0-D7) for faster data transfer but requires more microcontroller pins. 4-bit mode uses only four data pins (D4-D7), conserving microcontroller pins but is slower.
- Use a variable resistor connected between V0 (Pin 3) and the power supply to adjust the contrast.
- Common commands include setting the display mode (e.g., 0x38 for 8-bit, two-line mode), turning on the display (e.g., 0x0F), clearing the display (e.g., 0x01), and setting the cursor position (e.g., 0x80).
- Most commonly used LCDs are compatible, but ensure the LCD type matches the commands and initialization used in your code.
- Use software like Flash Magic or a USB to UART converter to upload code from your computer to the microcontroller.
