LCD displays are essential components in many Arduino projects, providing a visual interface for users to interact with their creations. In this comprehensive guide, we'll explore how to define and use LCD displays with Arduino, covering everything from basic setup to advanced techniques.
LCD (Liquid Crystal Display) screens are versatile output devices that can display text, numbers, and even simple graphics. They come in various sizes, with the 16x2 (16 characters across, 2 rows) being one of the most popular for Arduino projects.

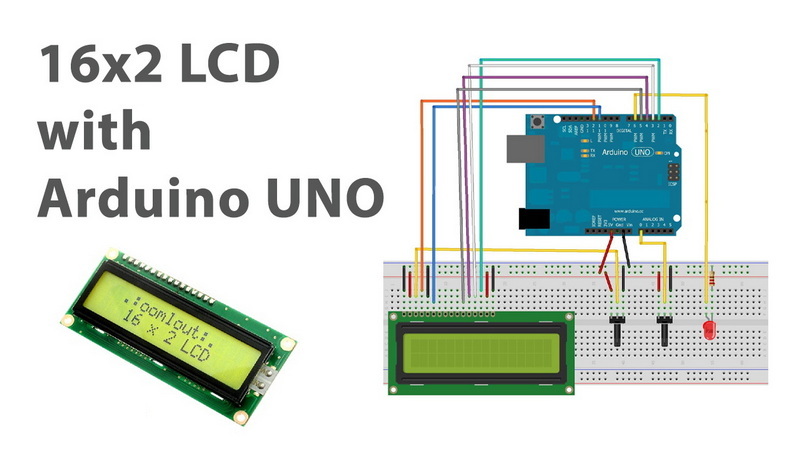

Before diving into the code, it's crucial to properly connect your LCD display to your Arduino board. Here's a step-by-step guide:
1. Gather your components:
- Arduino board (e.g., Arduino Uno)
- LCD display (e.g., 16x2 character LCD)
- Potentiometer (10k ohm)
- Jumper wires
- Breadboard

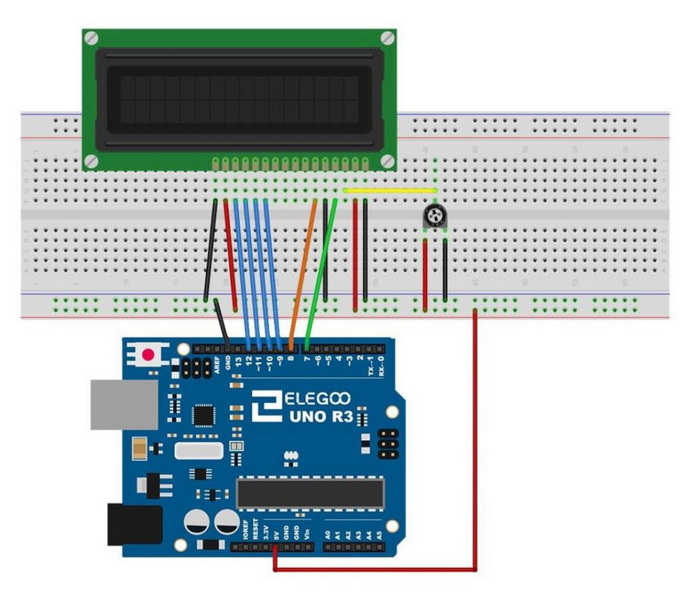

2. Connect the LCD pins to Arduino:
- VSS to GND
- VDD to 5V
- V0 to the middle pin of the potentiometer
- RS to digital pin 12
- RW to GND
- E to digital pin 11
- D4 to digital pin 5
- D5 to digital pin 4
- D6 to digital pin 3
- D7 to digital pin 2
- A to 5V (for backlight)
- K to GND (for backlight)
3. Connect the potentiometer:
- One outer pin to 5V
- The other outer pin to GND
- The middle pin to V0 on the LCD
Now that the hardware is connected, let's set up the software to control the LCD display.
First, we need to include the LiquidCrystal library, which provides functions to easily control the LCD:
cpp
#include
Next, we define an LCD object, specifying which Arduino pins are connected to the LCD's RS, E, D4, D5, D6, and D7 pins:
cpp
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
In the setup() function, we initialize the LCD with its number of columns and rows:
cpp
void setup() {
lcd.begin(16, 2);
// Rest of your setup code
}
Let's explore some fundamental functions for controlling your LCD display.
To display text on the LCD, use the print() function:
cpp
lcd.print("Hello, World!");
Move the cursor to a specific position using setCursor(column, row):
cpp
lcd.setCursor(0, 1); // Move to the start of the second line
Clear the entire display with the clear() function:
cpp
lcd.clear();
Once you've mastered the basics, you can move on to more advanced techniques to enhance your LCD projects.
LCDs allow you to create and display custom characters. Here's how:
1. Define the character bitmap
2. Use createChar() to store it in the LCD's memory
3. Print the custom character using write()
For longer messages, you can implement text scrolling:
1. Use lcd.scrollDisplayLeft() or lcd.scrollDisplayRight()
2. Combine with delays for smooth scrolling effect
Integrate sensor readings into your LCD display:
1. Read sensor data
2. Format the data as needed
3. Update the LCD display with the formatted data
To ensure your LCD projects run smoothly, consider these best practices:
1. Use a separate power supply for the LCD if your project requires a lot of power
2. Implement error checking in your code
3. Optimize your display updates to prevent flickering
4. Consider using I2C LCD modules for projects with limited pins
Even with careful setup, you might encounter some issues. Here are solutions to common problems:

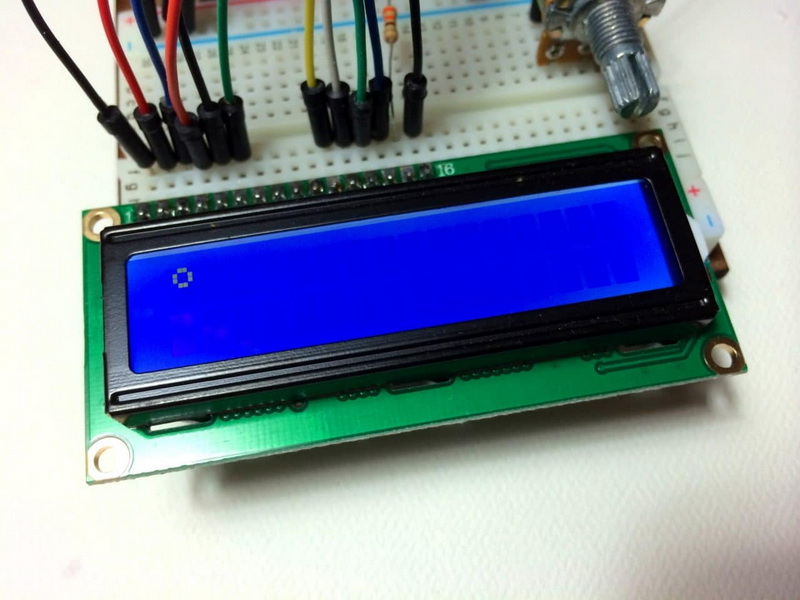

1. No display: Check connections and contrast adjustment
2. Garbled text: Verify correct pin connections and library usage
3. Flickering display: Optimize code to reduce unnecessary updates
4. Inconsistent behavior: Ensure stable power supply to both Arduino and LCD
Now that you're familiar with LCD displays, here are some project ideas to inspire you:
1. Digital clock with temperature display
2. Interactive menu system for a robot
3. Game score tracker
4. Environmental monitoring station
5. Custom message board
Mastering LCD displays opens up a world of possibilities for your Arduino projects. From simple text output to complex interactive interfaces, LCDs provide a versatile and user-friendly way to present information. By following the guidelines and techniques outlined in this article, you'll be well-equipped to incorporate LCD displays into your next Arduino creation.
Character LCDs are designed to display text and pre-defined characters, typically in a grid format (e.g., 16x2 or 20x4). They are simpler to use and require less processing power. Graphical LCDs, on the other hand, can display custom graphics and have higher resolution. They offer more flexibility but are more complex to program and usually more expensive.
Using a 5V LCD with a 3.3V Arduino board directly can damage your microcontroller. However, you can use a level shifter to safely interface between the two voltage levels. Alternatively, some LCD modules come with built-in level shifting, making them compatible with both 3.3V and 5V systems.
To reduce power consumption:
1. Turn off the backlight when not needed
2. Use sleep mode for the microcontroller between updates
3. Choose an LCD with lower power requirements
4. Implement power-saving techniques in your code, such as updating the display less frequently
Most standard character LCDs support the display of non-Latin characters, but you may need to create custom characters for some languages. Many LCDs come with built-in character sets for languages like Japanese (Katakana) or European languages. For more extensive language support, consider using a graphical LCD or a character LCD with a larger built-in character set.
For text that doesn't fit on the screen, you can:
1. Implement text scrolling using lcd.scrollDisplayLeft() or lcd.scrollDisplayRight()
2. Create a custom function to display text in pages, allowing the user to navigate through longer content
3. Abbreviate or truncate the text to fit the available space
4. Use a larger LCD display if your project allows for it
