Segment LCD displays are widely used in various electronic devices, from digital clocks to industrial control panels. These displays offer a simple yet effective way to present information, making them popular in applications where clear, easy-to-read numbers and symbols are required. In this comprehensive guide, we'll explore the intricacies of controlling segment LCD displays, covering everything from basic principles to advanced techniques.
Segment LCD displays consist of several segments that can be individually controlled to form numbers, letters, or symbols. These displays are known for their low power consumption, high contrast, and wide viewing angles, making them ideal for portable devices and applications where readability is crucial.

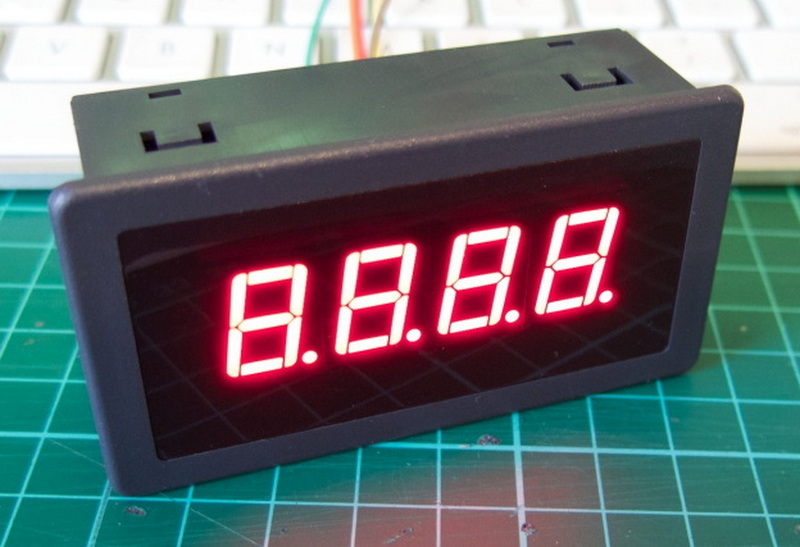

1. Seven-segment displays: The most common type, used primarily for displaying numbers.
2. Fourteen-segment displays: Capable of displaying both numbers and letters.
3. Sixteen-segment displays: Offer improved letter representation compared to fourteen-segment displays.
4. Dot-matrix displays: Provide the most flexibility, allowing for custom characters and graphics.
LCD (Liquid Crystal Display) technology relies on the light-modulating properties of liquid crystals. When an electric field is applied, the crystals align, allowing light to pass through or be blocked, creating visible segments.
- Liquid crystal material
- Polarizing filters
- Transparent electrodes
- Reflective backing (for non-backlit displays)
- Backlight (for backlit displays)

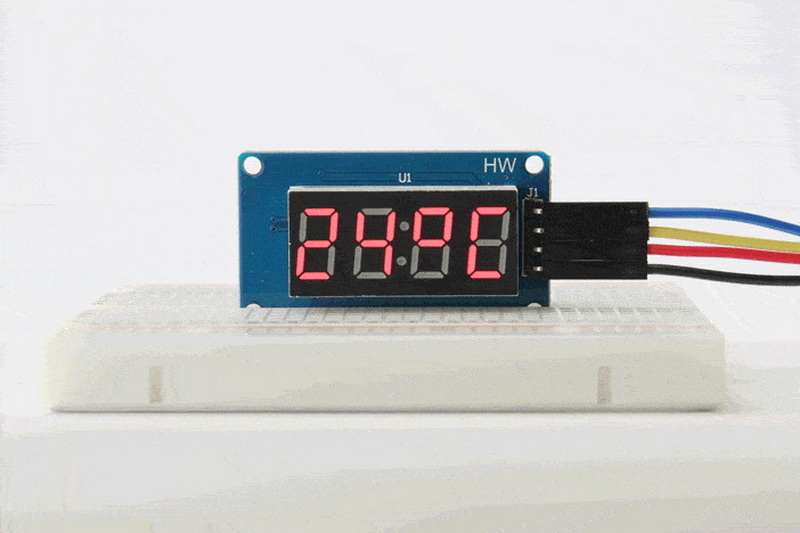

Controlling a segment LCD display involves applying the correct voltages to the appropriate segments to create the desired display output.
To reduce the number of connections required, segment LCD displays often use multiplexing techniques. This allows multiple segments to share common electrodes, reducing the overall pin count.
Proper bias voltages are crucial for optimal contrast and preventing damage to the LCD. Common bias ratios include:
- 1/2 bias
- 1/3 bias
- 1/4 bias
The choice of bias ratio depends on the specific LCD and the number of multiplexed segments.
When implementing a segment LCD display in your project, several hardware factors need to be considered.

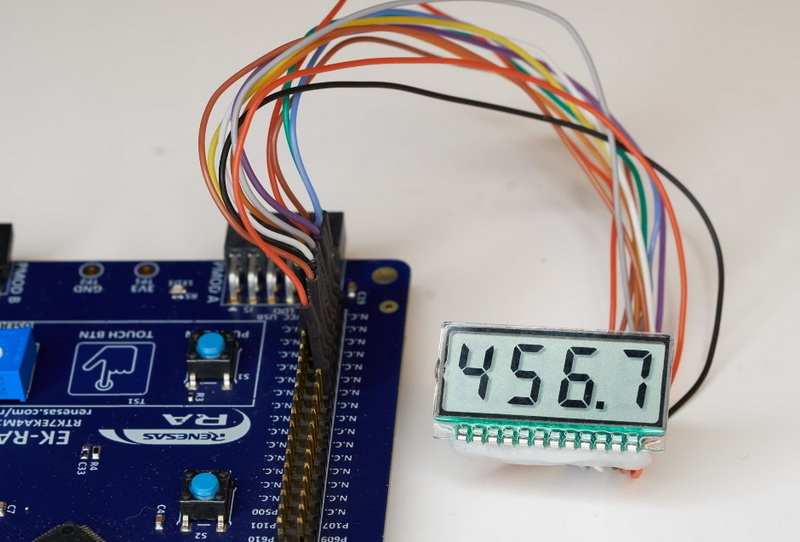

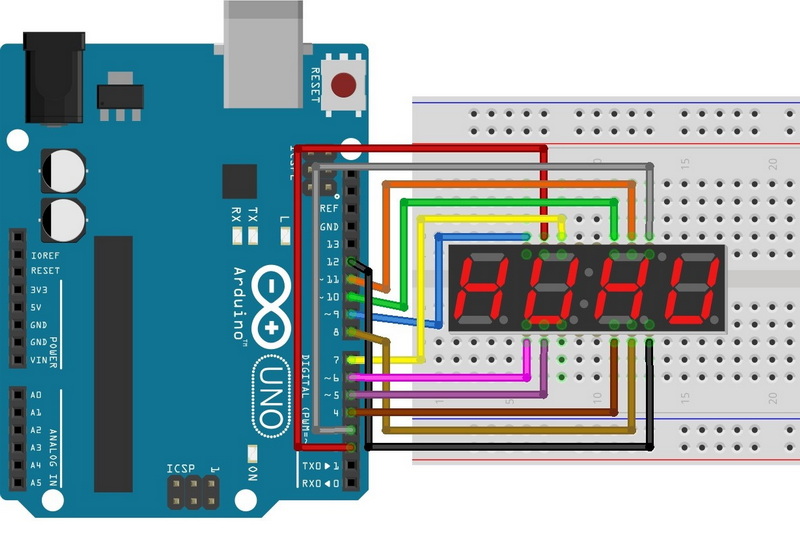

Choose a microcontroller with built-in LCD drivers or sufficient GPIO pins to control the display. Many modern microcontrollers offer dedicated LCD controllers, simplifying the implementation process.
Segment LCD displays typically require both low-voltage DC for logic and higher AC voltages for driving the liquid crystals. Ensure your power supply can provide the necessary voltages and current.
LCD performance can vary with temperature. For applications in extreme environments, choose an LCD rated for the expected temperature range or implement temperature compensation techniques.
Controlling a segment LCD display through software involves several key steps and considerations.
Proper initialization is crucial for correct LCD operation. This typically involves:
1. Configuring GPIO pins
2. Setting up the LCD controller (if available)
3. Defining display parameters (bias, duty cycle, etc.)
4. Clearing the display
To update the display, you'll need to:
1. Prepare the data to be displayed
2. Convert the data into the appropriate segment patterns
3. Write the segment patterns to the LCD controller or GPIO pins
Maintain an appropriate refresh rate to prevent flickering and ensure smooth updates. Typical refresh rates range from 30 to 100 Hz, depending on the display and application requirements.
As you become more comfortable with basic segment LCD control, you can explore advanced techniques to enhance your displays.
For displays with sufficient segments or dot-matrix capabilities, you can create custom characters or symbols. This often involves defining bitmaps for each character and storing them in memory.
By rapidly updating the display, you can create simple animations. This can be useful for indicating progress, drawing attention to specific information, or creating more engaging user interfaces.
Implement dimming functionality by adjusting the duty cycle of the LCD drive signals. This can help conserve power and improve readability in different lighting conditions.
When working with segment LCD displays, you may encounter various issues. Here are some common problems and their potential solutions:
- Check bias voltages
- Verify correct initialization sequence
- Ensure proper contrast setting
- Review multiplexing implementation
- Check for shorts in the circuit
- Verify correct segment addressing
- Confirm proper communication between microcontroller and LCD
- Check refresh rate
- Verify data conversion and writing process
To ensure the best performance and longevity of your segment LCD implementation, consider the following best practices:
1. Use a dedicated LCD controller when possible
2. Implement power-saving features, such as sleep modes
3. Design for easy readability, considering viewing angles and ambient light
4. Provide user controls for contrast adjustment if necessary
5. Consider using a backlight for improved visibility in low-light conditions
While segment LCDs have been around for decades, they continue to evolve. Some emerging trends include:
- Higher-resolution displays with more segments
- Improved power efficiency
- Integration with touch interfaces
- Enhanced durability for harsh environments
- Color segment LCDs for more visually appealing displays
Let's examine a few real-world applications of segment LCD displays to understand their versatility and implementation.
Digital multimeters often use segment LCDs to display measurement values, units, and status information. The display typically includes:
- 3-4 digit seven-segment display for numeric values
- Custom segments for measurement units (V, A, Ω, etc.)
- Status indicators (battery level, mode, etc.)
In industrial settings, segment LCDs are used for displaying machine status, temperature readings, and other critical information. These displays often feature:
- Large, high-contrast digits for easy reading
- Multiple lines of information
- Backlight for visibility in various lighting conditions
Many fitness trackers use segment LCDs for their main display, showing:
- Time and date
- Step count
- Heart rate
- Calories burned
- Battery level
The use of segment LCDs in these devices allows for low power consumption and good visibility in outdoor conditions.
Controlling segment LCD displays is a fundamental skill for many electronics projects. By understanding the principles of LCD operation, implementing proper hardware and software controls, and following best practices, you can create effective and reliable displays for a wide range of applications. As technology continues to advance, segment LCDs remain a relevant and practical choice for many display needs, offering simplicity, readability, and low power consumption.
Here are some common questions about controlling segment LCD displays:
Static driving involves directly controlling each segment individually, while multiplexed driving uses shared common lines to reduce the number of connections needed. Multiplexed driving is more common in displays with many segments, as it reduces complexity and cost.
The bias voltage depends on the LCD specifications and the driving method. Typically, it's a fraction of the supply voltage, such as 1/2, 1/3, or 1/4. Consult your LCD datasheet for the recommended bias ratio and use the appropriate voltage divider circuit or LCD driver IC to generate the correct voltages.
Yes, Pulse Width Modulation (PWM) can be used to control LCD contrast. By varying the duty cycle of the PWM signal, you can adjust the RMS voltage applied to the LCD, effectively changing its contrast. However, ensure that the PWM frequency is high enough to prevent visible flickering.
Creating custom characters depends on the type of segment LCD you're using. For dot-matrix displays, you typically define a bitmap for each character. For seven-segment displays, you can create custom patterns by selectively activating different segments. Store these custom patterns in your microcontroller's memory and send them to the LCD as needed.
Dedicated LCD controllers offer several advantages:
- Reduced CPU load, as the controller handles refresh and timing
- Simplified software implementation
- Often include features like blinking and scrolling
- Can support a larger number of segments more efficiently
- May include voltage generation for LCD bias
Using a dedicated controller can simplify your design and improve overall system performance.
