Adding a display to your Arduino projects can greatly enhance their functionality and user interaction. One of the most popular and easy-to-use display options is the I2C LCD display. In this comprehensive guide, we'll walk you through the process of connecting an I2C LCD display to an Arduino board, providing you with detailed instructions, tips, and examples to help you get started.

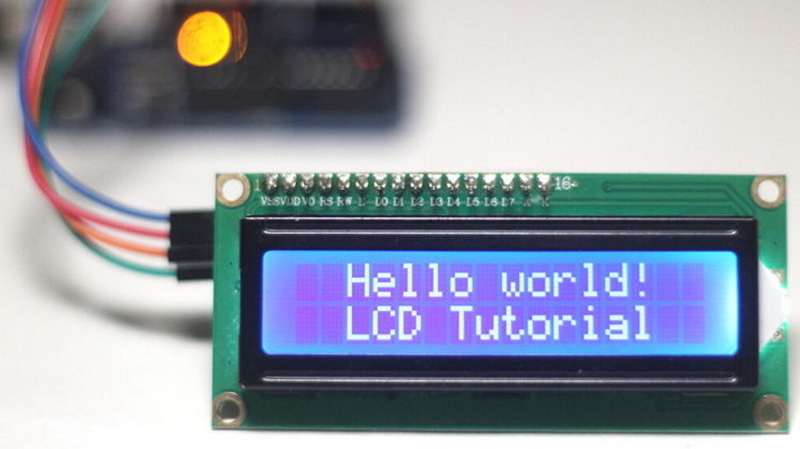

An I2C LCD display is a liquid crystal display module that uses the I2C (Inter-Integrated Circuit) communication protocol. This protocol allows for simplified wiring and efficient communication between the Arduino and the display. The most common I2C LCD displays are 16x2 or 20x4 character displays, which can show 16 or 20 characters across 2 or 4 lines, respectively.
I2C, also known as Two-Wire Interface (TWI), is a serial communication protocol that uses only two wires for data transfer: SDA (Serial Data) and SCL (Serial Clock). This makes it an ideal choice for projects where minimizing the number of connections is crucial.
Before we begin, let's gather the necessary components:
1. Arduino board (e.g., Arduino Uno, Nano, or Mega)
2. I2C LCD display module (16x2 or 20x4)
3. Four male-to-female jumper wires
4. Breadboard (optional, for prototyping)
5. USB cable for Arduino programming
It's worth noting that some I2C LCD modules come with a built-in backpack that handles the I2C communication. If you're using a standard LCD without an I2C interface, you'll need to purchase a separate I2C adapter module.

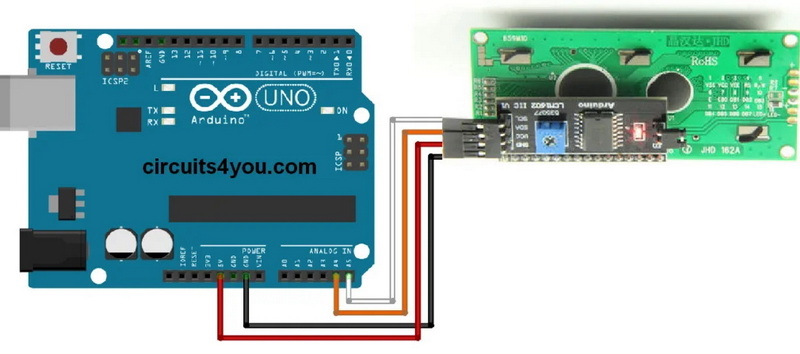

Connecting an I2C LCD to Arduino is straightforward, requiring only four connections. Here's how to wire it up:
1. Connect the GND pin on the I2C LCD to the GND pin on the Arduino.
2. Connect the VCC pin on the I2C LCD to the 5V pin on the Arduino.
3. Connect the SDA pin on the I2C LCD to the SDA pin on the Arduino (A4 on Uno/Nano, 20 on Mega).
4. Connect the SCL pin on the I2C LCD to the SCL pin on the Arduino (A5 on Uno/Nano, 21 on Mega).
It's important to note that some Arduino boards, like the Leonardo or newer versions of the Uno, have dedicated SDA and SCL pins. Always refer to your specific Arduino board's pinout diagram to ensure correct connections.
Before diving deeper into programming the I2C LCD, it's helpful to understand how I2C communication works. I2C uses a master-slave architecture, where the Arduino acts as the master and the LCD as the slave. The communication is initiated by the master (Arduino) and responded to by the slave (LCD).
Each I2C device has a unique address, which is used to identify it on the bus. This address is typically 7 bits long, allowing for up to 128 unique devices on a single I2C bus. However, some addresses are reserved, leaving about 112 available addresses for devices.
The I2C protocol uses start and stop conditions to indicate the beginning and end of a communication sequence. Data is transferred in 8-bit packets, with each packet followed by an acknowledgment bit from the receiving device.
To communicate with the I2C LCD, we need to install the necessary libraries. The most commonly used library for I2C LCDs is the LiquidCrystal_I2C library. This library provides a high-level interface for controlling the LCD, making it easy to display text, create custom characters, and control the backlight.
Before we can use the I2C LCD, we need to determine its I2C address. Most I2C LCDs use the address 0x27 or 0x3F, but it's best to confirm. Using an I2C scanner sketch can help you identify the correct address for your LCD module.
Once you have the I2C address and the library installed, you can start programming your I2C LCD. The basic steps involve initializing the LCD, turning on the backlight, and using functions like `lcd.print()` to display text on the screen.
One of the exciting features of I2C LCDs is the ability to create and display custom characters. This allows you to create simple graphics or symbols that aren't part of the standard character set. You can define up to eight custom characters, each represented by an 8x5 pixel matrix.
For longer messages that don't fit on the screen at once, you can implement scrolling text. This involves continuously shifting the text across the display, creating a marquee effect. While this can be useful for displaying long messages, it's important to use it judiciously to avoid overwhelming the user with constantly moving text.
One of the most common uses for an I2C LCD in Arduino projects is to display sensor data. Whether you're measuring temperature, humidity, or any other environmental factor, the LCD provides a convenient way to show real-time readings. You can update the display at regular intervals to provide current information.
For more complex projects, you might want to create a menu system on your I2C LCD. This could involve using buttons to navigate through different options displayed on the screen. By combining the LCD with input devices, you can create interactive user interfaces for your Arduino projects.
While I2C LCDs are relatively low-power devices, it's important to consider power consumption in your projects. The backlight, in particular, can draw a significant amount of current. If you're powering your Arduino from a battery or have other power-hungry components in your project, you might need to implement power-saving strategies.
One approach is to turn off the backlight when it's not needed. Most I2C LCD libraries provide functions to control the backlight. You could, for example, turn on the backlight only when a button is pressed and turn it off after a certain period of inactivity.
Another consideration is the voltage level. While most I2C LCDs are designed to work with 5V logic, some newer Arduino boards (like the Arduino Due) operate at 3.3V. In such cases, you might need to use level shifters to ensure proper communication between the Arduino and the LCD.
While character LCDs are primarily text-based, there are several ways to enhance their visual appeal:
1. Use custom characters to create simple graphics or icons.
2. Experiment with different text alignments (left, center, right) to create more visually pleasing layouts.
3. Utilize the cursor and blink functions to draw attention to specific parts of the display.
4. If your project allows, consider using a larger LCD (like a 20x4) for more screen real estate.
The I2C LCD can be a central part of more complex Arduino projects. Here are some ideas for integration:
1. Combine with a real-time clock module to create a digital clock or timer.
2. Use with temperature and humidity sensors to create a weather station.
3. Integrate with a keypad to create a simple calculator or input device.
4. Pair with a potentiometer to create an adjustable display (e.g., for brightness or contrast control).
When working with I2C LCDs, you might encounter some common issues. Here are some additional troubleshooting tips:
1. If the display is blank, check if the backlight is on. Some LCDs might be working but appear blank if the backlight is off.
2. If you see random characters or symbols, it could be due to incorrect initialization. Double-check that you're using the correct number of rows and columns in your LCD initialization.
3. If the text appears but is unreadable, try adjusting the contrast. Some I2C LCD modules have a small potentiometer that can be adjusted with a screwdriver.
4. If you're having trouble with long cables, consider using pull-up resistors on the SDA and SCL lines to improve signal integrity.
To ensure the best performance and reliability when using I2C LCDs with Arduino, consider these additional best practices:
1. Keep your I2C cables short to minimize interference and signal degradation.
2. If you're using multiple I2C devices, ensure each has a unique address to avoid conflicts.
3. When displaying dynamic data, update only the parts of the screen that change to reduce flickering and improve performance.
4. Consider using a software debounce when using buttons with your LCD interface to prevent accidental double-triggers.
5. Document your wiring and code thoroughly, especially if you're creating a complex project with multiple components.
Connecting an I2C LCD display to your Arduino opens up a world of possibilities for your projects. With just four wires and a few lines of code, you can add a user-friendly interface to display sensor readings, status messages, or any other information relevant to your project. As you become more comfortable with I2C LCD programming, you can explore more advanced features like custom characters, animations, and integrating the display with other sensors and components.
The I2C LCD is more than just a simple output device; it's a versatile tool that can significantly enhance the functionality and user experience of your Arduino projects. Whether you're building a home automation system, a weather station, or a complex robotics project, the I2C LCD provides an efficient and easy-to-use solution for displaying information.
As you continue to work with I2C LCDs, don't be afraid to experiment and push the boundaries of what's possible. Try combining different components, creating unique interfaces, and tailoring the display to your specific project needs. With practice and creativity, you'll find that the I2C LCD becomes an indispensable tool in your Arduino toolkit.
1. Simplified wiring: I2C LCDs require only four connections, compared to the 6-16 connections needed for standard LCDs.
2. Reduced pin usage: I2C LCDs use only two data pins on the Arduino, freeing up other pins for additional components.
3. Easy to daisy-chain: Multiple I2C devices can be connected to the same I2C bus, allowing for more complex setups.
4. Built-in backlight control: Most I2C LCD modules include backlight control through software.
5. Compatibility: I2C LCDs can be easily used with various microcontrollers that support I2C communication.
1. Use the `lcd.write()` function to display ASCII characters.
2. Create custom characters using `lcd.createChar()` for symbols not in the standard character set.
3. Utilize the extended character set supported by some LCD controllers.
4. Combine multiple characters to create larger symbols or graphics.
5. For complex graphics, consider using a graphical LCD instead of a character LCD.
1. Verify all connections are correct and secure.
2. Double-check the I2C address in your code matches the actual address of your LCD module.
3. Ensure the correct library is installed and included in your sketch.
4. Try adjusting the contrast using the potentiometer on the I2C module (if available).
5. Test the I2C communication using an I2C scanner sketch to confirm the Arduino can detect the LCD.
1. Yes, you can connect multiple I2C LCDs to a single Arduino.
2. Each LCD must have a unique I2C address.
3. Use an I2C multiplexer if you need to connect LCDs with the same address.
4. Initialize each LCD separately in your code using their respective addresses.
5. Be mindful of power requirements when using multiple LCDs.
1. Adjust the contrast using the potentiometer on the I2C module.
2. Use the `lcd.backlight()` and `lcd.noBacklight()` functions to control the backlight.
3. Consider adding a light sensor to automatically adjust the backlight based on ambient light.
4. Use larger fonts or custom characters for important information.
5. Experiment with different background colors for the LCD to improve contrast.
