Organic Light Emitting Diode (OLED) screens have become increasingly popular in embedded systems and DIY electronics projects due to their vibrant display, low power consumption, and wide viewing angles. Among the various OLED modules available, the 8-pin OLED screen is commonly used for its simplicity and versatility. This guide will walk you through everything you need to know about coding an 8-pin OLED screen, including understanding its pin configuration, wiring, programming, and troubleshooting. Whether you are a beginner or an experienced maker, this article will provide you with detailed insights and practical examples to help you successfully integrate an 8-pin OLED into your projects.
An 8-pin OLED screen refers to an OLED display module that has eight pins used for power, ground, and data communication. These pins facilitate the connection between the OLED display and a microcontroller such as an Arduino, ESP32, or Raspberry Pi. The 8-pin configuration is common because it supports various communication protocols, including I2C, SPI, and parallel interfaces, depending on the OLED controller and module design.
The exact function of the pins varies depending on the model and manufacturer, but typically, the pins include:
- Power pins: VCC (power supply) and GND (ground).
- Communication pins: Depending on protocol, these can be SDA and SCL for I2C, or MOSI, SCLK, CS, DC for SPI.
- Control pins: Such as Reset (RES) and Chip Select (CS).
Understanding the controller integrated into your OLED module is crucial because it determines how you communicate with the display and what libraries or code you will need. Some popular OLED controllers include:

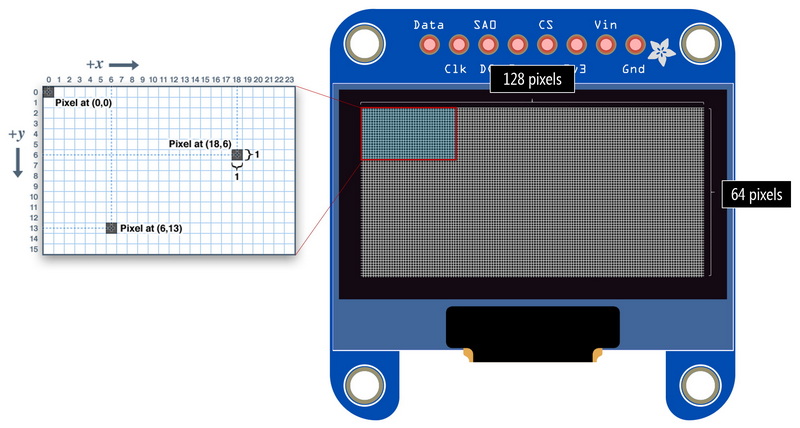

- SSD1306: A widely used controller for small OLED displays, supporting both I2C and SPI communication. It supports resolutions like 128x64 pixels.
- US2066: Typically used in character OLED modules with an 8-bit parallel interface.
- SH1106: Similar to SSD1306 but with slight differences in memory addressing.
- Others: Some modules might use proprietary or less common controllers.
Knowing your controller helps you select the right driver and communication protocol for your project.
The wiring depends heavily on the communication protocol your OLED uses. Here are the common pin functions and their typical connections to an Arduino Uno:
| OLED Pin | Function | Arduino Uno Pin | Notes |
|---|---|---|---|
| VCC | Power (+3.3V or 5V) | 5V or 3.3V | Check your OLED module voltage specs |
| GND | Ground | GND | Common ground |
| SDA | Data line (I2C) | A4 | For I2C communication |
| SCL | Clock line (I2C) | A5 | For I2C communication |
| RES | Reset | Digital Pin (e.g., 4) | Optional, some modules lack this pin |
| DC | Data/Command | Digital Pin (SPI only) | Required for SPI communication |
| CS | Chip Select | Digital Pin (SPI only) | Required for SPI communication |
| D0/D1 | SPI Clock/Data | Digital Pins 13/11 | For SPI communication |

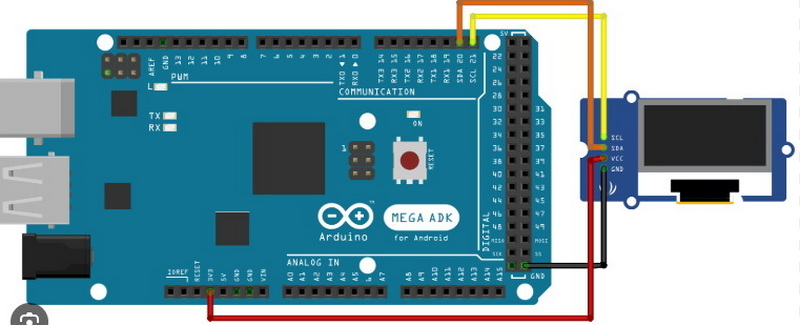

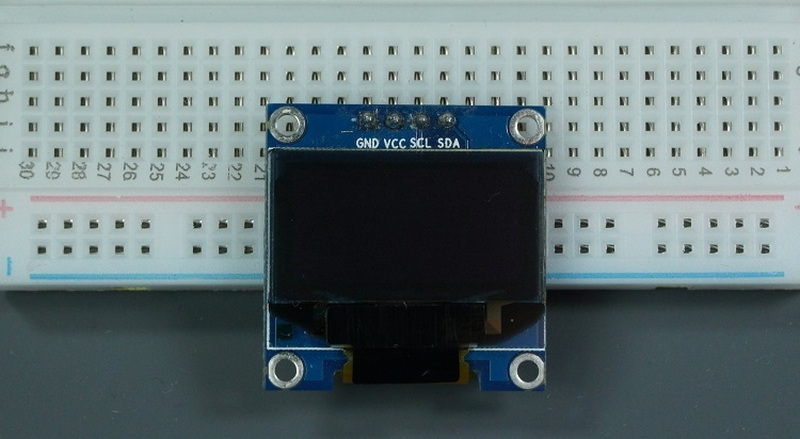

For an I2C OLED module with 8 pins, the main lines you need to connect are:
- VCC to 3.3V or 5V (based on OLED specs)
- GND to Ground
- SDA to A4
- SCL to A5
- RES to a digital pin (if available, otherwise can be omitted)
SPI OLEDs require more pins:
- VCC to 3.3V or 5V
- GND to Ground
- SCLK (D0) to Digital 13
- MOSI (D1) to Digital 11
- RES to Digital 9
- DC to Digital 8
- CS to Digital 10
Before you start coding, you need to prepare your development environment:
- Adafruit SSD1306: This library supports many SSD1306-based OLED displays.
- Adafruit GFX: Provides graphics primitives such as lines, circles, and text rendering.
- U8G2: A versatile library supporting a wide range of OLED controllers and communication protocols, including I2C, SPI, and parallel interfaces.
You can install these libraries through the Arduino IDE's Library Manager by searching for their names and clicking "Install." Keeping libraries up to date ensures compatibility and access to the latest features.
The U8G2 library is highly versatile and supports many OLED controllers and communication protocols. It also allows you to specify custom pins, which is particularly useful for 8-pin OLED modules with non-standard pinouts.
To display images on your OLED, you need to convert them into bitmap arrays. Tools like Image2cpp convert images into byte arrays compatible with Arduino code. Once converted, you can use the `drawBitmap()` function to render images.
Even with the best preparation, you may encounter problems. Here are some common issues and how to resolve them:
- Blank or No Display: Double-check wiring, especially power and ground. Confirm that SDA and SCL pins are connected correctly for I2C.
- Incorrect I2C Address: OLED modules commonly use addresses 0x3C or 0x3D. Use an I2C scanner sketch to find your module's address.
- Reset Pin Problems: If your OLED has no reset pin, set the reset parameter to -1 in your code.
- Power Supply Issues: Ensure your OLED receives the correct voltage (3.3V or 5V). Supplying incorrect voltage can damage the display.
- Library Conflicts: Ensure you are using compatible and updated libraries. Sometimes uninstalling and reinstalling libraries can fix issues.
- Flickering or Partial Display: This may be due to insufficient power or incorrect initialization parameters.
- Check the Datasheet: Always refer to the OLED module datasheet for exact pin functions and voltage requirements.
- Use Level Shifters if Needed: If your microcontroller operates at 5V and your OLED at 3.3V, use level shifters to protect the display.
- Keep Wiring Short: Long wires can cause signal degradation, especially for I2C communication.
- Test with Examples: Start with example sketches from the library to verify hardware functionality before writing custom code.
- Use Pull-Up Resistors: For I2C lines, if your OLED module does not have built-in pull-ups, add 4.7kΩ resistors on SDA and SCL lines.
Coding an 8-pin OLED screen involves understanding the pin configuration, wiring it correctly to your microcontroller, and using the appropriate libraries and code to communicate with the display. Whether your OLED uses I2C, SPI, or parallel communication, the process generally includes initializing the display, clearing the screen, drawing text or graphics, and updating the display buffer. With the comprehensive explanations and examples provided, you are now equipped to integrate an 8-pin OLED screen into your projects confidently. Experiment with different fonts, graphics, and animations to fully leverage the capabilities of your OLED module.
Check the datasheet or module markings for pin functions. If unavailable, use a multimeter to verify power pins and consult online resources or forums for your specific module.
No. I2C and SPI use different communication protocols and require different initialization and wiring. Libraries like U8G2 support both but need different constructors and pin definitions.
Most OLED modules operate at either 3.3V or 5V. Supplying the wrong voltage can damage the screen. Always verify your module's specifications before powering it.
Use an I2C scanner sketch on your Arduino. It scans the bus and reports addresses of connected devices, helping you identify your OLED's address.
- Verify all wiring connections.
- Confirm you are using the correct OLED library and display resolution.
- Check if the reset pin is correctly configured or set to -1 if not used.
- Ensure the OLED is powered with the correct voltage.
- Try running example sketches from the OLED library to isolate the issue.
