An LCD TFT module is a type of display that uses liquid crystal technology combined with thin-film transistor technology to produce images. Unlike traditional LCDs, TFT displays offer better color reproduction and faster response times, making them ideal for dynamic applications such as gaming, data visualization, and user interfaces.
1. Resolution: The resolution of a display determines how clear and detailed the images will be. Common resolutions for LCD TFT modules include 320x240 (QVGA), 480x272 (WQVGA), and 800x480 (WVGA). Higher resolutions provide sharper images but may require more processing power.
2. Size: LCD TFT modules come in various sizes, typically ranging from 1.8 inches to 7 inches or more. The size you choose will depend on your project requirements and available space.
3. Touchscreen Capability: Many LCD TFT modules come with touchscreen functionality, allowing users to interact directly with the display. This feature is particularly useful for creating user-friendly interfaces.
4. Color Depth: The color depth of a display refers to the number of colors it can display simultaneously. Most LCD TFT modules support 16-bit or 24-bit color, providing a wide range of colors for your projects.
5. Backlight: A backlight is essential for visibility in low-light conditions. Most LCD TFT modules come with built-in LED backlighting, which enhances visibility and improves the overall user experience.
There are several types of LCD TFT modules available, each suited for different applications:
- Standard TFT Displays: These are basic displays that provide good color reproduction and are suitable for most applications.
- Touchscreen TFT Displays: These displays include a capacitive or resistive touchscreen layer, allowing for direct interaction with the display.
- High-Resolution TFT Displays: These displays offer higher resolutions and are ideal for applications requiring detailed graphics, such as gaming or complex data visualization.
- Outdoor TFT Displays: Designed for outdoor use, these displays are typically brighter and more durable, making them suitable for signage and other outdoor applications.
Before purchasing an LCD TFT module, ensure that it is compatible with your Arduino board. Most modules use standard communication protocols such as SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit). Check the specifications of your Arduino board and the display module to confirm compatibility.
Library support is crucial for simplifying the programming process. Popular libraries like Adafruit GFX and TFT_eSPI provide functions for drawing shapes, text, and images on the display. Ensure that the library you choose supports your specific LCD TFT module.
Different LCD TFT modules have varying power requirements. Some may require a higher voltage or current than your Arduino can provide. Check the power specifications and consider using an external power supply if necessary.
Evaluate the display quality by considering factors such as brightness, contrast, and viewing angles. A display with high brightness and contrast will be easier to read in various lighting conditions. Additionally, check the viewing angles to ensure that the display remains clear from different perspectives.
LCD TFT modules are available at various price points. While it may be tempting to choose the cheapest option, consider the features and quality of the display. Investing in a reliable module can save you time and frustration in the long run.

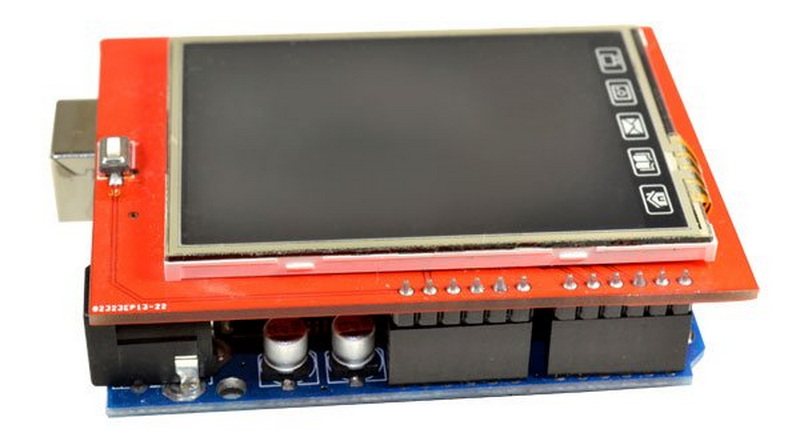

The ILI9341 is a popular 2.4-inch TFT display that offers a resolution of 240x320 pixels. It features a touchscreen interface and is compatible with various Arduino boards. The display is known for its vibrant colors and ease of use, making it a favorite among hobbyists.

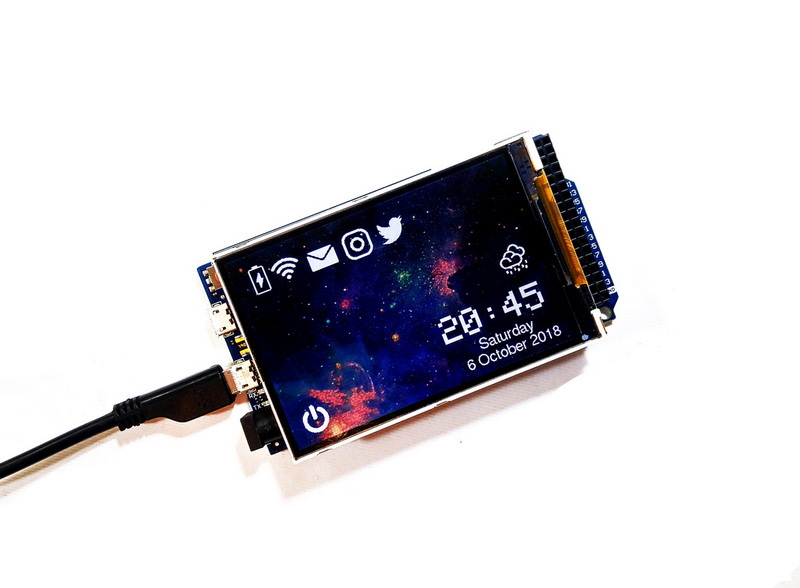

This 3.5-inch TFT display provides a resolution of 480x320 pixels and includes a touchscreen. It is widely used in Arduino projects due to its large size and excellent color reproduction. The display is suitable for creating interactive user interfaces.
For larger projects, the 5-inch TFT LCD display offers a resolution of 800x480 pixels, making it ideal for applications that require detailed graphics. It supports both SPI and parallel communication, providing flexibility in connectivity.
For larger projects, the 7-inch TFT LCD display is an excellent choice. With a resolution of 800x480 pixels, it provides ample screen real estate for displaying complex information. This display is often used in industrial applications and advanced projects.
To get started, you will need the following components:
- Arduino board (e.g., Arduino Uno, Mega, or Nano)
- LCD TFT module
- Jumper wires
- Breadboard (optional)
- Power supply (if required)
Follow the wiring diagram specific to your LCD TFT module. Generally, you will connect the display's power, ground, and communication pins to the corresponding pins on the Arduino.
Before programming, install the necessary libraries for your LCD TFT module. You can find these libraries in the Arduino IDE Library Manager. Search for libraries like Adafruit GFX and TFT_eSPI, and install them.
Upload the code to your Arduino board and observe the display. You should see the text "Hello, World!" on the screen. From here, you can expand your project by adding more graphics, user inputs, and interactive elements.
LCD TFT modules can be used in a wide range of applications, including:
- User Interfaces: Create interactive menus and controls for various devices.
- Data Visualization: Display real-time data from sensors, such as temperature, humidity, and more.
- Gaming: Develop simple games with graphics and user interaction.
- Home Automation: Control home appliances and monitor systems through a graphical interface.
- Educational Projects: Use displays in educational kits to teach programming and electronics.
One of the significant advantages of using LCD TFT modules is the ability to display graphics and animations. Libraries like Adafruit GFX allow you to draw shapes, images, and even create animations. This capability can enhance the user experience significantly, especially in applications like games or interactive displays.
If you are using a touchscreen TFT display, consider whether it supports multi-touch functionality. Multi-touch allows users to interact with the display using multiple fingers, enabling more complex interactions such as pinch-to-zoom or multi-button presses. This feature is particularly useful in applications requiring advanced user interfaces.
Many libraries allow you to use custom fonts and graphics, which can help personalize your project. You can create unique user interfaces that match the theme of your project. Tools like the GIMP or online converters can help you create bitmap images and fonts that can be used in your Arduino sketches.
When working with larger displays, power management becomes crucial. Some displays may consume significant power, especially when displaying bright colors. Consider implementing power-saving techniques, such as dimming the backlight or turning off the display when not in use, to extend battery life in portable projects.
When working with LCD TFT modules, you may encounter some common issues:
- No Display: Ensure that the wiring is correct and that the display is powered. Check the connections and ensure that the Arduino is functioning properly.
- Distorted Images: If the images or text appear distorted, verify that you are using the correct library and that the display is initialized correctly in your code.
- Touchscreen Not Responding: If the touchscreen is not responding, check the wiring and ensure that the touchscreen library is correctly implemented in your code.
Choosing the right LCD TFT module for your Arduino project involves considering various factors such as compatibility, display quality, and application requirements. By understanding the features and specifications of different modules, you can select the best display for your needs. With the right setup and programming, you can create engaging and interactive projects that leverage the power of LCD TFT technology.
TFT is a type of LCD that uses thin-film transistor technology to improve image quality and response time. All TFT displays are LCDs, but not all LCDs are TFTs.
Yes, many LCD TFT modules do not have touchscreen capabilities and can be used for displaying static information or graphics.
Popular libraries include Adafruit GFX, TFT_eSPI, and UTFT, which provide functions for drawing graphics and text on the display.
Most LCD TFT modules can be powered directly from the Arduino, but some may require an external power supply, especially larger displays.
Yes, you can use multiple displays, but you will need to manage the communication and power requirements carefully. Using multiplexing or additional microcontrollers may be necessary.
