Selecting the right TFT LCD display module for your project can be a daunting task, given the wide array of options available in the market. This comprehensive guide will walk you through the key factors to consider when choosing a TFT LCD display module, ensuring that you make an informed decision that meets your specific needs.
Before delving into the selection process, it's essential to understand what a TFT LCD is and how it works. TFT (Thin-Film Transistor) LCD (Liquid Crystal Display) technology is widely used in various electronic devices due to its ability to produce high-quality images with vibrant colors and sharp details.

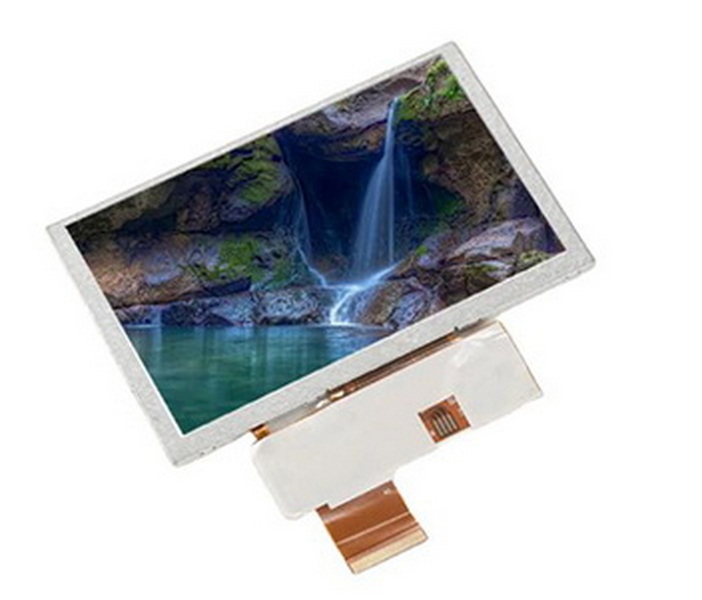

A typical TFT LCD module consists of several key components:
1. TFT Array Substrate: This layer contains the thin-film transistors that control individual pixels.
2. Color Filter Substrate: Responsible for adding color to the display using red, green, and blue filters.
3. Liquid Crystal Layer: Manipulates light to create images.
4. Backlight Unit: Provides illumination for the display.
5. Driver ICs: Control the display's operations and manage signals.
The size of the TFT LCD module is a crucial factor that depends on your application's requirements and the available space in your device. Display sizes typically range from small 1-inch modules for wearable devices to large 10-inch or more for tablets and industrial applications.
Consider the following when selecting the display size:
- Available space in your device
- Viewing distance
- User interface requirements
- Portability needs
Resolution refers to the number of pixels in the display, typically expressed as width x height (e.g., 1920x1080). Higher resolutions offer sharper images and more detailed content but may require more processing power and increase costs.
When choosing the resolution, consider:
- The type of content you'll be displaying
- The viewing distance
- Processing capabilities of your system
- Power consumption constraints
The aspect ratio is the proportional relationship between the width and height of the display. Common aspect ratios include:
- 4:3 (standard)
- 16:9 (widescreen)
- 21:9 (ultra-wide)
Select an aspect ratio that best suits your content and application requirements.
Brightness, measured in nits or cd/m², determines how visible the display content is under various lighting conditions. Higher brightness levels are essential for outdoor or brightly lit environments, while lower brightness may suffice for indoor applications.
Consider the following when selecting brightness:
- Intended usage environment (indoor, outdoor, or both)
- Power consumption (higher brightness typically requires more power)
- User comfort for extended viewing periods
The viewing angle is the maximum angle at which the display can be viewed with acceptable visual performance. Wide viewing angles are crucial for applications where the display may be viewed from various positions.
There are two main types of TFT LCD technologies with different viewing angle characteristics:
- TN (Twisted Nematic): Offers narrower viewing angles but faster response times
- IPS (In-Plane Switching): Provides wider viewing angles and better color reproduction
Choose the technology that best fits your application's requirements.
Color depth refers to the number of colors a display can produce. Common color depths include:
- 18-bit (262,144 colors)
- 24-bit (16.7 million colors)
Higher color depth results in more vibrant and accurate color reproduction but may increase costs and power consumption.
Contrast ratio is the difference between the brightest white and the darkest black that a display can produce. Higher contrast ratios result in more vivid images with better depth perception.
Consider the following when evaluating contrast ratio:
- Intended content (e.g., text, images, videos)
- Ambient lighting conditions
- Power consumption
Response time is the time it takes for a pixel to change from one color to another. Faster response times reduce motion blur and are essential for displaying fast-moving content or video.
Consider response time if your application involves:
- Video playback
- Gaming
- Real-time data visualization

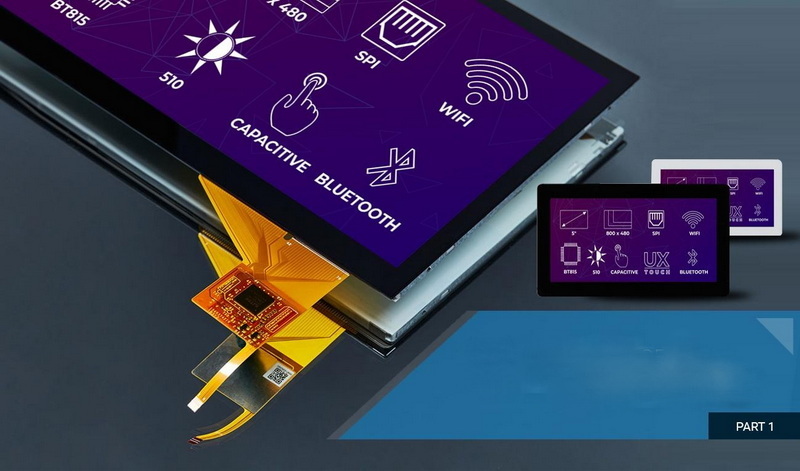

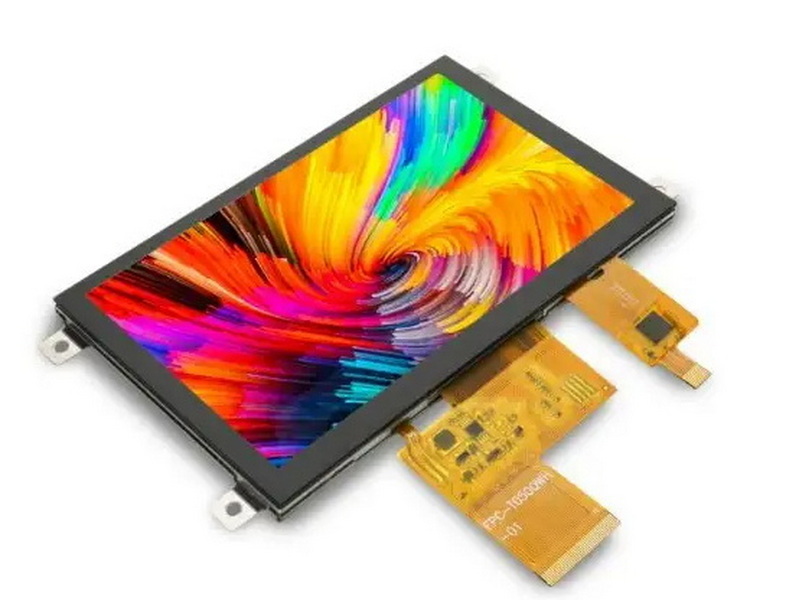

If your application requires user input through the display, consider a TFT LCD module with integrated touch functionality. There are two main types of touch technologies:
- Resistive touch: Works with any input device but offers lower sensitivity
- Capacitive touch: Provides better sensitivity and multi-touch capabilities but only works with conductive input (e.g., fingers)
Ensure that the TFT LCD module's interface is compatible with your system's capabilities. Common interfaces include:
- RGB
- MIPI
- LVDS
- SPI
- I2C
Consider factors such as data transfer rates, power consumption, and ease of integration when selecting the interface.
Power consumption is a critical factor, especially for battery-powered devices. Consider the following to optimize power usage:
- Display size and resolution
- Brightness settings
- Backlight technology (e.g., LED, CCFL)
- Power-saving features (e.g., partial display modes)
Ensure that the TFT LCD module can operate reliably within the temperature range of your intended application environment. This is particularly important for industrial or outdoor applications that may experience extreme temperatures.
Consider the durability requirements of your application, such as:
- Shock and vibration resistance
- Humidity and dust protection
- UV resistance for outdoor applications
Look for modules with appropriate IP (Ingress Protection) ratings or ruggedized designs if needed.
Balance the features and performance of the TFT LCD module with your budget constraints. Consider the total cost of ownership, including:
- Initial module cost
- Integration costs
- Long-term maintenance and replacement costs
Choose a TFT LCD module from a reputable manufacturer that offers:
- Long-term availability
- Technical support
- Documentation and resources
- Customization options if needed
Selecting the right TFT LCD display module requires careful consideration of various factors, including size, resolution, brightness, viewing angle, touch functionality, and more. By thoroughly evaluating these aspects based on your specific application requirements, you can choose a module that not only meets your current needs but also provides room for future growth and development.
Remember that the best choice often involves balancing performance, features, and cost. Don't hesitate to consult with display module manufacturers or experts to ensure you make the most informed decision for your project.
1. TN (Twisted Nematic) displays offer faster response times and are generally less expensive, but have limited viewing angles and lower color accuracy.
2. IPS (In-Plane Switching) displays provide wider viewing angles and better color reproduction but may be more expensive and have slightly slower response times.
3. Choose TN for applications prioritizing speed and cost, and IPS for those requiring better visual quality and wider viewing angles.
1. Higher brightness levels typically result in increased power consumption.
2. The relationship between brightness and power consumption is usually linear.
3. To optimize power usage, consider implementing automatic brightness adjustment based on ambient light conditions.
4. LED backlights are generally more energy-efficient than older CCFL (Cold Cathode Fluorescent Lamp) technology.
5. Some modules offer power-saving modes that reduce brightness in certain conditions to conserve energy.
1. Touch screen functionality is not always required and depends on the specific application.
2. Non-touch TFT LCD modules are available for applications that don't need user input through the display.
3. Consider alternative input methods (e.g., buttons, keyboards) if touch functionality is not essential.
4. Touch screen modules may increase cost and complexity, so evaluate if the benefits outweigh these factors.
5. Some applications may benefit from a combination of touch and non-touch displays for different functions.
1. Consider the type of content you'll be displaying (text, images, videos, etc.).
2. Evaluate the viewing distance – higher resolutions are more beneficial for closer viewing.
3. Assess your system's processing capabilities, as higher resolutions require more computational power.
4. Balance resolution with power consumption, especially for battery-powered devices.
5. Consider industry standards or user expectations for similar applications in your field.
1. Compatibility with your system's hardware and software capabilities.
2. Data transfer rates required for your application (e.g., video playback, real-time updates).
3. Power consumption of different interfaces.
4. Ease of integration and available driver support.
5. Future-proofing – consider interfaces that allow for potential upgrades or changes in your system.
